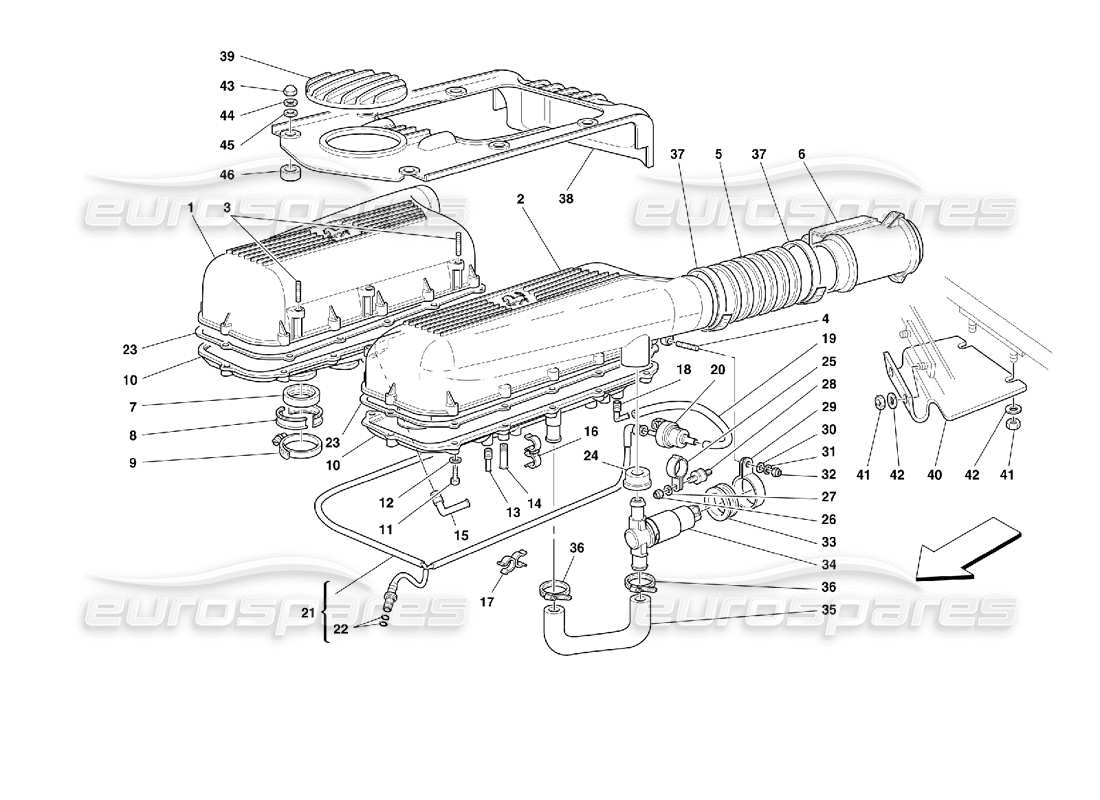

Ferrari 355 (2.7 Motronic) Air Boxes Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                              #
                                                                              Part number
                                                                              Description
                                                                              Price
                                                                              # 000
                                                                              MPN: 163645
                                                                              COMPLETE RH AIR FEEDING PLENUM CHAMBER AND COVER
                                                                              from £1,447.49
                                                                              from £1,447.49
                                                                              This part replaces part number 158029
                                                                              # 000
                                                                              MPN: 163646
                                                                              COMPLETE LH AIR FEEDING PLENUM CHAMBER AND COVER
                                                                              from £483.58
                                                                              from £483.58
                                                                              This part replaces part number 158030 - and 1 more. Click to view details
                                                                              # 001
                                                                              MPN: 157673

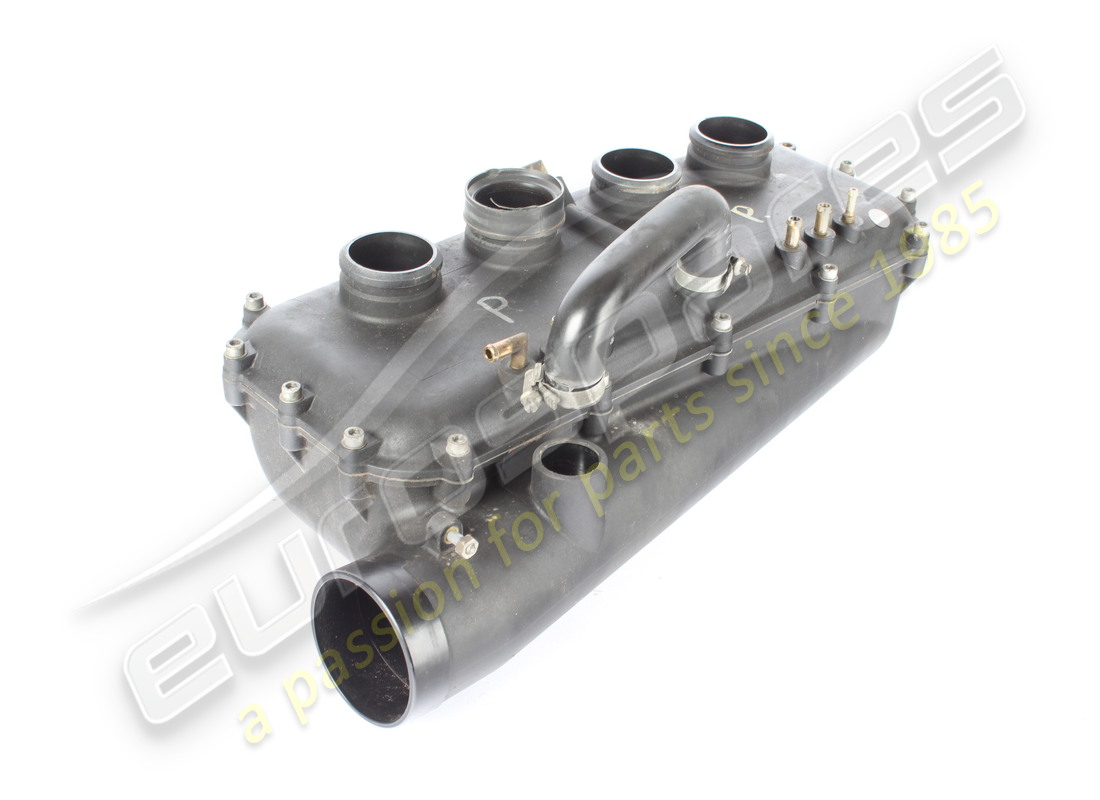

                                                                              RH AIR FEEDING PLENUM CHAMBER
                                                                              -Not as spare part now - With the assembly 163645
                                                                              Supersession
                                                                              Supersession
                                                                              # 002
                                                                              MPN: 157702
                                                                              LH AIR FEEDING PLENUM CHAMBER
                                                                              -Not as spare part now - With the assembly 163646
                                                                              Supersession
                                                                              Supersession
                                                                              # 003
                                                                              MPN: 11500724
                                                                              STUD
                                                                              from £0.72
                                                                              from £0.72
                                                                              # 004
                                                                              MPN: 13540824
                                                                              STUD
                                                                              from £14.21
                                                                              from £14.21
                                                                              This part replaces part number 13540821
                                                                              # 005
                                                                              MPN: 170917
                                                                              SLEEVE
                                                                              from £41.21
                                                                              from £41.21
                                                                              # 006
                                                                              MPN: 154916
                                                                              AIR FLOW METER
                                                                              from £895.00
                                                                              from £895.00
                                                                              This part replaces part number 138403 - and 2 more. Click to view details
                                                                              # 007
                                                                              MPN: 145643
                                                                              GASKET
                                                                              from £8.64
                                                                              from £8.64
                                                                              # 008
                                                                              MPN: 145644
                                                                              SEMI-RING
                                                                              -Valid till stock exhaustion
                                                                              from £5.22
                                                                              from £5.22
                                                                              # 008
                                                                              MPN: 169452
                                                                              SEMI-RING
                                                                              -Valid after stock axaustion of 145644
                                                                              from £5.80
                                                                              from £5.80
                                                                              This part replaces part number 145644 which we have in stock - and 1 more. Click to view details
                                                                              # 009
                                                                              MPN: 145645
                                                                              CLAMP
                                                                              from £2.63
                                                                              from £2.63
                                                                              # 010
                                                                              MPN: 157582
                                                                              LOWER COVER
                                                                              -Not as spare part now - With the assembly 163645 and 163646
                                                                              from £330.98
                                                                              from £330.98
                                                                              # 011
                                                                              MPN: 14305424
                                                                              SCREW
                                                                              from £0.47
                                                                              from £0.47
                                                                              This part replaces part number 14305421 - and 2 more. Click to view details
                                                                              # 012
                                                                              MPN: 12601274
                                                                              WASHER
                                                                              from £0.47
                                                                              from £0.47
                                                                              This part replaces part number 12601221 - and 5 more. Click to view details
                                                                              # 013
                                                                              MPN: 160846
                                                                              UNION
                                                                              from £2.83
                                                                              from £2.83
                                                                              # 014
                                                                              MPN: 129808
                                                                              UNION
                                                                              from £2.47
                                                                              from £2.47
                                                                              # 015
                                                                              MPN: 153926
                                                                              UNION
                                                                              from £22.86
                                                                              from £22.86
                                                                              # 016
                                                                              MPN: 139966
                                                                              FLEXIBLE CLIP
                                                                              from £0.47
                                                                              from £0.47
                                                                              # 017
                                                                              MPN: 160014
                                                                              FLEXIBLE CLIP
                                                                              from £0.71
                                                                              from £0.71
                                                                              # 018
                                                                              MPN: 160829
                                                                              UNION
                                                                              from £61.66
                                                                              from £61.66
                                                                              # 019
                                                                              MPN: 114879
                                                                              HOSE
                                                                              Supersession
                                                                              Supersession
                                                                              This part replaces part number 114877 - and 1 more. Click to view details
                                                                              # 019
                                                                              MPN: 154708
                                                                              RUBBER HOSE
                                                                              -Valid till engine Nr.38150
                                                                              Supersession
                                                                              Supersession
                                                                              This part replaces part number 149612
                                                                              # 019
                                                                              MPN: 165568
                                                                              RUBBER HOSE
                                                                              -Valid from engine Nr.38151 and till stock exhaustion
                                                                              Supersession
                                                                              Supersession
                                                                              # 020
                                                                              MPN: 130978

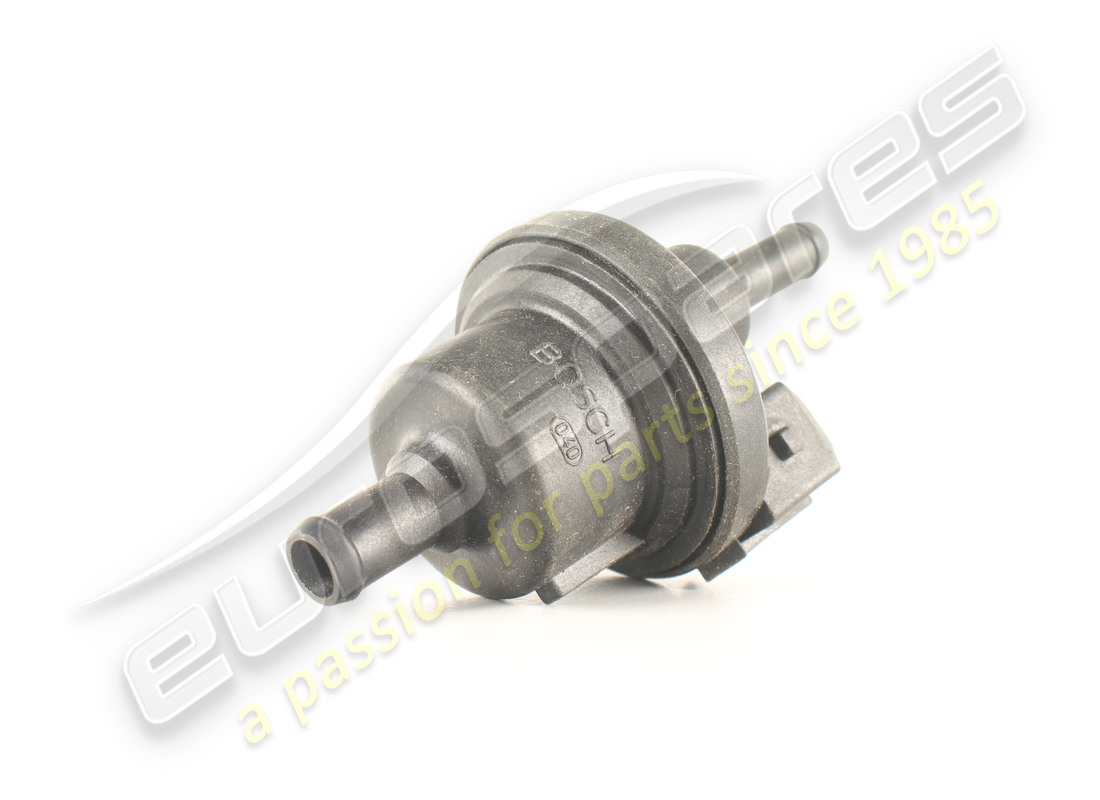

                                                                              ANTI-EVAPORATION VALVE
                                                                              from £268.99
                                                                              from £268.99
                                                                              # 021
                                                                              MPN: 160689
                                                                              ANTI-EVAPORATION PIPE TO PIPE FROM VAPOR FILTER
                                                                              from £80.67
                                                                              from £80.67
                                                                              # 022
                                                                              MPN: 133956
                                                                              O.R. GASKET
                                                                              from £0.81
                                                                              from £0.81
                                                                              # 023
                                                                              MPN: 153381
                                                                              GASKET
                                                                              -With 16 fixing points
                                                                              from £14.51
                                                                              from £14.51
                                                                              # 023
                                                                              MPN: 166438
                                                                              GASKET
                                                                              -With 12 fixing points
                                                                              from £8.94
                                                                              from £8.94
                                                                              # 024
                                                                              MPN: 147898
                                                                              SLEEVE
                                                                              from £18.86
                                                                              from £18.86
                                                                              # 025
                                                                              MPN: 147923
                                                                              CLAMP
                                                                              from £0.98
                                                                              from £0.98
                                                                              # 026
                                                                              MPN: 10718025
                                                                              NUT
                                                                              Supersession
                                                                              Supersession
                                                                              # 027
                                                                              MPN: 127493
                                                                              WASHER
                                                                              from £0.51
                                                                              from £0.51
                                                                              This part replaces part number 106849 - and 1 more. Click to view details
                                                                              # 028
                                                                              MPN: 148835
                                                                              PAD
                                                                              from £7.70
                                                                              from £7.70
                                                                              # 029
                                                                              MPN: 157808
                                                                              BRACKET
                                                                              from £1.21
                                                                              from £1.21
                                                                              # 030
                                                                              MPN: 14496401
                                                                              WASHER
                                                                              Supersession
                                                                              Supersession
                                                                              # 031
                                                                              MPN: 127494
                                                                              WASHER
                                                                              (minimum order quantity = 20)
                                                                              from £0.53
                                                                              from £0.53
                                                                              This part replaces part number 10516470 - and 4 more. Click to view details
                                                                              # 032
                                                                              MPN: 15896211
                                                                              NUT
                                                                              Supersession
                                                                              Supersession
                                                                              This part replaces part number 15896210
                                                                              # 033
                                                                              MPN: 150736
                                                                              SHEATH
                                                                              from £3.81
                                                                              from £3.81
                                                                              # 034
                                                                              MPN: 147373
                                                                              REGULATOR FOR IDLE ADJUSTMENT
                                                                              from £441.30
                                                                              from £441.30
                                                                              # 035
                                                                              MPN: 157810
                                                                              PIPE
                                                                              from £28.91
                                                                              from £28.91
                                                                              # 036
                                                                              MPN: 13000490
                                                                              SCREW COLLAR
                                                                              from £0.51
                                                                              from £0.51
                                                                              This part replaces part number 10169090 - and 3 more. Click to view details
                                                                              # 037
                                                                              MPN: 13001090
                                                                              SCREW COLLAR
                                                                              from £0.83
                                                                              from £0.83
                                                                              This part replaces part number 12174990 - and 2 more. Click to view details
                                                                              # 039
                                                                              MPN: 159519
                                                                              SHIELD COVER
                                                                              -Valid for mechanical steering box cars
                                                                              from £61.12
                                                                              from £61.12
                                                                              # 040
                                                                              MPN: 160475
                                                                              RH SHIELD FOR AIR FLOW METER PROTECTION
                                                                              from £125.82
                                                                              from £125.82
                                                                              # 040
                                                                              MPN: 160476
                                                                              LH SHIELD FOR AIR FLOW METER PROTECTION
                                                                              from £213.02
                                                                              from £213.02
                                                                              # 041
                                                                              MPN: 113647
                                                                              NUT
                                                                              from £0.51
                                                                              from £0.51
                                                                              # 042
                                                                              MPN: 12638101
                                                                              WASHER
                                                                              from £0.71
                                                                              from £0.71
                                                                              # 043
                                                                              MPN: 100044
                                                                              NUT
                                                                              from £0.26
                                                                              from £0.26
                                                                              This part replaces part number 151230 - and 1 more. Click to view details
                                                                              # 044
                                                                              MPN: 113113
                                                                              WASHER
                                                                              from £4.35
                                                                              from £4.35
                                                                              # 045
                                                                              MPN: 14496401
                                                                              WASHER
                                                                              Supersession
                                                                              Supersession
                                                                              # 046
                                                                              MPN: 159518
                                                                              SPACER
                                                                              -Valid for mechanical steering box cars
                                                                              from £12.22
                                                                              from £12.22
                                                                              Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
