142 - Glass Washer and Horns

Ferrari 348 (2.7 Motronic) Glass Washer and Horns Parts Diagram

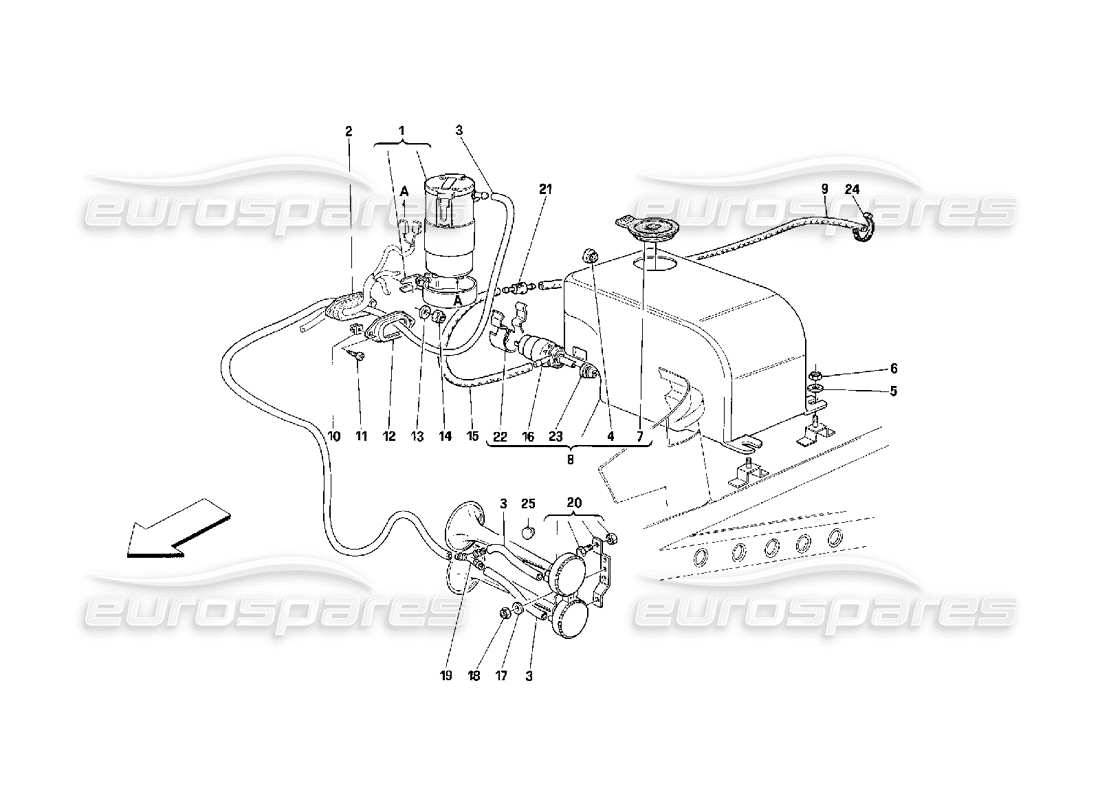

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                  #
                                                  Part number
                                                  Description
                                                  Price
                                                  # 001
                                                  MPN: 225757
                                                  COMPLETE HORN COMPRESSOR
                                                  from £135.48
                                                  from £135.48
                                                  This part replaces part number 139920
                                                  # 002
                                                  MPN: 154759
                                                  TIGHTENING GASKET
                                                  from £6.51
                                                  from £6.51
                                                  # 003
                                                  MPN: 142200
                                                  CONNECTION FROM COMPRESSOR TO HORNS
                                                  from £5.09
                                                  from £5.09
                                                  # 004
                                                  MPN: 63291000
                                                  CAP FOR GLASS WASHER BAG
                                                  from £0.81
                                                  from £0.81
                                                  # 005
                                                  MPN: 12647701
                                                  WASHER
                                                  from £0.47
                                                  from £0.47
                                                  # 006
                                                  MPN: 12574211
                                                  NUT
                                                  from £0.71
                                                  from £0.71
                                                  # 007
                                                  MPN: 63291100
                                                  GLASS WASHER BAG PLUG
                                                  from £2.06
                                                  from £2.06
                                                  # 008
                                                  MPN: 62536400
                                                  COMPLETE WINDSHIELD WIPER CONTAINER
                                                  from £52.50
                                                  from £52.50
                                                  # 009
                                                  MPN: 62834400
                                                  PIPE FROM VALVE TO UNION
                                                  from £11.90
                                                  from £11.90
                                                  # 010
                                                  MPN: 14211686
                                                  BLOCK
                                                  from £0.47
                                                  from £0.47
                                                  # 011
                                                  MPN: 15517201
                                                  SCREW
                                                  from £0.53
                                                  from £0.53
                                                  # 012
                                                  MPN: 139943
                                                  GASKET GUARD
                                                  from £41.90
                                                  from £41.90
                                                  # 013
                                                  MPN: 12646724
                                                  WASHER
                                                  from £0.47
                                                  from £0.47
                                                  This part replaces part number 12601571 which we have in stock - and 2 more. Click to view details
                                                  # 014
                                                  MPN: 104030
                                                  SELF LOCKING NUT
                                                  from £0.47
                                                  from £0.47
                                                  This part replaces part number 16104125
                                                  # 015
                                                  MPN: 62829000
                                                  PIPE FROM PUMP TO VALVE
                                                  from £1.54
                                                  from £1.54
                                                  # 017
                                                  MPN: 12643701
                                                  WASHER
                                                  Supersession
                                                  Supersession
                                                  This part replaces part number 12643704 - and 1 more. Click to view details
                                                  # 018
                                                  MPN: 12574211
                                                  NUT
                                                  from £0.71
                                                  from £0.71
                                                  # 019
                                                  MPN: 60741100
                                                  3 WAYS UNION
                                                  from £0.47
                                                  from £0.47
                                                  This part replaces part number 61741100
                                                  # 020
                                                  MPN: 162304
                                                  ELECTRO PNEUMATIC HORN
                                                  - Valid for CH
                                                  from £18.95
                                                  from £18.95
                                                  # 020
                                                  MPN: 189428
                                                  ELECTRO PNEUMATIC HORN
                                                  - Not for CH
                                                  from £33.74
                                                  from £33.74
                                                  This part replaces part number 10665500 which we have in stock - and 3 more. Click to view details
                                                  # 021
                                                  MPN: 50332402
                                                  NONRETURN VALVE
                                                  from £36.68
                                                  from £36.68
                                                  # 022
                                                  MPN: 63290800
                                                  PUMP FASTENING SPRING
                                                  from £13.20
                                                  from £13.20
                                                  # 023
                                                  MPN: 63290900
                                                  BUSH
                                                  from £0.80
                                                  from £0.80
                                                  # 024
                                                  MPN: 145855
                                                  CLAMP
                                                  from £0.53
                                                  from £0.53
                                                  This part replaces part number 14560287 - and 1 more. Click to view details
                                                  # 025
                                                  MPN: 139521
                                                  PLUG
                                                  from £0.47
                                                  from £0.47
                                                  Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
