-Valid for Spider-
ferrari 348 (2.7 motronic) top parts diagram

114 - Top

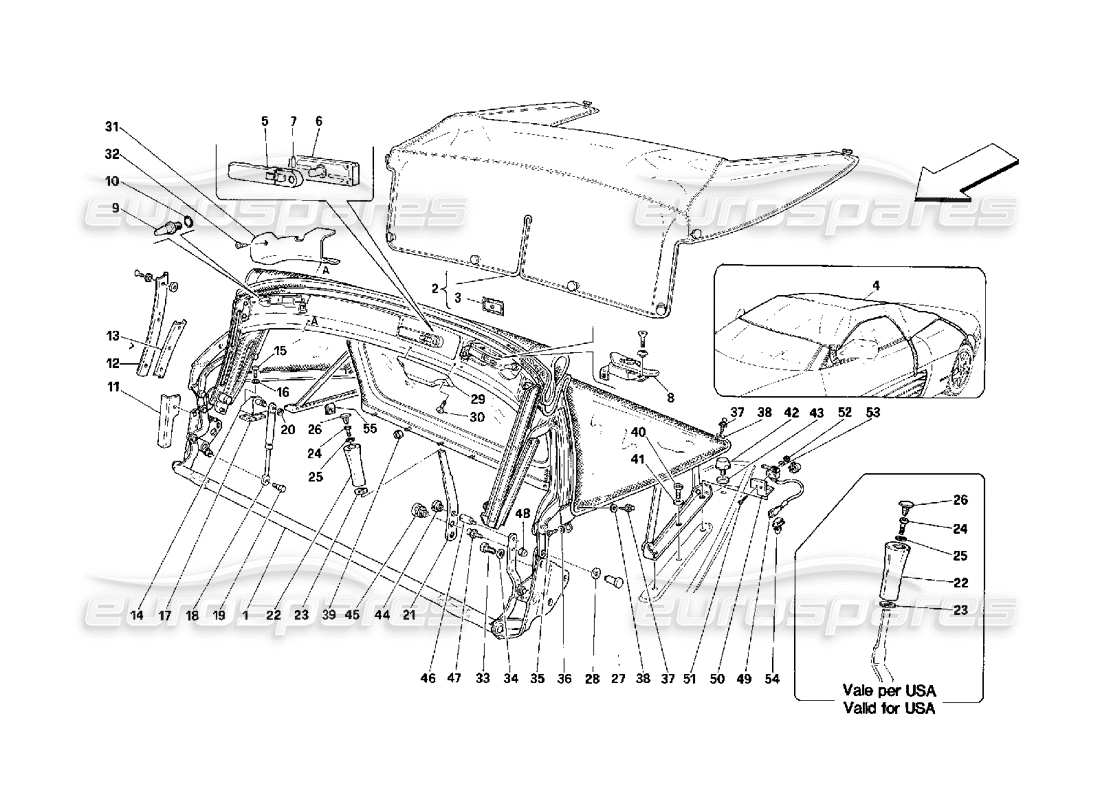

Ferrari 348 (2.7 Motronic) Top Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                #
                                                                                                Part number
                                                                                                Description
                                                                                                Price
                                                                                                # 001
                                                                                                MPN: 63639400
                                                                                                COMPLETE TOP
                                                                                                - Valid for USA - Blue
                                                                                                from £9,765.57
                                                                                                from £9,765.57
                                                                                                # 001
                                                                                                MPN: 63639450
                                                                                                COMPLETE TOP
                                                                                                - Valid for USA - Black
                                                                                                # 001
                                                                                                MPN: 64248900
                                                                                                COMPLETE TOP IN BLACK
                                                                                                - Not for USA and GD -
                                                                                                from £6,155.88
                                                                                                from £6,155.88
                                                                                                # 001
                                                                                                MPN: 64248950
                                                                                                COMPLETE TOP
                                                                                                - Not for USA and GD - Black
                                                                                                from £5,103.13
                                                                                                from £5,103.13
                                                                                                # 001
                                                                                                MPN: 64274900
                                                                                                COMPLETE TOP
                                                                                                - Valid for GD - Blue
                                                                                                from £5,244.75
                                                                                                from £5,244.75
                                                                                                # 001
                                                                                                MPN: 64274950
                                                                                                COMPLETE TOP + FRAME IN BLACK
                                                                                                - Valid for GD
                                                                                                # 002
                                                                                                MPN: 63961200
                                                                                                TOP COVER COMPLETE OF TOP COVER BAG
                                                                                                - Valid for USA
                                                                                                from £3,878.97
                                                                                                from £3,878.97
                                                                                                # 002
                                                                                                MPN: 64289700
                                                                                                TOP COVER COMPLETE OF TOP COVER BAG
                                                                                                - Not for USA
                                                                                                from £1,544.67
                                                                                                from £1,544.67
                                                                                                # 002
                                                                                                MPN: 64289704
                                                                                                ROOF COVER
                                                                                                Crema
                                                                                                from £1,732.50
                                                                                                from £1,732.50
                                                                                                # 003
                                                                                                MPN: 63239500
                                                                                                button
                                                                                                from £7.15
                                                                                                from £7.15
                                                                                                # 004
                                                                                                MPN: 63685100
                                                                                                TONNEAU COVER
                                                                                                from £2,059.13
                                                                                                from £2,059.13
                                                                                                # 005
                                                                                                MPN: 63689000
                                                                                                HANDLE FOR TOP
                                                                                                from £137.08
                                                                                                from £137.08
                                                                                                # 006
                                                                                                MPN: 63966100
                                                                                                COMPLETE CONTROL BLOCK BOX
                                                                                                from £289.99
                                                                                                from £289.99
                                                                                                # 007
                                                                                                MPN: 63990900
                                                                                                PIN
                                                                                                from £28.45
                                                                                                from £28.45
                                                                                                # 008
                                                                                                MPN: 63614100
                                                                                                LH TOP CLOSING HOOK
                                                                                                from £476.35
                                                                                                from £476.35
                                                                                                # 008
                                                                                                MPN: 63614200
                                                                                                RH TOP CLOSING HOOK
                                                                                                from £261.99
                                                                                                from £261.99
                                                                                                # 009
                                                                                                MPN: 64220200
                                                                                                CENTERING CONE
                                                                                                from £26.68
                                                                                                from £26.68
                                                                                                # 010
                                                                                                MPN: 123622
                                                                                                O.R. GASKET
                                                                                                from £0.79
                                                                                                from £0.79
                                                                                                # 011
                                                                                                MPN: 63920500
                                                                                                RH PLATE SHIELD
                                                                                                from £11.61
                                                                                                from £11.61
                                                                                                # 011
                                                                                                MPN: 63920600
                                                                                                LH PLATE SHIELD
                                                                                                from £11.61
                                                                                                from £11.61
                                                                                                # 012
                                                                                                MPN: 63613200
                                                                                                RH FRONT RUBBER HOLDER PROFILE
                                                                                                from £121.61
                                                                                                from £121.61
                                                                                                # 012
                                                                                                MPN: 63613400
                                                                                                LH FRONT RUBBER HOLDER PROFILE
                                                                                                from £105.75
                                                                                                from £105.75
                                                                                                # 013
                                                                                                MPN: 63612700
                                                                                                RH REAR RUBBER HOLDER PROFILE
                                                                                                from £40.66
                                                                                                from £40.66
                                                                                                # 013
                                                                                                MPN: 63612800
                                                                                                LH REAR RUBBER HOLDER PROFILE
                                                                                                from £20.33
                                                                                                from £20.33
                                                                                                # 014
                                                                                                MPN: 63606300
                                                                                                RH GAS SPRING CONNECTION
                                                                                                from £35.46
                                                                                                from £35.46
                                                                                                # 014
                                                                                                MPN: 63634200
                                                                                                LH GAS SPRING CONNECTION
                                                                                                from £44.60
                                                                                                from £44.60
                                                                                                # 015
                                                                                                MPN: 60801600
                                                                                                SCREW
                                                                                                from £0.47
                                                                                                from £0.47
                                                                                                # 016
                                                                                                MPN: 10569273
                                                                                                WASHER
                                                                                                Supersession
                                                                                                Supersession
                                                                                                # 017
                                                                                                MPN: 63940900
                                                                                                THICKNESS
                                                                                                from £1.85
                                                                                                from £1.85
                                                                                                # 018
                                                                                                MPN: 63606400
                                                                                                GAS SPRING
                                                                                                from £30.76
                                                                                                from £30.76
                                                                                                # 019
                                                                                                MPN: 63614600
                                                                                                SCREW
                                                                                                from £10.87
                                                                                                from £10.87
                                                                                                # 020
                                                                                                MPN: 11087876
                                                                                                FLEXIBLE RING
                                                                                                from £0.47
                                                                                                from £0.47
                                                                                                # 021
                                                                                                MPN: 64249300
                                                                                                HANDLE LEVER
                                                                                                - Not for USA
                                                                                                from £410.60
                                                                                                from £410.60
                                                                                                # 022
                                                                                                MPN: 63989900
                                                                                                TOP LIFTING HANDLE
                                                                                                from £213.04
                                                                                                from £213.04
                                                                                                # 023
                                                                                                MPN: 63990100
                                                                                                HANDLE END PLATE
                                                                                                from £70.00
                                                                                                from £70.00
                                                                                                # 025
                                                                                                MPN: 10615274
                                                                                                WASHER
                                                                                                from £0.47
                                                                                                from £0.47
                                                                                                This part replaces part number 10615270 - and 2 more. Click to view details
                                                                                                # 026
                                                                                                MPN: 63929300
                                                                                                PLUG FOR HANDLE
                                                                                                from £0.47
                                                                                                from £0.47
                                                                                                # 027
                                                                                                MPN: 63639500
                                                                                                PIN MM. 23
                                                                                                from £14.14
                                                                                                from £14.14
                                                                                                # 027
                                                                                                MPN: 63639600
                                                                                                PIN MM. 18
                                                                                                from £7.49
                                                                                                from £7.49
                                                                                                # 027
                                                                                                MPN: 63639700
                                                                                                PIN MM. 27
                                                                                                from £14.76
                                                                                                from £14.76
                                                                                                # 027
                                                                                                MPN: 63639800
                                                                                                PIN MM. 21
                                                                                                from £14.14
                                                                                                from £14.14
                                                                                                # 027
                                                                                                MPN: 63678400
                                                                                                PIN MM. 25
                                                                                                from £75.32
                                                                                                from £75.32
                                                                                                # 027
                                                                                                MPN: 63678500
                                                                                                PIN MM. 33
                                                                                                from £13.87
                                                                                                from £13.87
                                                                                                # 028
                                                                                                MPN: 63639900
                                                                                                WASHER, THICKNESS MM. 1,3
                                                                                                from £3.14
                                                                                                from £3.14
                                                                                                # 028
                                                                                                MPN: 63640000
                                                                                                WASHER, THICKNESS MM.1,8
                                                                                                from £1.20
                                                                                                from £1.20
                                                                                                # 029
                                                                                                MPN: 64243400
                                                                                                TOP LIFTING HANDLE
                                                                                                from £17.09
                                                                                                from £17.09
                                                                                                # 030
                                                                                                MPN: 60702800
                                                                                                SCREW
                                                                                                from £0.53
                                                                                                from £0.53
                                                                                                # 031
                                                                                                MPN: 64252900
                                                                                                RH LATERAL MOULDING
                                                                                                from £125.35
                                                                                                from £125.35
                                                                                                # 031
                                                                                                MPN: 64254100
                                                                                                LH LATERAL MOULDING
                                                                                                from £130.91
                                                                                                from £130.91
                                                                                                # 032
                                                                                                MPN: 15690678
                                                                                                SCREW MM. 13
                                                                                                from £0.47
                                                                                                from £0.47
                                                                                                # 032
                                                                                                MPN: 15909478
                                                                                                SCREW MM. 19
                                                                                                from £0.47
                                                                                                from £0.47
                                                                                                # 033
                                                                                                MPN: 63936600
                                                                                                SCREW
                                                                                                from £0.76
                                                                                                from £0.76
                                                                                                # 034
                                                                                                MPN: 12642078
                                                                                                WASHER
                                                                                                from £0.51
                                                                                                from £0.51
                                                                                                This part replaces part number 12642006 which we have in stock
                                                                                                # 035
                                                                                                MPN: 15902678
                                                                                                SCREW
                                                                                                from £0.54
                                                                                                from £0.54
                                                                                                # 036
                                                                                                MPN: 14496277
                                                                                                WASHER
                                                                                                from £0.47
                                                                                                from £0.47
                                                                                                # 037
                                                                                                MPN: 60271806
                                                                                                SCREW TAP
                                                                                                from £10.84
                                                                                                from £10.84
                                                                                                This part replaces part number 61632100
                                                                                                # 038
                                                                                                MPN: 61195300
                                                                                                WASHER
                                                                                                from £0.71
                                                                                                from £0.71
                                                                                                # 039
                                                                                                MPN: 14058311
                                                                                                NUT
                                                                                                from £0.47
                                                                                                from £0.47
                                                                                                # 040
                                                                                                MPN: 63936600
                                                                                                SCREW
                                                                                                from £0.76
                                                                                                from £0.76
                                                                                                # 041
                                                                                                MPN: 12646778
                                                                                                WASHER
                                                                                                from £0.53
                                                                                                from £0.53
                                                                                                This part replaces part number 156093
                                                                                                # 042
                                                                                                MPN: 62167300
                                                                                                STOP BUFFER
                                                                                                Supersession
                                                                                                Supersession
                                                                                                # 043
                                                                                                MPN: 62167200
                                                                                                WASHER
                                                                                                from £0.71
                                                                                                from £0.71
                                                                                                # 044
                                                                                                MPN: 64372200
                                                                                                BUSHING
                                                                                                - Not for USA
                                                                                                from £7.54
                                                                                                from £7.54
                                                                                                # 045
                                                                                                MPN: 60727200
                                                                                                FEMALE BUTTON
                                                                                                - Not for USA
                                                                                                from £19.73
                                                                                                from £19.73
                                                                                                This part replaces part number 60084506
                                                                                                # 046
                                                                                                MPN: 64372100
                                                                                                PIN
                                                                                                - Not for USA
                                                                                                from £41.75
                                                                                                from £41.75
                                                                                                # 047
                                                                                                MPN: 60084407
                                                                                                SCREW TAP
                                                                                                - Not for USA
                                                                                                from £3.23
                                                                                                from £3.23
                                                                                                # 048
                                                                                                MPN: 64372300
                                                                                                NUT
                                                                                                - Not for USA
                                                                                                from £3.91
                                                                                                from £3.91
                                                                                                # 049
                                                                                                MPN: 154763
                                                                                                MICRO SWITCH
                                                                                                from £50.28
                                                                                                from £50.28
                                                                                                # 050
                                                                                                MPN: 63943900
                                                                                                MICRO SWITCH FIXING BRACKET
                                                                                                from £6.44
                                                                                                from £6.44
                                                                                                # 051
                                                                                                MPN: 63992900
                                                                                                SCREW
                                                                                                from £0.47
                                                                                                from £0.47
                                                                                                # 052
                                                                                                MPN: 63693800
                                                                                                NUT
                                                                                                from £0.47
                                                                                                from £0.47
                                                                                                # 053
                                                                                                MPN: 63693700
                                                                                                WASHER
                                                                                                from £0.47
                                                                                                from £0.47
                                                                                                # 054
                                                                                                MPN: 144036
                                                                                                CLIP
                                                                                                from £0.47
                                                                                                from £0.47
                                                                                                # 055
                                                                                                MPN: 14189874
                                                                                                CLIP FOR SCREW
                                                                                                Supersession
                                                                                                Supersession
