-Not for Spider-
ferrari 348 (2.7 motronic) passengers compartment carpets parts diagram

109 - passengers compartment carpets

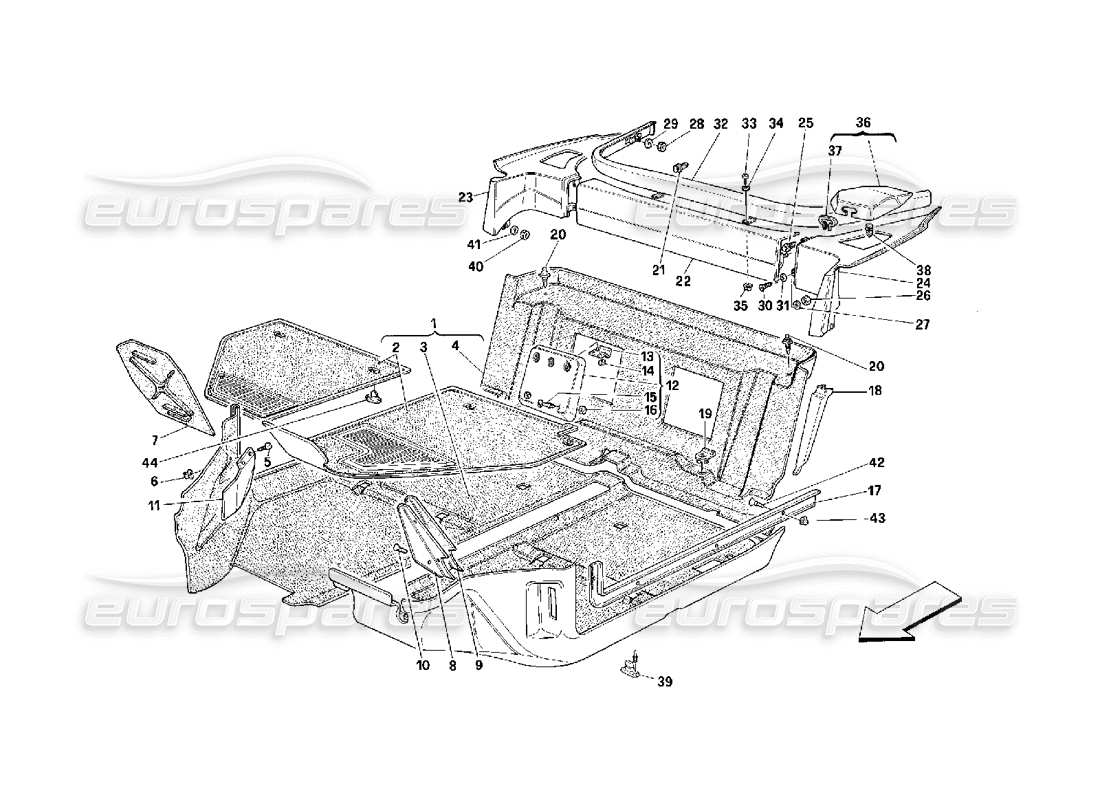

Ferrari 348 (2.7 Motronic) Passengers Compartment Carpets Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                            #
                                                            Part number
                                                            Description
                                                            Price
                                                            # 000
                                                            MPN: 1000517
                                                            COMPLETE OVERMATS SET IN BLACK
                                                            from £162.29
                                                            from £162.29
                                                            # 000
                                                            MPN: 1000559
                                                            COMPLETE CARPET SET IN BLACK (LEFT HAND DRIVE)
                                                            from £885.15
                                                            from £885.15
                                                            # 000
                                                            MPN: 1000708
                                                            COMPLETE CARPETS SERIES
                                                            - Valid for 348 GTB - LHD - Red
                                                            from £2,091.93
                                                            from £2,091.93
                                                            # 000
                                                            MPN: 63348893
                                                            Carpet set
                                                            -Not for GD - Dark Brown
                                                            from £440.78
                                                            from £440.78
                                                            This part replaces part number 633488..
                                                            # 000
                                                            MPN: 95999011
                                                            Carpet set
                                                            from £135.68
                                                            from £135.68
                                                            # 002
                                                            MPN: 632998..
                                                            PILOT/PASSENGER MOVABLE CARPETS
                                                            -Valid for RHD ..colour code required
                                                            Supersession
                                                            Supersession
                                                            # 002
                                                            MPN: 63299890
                                                            PILOT/PASSENGER MOVABLE CARPETS
                                                            RHD - Black
                                                            from £383.40
                                                            from £383.40
                                                            This part replaces part number 632998..
                                                            # 002
                                                            MPN: 644487..
                                                            PILOT/PASSENGER MOVABLE CARPETS
                                                            Supersession
                                                            Supersession
                                                            # 002
                                                            MPN: 95999610
                                                            LHD OVERMATS SET
                                                            - Not for GD - CASTRO (Biscuit)
                                                            # 005
                                                            MPN: 15916170
                                                            SCREW
                                                            - Valid for GD
                                                            from £0.71
                                                            from £0.71
                                                            # 006
                                                            MPN: 14202580
                                                            BLOCK
                                                            - Valid for GD
                                                            from £0.47
                                                            from £0.47
                                                            # 007
                                                            MPN: 62840200
                                                            SLAB FOR PASSENGER SIDE FOOT REST PLATE
                                                            - Not for GD
                                                            from £29.45
                                                            from £29.45
                                                            # 007
                                                            MPN: 62986600
                                                            SLAB FOR PASSENGER SIDE FOOT REST PLATE
                                                            - Valid for GD
                                                            from £15.08
                                                            from £15.08
                                                            # 008
                                                            MPN: 63691900
                                                            CARPET FASTENING PLATE
                                                            - Not for GD
                                                            from £4.80
                                                            from £4.80
                                                            # 009
                                                            MPN: 63692000
                                                            SLAB FOR PLATE
                                                            - Not for GD
                                                            from £128.51
                                                            from £128.51
                                                            # 010
                                                            MPN: 15915807
                                                            SCREW
                                                            - Not for GD
                                                            from £0.47
                                                            from £0.47
                                                            # 011
                                                            MPN: 63343500
                                                            ACCELERATOR PEDAL PROTECTION
                                                            - Valid for GD
                                                            from £191.19
                                                            from £191.19
                                                            # 012
                                                            MPN: 635736..
                                                            UPHOLSTERY (for part. 635737..)
                                                            Supersession
                                                            Supersession
                                                            # 012
                                                            MPN: 635737..
                                                            COMPLETE CONTROL UNIT COVER
                                                            - Not for 348 COMP.
                                                            from £183.75
                                                            from £183.75
                                                            # 012
                                                            MPN: 64453300
                                                            COMPLETE CONTROL UNIT COVER
                                                            - Valid for 348 COMP.
                                                            from £1,169.51
                                                            from £1,169.51
                                                            # 013
                                                            MPN: 63569200
                                                            FIXING CLIP
                                                            from £1.51
                                                            from £1.51
                                                            # 014
                                                            MPN: 12574011
                                                            NUT
                                                            from £0.53
                                                            from £0.53
                                                            # 015
                                                            MPN: 62692600
                                                            PIN
                                                            from £5.72
                                                            from £5.72
                                                            # 016
                                                            MPN: 62692700
                                                            RUBBER FOR PIN
                                                            from £1.00
                                                            from £1.00
                                                            # 017
                                                            MPN: 629988..
                                                            RH LOWER MOULDING
                                                            Supersession
                                                            Supersession
                                                            # 017
                                                            MPN: 629991..
                                                            LH LOWER MOULDING
                                                            Supersession
                                                            Supersession
                                                            # 018
                                                            MPN: 635944..
                                                            RH REAR MOULDING
                                                            Supersession
                                                            Supersession
                                                            # 018
                                                            MPN: 635947..
                                                            LH REAR MOULDING
                                                            Supersession
                                                            Supersession
                                                            # 019
                                                            MPN: 63595400
                                                            BUSHING FOR ROOF
                                                            from £1.16
                                                            from £1.16
                                                            # 020
                                                            MPN: 60271806
                                                            SCREW TAP
                                                            from £10.84
                                                            from £10.84
                                                            This part replaces part number 61632100
                                                            # 021
                                                            MPN: 14188181
                                                            RETAINER
                                                            from £0.51
                                                            from £0.51
                                                            This part replaces part number 14188282
                                                            # 022
                                                            MPN: 62200400
                                                            CENTRAL COVERED TAIL REAR WINDOW FRAMEWORK
                                                            from £94.76
                                                            from £94.76
                                                            # 022
                                                            MPN: 62200600
                                                            UPHOLSTERY
                                                            from £27.52
                                                            from £27.52
                                                            # 023
                                                            MPN: 62201100
                                                            RH SIDE COVERED TAIL REAR WINDOW FRAMEWORK
                                                            from £398.74
                                                            from £398.74
                                                            # 023
                                                            MPN: 62201300
                                                            UPHOLSTERY
                                                            from £33.16
                                                            from £33.16
                                                            # 024
                                                            MPN: 62201200
                                                            LH SIDE COVERED TAIL REAR WINDOW FRAMEWORK
                                                            from £398.74
                                                            from £398.74
                                                            # 024
                                                            MPN: 62201400
                                                            UPHOLSTERY
                                                            from £23.06
                                                            from £23.06
                                                            # 025
                                                            MPN: 14188181
                                                            RETAINER
                                                            from £0.51
                                                            from £0.51
                                                            This part replaces part number 14188282
                                                            # 026
                                                            MPN: 15896470
                                                            NUT
                                                            (minimum order quantity = 20)
                                                            from £0.76
                                                            from £0.76
                                                            This part replaces part number 15896415 which we have in stock - and 1 more. Click to view details
                                                            # 027
                                                            MPN: 12638101
                                                            WASHER
                                                            from £0.71
                                                            from £0.71
                                                            # 028
                                                            MPN: 15896470
                                                            NUT
                                                            (minimum order quantity = 20)
                                                            from £0.76
                                                            from £0.76
                                                            This part replaces part number 15896415 which we have in stock - and 1 more. Click to view details
                                                            # 029
                                                            MPN: 12638101
                                                            WASHER
                                                            from £0.71
                                                            from £0.71
                                                            # 030
                                                            MPN: 15958801
                                                            SCREW
                                                            from £0.53
                                                            from £0.53
                                                            # 031
                                                            MPN: 12638101
                                                            WASHER
                                                            from £0.71
                                                            from £0.71

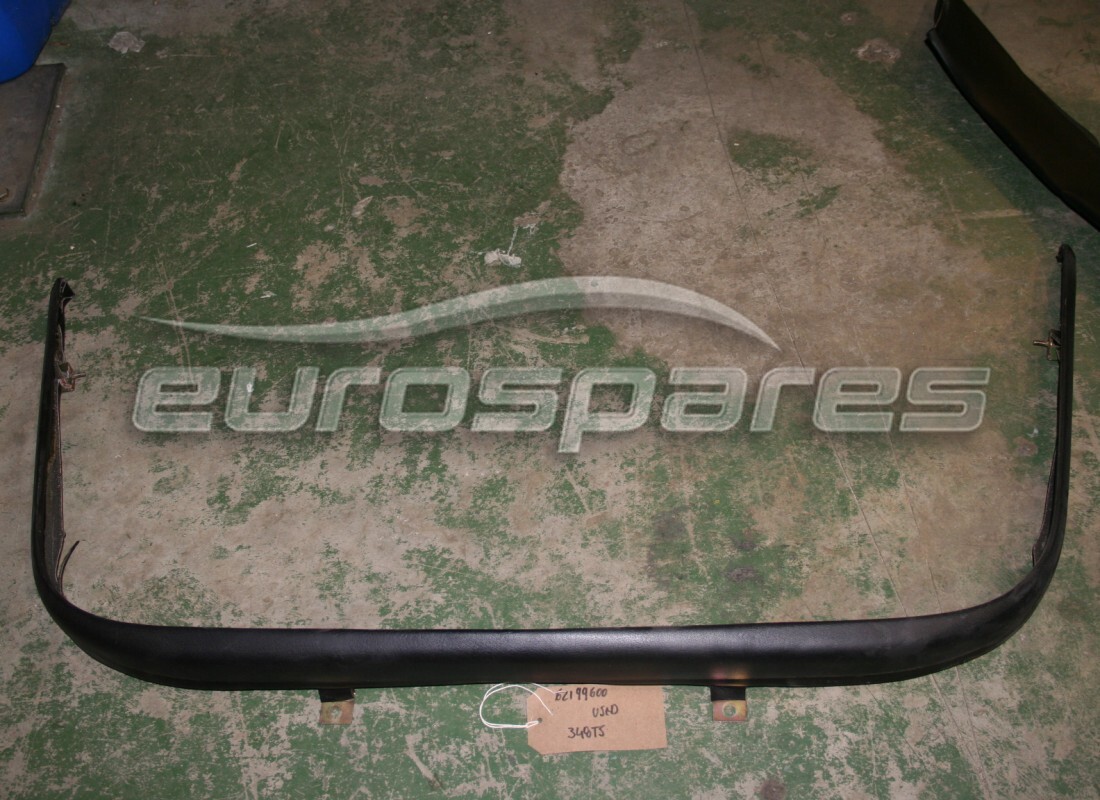

                                                            # 032
                                                            MPN: 62199600
                                                            COVERED TAIL REAR WINDOW CROSSPIECE
                                                            from £73.90
                                                            from £73.90
                                                            # 032
                                                            MPN: 62199800
                                                            UPHOLSTERY
                                                            from £8.91
                                                            from £8.91
                                                            # 033
                                                            MPN: 15958801
                                                            SCREW
                                                            from £0.54
                                                            from £0.54
                                                            # 034
                                                            MPN: 12638101
                                                            WASHER
                                                            from £0.71
                                                            from £0.71
                                                            # 035
                                                            MPN: 14115980
                                                            BLOCK
                                                            from £0.68
                                                            from £0.68
                                                            This part replaces part number 14202380
                                                            # 036
                                                            MPN: 62912200
                                                            RH COVERED ROLLER COVER
                                                            from £110.29
                                                            from £110.29
                                                            # 036
                                                            MPN: 62912300
                                                            LH COVERED ROLLER COVER
                                                            from £121.59
                                                            from £121.59
                                                            # 036
                                                            MPN: 62912400
                                                            UPHOLSTERY
                                                            from £4.23
                                                            from £4.23
                                                            # 037
                                                            MPN: 60709400
                                                            PLATE
                                                            from £5.68
                                                            from £5.68
                                                            # 038
                                                            MPN: 14188181
                                                            RETAINER
                                                            from £0.48
                                                            from £0.48
                                                            This part replaces part number 14188282
                                                            # 039
                                                            MPN: 63698100
                                                            CARPET FIXING RETAINER
                                                            Supersession
                                                            Supersession
                                                            This part replaces part number 63698200 - and 1 more. Click to view details
                                                            # 040
                                                            MPN: 15896470
                                                            NUT
                                                            (minimum order quantity = 20)
                                                            from £0.76
                                                            from £0.76
                                                            This part replaces part number 15896415 which we have in stock - and 1 more. Click to view details
                                                            # 041
                                                            MPN: 12638101
                                                            WASHER
                                                            from £0.71
                                                            from £0.71
                                                            # 042
                                                            MPN: 15916207
                                                            SCREW
                                                            from £0.47
                                                            from £0.47
                                                            # 043
                                                            MPN: 14201980
                                                            BLOCK
                                                            from £0.52
                                                            from £0.52
                                                            # 044
                                                            MPN: 63698100
                                                            FIXING BUTTON
                                                            Supersession
                                                            Supersession
                                                            This part replaces part number 63698200 - and 1 more. Click to view details
