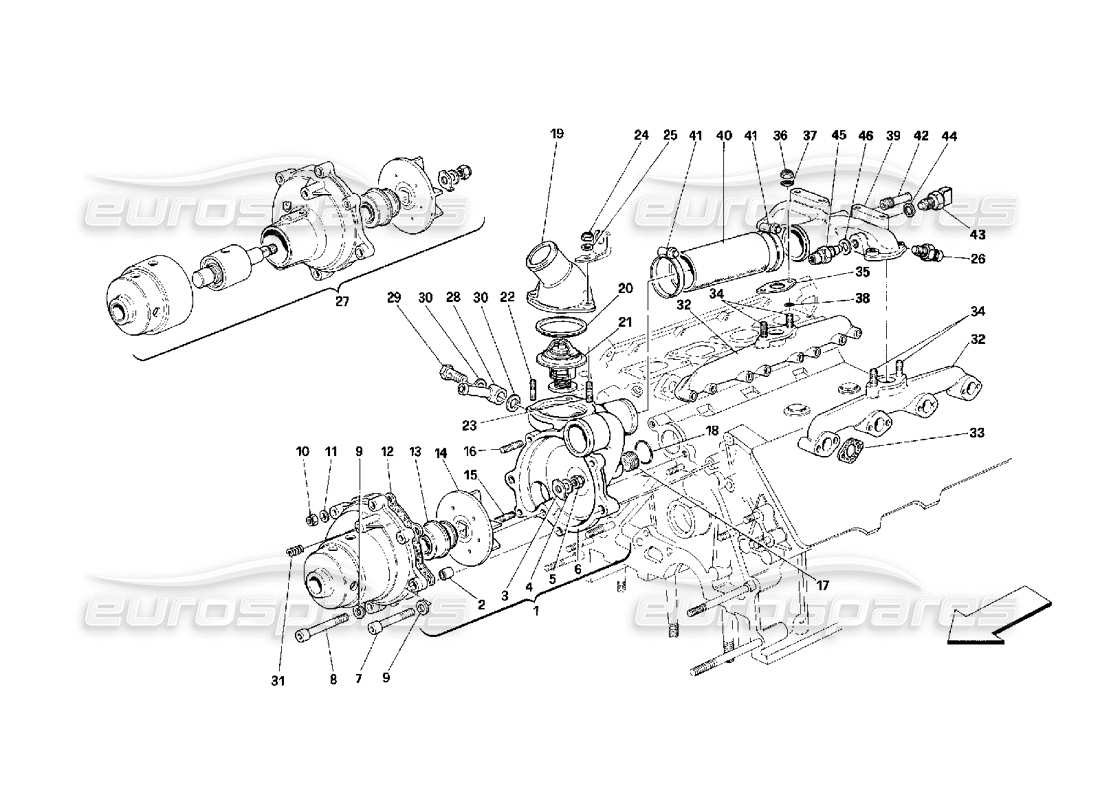

Ferrari 348 (2.7 Motronic) Water Pump Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                            #
                                                                                            Part number
                                                                                            Description
                                                                                            Price
                                                                                            # 001
                                                                                            MPN: 143275
                                                                                            COMPLETE WATER PUMP
                                                                                            from £795.00
                                                                                            from £795.00
                                                                                            This part replaces part number 70000578
                                                                                            # 002
                                                                                            MPN: 102704
                                                                                            DOWEL
                                                                                            from £1.59
                                                                                            from £1.59
                                                                                            This part replaces part number 500805
                                                                                            # 003
                                                                                            MPN: 139457
                                                                                            PLATE
                                                                                            from £9.05
                                                                                            from £9.05
                                                                                            # 004
                                                                                            MPN: 10730321
                                                                                            WASHER
                                                                                            from £0.66
                                                                                            from £0.66
                                                                                            This part replaces part number 10730301 - and 2 more. Click to view details
                                                                                            # 005
                                                                                            MPN: 100436
                                                                                            NUT
                                                                                            from £7.41
                                                                                            from £7.41
                                                                                            This part replaces part number 92896
                                                                                            # 006
                                                                                            MPN: 156350
                                                                                            WATER PUMP BODY WITH STUDS
                                                                                            from £718.38
                                                                                            from £718.38
                                                                                            # 007
                                                                                            MPN: 14306921
                                                                                            SCREW
                                                                                            from £0.71
                                                                                            from £0.71
                                                                                            This part replaces part number 14306920
                                                                                            # 008
                                                                                            MPN: 14302221
                                                                                            SCREW
                                                                                            from £0.47
                                                                                            from £0.47
                                                                                            # 009
                                                                                            MPN: 12601374
                                                                                            WASHER
                                                                                            from £0.53
                                                                                            from £0.53
                                                                                            This part replaces part number 10615474 - and 6 more. Click to view details
                                                                                            # 011
                                                                                            MPN: 12639701
                                                                                            WASHER
                                                                                            Supersession
                                                                                            Supersession
                                                                                            This part replaces part number 12639704
                                                                                            # 012
                                                                                            MPN: 132979
                                                                                            GASKET
                                                                                            from £7.26
                                                                                            from £7.26
                                                                                            # 013
                                                                                            MPN: 183759
                                                                                            SEAL RING
                                                                                            from £22.86
                                                                                            from £22.86
                                                                                            This part replaces part number 130932 - and 1 more. Click to view details
                                                                                            # 014
                                                                                            MPN: 160456
                                                                                            WATER PUMP IMPELLER
                                                                                            from £160.05
                                                                                            from £160.05
                                                                                            This part replaces part number 132599
                                                                                            # 015
                                                                                            MPN: 13541124
                                                                                            STUD
                                                                                            from £12.69
                                                                                            from £12.69
                                                                                            This part replaces part number 13541121
                                                                                            # 016
                                                                                            MPN: 13541324
                                                                                            STUD
                                                                                            from £0.94
                                                                                            from £0.94
                                                                                            This part replaces part number 13541321
                                                                                            # 017
                                                                                            MPN: 163528
                                                                                            PLUG
                                                                                            from £2.11
                                                                                            from £2.11
                                                                                            This part replaces part number 10268450 - and 1 more. Click to view details
                                                                                            # 018
                                                                                            MPN: 101044
                                                                                            O.R. GASKET
                                                                                            from £0.78
                                                                                            from £0.78
                                                                                            This part replaces part number 3150
                                                                                            # 019
                                                                                            MPN: 136570
                                                                                            THERMOSTATIC VALVE COVER
                                                                                            from £77.42
                                                                                            from £77.42
                                                                                            # 020
                                                                                            MPN: 105192
                                                                                            GASKET
                                                                                            from £12.38
                                                                                            from £12.38
                                                                                            This part replaces part number 4184495
                                                                                            # 021
                                                                                            MPN: 165473
                                                                                            THERMOSTAT
                                                                                            from £110.46
                                                                                            from £110.46
                                                                                            This part replaces part number 130346 - and 1 more. Click to view details
                                                                                            # 022
                                                                                            MPN: 13541124
                                                                                            STUD
                                                                                            from £12.35
                                                                                            from £12.35
                                                                                            This part replaces part number 13541121
                                                                                            # 023
                                                                                            MPN: 13541221
                                                                                            STUD
                                                                                            Supersession
                                                                                            Supersession
                                                                                            # 024
                                                                                            MPN: 12574211
                                                                                            NUT
                                                                                            from £0.71
                                                                                            from £0.71
                                                                                            # 025
                                                                                            MPN: 12639701
                                                                                            WASHER
                                                                                            Supersession
                                                                                            Supersession
                                                                                            This part replaces part number 12639704
                                                                                            # 026
                                                                                            MPN: 104628
                                                                                            TEMPERATURE SENDER UNIT
                                                                                            from £31.50
                                                                                            from £31.50
                                                                                            This part replaces part number 4108672 - and 3 more. Click to view details
                                                                                            # 027
                                                                                            MPN: 143275
                                                                                            WATER PUMP
                                                                                            from £795.00
                                                                                            from £795.00
                                                                                            This part replaces part number 70000578
                                                                                            # 028
                                                                                            MPN: 152416
                                                                                            UNION
                                                                                            from £61.97
                                                                                            from £61.97
                                                                                            # 029
                                                                                            MPN: 152417
                                                                                            UNION
                                                                                            from £15.08
                                                                                            from £15.08
                                                                                            # 030
                                                                                            MPN: 10259960
                                                                                            GASKET
                                                                                            from £0.47
                                                                                            from £0.47
                                                                                            This part replaces part number 95017
                                                                                            # 031
                                                                                            MPN: 13525470
                                                                                            THREADED INSERT
                                                                                            from £0.53
                                                                                            from £0.53
                                                                                            This part replaces part number 107333
                                                                                            # 032
                                                                                            MPN: 138852
                                                                                            WATER MANIFOLD
                                                                                            from £1,053.25
                                                                                            from £1,053.25
                                                                                            This part replaces part number 116967 which we have in stock - and 3 more. Click to view details
                                                                                            # 033
                                                                                            MPN: 132980
                                                                                            GASKET
                                                                                            from £1.36
                                                                                            from £1.36
                                                                                            This part replaces part number 111480
                                                                                            # 034
                                                                                            MPN: 16100814
                                                                                            STUD
                                                                                            from £0.71
                                                                                            from £0.71
                                                                                            This part replaces part number 16100811 - and 1 more. Click to view details
                                                                                            # 035
                                                                                            MPN: 132981
                                                                                            GASKET
                                                                                            from £4.08
                                                                                            from £4.08
                                                                                            This part replaces part number 111481
                                                                                            # 036
                                                                                            MPN: 16100824
                                                                                            NUT
                                                                                            from £0.51
                                                                                            from £0.51
                                                                                            This part replaces part number 16100814 - and 1 more. Click to view details
                                                                                            # 037
                                                                                            MPN: 11198079
                                                                                            WASHER
                                                                                            from £1.20
                                                                                            from £1.20
                                                                                            This part replaces part number 11198070
                                                                                            # 038
                                                                                            MPN: 103039
                                                                                            O.R. GASKET
                                                                                            (minimum order quantity = 10)
                                                                                            from £1.62
                                                                                            from £1.62
                                                                                            This part replaces part number 95860041
                                                                                            # 039
                                                                                            MPN: 144246
                                                                                            WATER OUTLET MANIFOLD CONNECTION DUCT
                                                                                            from £465.84
                                                                                            from £465.84
                                                                                            # 040
                                                                                            MPN: 138981
                                                                                            SLEEVE
                                                                                            from £21.90
                                                                                            from £21.90
                                                                                            This part replaces part number 135136
                                                                                            # 041
                                                                                            MPN: 296782
                                                                                            SCREW COLLAR
                                                                                            from £4.89
                                                                                            from £4.89
                                                                                            This part replaces part number 12174090
                                                                                            # 042
                                                                                            MPN: 106241
                                                                                            UNION
                                                                                            from £25.26
                                                                                            from £25.26
                                                                                            # 043
                                                                                            MPN: 125769
                                                                                            TEMPERATURE SENSOR
                                                                                            from £17.35
                                                                                            from £17.35
                                                                                            # 044
                                                                                            MPN: 10298460
                                                                                            GASKET
                                                                                            from £0.47
                                                                                            from £0.47
                                                                                            This part replaces part number 93353
                                                                                            # 045
                                                                                            MPN: 136304
                                                                                            THERMOMETRIC SWITCH
                                                                                            from £153.72
                                                                                            from £153.72
                                                                                            # 046
                                                                                            MPN: 10298460
                                                                                            GASKET
                                                                                            from £0.47
                                                                                            from £0.47
                                                                                            This part replaces part number 93353
