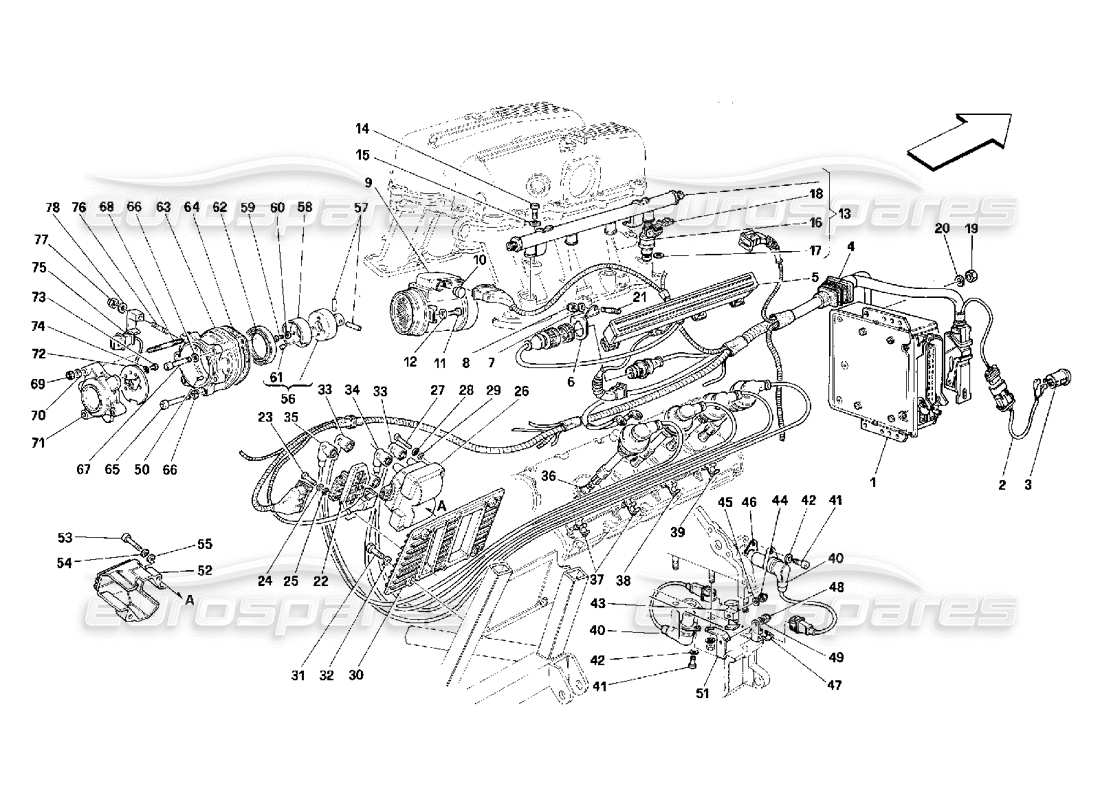

ferrari 348 (2.7 motronic) air injection - ignition parts diagram

007 - air injection - ignition

Ferrari 348 (2.7 Motronic) Air Injection - Ignition Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Price
# 001
MPN: 156536
IGNITION/SUPPLY CONTROL SYSTEM
Ref: Bosch 0-261-203-327
from £1,116.95
from £1,116.95
This part replaces part number 147176
# 001
MPN: FHT022
COMPLETE HT LEADS SET
Engine lead set
from £643.22
from £643.22
# 002
MPN: 146196
TESTER PUSH CABLE
- Valid for USA
from £374.53
from £374.53
# 003
MPN: 145810
TESTER PUSH
- Valid for USA
from £7.67
from £7.67
# 004
MPN: 139465
RUBBER BOOT
from £127.25
from £127.25
# 005
MPN: 142842
CONNECTOR CONTAINER
from £64.91
from £64.91
# 006
MPN: 145476
LH BRACKET
from £0.88
from £0.88
# 006
MPN: 145477
RH BRACKET
from £0.88
from £0.88
# 007
MPN: 10519401
WASHER
from £0.71
from £0.71
# 008
MPN: 12574211
NUT
from £0.71
from £0.71
# 009
MPN: 136374/A
AIR FLOW METER
- Not for catalyzed cars - Valid for catalyzed cars
Supersession
Supersession
# 010
MPN: 140190
PLUG
from £11.86
from £11.86
# 010
MPN: 144092
PLUG
from £7.07
from £7.07
This part replaces part number 140189
# 011
MPN: 10373677
SCREW
from £10.02
from £10.02
# 012
MPN: 12639978
WASHER
from £1.08
from £1.08
# 013
MPN: 137326
INJECTORS COMPLETE TUBE
from £199.50
from £199.50
# 014
MPN: 20293306
SCREW
from £2.43
from £2.43
# 015
MPN: 12601374
WASHER
from £0.53
from £0.53
This part replaces part number 10615474 - and 6 more. Click to view details
# 016
MPN: 130968
ELECTRO INJECTOR
from £219.50
from £219.50
# 017
MPN: 133902
GASKET
from £3.05
from £3.05
# 018
MPN: 144763
INJECTOR RETAINING SPRING
from £1.84
from £1.84
# 019
MPN: 12575411
NUT
Supersession
Supersession
# 020
MPN: 14496401
WASHER
Supersession
Supersession
# 021
MPN: 11499921
STUD
from £6.43
from £6.43
# 022
MPN: 137511
POWER MODULE
from £181.60
from £181.60
# 023
MPN: 13274672
SCREW
from £0.78
from £0.78
This part replaces part number 13274617
# 024
MPN: 149951
WASHER
from £0.53
from £0.53
This part replaces part number 10615301 which we have in stock - and 4 more. Click to view details
# 025
MPN: 10519377
WASHER
Supersession
Supersession
This part replaces part number 10519305 which we have in stock - and 1 more. Click to view details
# 026
MPN: 138255
IGNITION COIL
from £77.21
from £77.21
# 027
MPN: 13274972
SCREW
from £1.16
from £1.16
This part replaces part number 13274911 - and 1 more. Click to view details
# 028
MPN: 149951
WASHER
from £0.51
from £0.51
This part replaces part number 10615301 which we have in stock - and 4 more. Click to view details
# 029
MPN: 10519377
WASHER
Supersession
Supersession
This part replaces part number 10519305 which we have in stock - and 1 more. Click to view details
# 030
MPN: 139434
COIL AND MODULE SUPPORT
from £50.63
from £50.63
# 031
MPN: 10902724
SCREW
from £0.71
from £0.71
This part replaces part number 10902721 which we have in stock
# 032
MPN: 10519424
WASHER
from £0.53
from £0.53
This part replaces part number 10519401 which we have in stock - and 3 more. Click to view details
# 033
MPN: 188911
CABLE (FOR SPARK PLUGS 1, 2, 7, 8)
from £311.32
from £311.32
This part replaces part number 137450
# 033
MPN: 188914
CABLE (FOR SPARK PLUGS 1, 2, 7, 8)
- With extension BERU
from £276.16
from £276.16
This part replaces part number 145500
# 034
MPN: 137451
CABLE (FOR SPARK PLUGS 3,6)
With extension type BOSCH - not as spare part - use part number: 188912
Supersession
Supersession
# 034
MPN: 145501
CABLE (FOR SPARK PLUGS 3,6)
- With extension BERU
Supersession
Supersession
# 034
MPN: 188912
CABLE (FOR SPARKING PLUGS 3,6)
(replaces: 137451)
from £151.89
from £151.89
This part replaces part number 137451 - and 1 more. Click to view details
# 035
MPN: 137452
CABLE (FOR SPARK PLUGS 4,5)
- With extension BOSCH
Supersession
Supersession
# 035
MPN: 145502
CABLE (FOR SPARK PLUGS 4,5)
- With extension BERU
Supersession
Supersession
# 035
MPN: 188913
CABLE (FOR SPARKING PLUGS 4,5)
from £151.89
from £151.89
This part replaces part number 137452 - and 1 more. Click to view details
# 036
MPN: 150180/a
SPARK PLUG
(NGK Iridium)
from £14.95
from £14.95
This part replaces part number 150180
# 036
MPN: 156441
SPARK PLUG
(for NGK use part number: 174954 )
from £12.42
from £12.42
# 036
MPN: 174954
SPARK PLUG
from £11.15
from £11.15
# 037
MPN: 119402
4 HOUSING CLIP
from £1.70
from £1.70
# 038
MPN: 119403
3 HOUSING CLIP
from £10.92
from £10.92
# 039
MPN: 119404
2 HOUSING CLIP
from £2.79
from £2.79
# 040
MPN: 130975/A
ANGULAR SPEED SENSOR
Alternative use - 130975/A
from £71.18
from £71.18
This part replaces part number 130975
# 041
MPN: 14305121
SCREW
from £0.47
from £0.47
# 042
MPN: 12601274
WASHER
from £0.53
from £0.53
This part replaces part number 12601221 - and 5 more. Click to view details
# 043
MPN: 139244
SUPPORT
from £141.49
from £141.49
# 044
MPN: 15896470
NUT
(minimum order quantity = 20)
from £0.77
from £0.77
This part replaces part number 15896415 which we have in stock - and 1 more. Click to view details
# 045
MPN: 11199279
WASHER
from £0.71
from £0.71
# 046
MPN: 140621
THICKNESS
- Possible fitting
from £9.08
from £9.08
# 047
MPN: 129544
CLIP
from £1.31
from £1.31
# 048
MPN: 12574211
NUT
from £0.71
from £0.71
# 049
MPN: 12648201
WASHER
from £1.39
from £1.39
# 050
MPN: 10331010
PIN
from £0.47
from £0.47
# 051
MPN: 145550
BRACKET
from £6.37
from £6.37
# 052
MPN: 150631
PROTECTION
from £4.79
from £4.79
# 053
MPN: 13274872
SCREW
from £1.85
from £1.85
# 054
MPN: 149951
WASHER
from £0.53
from £0.53
This part replaces part number 10615301 which we have in stock - and 4 more. Click to view details
# 055
MPN: 10519377
WASHER
Supersession
Supersession
This part replaces part number 10519305 which we have in stock - and 1 more. Click to view details
# 056
MPN: 133378
COUPLING ON THE CAM SHAFT
from £236.65
from £236.65
# 057
MPN: 129120
PIN
Supersession
Supersession
This part replaces part number 132355
# 058
-
TIMER
# 059
MPN: 10374721
SCREW
from £0.47
from £0.47
# 060
MPN: 12604070
WASHER
from £0.47
from £0.47
# 061
MPN: 10486110
PIN
from £10.40
from £10.40
# 062
MPN: 149917
OIL SEAL
from £31.50
from £31.50
This part replaces part number 133064
# 063
MPN: 137508
PHASE SENSOR SUPPORT
from £40.10
from £40.10
# 064
MPN: 150076
SUPPORT GASKET
from £11.74
from £11.74
This part replaces part number 133745
# 065
MPN: 14305920
SCREW
from £0.47
from £0.47
# 066
MPN: 12604279
WASHER
from £0.54
from £0.54
# 067
MPN: 14305821
SCREW
from £0.53
from £0.53
# 068
MPN: 13539821
STUD
Supersession
Supersession
