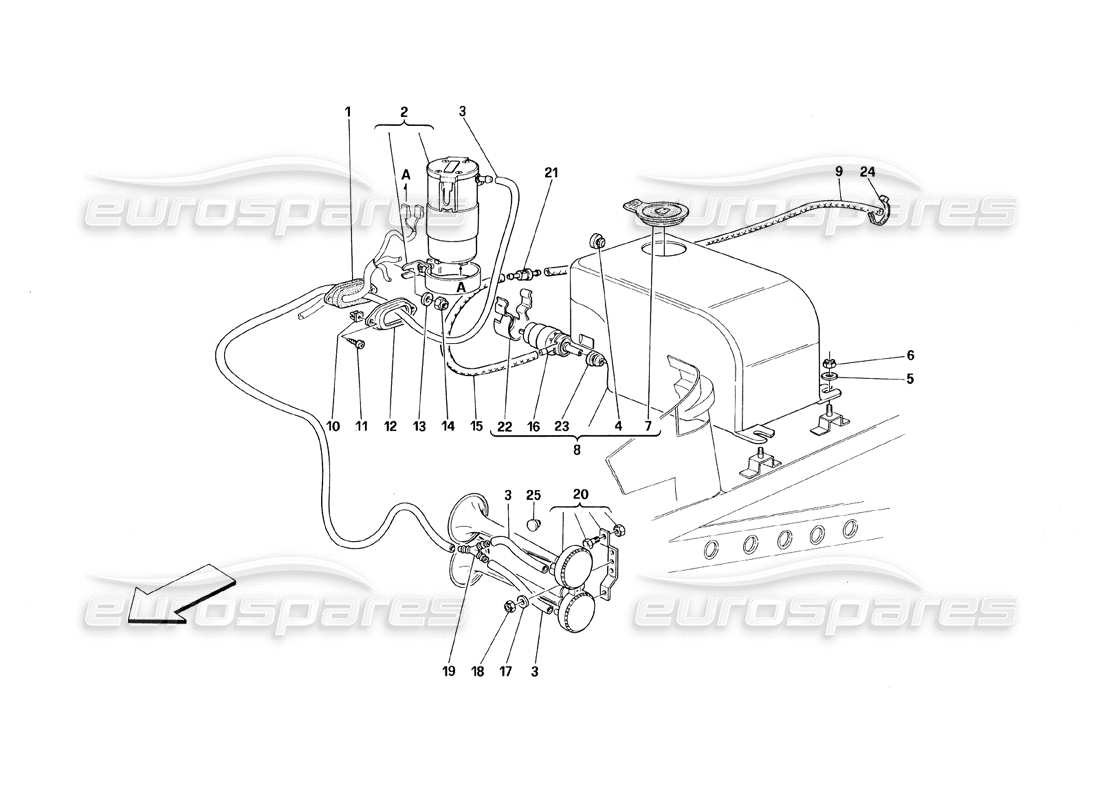

131 - Glass Washer and Horns
Ferrari 348 (1993) TB / TS Glass Washer and Horns Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 154759
TIGHTENING GASKET
from £6.72
from £6.72
# 002
MPN: 225757
COMPLETE ELECTRO-COMPRESSOR
from £134.90
from £134.90
This part replaces part number 139920
# 003
MPN: 142200
CONNECTION FROM COMPRESSOR TO HORNS
from £5.09
from £5.09
# 004
MPN: 63291000
CAP FOR GLASS WASHER BAG
from £0.84
from £0.84
# 005
MPN: 12647701
WASHER
from £0.47
from £0.47
# 006
MPN: 12574211
NUT
from £0.71
from £0.71
# 007
MPN: 63291100
GLASS WASHER BAG PLUG
from £2.06
from £2.06
# 008
MPN: 62536400
COMPLETE WINDSHIELD WIPER CONTAINER
from £127.37
from £127.37
# 009
MPN: 62834400
PIPE FROM VALVE TO UNION
from £11.90
from £11.90
# 010
MPN: 14211686
BLOCK
from £0.47
from £0.47
# 011
MPN: 15517201
SCREW
from £0.53
from £0.53
# 012
MPN: 139943
GASKET GUARD
from £41.90
from £41.90
# 013
MPN: 12646724
WASHER
from £0.54
from £0.54
This part replaces part number 12601571 which we have in stock - and 2 more. Click to view details
# 014
MPN: 104030
SELF LOCKING NUT
from £0.53
from £0.53
This part replaces part number 16104125

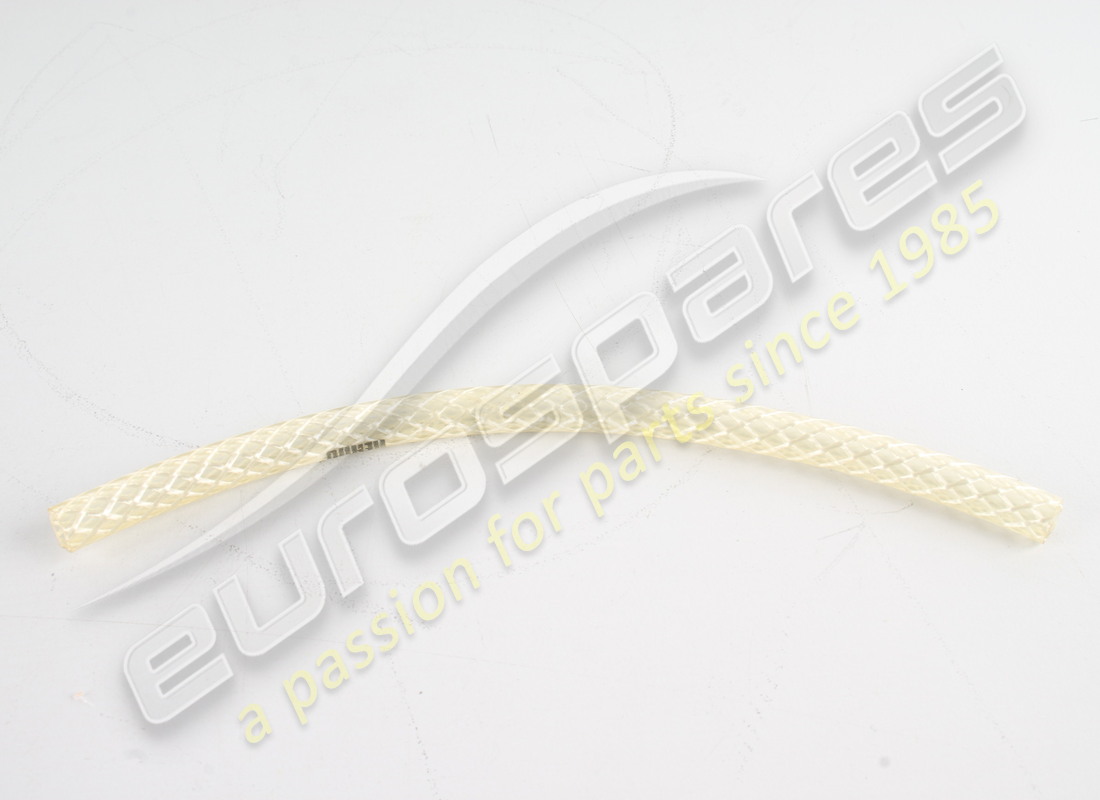

# 015
MPN: 62829000
PIPE FROM PUMP TO VALVE
from £1.59
from £1.59
# 016
MPN: 61535400
WIPER PUMP
from £80.00
from £80.00
# 017
MPN: 12643724
WASHER
from £0.53
from £0.53
This part replaces part number 109684 - and 3 more. Click to view details
# 018
MPN: 12574211
NUT
from £0.71
from £0.71
# 019
MPN: 60741100
3-WAYS UNION
from £0.54
from £0.54
This part replaces part number 61741100
# 020
MPN: 60665500
HORNS
use : 189428
Supersession
Supersession
# 020
MPN: 60842900
HORNS - SOLD AS A PAIR
Valid for CH
from £94.61
from £94.61
# 021
MPN: 50332402
NONRETURN VALVE
from £36.52
from £36.52
# 022
MPN: 63290800
PUMP FASTENING SPRING
from £13.15
from £13.15
# 023
MPN: 63290900
BUSHING
from £0.80
from £0.80
# 024
MPN: 145855
CLAMP
from £0.53
from £0.53
This part replaces part number 14560287 - and 1 more. Click to view details
# 025
MPN: 139521
PLUG
from £0.47
from £0.47
