ferrari 348 (1993) tb / ts dashboard - structure and supports parts diagram

126B - dashboard - structure and supports

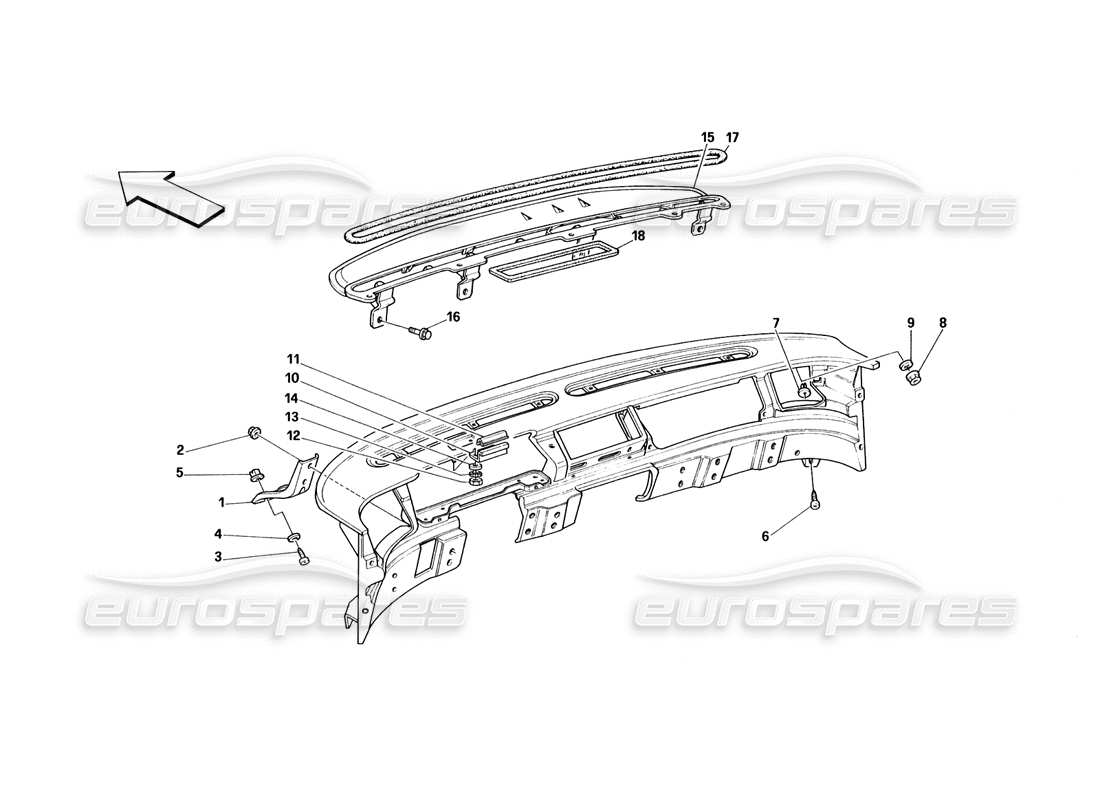

Ferrari 348 (1993) TB / TS Dashboard - Structure and Supports Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                    #
                                    Part number
                                    Description
                                    Price
                                    # 000
                                    MPN: 62136500
                                    UPPER LINING
                                    from £16.12
                                    from £16.12
                                    # 000
                                    MPN: 633186..
                                    LOWER UPHOLSTERY
                                    Supersession
                                    Supersession
                                    # 000
                                    MPN: 633574..
                                    UPHOLSTERED DASHBOARD
                                    Supersession
                                    Supersession
                                    # 001
                                    MPN: 62224400
                                    DASHBOARD LOWER FIXING BRACKET
                                    from £8.02
                                    from £8.02
                                    # 002
                                    MPN: 14059211
                                    NUT
                                    from £0.47
                                    from £0.47
                                    # 003
                                    MPN: 15688375
                                    SCREW
                                    (minimum order quantity = 30)
                                    from £0.47
                                    from £0.47
                                    This part replaces part number 15688306 which we have in stock
                                    # 004
                                    MPN: 12638101
                                    WASHER
                                    from £0.71
                                    from £0.71
                                    # 005
                                    MPN: 14202782
                                    BLOCK
                                    from £0.71
                                    from £0.71
                                    # 006
                                    MPN: 15785101
                                    SCREW
                                    from £0.71
                                    from £0.71
                                    # 007
                                    MPN: 14115980
                                    BLOCK
                                    from £0.68
                                    from £0.68
                                    This part replaces part number 14202380
                                    # 008
                                    MPN: 13832101
                                    NUT
                                    from £0.53
                                    from £0.53
                                    # 009
                                    MPN: 12640624
                                    WASHER
                                    from £0.47
                                    from £0.47
                                    This part replaces part number 12640601 - and 1 more. Click to view details
                                    # 010
                                    MPN: 62139700
                                    INSTRUMENTS PANEL FIXING PLATE
                                    from £1.37
                                    from £1.37
                                    # 011
                                    MPN: 62139800
                                    ANTI-VIBRATIONS
                                    from £0.71
                                    from £0.71
                                    # 012
                                    MPN: 15896470
                                    NUT
                                    (minimum order quantity = 20)
                                    from £0.76
                                    from £0.76
                                    This part replaces part number 15896415 which we have in stock - and 1 more. Click to view details
                                    # 013
                                    MPN: 12605270
                                    WASHER
                                    Supersession
                                    Supersession
                                    # 014
                                    MPN: 14496324
                                    WASHER
                                    from £1.39
                                    from £1.39
                                    This part replaces part number 14496301 which we have in stock
                                    # 015
                                    MPN: 62185800
                                    UNDER-DASHBOARD AIR DUCTING
                                    from £48.06
                                    from £48.06
                                    # 016
                                    MPN: 13836371
                                    SCREW
                                    from £1.49
                                    from £1.49
                                    # 017
                                    MPN: 62200500
                                    GASKET
                                    from £4.31
                                    from £4.31
                                    # 018
                                    MPN: 62188000
                                    AIR CONVEYOR GASKET
                                    from £3.58
                                    from £3.58
