ferrari 348 (1993) tb / ts tunnel - accessories parts diagram

124A - tunnel - accessories

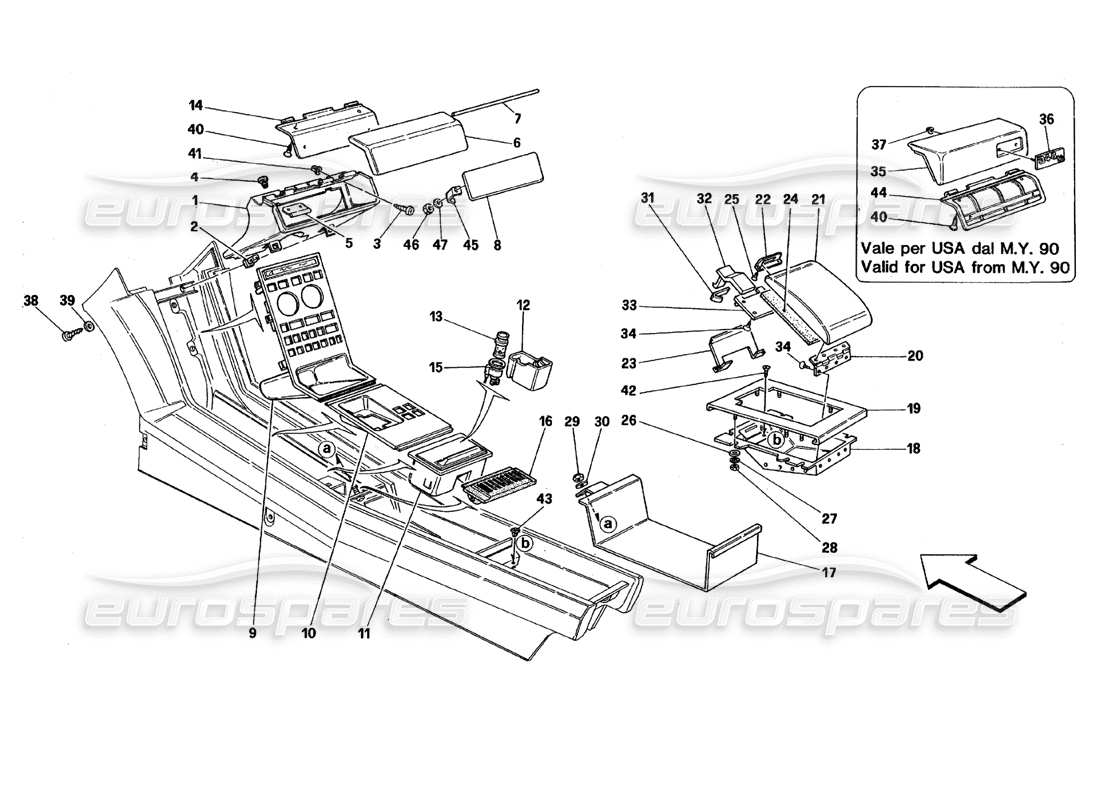

Ferrari 348 (1993) TB / TS Tunnel - Accessories Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                        #
                                                                        Part number
                                                                        Description
                                                                        Price
                                                                        # 001
                                                                        MPN: 62147100
                                                                        RADIO CASING
                                                                        from £342.05
                                                                        from £342.05
                                                                        # 002
                                                                        MPN: 14202782
                                                                        BLOCK
                                                                        from £0.71
                                                                        from £0.71
                                                                        # 003
                                                                        MPN: 15688375
                                                                        SCREW
                                                                        (minimum order quantity = 30)
                                                                        from £0.47
                                                                        from £0.47
                                                                        This part replaces part number 15688306 which we have in stock
                                                                        # 005
                                                                        MPN: 62147900
                                                                        SPRING FOR DOOR
                                                                        from £60.52
                                                                        from £60.52
                                                                        # 006
                                                                        MPN: 621474..
                                                                        COVERED CAR RADIO OUTER SET HOLDER
                                                                        Not for USA from M.Y. 90
                                                                        Supersession
                                                                        Supersession
                                                                        # 006
                                                                        MPN: 621477..
                                                                        DOORTRIM
                                                                        Not for USA from M.Y. 90
                                                                        Supersession
                                                                        Supersession
                                                                        # 007
                                                                        MPN: 62147800
                                                                        PIN FOR DOOR
                                                                        from £2.62
                                                                        from £2.62
                                                                        # 008
                                                                        MPN: 62993700
                                                                        COVERED INNER GLOVE BOX PLATE
                                                                        from £24.84
                                                                        from £24.84
                                                                        # 009
                                                                        MPN: 146375
                                                                        CONSOLE PLATE
                                                                        from £203.12
                                                                        from £203.12
                                                                        # 010
                                                                        MPN: 147111
                                                                        TUNNEL PLATE
                                                                        valid for LHD
                                                                        from £524.71
                                                                        from £524.71
                                                                        # 010
                                                                        MPN: 147112
                                                                        TUNNEL PLATE
                                                                        Valid For RHD
                                                                        from £388.56
                                                                        from £388.56
                                                                        # 012
                                                                        -
                                                                        ASHTRAY PAN
                                                                        # 013
                                                                        MPN: 226942
                                                                        CIGAR LIGHTER
                                                                        not as spare part - use part number: 226942
                                                                        from £11.31
                                                                        from £11.31
                                                                        This part replaces part number 61107500
                                                                        # 014
                                                                        MPN: 62147500
                                                                        CAR RADIO GLOVE BOX INNER DOOR
                                                                        Not for USA from M.Y. 90
                                                                        from £64.59
                                                                        from £64.59
                                                                        # 015
                                                                        MPN: 226941
                                                                        CIGAR LIGHTER BODY
                                                                        not as spare part - use part number: 226941
                                                                        from £16.73
                                                                        from £16.73
                                                                        This part replaces part number 61107600 - and 2 more. Click to view details
                                                                        # 016
                                                                        MPN: 62146500
                                                                        PLATE FOR MONEY
                                                                        from £131.25
                                                                        from £131.25
                                                                        # 017
                                                                        MPN: 633219..
                                                                        LINING
                                                                        Supersession
                                                                        Supersession
                                                                        # 017
                                                                        MPN: 633222..
                                                                        GLOVE BOX BOTTOM COVER
                                                                        Supersession
                                                                        Supersession
                                                                        # 018
                                                                        MPN: 61059000
                                                                        CASSETTE BOX
                                                                        from £11.58
                                                                        from £11.58
                                                                        # 019
                                                                        MPN: 63322300
                                                                        SUPPORT FOR CASSETTE BOX
                                                                        from £121.90
                                                                        from £121.90
                                                                        This part replaces part number 63284700
                                                                        # 020
                                                                        MPN: 61059200
                                                                        HINGE
                                                                        from £19.18
                                                                        from £19.18
                                                                        # 021
                                                                        MPN: 610594..
                                                                        CASSETTE BOX WITH MOULDING
                                                                        Supersession
                                                                        Supersession
                                                                        # 021
                                                                        MPN: 610595..
                                                                        LINING
                                                                        Supersession
                                                                        Supersession
                                                                        # 022
                                                                        MPN: 61059900
                                                                        BUTTON MOULDING
                                                                        from £8.06
                                                                        from £8.06
                                                                        # 023
                                                                        MPN: 61059100
                                                                        CASSETTE BOX SHIELD
                                                                        from £1.59
                                                                        from £1.59
                                                                        # 024
                                                                        MPN: 61060000
                                                                        INNER DOOR TRIM
                                                                        from £3.60
                                                                        from £3.60
                                                                        # 025
                                                                        MPN: 15913508
                                                                        SCREW
                                                                        from £0.54
                                                                        from £0.54
                                                                        # 026
                                                                        MPN: 20159109
                                                                        WASHER
                                                                        from £0.53
                                                                        from £0.53
                                                                        # 027
                                                                        MPN: 10615171
                                                                        WASHER
                                                                        from £0.47
                                                                        from £0.47
                                                                        This part replaces part number 10615174
                                                                        # 028
                                                                        MPN: 16101711
                                                                        NUT
                                                                        from £0.47
                                                                        from £0.47
                                                                        This part replaces part number 16101715
                                                                        # 029
                                                                        MPN: 12577811
                                                                        NUT
                                                                        Supersession
                                                                        Supersession
                                                                        # 030
                                                                        MPN: 12638101
                                                                        WASHER
                                                                        from £0.71
                                                                        from £0.71
                                                                        # 031
                                                                        MPN: 61059700
                                                                        SPRING
                                                                        from £2.90
                                                                        from £2.90
                                                                        # 032
                                                                        MPN: 61059600
                                                                        PUSH BUTTON
                                                                        from £2.74
                                                                        from £2.74
                                                                        # 033
                                                                        MPN: 61059800
                                                                        COVER FOR SPRING
                                                                        from £2.00
                                                                        from £2.00
                                                                        # 034
                                                                        MPN: 15914608
                                                                        SCREW
                                                                        from £0.47
                                                                        from £0.47
                                                                        # 035
                                                                        MPN: 622260..
                                                                        COVERED CAR RADIO OUTER SET HOLDER
                                                                        Valid for USA from M.Y. 90
                                                                        Supersession
                                                                        Supersession
                                                                        # 035
                                                                        MPN: 622261..
                                                                        DOORTRIM
                                                                        Valid for USA from M.Y. 90
                                                                        Supersession
                                                                        Supersession
                                                                        # 036
                                                                        MPN: 62989900
                                                                        348 TB NAMEPLATE
                                                                        Valid for USA from M.Y. 90
                                                                        from £31.80
                                                                        from £31.80
                                                                        # 037
                                                                        MPN: 60324506
                                                                        CLIP
                                                                        Valid for USA from M.Y. 90
                                                                        from £1.54
                                                                        from £1.54
                                                                        This part replaces part number 62773000
                                                                        # 038
                                                                        MPN: 15688375
                                                                        SCREW
                                                                        (minimum order quantity = 30)
                                                                        from £0.47
                                                                        from £0.47
                                                                        This part replaces part number 15688306 which we have in stock
                                                                        # 039
                                                                        MPN: 12638178
                                                                        WASHER
                                                                        from £0.47
                                                                        from £0.47
                                                                        This part replaces part number 10519578 - and 3 more. Click to view details
                                                                        # 040
                                                                        MPN: 15669706
                                                                        SCREW
                                                                        from £0.47
                                                                        from £0.47
                                                                        # 041
                                                                        MPN: 14115980
                                                                        BLOCK
                                                                        from £0.68
                                                                        from £0.68
                                                                        This part replaces part number 14202380
                                                                        # 042
                                                                        MPN: 15641278
                                                                        SCREW
                                                                        from £0.59
                                                                        from £0.59
                                                                        # 043
                                                                        MPN: 14115580
                                                                        BLOCK
                                                                        from £0.54
                                                                        from £0.54
                                                                        # 044
                                                                        MPN: 62220600
                                                                        CAR RADIO GLOVE BOX INNER DOOR
                                                                        Valid for USA from M.Y. 90
                                                                        # 045
                                                                        MPN: 62993400
                                                                        CLIP
                                                                        from £0.83
                                                                        from £0.83
                                                                        # 046
                                                                        MPN: 16101711
                                                                        NUT
                                                                        from £0.47
                                                                        from £0.47
                                                                        This part replaces part number 16101715
                                                                        # 047
                                                                        MPN: 10615171
                                                                        WASHER
                                                                        from £0.47
                                                                        from £0.47
                                                                        This part replaces part number 10615174
