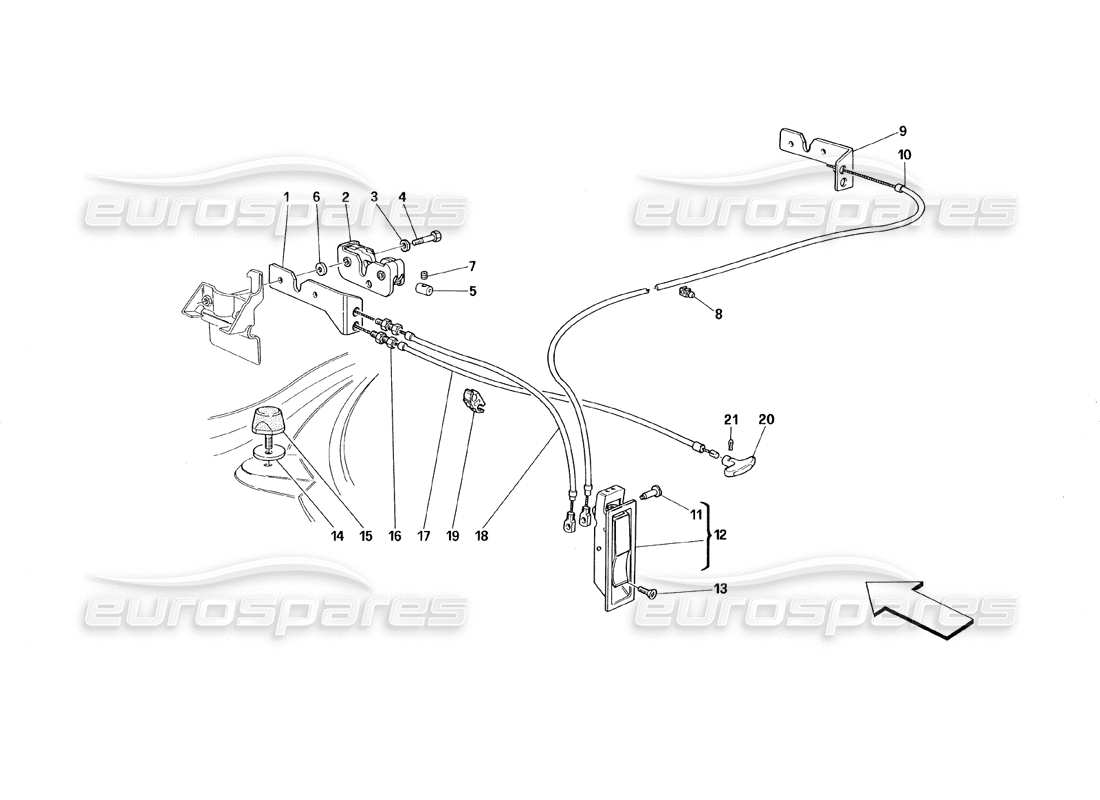

112 - Opening Device for Front Hood
Ferrari 348 (1993) TB / TS Opening Device for Front Hood Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 62616400
LH BRACKET
from £1.49
from £1.49
# 002
MPN: 60277407
FRONT BONNET LOCK
from £287.51
from £287.51
This part replaces part number 60023405 - and 13 more. Click to view details
# 003
MPN: 10615479
WASHER
from £0.47
from £0.47
# 004
MPN: 10903021
SCREW
Supersession
Supersession
# 004
MPN: 626888..
TRIM
Supersession
Supersession
# 005
MPN: 60276607
CONNECTION
from £11.72
from £11.72
This part replaces part number 60276707 - and 4 more. Click to view details
# 006
MPN: 12644401
WASHER
from £0.47
from £0.47
# 007
MPN: 60276805
DOWEL
from £0.71
from £0.71
# 008
MPN: 141521
CLIP
from £1.98
from £1.98
# 009
MPN: 62616300
RH BRACKET
from £1.87
from £1.87
# 010
MPN: 62827700
RH CABLE FOR FRONT HOOD OPENING
from £8.90
from £8.90
# 011
MPN: 62552200
PIN FOR CABLE FASTENING
from £12.97
from £12.97
# 012
MPN: 62551900
HANDLE FOR FRONT HOOD OPENING
from £199.79
from £199.79
# 013
MPN: 14440837
SCREW
Supersession
Supersession
# 014
MPN: 62167200
WASHER
from £0.71
from £0.71
# 015
MPN: 62167300
PAD
Valid till stock exhaustion
Supersession
Supersession
# 015
MPN: 63238800
PAD
Valid after stock exhaustion of 62167300
from £8.44
from £8.44
This part replaces part number 62167300 - and 1 more. Click to view details
# 016
MPN: 62828900
REGISTER FOR LOCK CABLES
from £31.30
from £31.30
This part replaces part number 67502400 - and 1 more. Click to view details
# 017
MPN: 62828300
RH CABLE FOR FRONT HOOD SAFETY LOCK
from £5.90
from £5.90
# 017
MPN: 62828600
LH CABLE FOR FRONT HOOD SAFETY LOCK
from £3.25
from £3.25
# 018
MPN: 62828000
LH CABLE FOR FRONT HOOD OPENING
from £12.72
from £12.72
# 019
MPN: 141699
CLIP
from £0.74
from £0.74
# 020
MPN: 60710900
EMERGENCY HANDLE
from £5.13
from £5.13
# 021
MPN: 60711000
CUP
from £0.53
from £0.53
