Eurospares -Valid for TB - Valid Till Car Nr. 94909 TS and Nr. 94268 USA TS
107 - Passengers Compartment Insulations

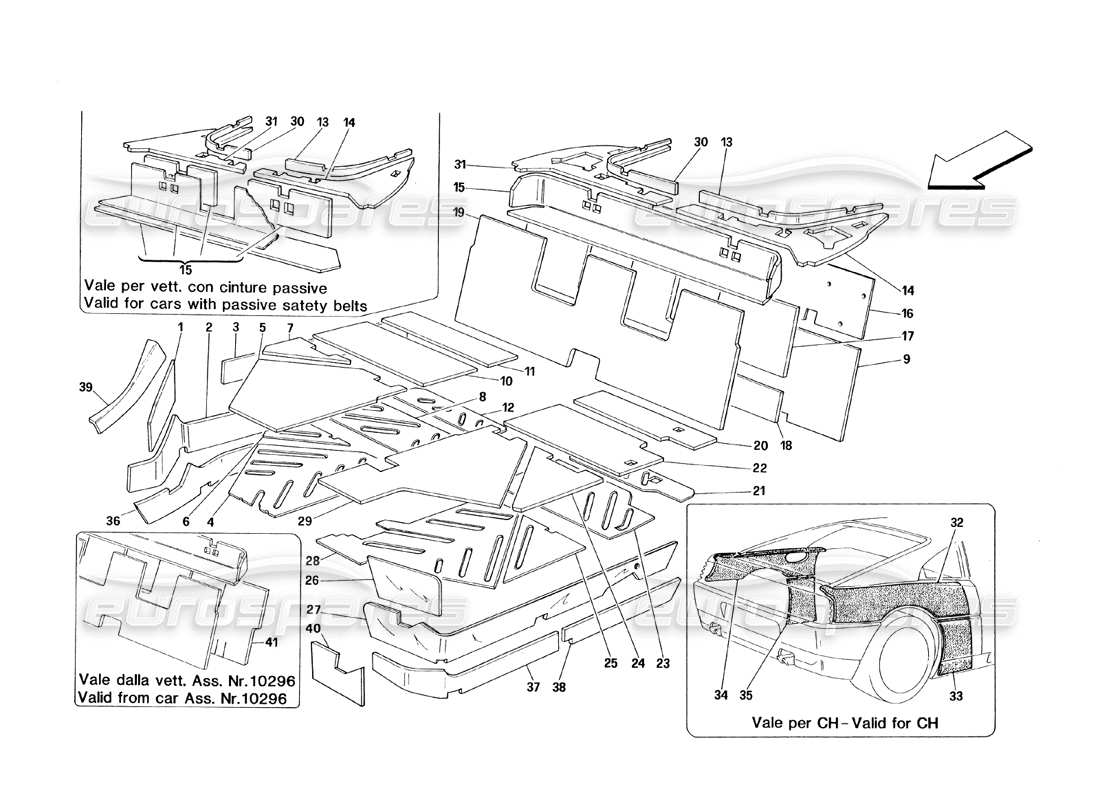

Ferrari 348 (1993) TB / TS Passengers Compartment Insulations Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 62806900
FRONT RH WHEELHOUSEINSULATION
Not for GD
from £102.63
from £102.63
# 001
MPN: 62988600
FRONT RH WHEELHOUSE INSULATION
Valid for GD
from £10.33
from £10.33
# 002
MPN: 62806700
FRONT RH SIDE MEMBER INSULATION
Not for GD
from £42.59
from £42.59
# 003
MPN: 62806800
REAR RH SIDE MEMBER INSULATION
Not for GD
from £102.81
from £102.81
# 004
MPN: 62804300
LOWER FRONT RH INSULATION FOR PLATFORM
Not for GD
from £104.33
from £104.33
# 004
MPN: 62982700
LOWER FRONT RH INSULATION FOR PLATFORM
Valid for GD
from £71.48
from £71.48
# 005
MPN: 62805100
UPPER FRONT RH INSULATION FOR PLATFORM
Not for GD
from £182.57
from £182.57
# 005
MPN: 62982800
UPPER FRONT RH INSULATION FOR PLATFORM
Valid for GD
from £54.18
from £54.18
# 006
MPN: 62804400
OUTER LOWER RH INSULATION FOR PLATFORM
Not for GD
from £20.64
from £20.64
# 006
MPN: 62985100
OUTER LOWER RH INSULATION FOR PLATFORM
Valid for GD
from £102.80
from £102.80
# 007
MPN: 63298000
OUTER UPPER RH INSULATION FOR PLATFORM
Not for GD
from £84.96
from £84.96
# 007
MPN: 63299400
OUTER UPPER RH INSULATION FOR PLATFORM
Valid for GD
from £91.85
from £91.85
# 008
MPN: 62804500
LOWER CENTRAL RH INSULATION FOR PLATFORM
Not for GD
from £38.88
from £38.88
# 008
MPN: 62985200
LOWER CENTRAL RH INSULATION FOR PLATFORM
Valid for GD
from £118.50
from £118.50
# 009
MPN: 62819300
LOWER INSULATION FOR MOTOR COMPARTMENT
Valid for M.Y. 89
from £119.03
from £119.03
# 010
MPN: 63298600
CENTRAL UPPER RH INSULATION FOR PLATFORM
Not for GD
from £120.78
from £120.78
# 010
MPN: 63299600
CENTRAL UPPER RH INSULATION FOR PLATFORM
Valid for GD
from £37.80
from £37.80
# 011
MPN: 63298500
UPPER REAR RH INSULATION FOR PLATFORM
No for GD
from £107.61
from £107.61
# 011
MPN: 63299700
UPPER REAR RH INSULATION FOR PLATFORM
Valid for GD
from £104.94
from £104.94
# 012
MPN: 62804600
LOWER REAR RH INSULATION FOR PLATFORM
Not for GD
from £119.94
from £119.94
# 012
MPN: 62985300
LOWER REAR RH INSULATION FOR PLATFORM
Valid for GD
from £19.50
from £19.50
# 013
MPN: 63298200
LH INSULATION UNDER REAR WINDOW
Valid for cars without passive safety belts
from £14.32
from £14.32
# 013
MPN: 63300900
LH INSULATION UNDER REAR WINDOW
Valid for cars with passive safety belts
from £7.55
from £7.55
# 014
MPN: 63299100
LH PANEL INSULATION UNDER REAR WINDOW
Valid for cars without passive safety belts
from £122.01
from £122.01
This part replaces part number 62806200
# 014
MPN: 63301100
LH PANEL INSULATION UNDER REAR WINDOW
Valid for cars with passive safety belts
from £146.29
from £146.29
# 015
MPN: 63298900
BENCH INSULATION
Valid for cars without passive safety belts
from £119.38
from £119.38
# 015
MPN: 63301200
BENCH INSULATION
Valid for cars with passive safety belts
from £155.82
from £155.82
# 016
MPN: 62819200
UPPER INSULATION FOR MOTOR COMPARTMENT
from £127.60
from £127.60
# 017
MPN: 62885300
UPPER INSULATION FOR PASSENGERS COMPARTMENT
Valid till car Ass. Nr. 10295
from £53.77
from £53.77
# 018
MPN: 62734900
LOWER INSULATION FOR PASSENGERS COMPARTMENT
Valid for TS Valid till car Ass. Nr. 10295
from £37.55
from £37.55
# 018
MPN: 62885200
LOWER INSULATION FOR PASSENGERS COMPARTMENT
Not for TS Valid till car Ass. Nr. 10295
from £41.51
from £41.51
# 019
MPN: 63298800
BACK SEAT INSULATION FOR PASSENGERS COMPARTMENT
from £84.24
from £84.24
# 020
MPN: 63298400
UPPER REAR LH INSULATION FOR PLATFORM
NoforGD
from £107.61
from £107.61
# 020
MPN: 63299900
UPPER REAR LH INSULATION FOR PLATFORM
Valid for GD
from £104.94
from £104.94
# 021
MPN: 62805000
LOWER REAR LH INSULATION FOR PLATFORM
Not for GD
from £119.94
from £119.94
# 021
MPN: 62985000
LOWER REAR LH INSULATION FOR PLATFORM
Valid for GD
from £102.80
from £102.80
# 022
MPN: 63298300
UPPER CENTRAL LH INSULATION FOR PLATFORM
Not for GD
from £137.58
from £137.58
# 022
MPN: 63299500
UPPER CENTRAL LH INSULATION FOR PLATFORM
Valid for GD
from £37.80
from £37.80
# 023
MPN: 62804900
LOWER CENTRAL LH INSULATION FOR PLATFORM
Not for GD
from £125.88
from £125.88
# 023
MPN: 62984900
LOWER CENTRAL LH INSULATION FOR PLATFORM
Valid for GD
from £130.65
from £130.65
# 024
MPN: 63297900
OUTER UPPER LH INSULATION FOR PLATFORM
Not for GD
from £77.12
from £77.12
# 024
MPN: 63299200
OUTER UPPER LH INSULATION FOR PLATFORM
Valid for GD
from £91.85
from £91.85
# 025
MPN: 62804800
OUTER LOWER LH INSULATION FOR PLATFORM
Not for GD
from £137.90
from £137.90
# 025
MPN: 62984800
OUTER LOWER LH INSULATION FOR PLATFORM
Valid for GD
from £102.80
from £102.80
# 026
MPN: 62807000
FRONT LH WHEELHOUSE INSULATION
Not for GD
from £102.63
from £102.63
# 026
MPN: 62988500
FRONT LH WHEELHOUSE INSULATION
Valid for GD
from £29.09
from £29.09
# 027
MPN: 62806600
LH SIDE MEMBER INSULATION
Not for GD
from £9.41
from £9.41
# 028
MPN: 62804700
LOWER FRONT LH INSULATION FOR PLATFORM
Not for GD
from £163.17
from £163.17
# 028
MPN: 62984100
LOWER FRONT LH INSULATION FOR PLATFORM
Valid for GD
from £71.48
from £71.48
# 029
MPN: 62805500
UPPER FRONT LH INSULATION FOR PLATFORM
Not for GD
from £182.57
from £182.57
# 029
MPN: 62984200
UPPER FRONT LH INSULATION FOR PLATFORM
Valid for GD
from £60.81
from £60.81
# 030
MPN: 63298100
RH INSULATION UNDER REAR WINDOW
Valid for cars without passive safety belts
from £14.32
from £14.32
# 030
MPN: 63300800
RH INSULATION UNDER REAR WINDOW
Valid for cars with passive safety belts
from £7.19
from £7.19
# 031
MPN: 63299000
RH PANEL INSULATION UNDER REAR WINDOW
Valid for cars without passive safety belts
from £122.01
from £122.01
This part replaces part number 62806100
# 031
MPN: 63301000
RH PANEL INSULATION UNDER REAR WINDOW
Valid for cars with passive safety belts
from £146.29
from £146.29
# 032
MPN: 62841200
RH REAR FENDER UPPER INSULATION
Valid for CH
from £274.25
from £274.25
# 033
MPN: 62841400
RH REAR FENDER LOWER INSULATION
Valid for CH
from £42.03
from £42.03
# 034
MPN: 62841300
LH REAR FENDER UPPER INSULATION
Valid for CH
from £274.25
from £274.25
# 035
MPN: 62841500
LH REAR FENDER LOWER INSULATION
Valid for CH
from £42.03
from £42.03
# 036
MPN: 62988200
RH SIDE MEMBER INSULATION
Valid for GD
from £42.60
from £42.60
# 037
MPN: 62988300
LH FRONT SIDE MEMBER INSULATION
Valid for GD
from £73.14
from £73.14
# 038
MPN: 62988400
LH REAR SIDE MEMBER INSULATION
Valid for GD
from £16.40
from £16.40
# 039
MPN: 62735700
RH FRONT SIDE INSULATION
Valid for USA Valid from M.Y. 90
from £13.88
from £13.88
# 040
MPN: 62735600
LH FRONT SIDE INSULATION
Valid for USA Valid from M.Y. 90
from £14.58
from £14.58
# 041
MPN: 63593500
INSULATION FOR PASSENGERS COMPARTMENT
Valid from car Ass. Nr. 10296
from £147.01
from £147.01
