ferrari 348 (1993) tb / ts roof - outer trims parts diagram

105 - Roof - Outer Trims

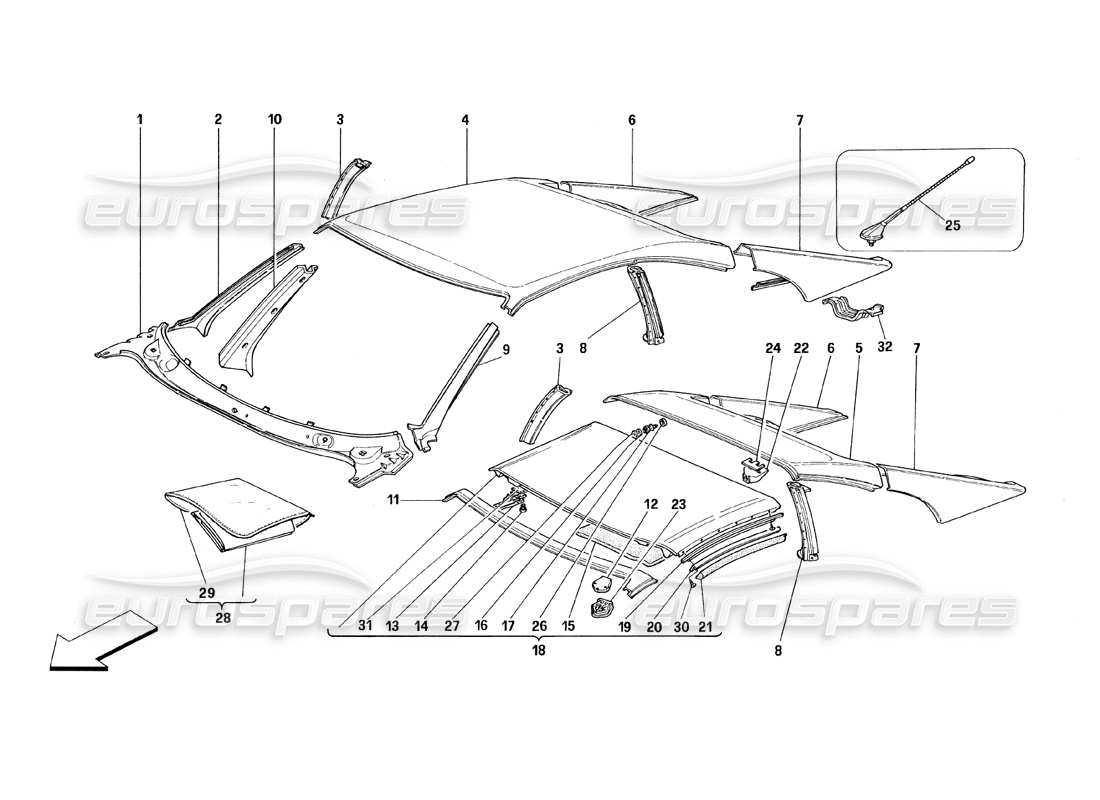

Ferrari 348 (1993) TB / TS Roof - Outer Trims Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                        #
                        Part number
                        Description
                        Price
                        # 001
                        MPN: 62181100
                        TAIL WINDSHIELD TRIM
                        Not for GD
                        from £108.27
                        from £108.27
                        # 001
                        MPN: 62183900
                        TAIL WINDSHIELD TRIM
                        Valid for GD
                        from £102.79
                        from £102.79
                        # 002
                        MPN: 62059900
                        RH OUTER TRIM FOR WINDSHIELD VERTICAL ROD
                        from £322.49
                        from £322.49
                        # 003
                        MPN: 62083700
                        RH REAR VERTICAL ROD
                        from £306.84
                        from £306.84
                        # 004
                        MPN: 62062000
                        ROOF UPHOLSTERY
                        Valid for TB With antenna hole
                        from £958.43
                        from £958.43
                        # 004
                        MPN: 63234900
                        ROOF UPHOLSTERY
                        Valid for TB Without antenna hole
                        from £1,275.30
                        from £1,275.30
                        # 005
                        MPN: 62110700
                        ROOF UPHOLSTERY
                        Valid for TS With antenna hole
                        from £319.82
                        from £319.82
                        # 005
                        MPN: 63236200
                        ROOF UPHOLSTERY
                        Valid for TS Without antenna hole
                        from £200.61
                        from £200.61
                        # 006
                        MPN: 62062100
                        RH FIN TRIM
                        from £411.72
                        from £411.72
                        # 007
                        MPN: 62062200
                        LH FIN TRIM
                        from £110.33
                        from £110.33
                        # 008
                        MPN: 62083800
                        LH REAR VERTICAL ROD
                        from £34.93
                        from £34.93
                        # 009
                        MPN: 62060000
                        LH OUTER TRIM FOR WINDSHIELD VERTICAL ROD
                        from £39.57
                        from £39.57
                        # 010
                        MPN: 62080300
                        RH INNER VERTICAL ROD
                        from £81.74
                        from £81.74
                        # 010
                        MPN: 62080400
                        LH INNER VERTICAL ROD
                        from £293.01
                        from £293.01
                        # 011
                        MPN: 62110800
                        TAIL WINDSHIELD TRIM -VALID FOR TS-
                        from £403.37
                        from £403.37
                        # 012
                        MPN: 63238700
                        THICKNESS
                        Valid for TS Possible fitting
                        from £2.41
                        from £2.41
                        This part replaces part number 62338700
                        # 013
                        MPN: 62219400
                        HANDLE
                        Valid for TS
                        from £1,916.37
                        from £1,916.37
                        # 014
                        MPN: 14303282
                        SCREW
                        Valid for TS
                        from £1.05
                        from £1.05
                        # 015
                        MPN: 62981400
                        RH COVER
                        Grey Made of cloth Valid for TS
                        from £158.07
                        from £158.07
                        # 015
                        MPN: 62981500
                        LH COVER
                        Grey Made of cloth ValidforTS
                        from £158.07
                        from £158.07
                        # 015
                        MPN: 62981800
                        RH COVER
                        Beige Made of cloth Valid for TS
                        from £135.23
                        from £135.23
                        # 015
                        MPN: 62981900
                        LH COVER
                        Beige Made of cloth Valid for TS
                        from £135.23
                        from £135.23
                        # 015
                        MPN: 62982000
                        RH COVER
                        Red Made of cloth ValidforTS
                        from £130.29
                        from £130.29
                        # 015
                        MPN: 62982100
                        LH COVER
                        Red Made of cloth ValidforTS
                        from £130.29
                        from £130.29
                        # 015
                        MPN: 62982200
                        RH COVER
                        Blue Made of cloth Valid for TS
                        from £136.42
                        from £136.42
                        # 015
                        MPN: 62982300
                        LH COVER
                        Blue Made of cloth Valid for TS
                        from £143.25
                        from £143.25
                        # 015
                        MPN: 630198..
                        RH COVER
                        Made of leather Valid for TS
                        Supersession
                        Supersession
                        # 015
                        MPN: 630199..
                        LH COVER
                        Made of leather Valid for TS
                        Supersession
                        Supersession
                        # 016
                        MPN: 12601374
                        WASHER
                        Valid for TS
                        from £0.47
                        from £0.47
                        This part replaces part number 10615474 - and 6 more. Click to view details
                        # 017
                        MPN: 63634500
                        PIN
                        Valid for TS See Variation Introduction Card No. 140
                        from £35.70
                        from £35.70
                        This part replaces part number 62112800 which we have in stock - and 1 more. Click to view details
                        # 018
                        MPN: 636356..
                        COMPLETE SUN ROOF
                        Valid for TS - Covering made of cloth
                        Supersession
                        Supersession
                        # 018
                        MPN: 63635603
                        COMPLETE SUN ROOF
                        Valid for TS - Covering made of cloth - grey colour
                        from £2,327.80
                        from £2,327.80
                        This part replaces part number 62981103 - and 1 more. Click to view details
                        # 018
                        MPN: 636357..
                        COMPLETE SUN ROOF
                        Valid for TS Covering made of leather
                        Supersession
                        Supersession
                        # 019
                        MPN: 62889800
                        RH TROUGH
                        Valid for TS Valid till stock exhaustion
                        from £273.88
                        from £273.88
                        This part replaces part number 63528500
                        # 019
                        MPN: 62889900
                        LH TROUGH
                        Valid for TS Valid till stock exhaustion
                        from £173.75
                        from £173.75
                        This part replaces part number 63528600
                        # 019
                        MPN: 63528500
                        RH TROUGH
                        Valid for TS Valid after stock exhaustion of 62889800
                        Supersession
                        Supersession
                        This part replaces part number 62889800 which we have in stock
                        # 019
                        MPN: 63528600
                        LH TROUGH
                        Valid for TS Valid after stock exhaustion of 62889900
                        Supersession
                        Supersession
                        This part replaces part number 62889900 which we have in stock
                        # 020
                        MPN: 62890000
                        RH ANGLE PIECE
                        Valid for TS
                        from £66.08
                        from £66.08
                        # 020
                        MPN: 62890500
                        LH ANGLE PIECE
                        Valid for TS
                        from £61.51
                        from £61.51
                        # 021
                        MPN: 63506300
                        RH GASKET
                        Valid for TS
                        from £566.16
                        from £566.16
                        This part replaces part number 62889500
                        # 021
                        MPN: 63506400
                        LH GASKET
                        Valid for TS
                        from £566.16
                        from £566.16
                        This part replaces part number 62889600
                        # 022
                        MPN: 63634600
                        ROOF FIXING REAR BRACKET
                        Valid for TS See Variation Introduction Card No.
                        from £5.25
                        from £5.25
                        This part replaces part number 62113100 - and 1 more. Click to view details
                        # 023
                        MPN: 63635100
                        140-ROOF LOCKING FRONT
                        from £10.28
                        from £10.28
                        This part replaces part number 62170400 which we have in stock - and 1 more. Click to view details
                        # 024
                        MPN: 62113200
                        THICKNESS
                        Valid for TS Possible fitting
                        from £0.47
                        from £0.47
                        # 025
                        MPN: 143764
                        RADIO ANTENNA
                        from £47.39
                        from £47.39
                        This part replaces part number 141394
                        # 026
                        MPN: 63635200
                        SPACER
                        Valid for TS See Variation Introduction Card No. 140
                        from £26.57
                        from £26.57
                        # 027
                        MPN: 12642777
                        WASHER
                        Valid for TS Possible fitting See Variation Introduction Card No. 140
                        from £0.47
                        from £0.47
                        This part replaces part number 12642721 which we have in stock - and 1 more. Click to view details
                        # 028
                        MPN: 63348200
                        COMPLETE ROOF OVERLAP
                        -Valid for GTS in black
                        from £919.24
                        from £919.24
                        This part replaces part number 63311200
                        # 029
                        MPN: 63336200
                        ROOF COVER CONTAINING ENVELOPE
                        Valid for TS see relevant table for codes of parts covered in leather or moquette and for tha complete series of floor carpets and moquette upholstery
                        from £268.02
                        from £268.02
                        # 030
                        MPN: 15914977
                        SCREW
                        from £0.83
                        from £0.83
                        # 031
                        MPN: 60399003
                        THICKNESS
                        Valid for TS
                        from £3.23
                        from £3.23
                        # 031
                        MPN: 63932300
                        THICKNESS
                        mm. 1 Valid for TS Possible fitting
                        from £2.08
                        from £2.08
                        # 032
                        MPN: 62089400
                        LH BRACKET
                        from £8.43
                        from £8.43
                        # 032
                        MPN: 62821500
                        RH BRACKET
                        mm. 3 Valid for TS Possible fitting
                        from £13.09
                        from £13.09
