ferrari 348 (1993) tb / ts frame - rear part elements parts diagram

104 - Frame - Rear Part Elements

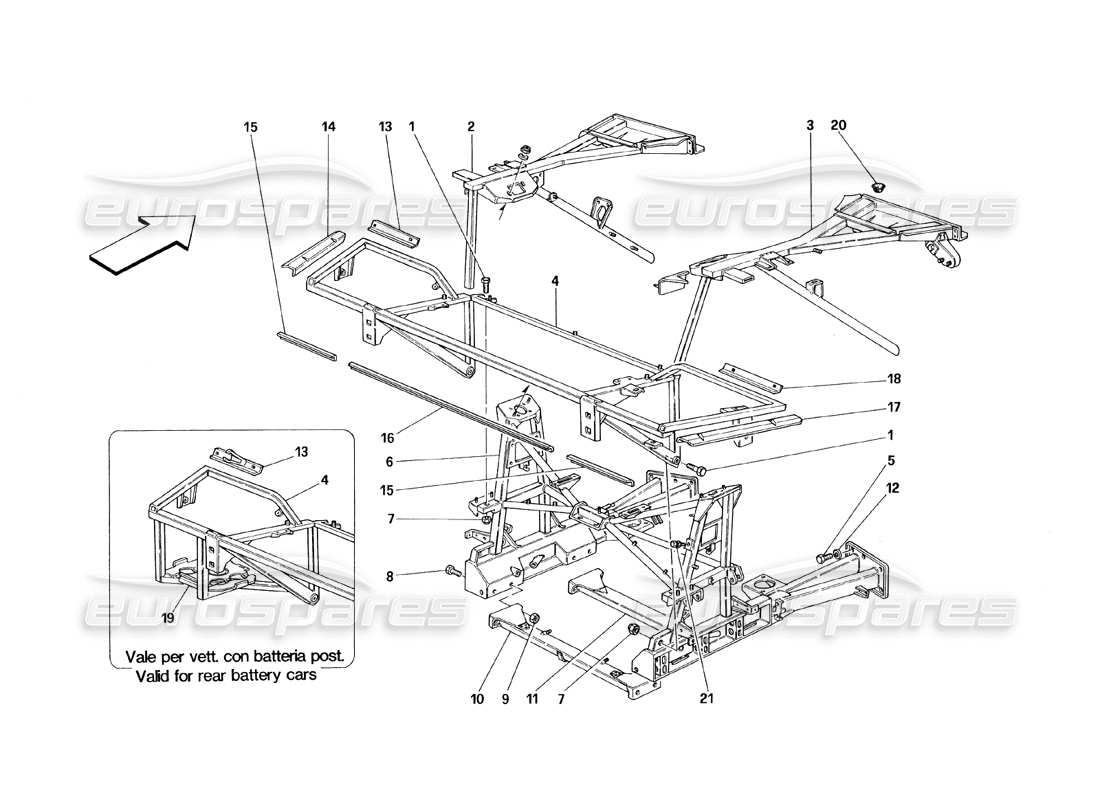

Ferrari 348 (1993) TB / TS Frame - Rear Part Elements Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                          #
                          Part number
                          Description
                          Price

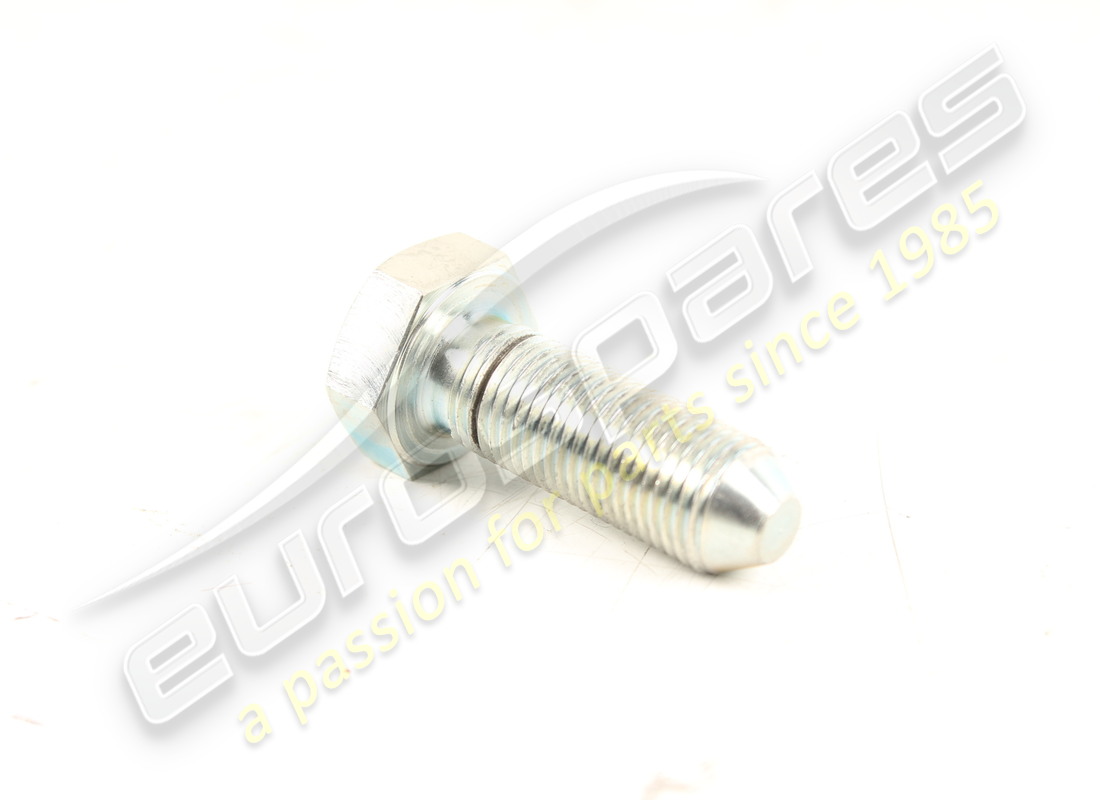

                          # 001
                          MPN: 15540821
                          SCREW
                          Not for USA, CDN, SA and J
                          from £1.11
                          from £1.11
                          # 001
                          MPN: 15977621
                          SCREW
                          Valid for USA, CDN, SA and J
                          from £1.34
                          from £1.34

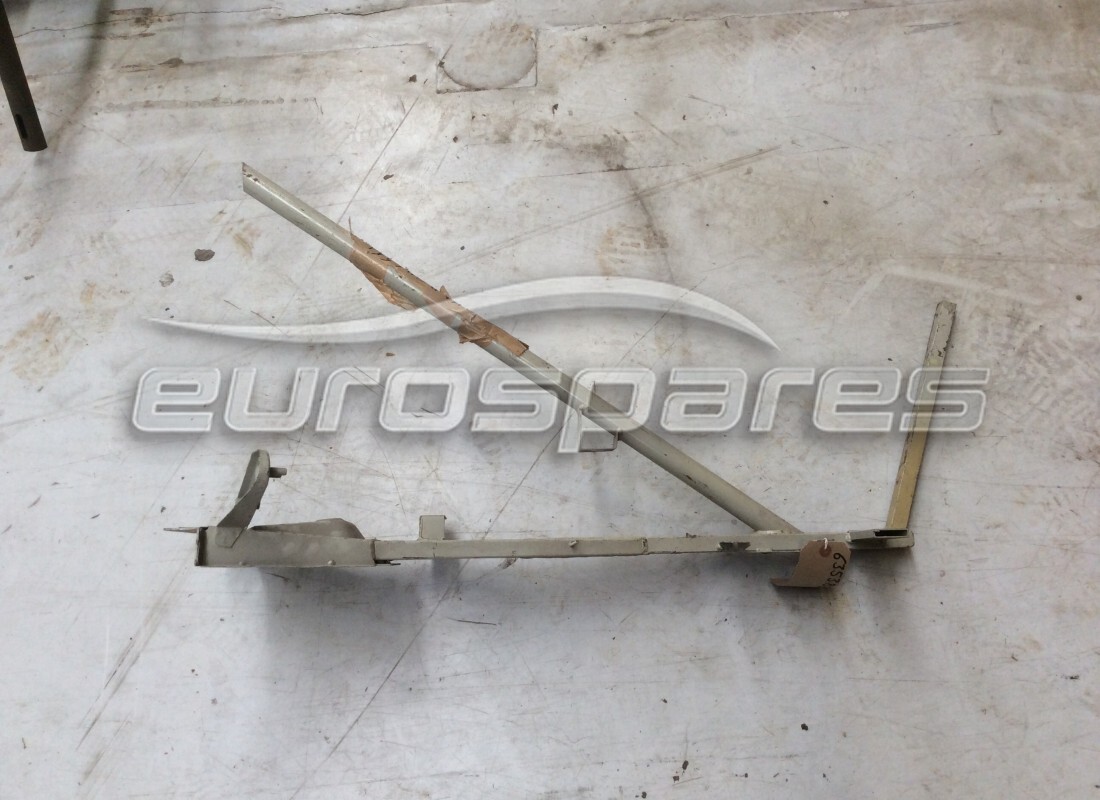

                          # 002
                          MPN: 62622100
                          LH UPPER FIXED FRAME
                          Valid for rear battery cars
                          from £290.81
                          from £290.81
                          # 002
                          MPN: 63539000
                          LH UPPER FIXED FRAME
                          Valid for front battery cars
                          from £603.75
                          from £603.75
                          # 003
                          MPN: 63538800
                          RH UPPER FIXED FRAME
                          AS SPARE ONLY ON SPECIFIC REQUEST, EXPRESSELY APPROVED BY Ferrari.
                          from £546.40
                          from £546.40
                          # 004
                          MPN: 63009400
                          REAR FIXED TRESTLE
                          Not for USA, CDN, SA, J Valid for rear battery cars
                          from £1,210.67
                          from £1,210.67
                          This part replaces part number 62622300 - and 1 more. Click to view details
                          # 004
                          MPN: 63257600
                          REAR FIXED TRESTLE
                          Valid for rear battery cars
                          from £624.75
                          from £624.75
                          This part replaces part number 62645900 - and 1 more. Click to view details
                          # 004
                          MPN: 63346500
                          REAR FIXED TRESTLE
                          Valid for CDN Valid for rear battery cars
                          from £1,847.09
                          from £1,847.09
                          # 004
                          MPN: 63534300
                          REAR FIXED TRESTLE
                          Not for USA, CDN, SA, J Valid for front battery cars Valid for USA, SA, J
                          from £1,600.47
                          from £1,600.47
                          # 004
                          MPN: 63534400
                          REAR FIXED TRESTLE
                          Valid for USA, SA, J Valid for front battery cars
                          from £1,048.94
                          from £1,048.94
                          # 004
                          MPN: 63534500
                          REAR FIXED TRESTLE
                          Valid for CDN Valid for front battery cars
                          from £1,056.03
                          from £1,056.03
                          # 005
                          MPN: 16142021
                          SCREW
                          from £11.67
                          from £11.67
                          # 006
                          MPN: 63504700

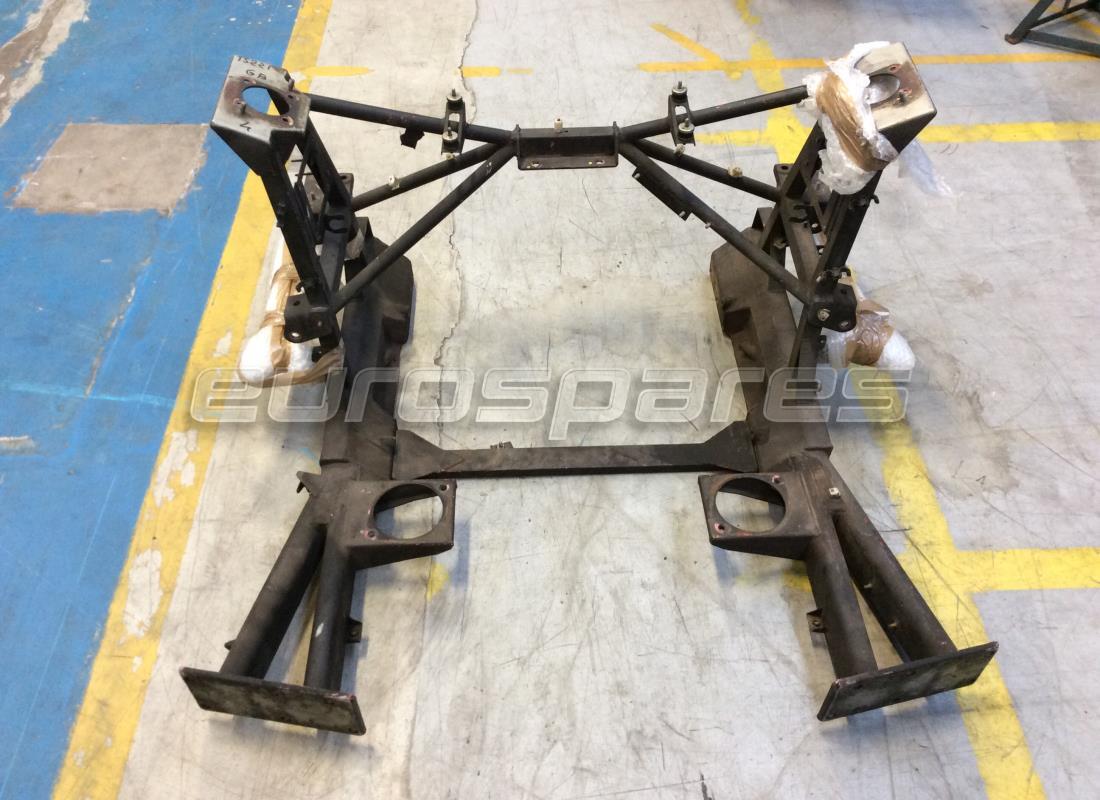

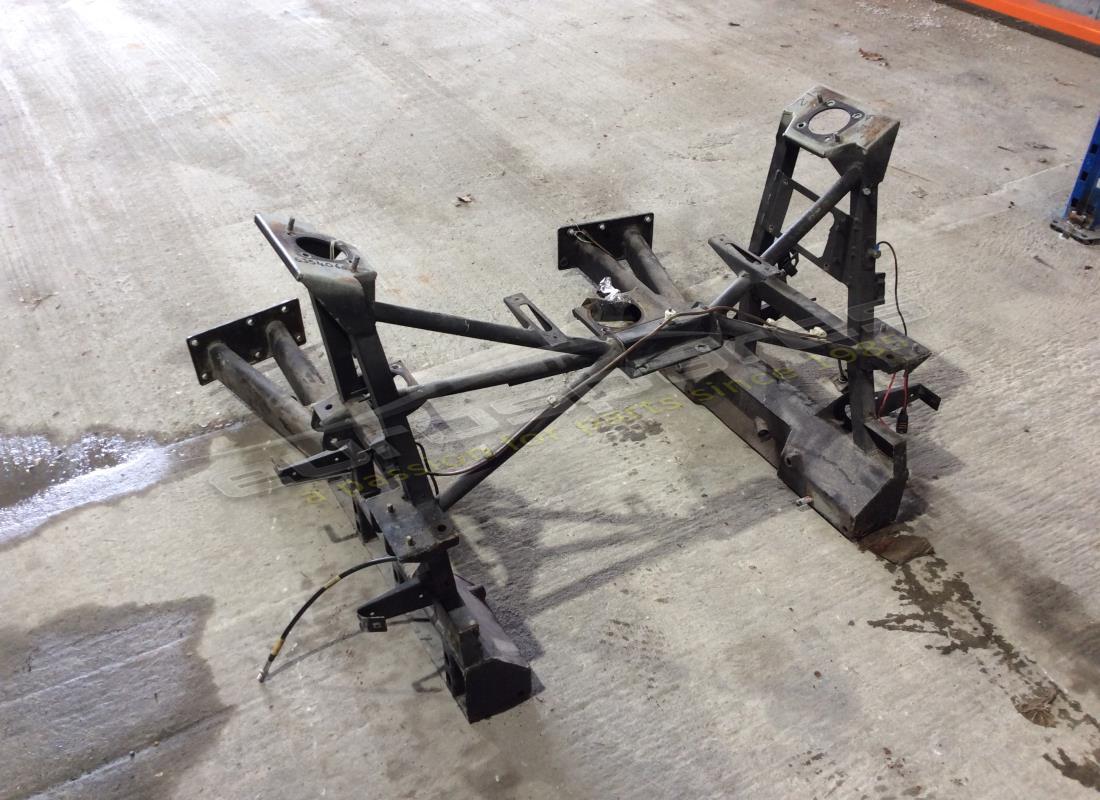

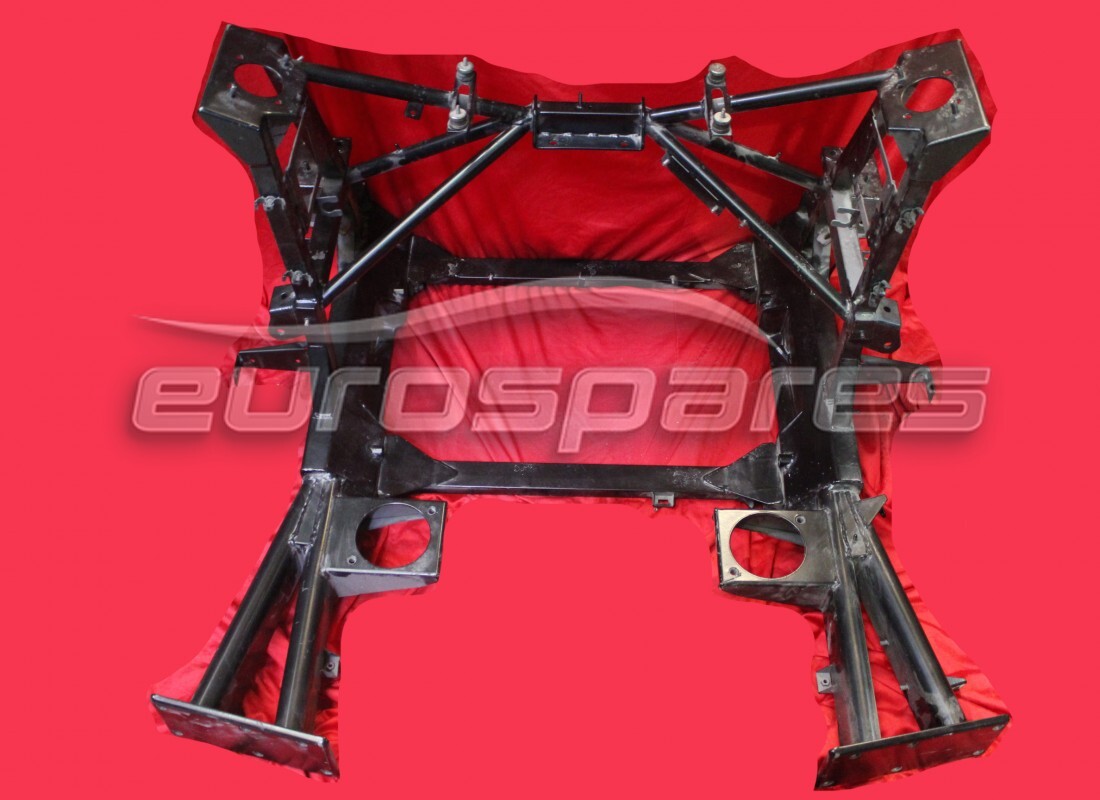

                          MOVING FRAME FOR MOTOR-PROPULSOR SUPPORT
                          Not for USA, CDN, SA, J and GD Valid for rear battery cars Valid for lower fork 116690 See Table 40 Part. 21
                          from £3,504.68
                          from £3,504.68
                          This part replaces part number 63007900
                          # 006
                          MPN: 63504800
                          MOVING FRAME FOR MOTOR-PROPULSOR SUPPORT
                          Valid for GD Valid for rear battery cars Valid for lower fork 116690 See Table 40 Part. 21
                          from £1,942.50
                          from £1,942.50
                          This part replaces part number 63009900 - and 1 more. Click to view details
                          # 006
                          MPN: 63504900
                          MOVING FRAME FOR MOTOR-PROPULSOR SUPPORT
                          Valid for USA, CDN, SA, J Valid for rear battery cars Valid for lower fork 116690 See Table 40 Part. 21
                          from £2,682.51
                          from £2,682.51
                          This part replaces part number 62925100
                          # 006
                          MPN: 63539800
                          MOVING FRAME FOR MOTOR-PROPULSOR SUPPORT
                          Not for USA, CDN, SA.JandGD Valid for front battery cars Valid for lower fork 116690 See Table 40 Part. 21
                          from £2,151.06
                          from £2,151.06
                          # 006
                          MPN: 63540500
                          MOVING FRAME FOR MOTOR-PROPULSOR SUPPORT
                          Valid for USA, CDN, SA, J Valid for front battery cars valid for lower fork 116690 See Table 40 Part. 21
                          from £3,848.73
                          from £3,848.73
                          # 006
                          MPN: 63540600
                          MOVING FRAME FOR MOTOR-PROPULSOR SUPPORT
                          Valid for GD Valid for front battery cars Valid for lower fork 11 6690 See Table 40 Part. 21
                          from £1,847.19
                          from £1,847.19
                          # 007
                          MPN: 102825
                          NIUT
                          Not for USA, CDN, SA and J
                          from £0.47
                          from £0.47
                          This part replaces part number 95900617
                          # 007
                          MPN: 150238
                          NUT
                          Valid for USA, CDN, SA and J
                          from £0.47
                          from £0.47
                          This part replaces part number 12575821 - and 2 more. Click to view details
                          # 008
                          MPN: 15541321
                          SCREW
                          from £19.11
                          from £19.11
                          This part replaces part number 15541311
                          # 009
                          MPN: 142438
                          NIUT
                          from £0.48
                          from £0.48
                          # 010
                          MPN: 62465000
                          REAR REMOVABLE CROSS MEMBER
                          from £193.22
                          from £193.22
                          # 011
                          MPN: 62836600
                          FRONT REMOVABLE CROSS MEMBER
                          from £208.96
                          from £208.96
                          # 012
                          MPN: 106854
                          WASHER
                          Supersession
                          Supersession
                          # 013
                          MPN: 62123700
                          WHEELHOUSE FIXING LH PLATE
                          Valid for front battery cars
                          from £1.55
                          from £1.55
                          # 013
                          MPN: 62854700
                          WHEELHOUSE FIXING LH PLATE
                          Valid for rear battery cars
                          from £11.38
                          from £11.38
                          # 014
                          MPN: 62129000
                          FENDER FIXING LH PLATE
                          from £22.83
                          from £22.83
                          # 015
                          MPN: 62054800
                          FRONT PLATE FOR REAR SIDE COVER SUPPORT
                          from £1.31
                          from £1.31
                          # 016
                          MPN: 62055000
                          CENTRAL PLATE FOR REAR SIDE COVER SUPPORT
                          from £1.59
                          from £1.59
                          # 017
                          MPN: 62128900
                          FENDER FIXING RH PLATE
                          from £19.15
                          from £19.15
                          # 018
                          MPN: 62123700
                          WHEELHOUSE FIXING RH PLATE
                          from £1.55
                          from £1.55
                          # 019
                          MPN: 62465600
                          PLATE FOR BATTERY SUPPORT
                          Valid for rear battery cars
                          from £113.40
                          from £113.40
                          # 020
                          MPN: 14506787
                          PLUG
                          from £0.70
                          from £0.70
                          This part replaces part number 62773100
                          # 021
                          MPN: 151856
                          NEGATIVE TERMINAL
                          Valid for front battery cars
                          from £1.96
                          from £1.96
