ferrari 348 (1993) tb / ts front part structures parts diagram

102 - Front Part Structures

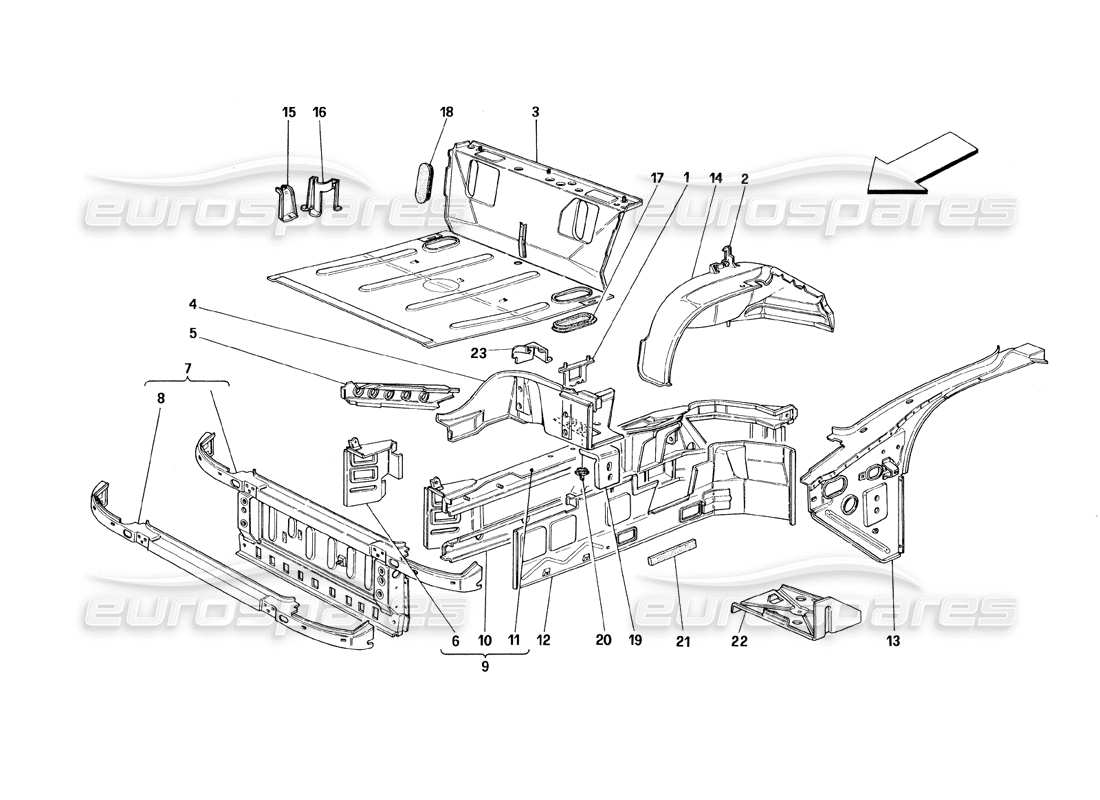

Ferrari 348 (1993) TB / TS Front Part Structures Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                          #
                          Part number
                          Description
                          Price
                          # 000
                          MPN: 62090500

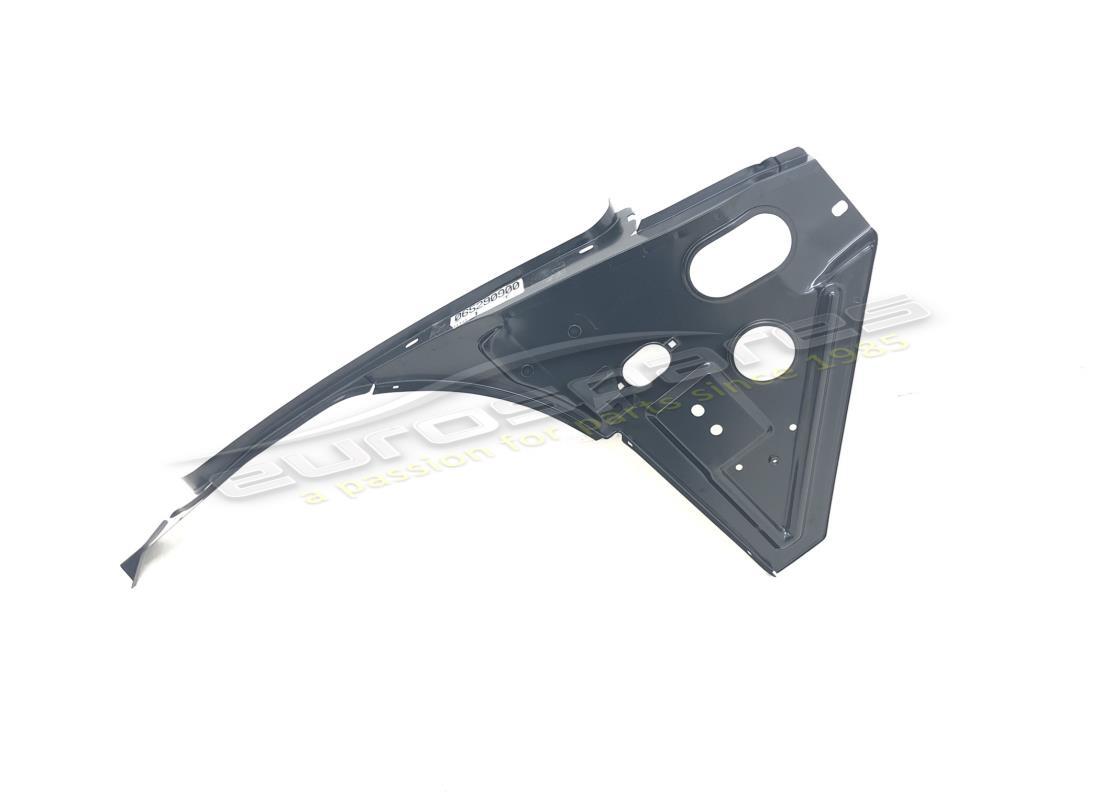

                          RH FRONT LATERAL STRUCTURE ASSEMBLY
                          Not for CDN and GD Valid till stock exhaustion
                          Supersession
                          Supersession
                          # 000
                          MPN: 63343900
                          R.H FRONT LATERAL STRUCTURE ASSEMBLY
                          Valid for CDN Valid till car Nr. 95080 TB,Nr. 94925 TS
                          # 000
                          MPN: 63618300
                          RH FRONT LATERAL STRUCTURE ASSEMBLY
                          Not for CDN and GD Valid after stock exhaustion of 62090500
                          from £1,046.48
                          from £1,046.48
                          This part replaces part number 62090500
                          # 000
                          MPN: 63640100
                          R.H FRONT LATERAL STRUCTURE ASSEMBLY
                          Valid for GD
                          from £1,020.16
                          from £1,020.16
                          This part replaces part number 62133600
                          # 000
                          MPN: 63640300
                          R.H FRONT LATERAL STRUCTURE ASSEMBLY
                          Valid foi CDN Valid from car Nr. 95081 TB,Nr. 94926 TS
                          from £1,342.44
                          from £1,342.44
                          # 001
                          MPN: 62166000
                          BRACKET FOR CONTROL UNIT FIXING
                          from £99.98
                          from £99.98
                          # 002
                          MPN: 62068200
                          RH BRACKET FOR FRNT HOOD LOCK
                          from £22.80
                          from £22.80
                          # 002
                          MPN: 62068300
                          LH BRACKET FOR FRONT HOOD LOCK
                          from £22.80
                          from £22.80
                          # 003
                          MPN: 62215700
                          TRUNK BOTTOM
                          Valid for GD Valid till stock exhaustion
                          Supersession
                          Supersession
                          # 003
                          MPN: 63540800
                          TRUNK BOTTOM
                          Valid for GD Valid after stock exhaustion of 62215700 AND VALID FOR TILL CAR NR. 95080 TB AND NR. 94925 TS
                          from £821.14
                          from £821.14
                          This part replaces part number 62215700
                          # 003
                          MPN: 63589300
                          TRUNK BOTTOM
                          Not for GD Valid till stock exhaustion
                          from £554.91
                          from £554.91
                          This part replaces part number 63510000
                          # 003
                          MPN: 63589300
                          TRUNK BOTTOM
                          from £554.91
                          from £554.91
                          This part replaces part number 63510000
                          # 003
                          MPN: 63589300
                          TRUNK BOTTOM
                          Not for GD Valid from car Nr. 95081 TB,Nr. 94926 TS and Nr. 94269 USA TS
                          from £554.91
                          from £554.91
                          This part replaces part number 63510000
                          # 003
                          MPN: 63589900
                          TRUNK BOTTOM
                          Valid for GD Valid from car Nr. 95081 TB and Nr. 94926 TS
                          from £821.14
                          from £821.14
                          # 004
                          MPN: 62087900
                          RH LIGHT AROUND FRAMEWORK
                          Completed with brackets 15 and 16
                          Supersession
                          Supersession
                          # 004
                          MPN: 63537200
                          LH LIGHT AROUND FRAMEWORK
                          Completed with bracket 1
                          Supersession
                          Supersession
                          This part replaces part number 62088000
                          # 005
                          MPN: 62208700
                          REINFORCEMENT FOR FRONT LH SIDE STRUCTURE
                          Supersession
                          Supersession
                          # 005
                          MPN: 63597600
                          REINFORCEMENT FOR FRONT RH SIDE STRUCTURE
                          from £103.39
                          from £103.39
                          This part replaces part number 62208600
                          # 006
                          MPN: 62096300
                          FRONT REINFORCEMENT FOR LH DIDE STRUCTURE
                          Not for CON
                          from £69.90
                          from £69.90
                          # 006
                          MPN: 63343700
                          FRONT REINFORCEMENT FOR RH SIDE STRUCTURE
                          Not for CON
                          from £24.82
                          from £24.82
                          # 006
                          MPN: 63343700
                          FRONT REINFORCEMENT FOR RH SIDE STRUCTURE
                          Valid for CON
                          from £24.82
                          from £24.82
                          # 006
                          MPN: 63343800
                          FRONT REINFORCEMENT FOR LH DIDE STRUCTURE
                          Valid for CON
                          from £24.87
                          from £24.87
                          # 007
                          MPN: 63315600
                          COMPLETE FRONT MOULDING
                          Valid for CON
                          from £536.96
                          from £536.96
                          # 007
                          MPN: 64312800
                          COMPLETE FRONT MOULDING
                          Not for CON
                          from £1,377.35
                          from £1,377.35
                          This part replaces part number 62086900
                          # 008
                          MPN: 70000611
                          UPPER CROSS MEMBER FOR FRONT FRAMEWORK
                          from £673.83
                          from £673.83
                          # 009
                          MPN: 62090600
                          LH FRONT LATERAL STRUCTURE ASSEMBLY
                          Not for CDN and GD Valid till stock exhaustion
                          Supersession
                          Supersession
                          # 009
                          MPN: 63505200
                          LH FRONT LATERAL STRUCTURE ASSEMBLY
                          Valid for CDN Valid till car Nr. 95080 TB,Nr. 94925 TS
                          # 009
                          MPN: 63618400
                          LH FRONT LATERAL STRUCTURE ASSEMBLY
                          Not for CDN and GD Valid after stock exhaustion of 62090600
                          from £1,046.48
                          from £1,046.48
                          This part replaces part number 62090600
                          # 009
                          MPN: 63640200
                          LH FRONT LATERAL STRUCTURE ASSEMBLY
                          Valid for GD
                          from £2,020.06
                          from £2,020.06
                          This part replaces part number 62133700
                          # 009
                          MPN: 63640400
                          LH FRONT LATERAL STRUCTURE ASSEMBLY
                          Valid for CDN Valid from car Nr. 95081 TB,Nr. 94926 TS
                          # 010
                          MPN: 62083000
                          RH LOWER SPRAG
                          Without reinforcements
                          from £252.72
                          from £252.72
                          # 010
                          MPN: 62083100
                          LH LOWER SPRAG
                          Without reinforcements
                          from £300.63
                          from £300.63
                          # 011
                          MPN: 62175200
                          RH UPPER SPRAG
                          Not for CDD
                          from £160.54
                          from £160.54
                          # 011
                          MPN: 63347600
                          RH UPPER SPRAG
                          Valid for CDN
                          from £95.01
                          from £95.01
                          # 011
                          MPN: 63347700
                          LH UPPER SPRAG
                          Valid for CDN Valid for rear battery cars
                          # 011
                          MPN: 63510300
                          LH UPPER SPRAG
                          Not for CDN
                          from £107.19
                          from £107.19
                          This part replaces part number 62164900
                          # 011
                          MPN: 63541100
                          LH UPPER SPRAG
                          Valid for CDN Valid for front battery cars
                          from £184.97
                          from £184.97
                          # 012
                          MPN: 62182100
                          SPRAGS RH SIDE
                          from £217.33
                          from £217.33
                          # 012

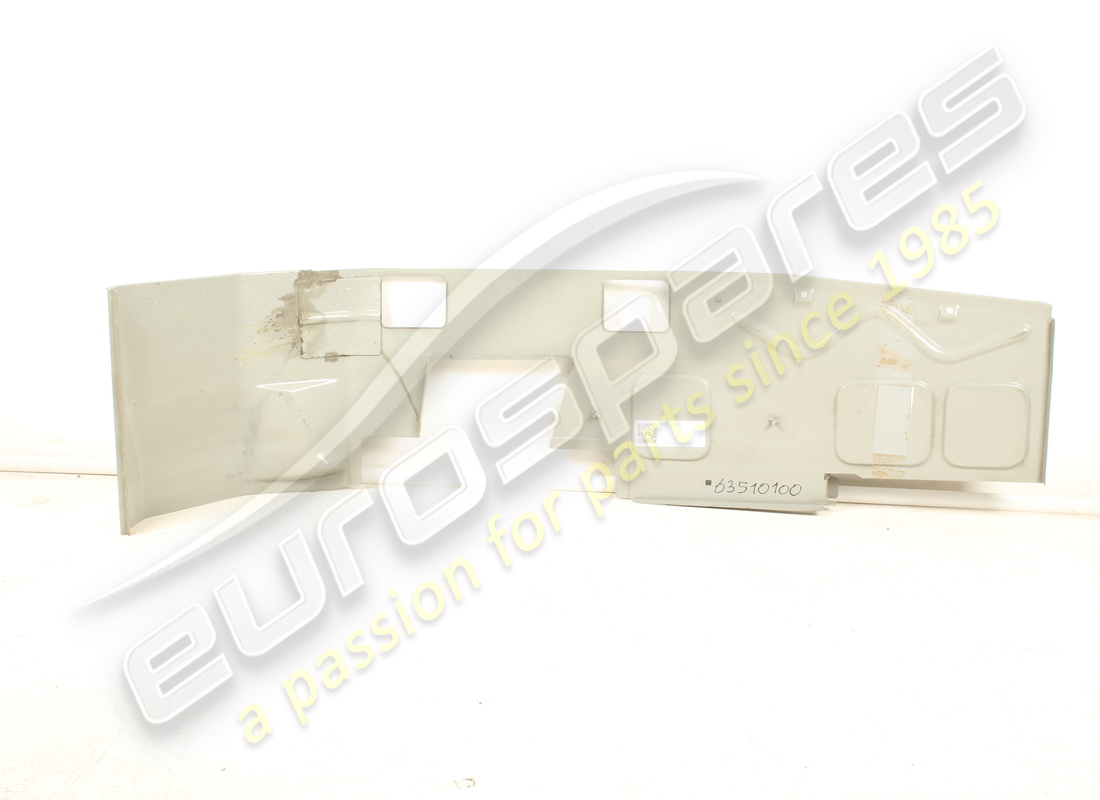

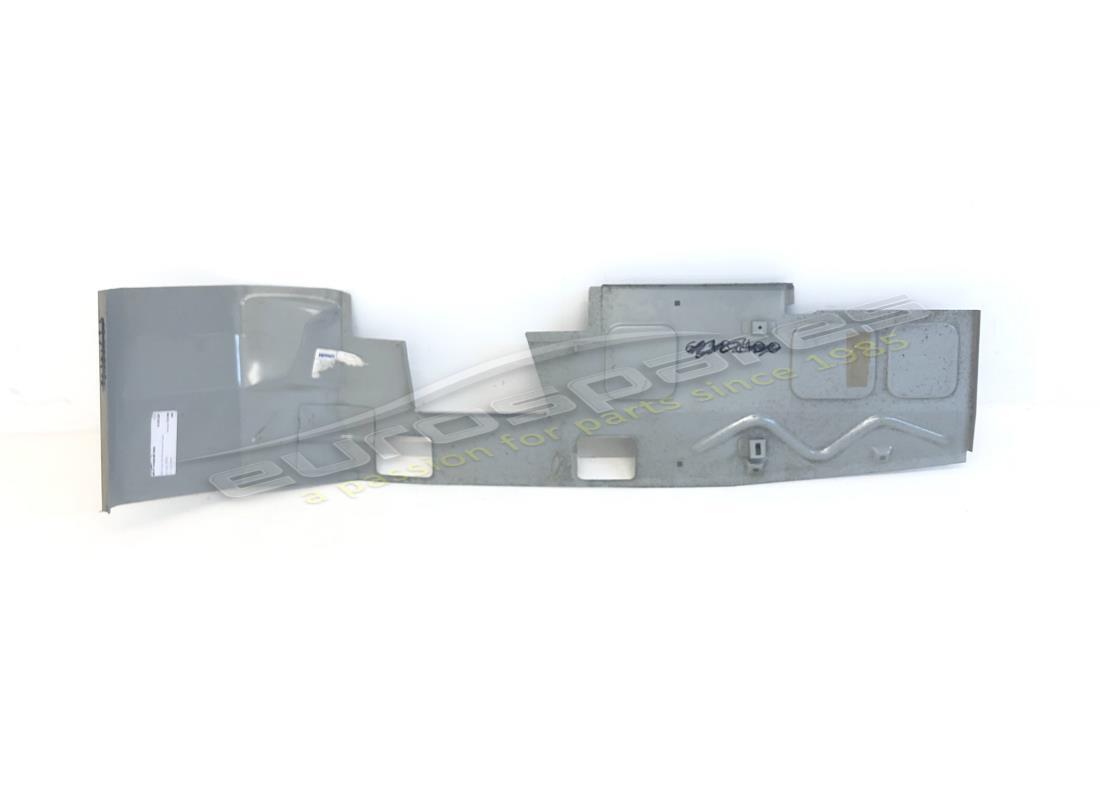

                          MPN: 63510100
                          SPRAGS LH SIDE
                          from £1,189.47
                          from £1,189.47
                          This part replaces part number 62182200
                          # 013
                          MPN: 63382000
                          LH FENDER SUPPORT WALL
                          Supersession
                          Supersession
                          This part replaces part number 62089800
                          # 013
                          MPN: 65290900
                          RH FENDER SUPPORT WALL
                          from £368.22
                          from £368.22
                          This part replaces part number 63381900
                          # 014
                          MPN: 62088100
                          RH FRONT WHEELHOUSE
                          Not for GD Valid till car Nr. 95080 TB,Nr. 94925 TS and Nr. 94268 USATS
                          Supersession
                          Supersession
                          # 014
                          MPN: 62986400
                          RH FRONT WHEELHOUSE
                          Valid for GD Valid till car Nr. 95080 TB and Nr. 94925 TS
                          from £130.90
                          from £130.90
                          # 014
                          MPN: 62986500
                          LH FRONT WHEELHOUSE
                          Valid for GD Valid till car Nr. 95080 TB and Nr. 94925 TS
                          from £130.91
                          from £130.91
                          # 014
                          MPN: 63589700
                          RH FRONT WHEELHOUSE
                          Not for GD Valid from car Nr. 95081 TB,Nr. 94926 TS and Nr. 94269 USA TS
                          from £255.14
                          from £255.14
                          This part replaces part number 62088100
                          # 014
                          MPN: 63589800
                          LH FRONT WHEELHOUSE
                          Not for GD Valid from car Nr. 95081 TB,Nr. 94926 TS and Nr. 94269 USA TS
                          Supersession
                          Supersession
                          This part replaces part number 62088200
                          # 014
                          MPN: 63590100
                          RH FRONT WHEELHOUSE
                          Valid for GD Valid from car Nr. 95081 TB and Nr. 94926 TS
                          from £95.58
                          from £95.58
                          # 014
                          MPN: 63590200
                          LH FRONT WHEELHOUSE
                          Valid for GD Valid from car Nr. 95081 TB and Nr. 94926 TS
                          from £586.04
                          from £586.04
                          # 014
                          MPN: 65335000
                          LH FRONT WHEELHOUSE
                          Not for GD valid till car nr. 95080 TB Nr. 94925 TS and Nr. 94268 USA TS
                          from £197.97
                          from £197.97
                          This part replaces part number 63589800
                          # 015
                          MPN: 62165400
                          WINDSHIELD WASHER BAG FIXING BRACKET
                          from £7.36
                          from £7.36
                          # 016
                          MPN: 62165600
                          DEHYDRATOR FILTER FIXING BRACKET
                          from £5.99
                          from £5.99
                          # 017
                          MPN: 62678500
                          PLUG
                          from £3.12
                          from £3.12
                          # 018
                          MPN: 62921200
                          PLUG
                          from £21.36
                          from £21.36
                          # 019
                          MPN: 62121200
                          BUMPER FIXING BRACKET
                          from £4.14
                          from £4.14
                          # 020
                          MPN: 63013000
                          PLUG
                          from £1.59
                          from £1.59
                          # 021
                          MPN: 63512800
                          GASKET
                          Valid for front battery cars
                          from £2.61
                          from £2.61
                          # 022
                          MPN: 63381800
                          PLATE FOR BATTERY SUPPORT
                          Valid for front battery cars
                          from £348.41
                          from £348.41
                          # 023
                          MPN: 63512300
                          BRACKET FOR BATTERY CUT-OUT SWITCH
                          Valid for front battery cars
                          from £34.58
                          from £34.58
