ferrari 348 (1993) tb / ts current generator - battery parts diagram

042 - current generator - battery

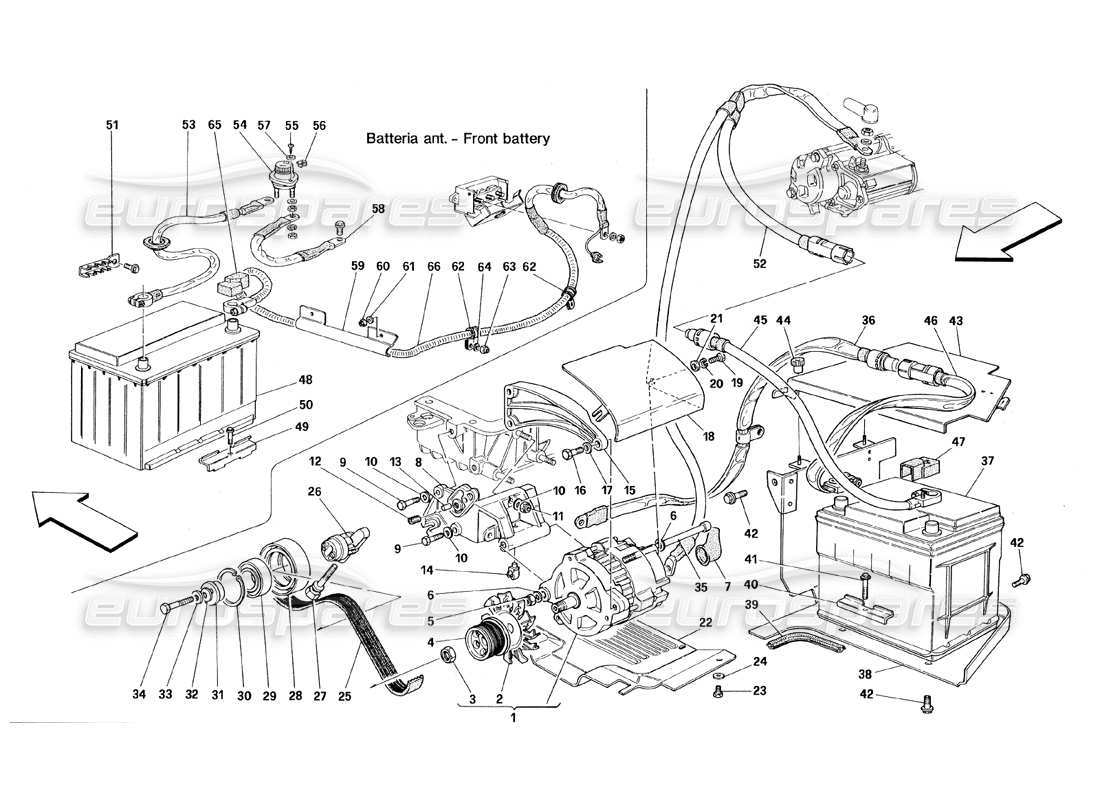

Ferrari 348 (1993) TB / TS Current Generator - Battery Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                            #
                                                                                            Part number
                                                                                            Description
                                                                                            Price
                                                                                            # 000
                                                                                            MPN: 70000795

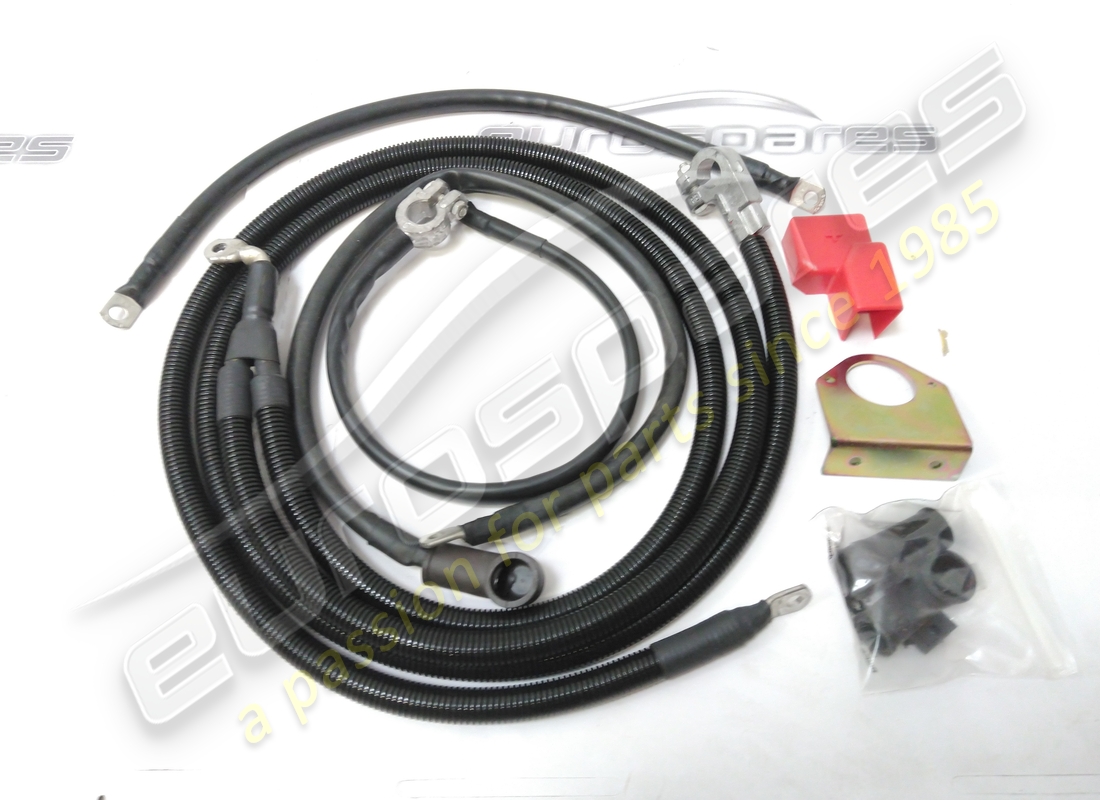

                                                                                            BATTERY CABLES KIT
                                                                                            from £341.67
                                                                                            from £341.67
                                                                                            # 001
                                                                                            MPN: 139421
                                                                                            GENERATOR 105 A. DELCO
                                                                                            Not as spare part now Replaced by kit 1 -70000790 for front battery cars 70000791 for rear battery cars / ALTERNATIVE USED 393050214
                                                                                            Supersession
                                                                                            Supersession
                                                                                            # 001
                                                                                            MPN: 156235

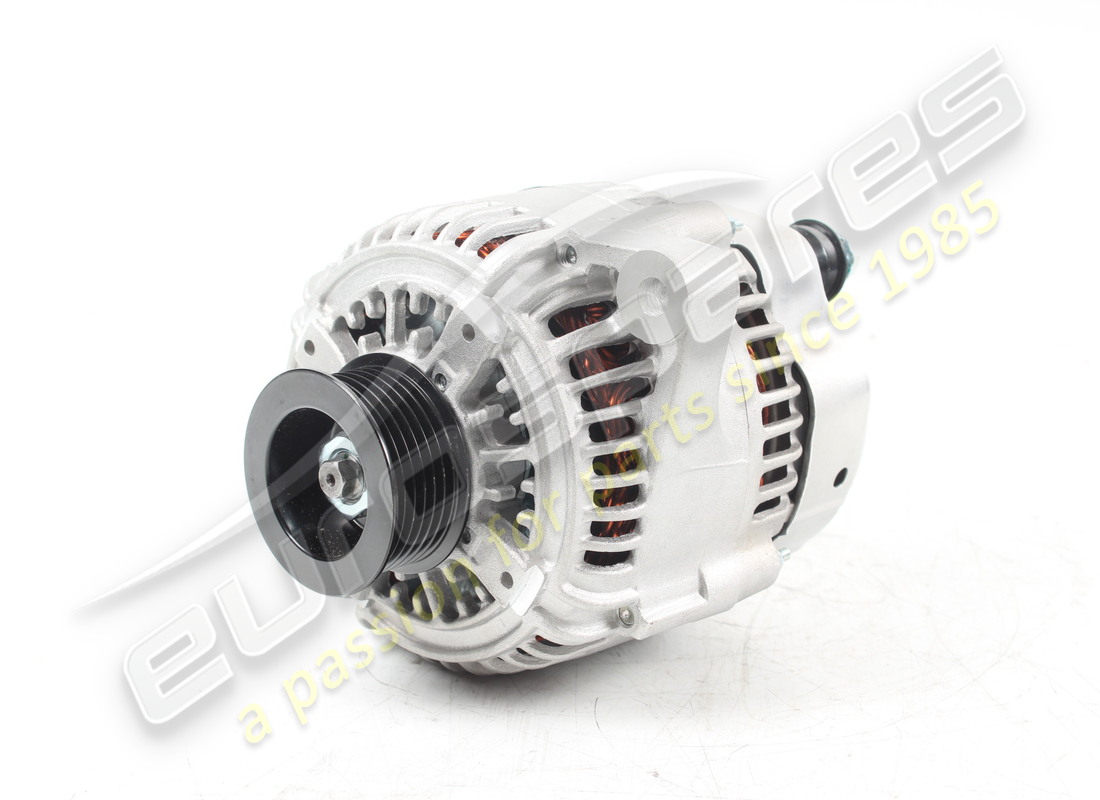

                                                                                            ALTERNATOR 140A (NIPPON DENSO)
                                                                                            from £840.00
                                                                                            from £840.00
                                                                                            # 002
                                                                                            MPN: 143863

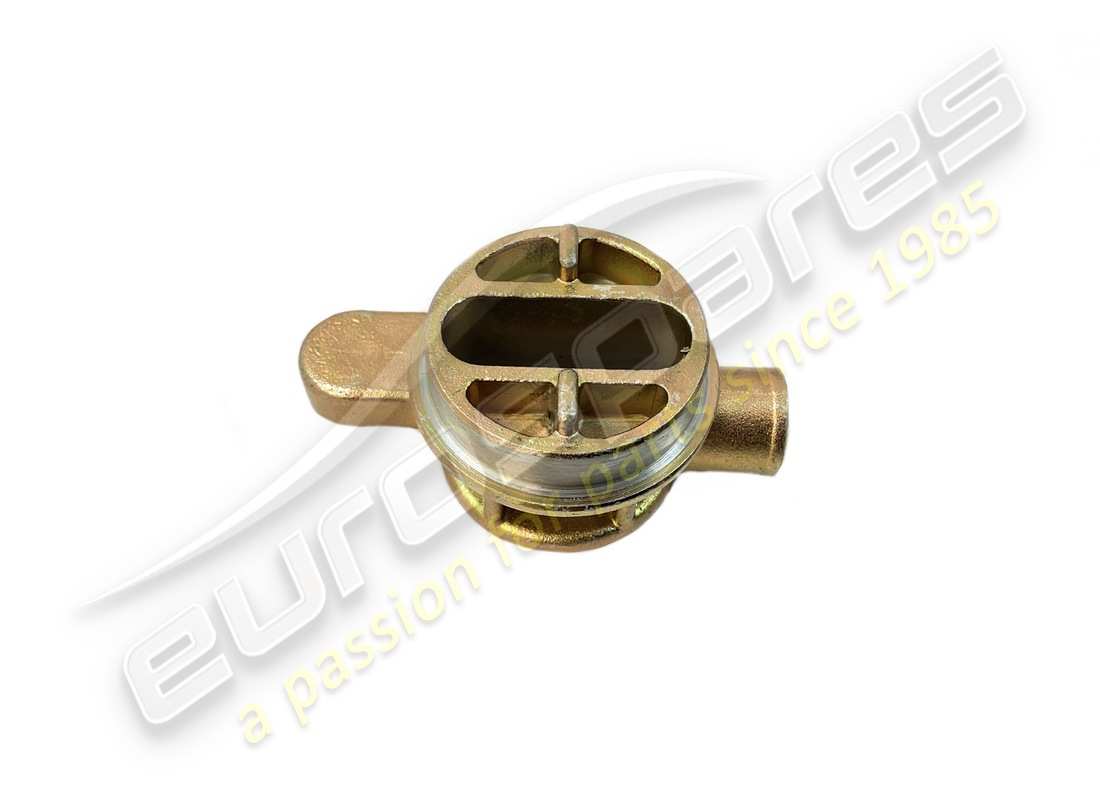

                                                                                            BLOWER
                                                                                            from £14.41
                                                                                            from £14.41
                                                                                            # 003
                                                                                            MPN: 144255
                                                                                            NUT
                                                                                            Supersession
                                                                                            Supersession
                                                                                            # 004
                                                                                            MPN: 138525
                                                                                            GENERATOR CONTROL PULLEY
                                                                                            from £69.13
                                                                                            from £69.13
                                                                                            # 005
                                                                                            MPN: 102742
                                                                                            NUT
                                                                                            from £0.47
                                                                                            from £0.47
                                                                                            This part replaces part number 12557621 - and 2 more. Click to view details
                                                                                            # 006
                                                                                            MPN: 13550401
                                                                                            WASHER
                                                                                            from £0.71
                                                                                            from £0.71
                                                                                            # 007
                                                                                            MPN: 125329
                                                                                            PROTECTION BOOT
                                                                                            from £3.19
                                                                                            from £3.19
                                                                                            # 008
                                                                                            MPN: 139295

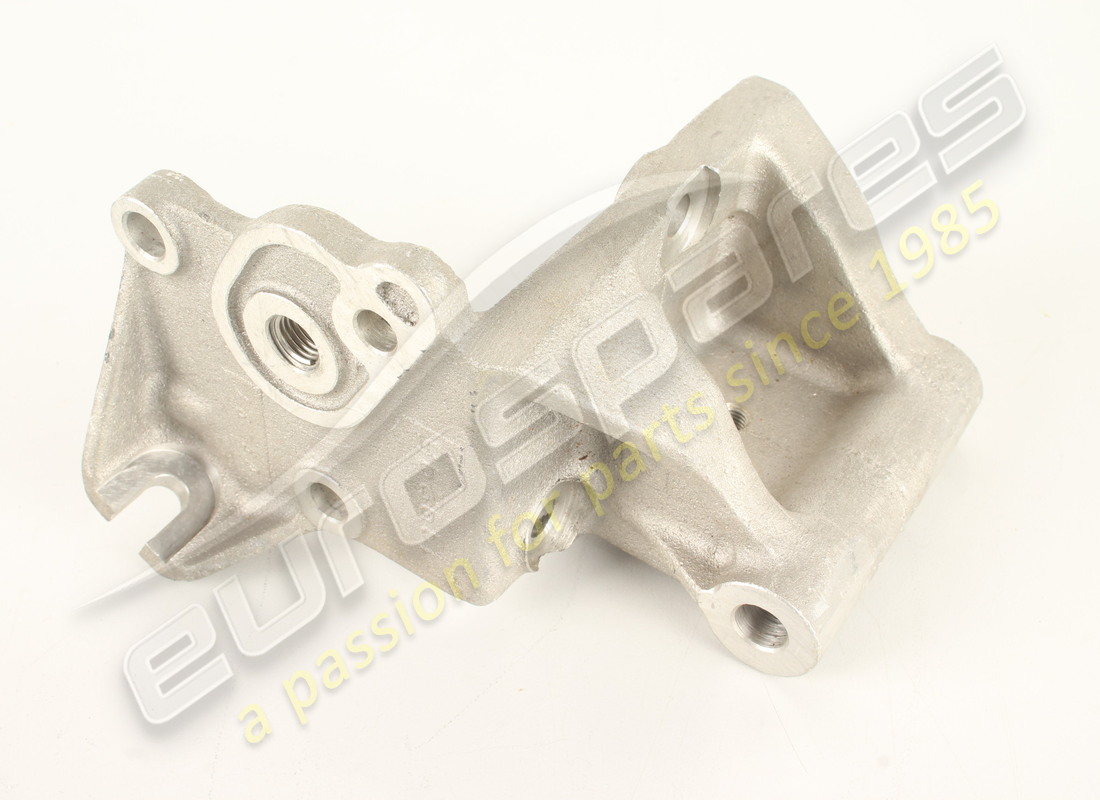

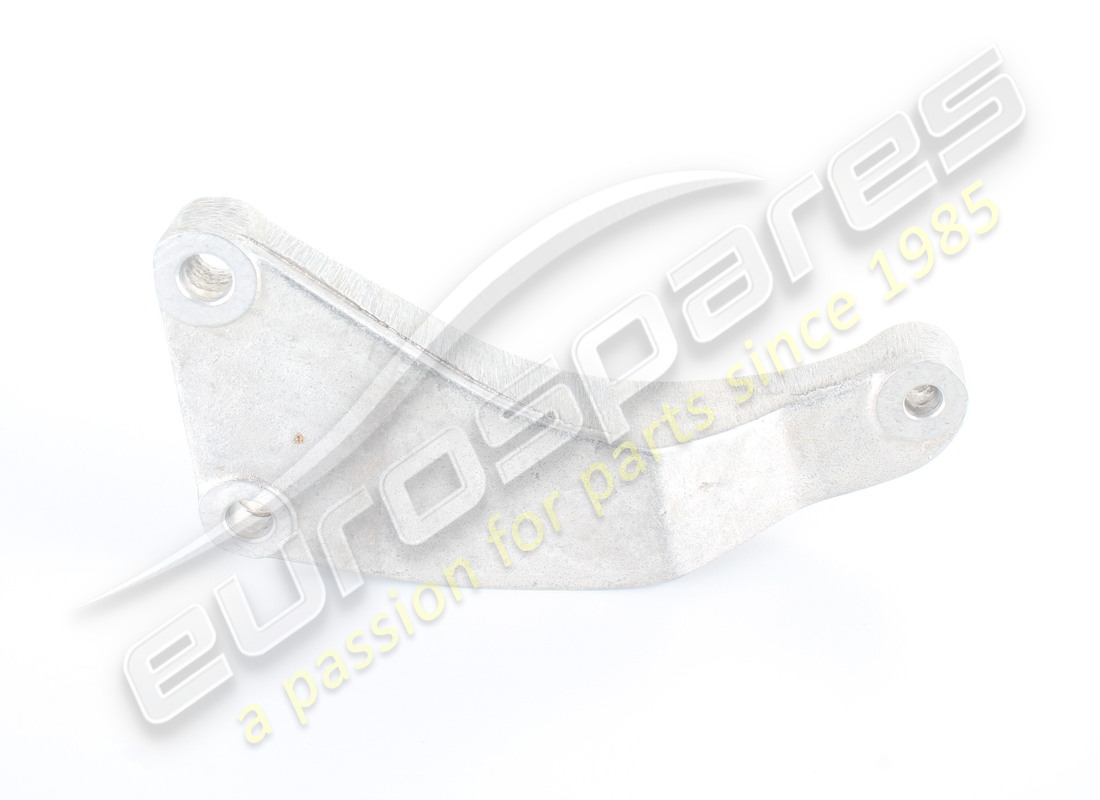

                                                                                            BELT TIGHTENING AND GENERATOR SUPPORT
                                                                                            from £545.00
                                                                                            from £545.00
                                                                                            # 011
                                                                                            MPN: 16104411
                                                                                            NUT
                                                                                            from £0.47
                                                                                            from £0.47
                                                                                            # 012
                                                                                            MPN: 13526070
                                                                                            THREADED INSERT
                                                                                            from £1.93
                                                                                            from £1.93
                                                                                            This part replaces part number 104657
                                                                                            # 013
                                                                                            MPN: 125717
                                                                                            DOWEL
                                                                                            from £1.54
                                                                                            from £1.54
                                                                                            # 014
                                                                                            MPN: 14574287
                                                                                            CLIP
                                                                                            from £4.28
                                                                                            from £4.28
                                                                                            # 015
                                                                                            MPN: 144639

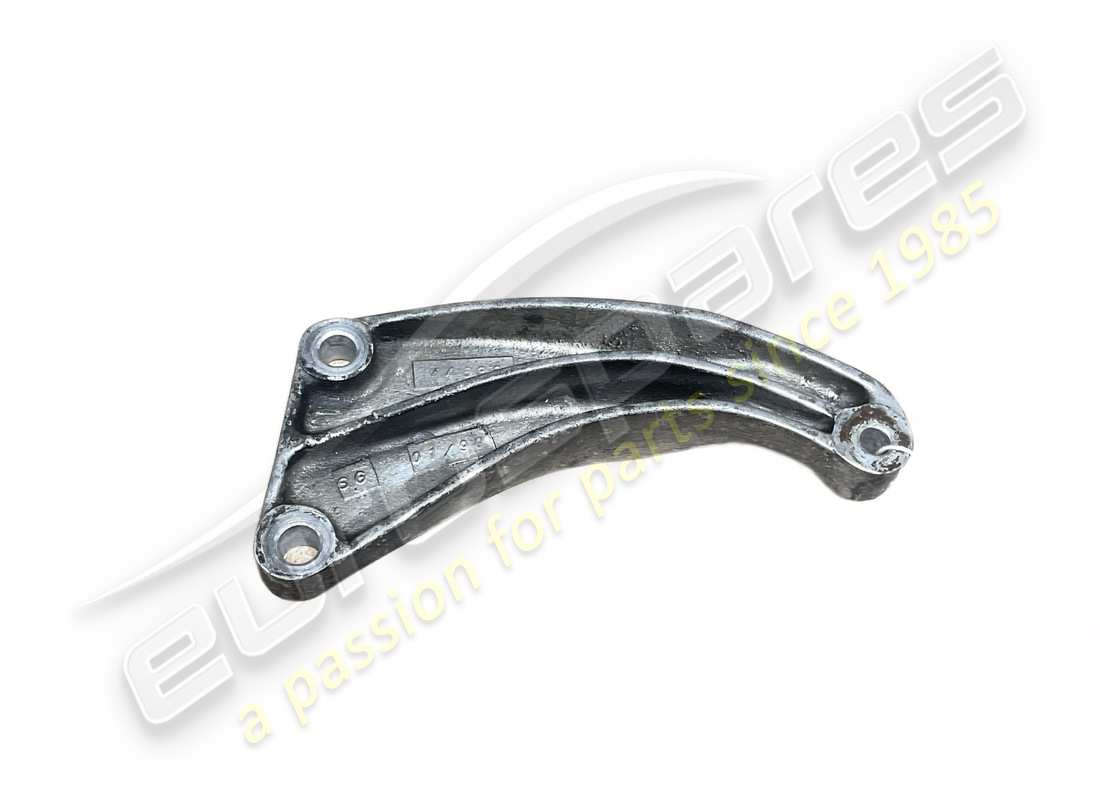

                                                                                            UPPER BRACKET
                                                                                            from £229.21
                                                                                            from £229.21
                                                                                            This part replaces part number 139509 - and 1 more. Click to view details
                                                                                            # 016
                                                                                            MPN: 16043921
                                                                                            SCREW
                                                                                            from £1.43
                                                                                            from £1.43
                                                                                            # 017
                                                                                            MPN: 11193879
                                                                                            WASHER
                                                                                            from £0.71
                                                                                            from £0.71
                                                                                            # 018
                                                                                            MPN: 145410

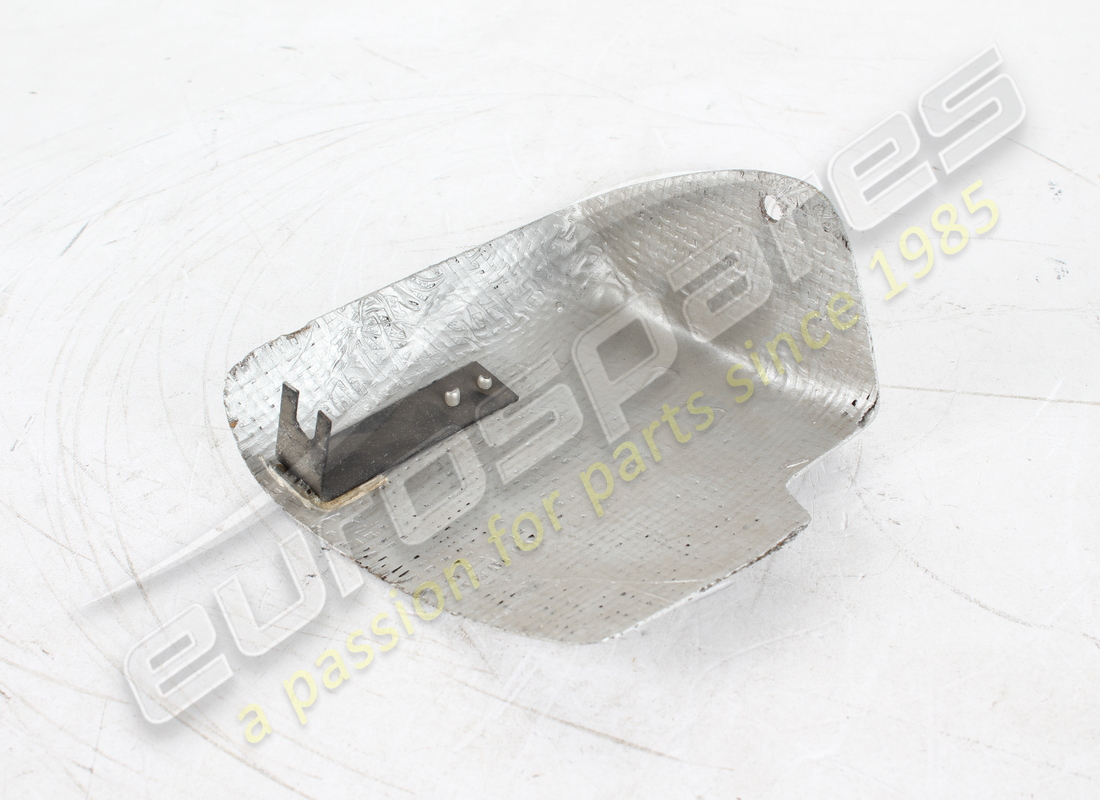

                                                                                            SHIELD FOR ALTERNATOR PROTECTION
                                                                                            from £166.63
                                                                                            from £166.63
                                                                                            # 020
                                                                                            MPN: 11193879
                                                                                            WASHER
                                                                                            from £0.71
                                                                                            from £0.71
                                                                                            # 021
                                                                                            MPN: 14496501
                                                                                            WASHER
                                                                                            from £0.84
                                                                                            from £0.84
                                                                                            # 022
                                                                                            MPN: 156330
                                                                                            PROTECTION GRILLE
                                                                                            from £249.36
                                                                                            from £249.36
                                                                                            This part replaces part number 140846
                                                                                            # 023
                                                                                            MPN: 10977524
                                                                                            SCREW
                                                                                            from £0.53
                                                                                            from £0.53
                                                                                            # 024
                                                                                            MPN: 12643701
                                                                                            WASHER
                                                                                            Supersession
                                                                                            Supersession
                                                                                            This part replaces part number 12643704 - and 1 more. Click to view details
                                                                                            # 025
                                                                                            MPN: 199822

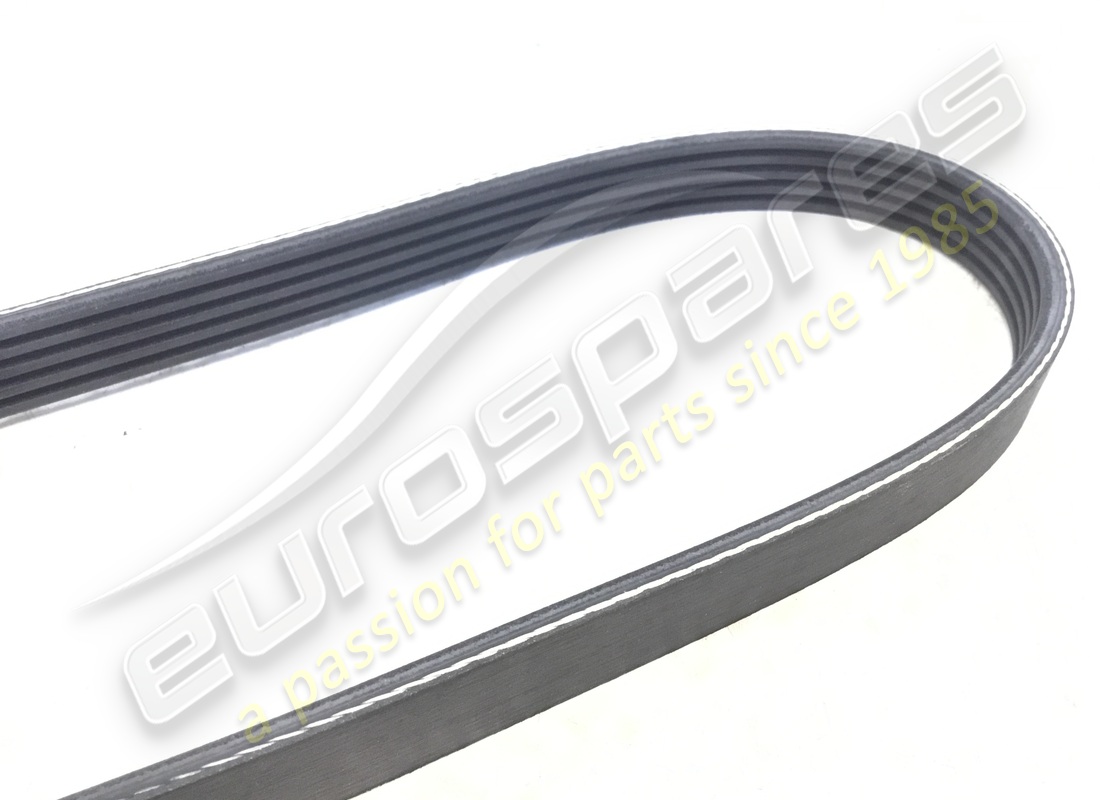

                                                                                            GENERATOR CONTROL BELT
                                                                                            Valid for Delco Alternator - Untill Car 30737 - Use on Exhaustion of 138325
                                                                                            from £15.70
                                                                                            from £15.70
                                                                                            This part replaces part number 138325
                                                                                            # 025
                                                                                            MPN: 199822
                                                                                            GENERATOR CONTROL BELT
                                                                                            from £15.70
                                                                                            from £15.70
                                                                                            This part replaces part number 138325
                                                                                            # 026
                                                                                            MPN: 139359
                                                                                            BELT TIGHTENING HUB
                                                                                            from £223.31
                                                                                            from £223.31
                                                                                            # 027
                                                                                            MPN: 139309
                                                                                            ADJUSTMENT SCREW
                                                                                            from £31.03
                                                                                            from £31.03
                                                                                            # 028
                                                                                            MPN: 139321
                                                                                            BELT TIGHTENING PULLEY
                                                                                            from £246.21
                                                                                            from £246.21
                                                                                            # 029
                                                                                            MPN: 177436
                                                                                            BEARING
                                                                                            from £21.81
                                                                                            from £21.81
                                                                                            This part replaces part number 139368
                                                                                            # 030
                                                                                            MPN: 11061076
                                                                                            SEEGER RING
                                                                                            from £0.45
                                                                                            from £0.45
                                                                                            This part replaces part number 11061075 - and 1 more. Click to view details
                                                                                            # 031
                                                                                            MPN: 142473
                                                                                            BEARING SPACER
                                                                                            from £19.05
                                                                                            from £19.05
                                                                                            This part replaces part number 139360
                                                                                            # 032
                                                                                            MPN: 11190579
                                                                                            WASHER
                                                                                            from £0.47
                                                                                            from £0.47
                                                                                            # 033
                                                                                            MPN: 138194
                                                                                            WASHER
                                                                                            from £14.83
                                                                                            from £14.83
                                                                                            # 034
                                                                                            MPN: 15888721
                                                                                            SCREW
                                                                                            from £1.26
                                                                                            from £1.26
                                                                                            # 035
                                                                                            MPN: 130431
                                                                                            SCREW
                                                                                            from £10.82
                                                                                            from £10.82
                                                                                            # 036
                                                                                            MPN: 134439
                                                                                            PLAIT FROM CONNECTOR TO ENGINE MASS
                                                                                            from £345.75
                                                                                            from £345.75
                                                                                            # 037
                                                                                            MPN: 61933900
                                                                                            BATTERY 12-70AH-420A
                                                                                            Supersession
                                                                                            Supersession
                                                                                            This part replaces part number 118060 - and 1 more. Click to view details
                                                                                            # 038
                                                                                            MPN: 62611300

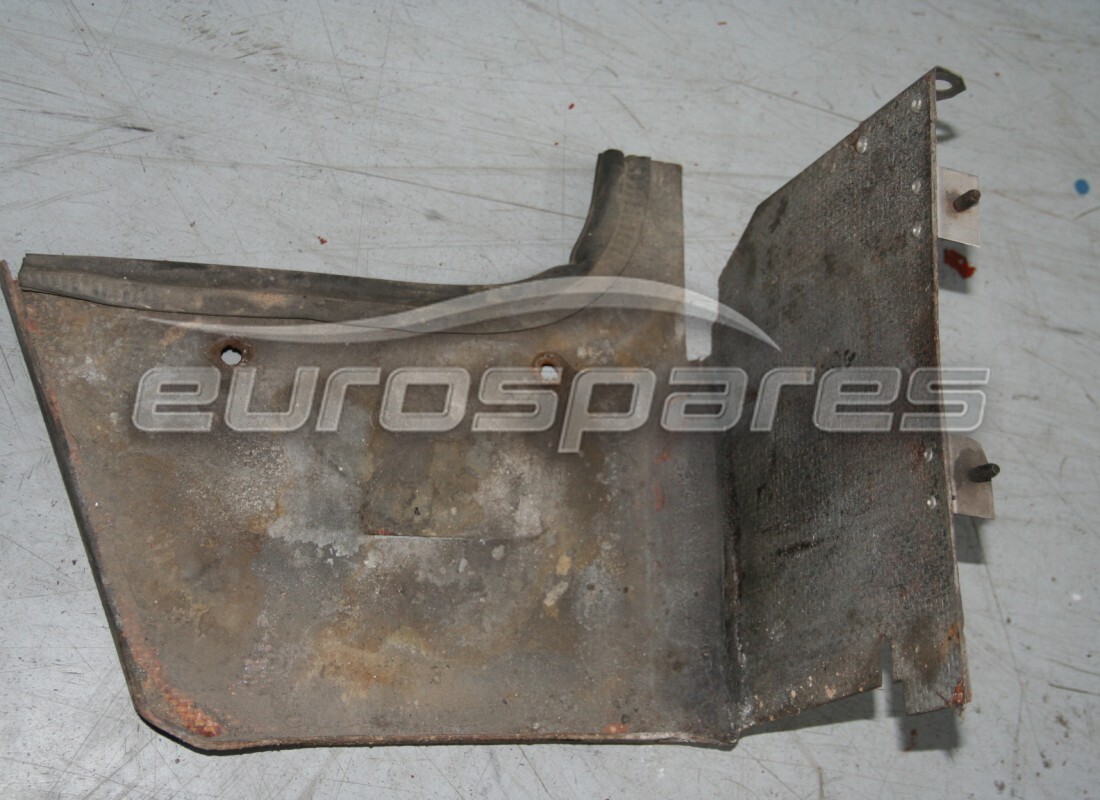

                                                                                            BATTERY PROTECTION
                                                                                            Valid for rear battery cars
                                                                                            from £393.75
                                                                                            from £393.75
                                                                                            # 039
                                                                                            MPN: 62611400
                                                                                            GASKET
                                                                                            Valid for rear battery cars
                                                                                            from £3.10
                                                                                            from £3.10
                                                                                            # 040
                                                                                            MPN: 62573400
                                                                                            BRACKET FOR BATTERY FIXING
                                                                                            from £22.50
                                                                                            from £22.50
                                                                                            # 041
                                                                                            MPN: 13837411
                                                                                            SCREW
                                                                                            from £0.47
                                                                                            from £0.47
                                                                                            # 042
                                                                                            MPN: 13836271
                                                                                            SCREW
                                                                                            Valid for rear battery cars
                                                                                            from £0.84
                                                                                            from £0.84
                                                                                            This part replaces part number 13836324
                                                                                            # 043
                                                                                            MPN: 62950500
                                                                                            BATTERY COVER
                                                                                            Valid for rear battery cars
                                                                                            from £442.68
                                                                                            from £442.68
                                                                                            # 044
                                                                                            MPN: 62565000
                                                                                            COVER FIXING RING NUT
                                                                                            Valid for rear battery cars
                                                                                            from £55.94
                                                                                            from £55.94
                                                                                            # 045
                                                                                            MPN: 144266
                                                                                            CABLE FROM BATTERY TO CONNECTOR
                                                                                            Valid for rear battery cars
                                                                                            Supersession
                                                                                            Supersession
                                                                                            # 046
                                                                                            MPN: 134438

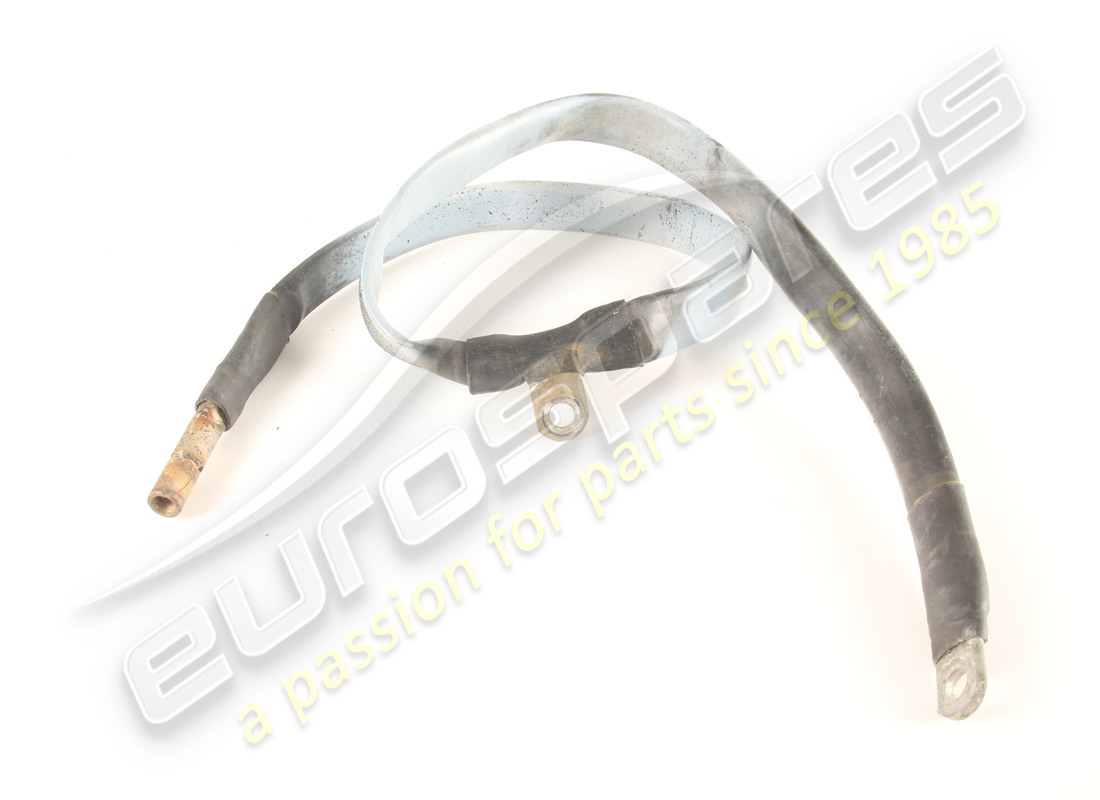

                                                                                            PLAIT FROM BATTERY TO CONNECTOR
                                                                                            Valid for rear battery cars
                                                                                            from £65.06
                                                                                            from £65.06
                                                                                            # 047
                                                                                            MPN: 144727
                                                                                            PROTECTION CAP
                                                                                            Supersession
                                                                                            Supersession
                                                                                            This part replaces part number 123674/T - and 1 more. Click to view details
                                                                                            # 048
                                                                                            MPN: 61933900
                                                                                            BATTERY 12V-70AH-420A
                                                                                            Supersession
                                                                                            Supersession
                                                                                            This part replaces part number 118060 - and 1 more. Click to view details
                                                                                            # 049
                                                                                            MPN: 62573400
                                                                                            BRACKET FOR BATTERY FIXING
                                                                                            from £22.50
                                                                                            from £22.50
                                                                                            # 050
                                                                                            MPN: 13837411
                                                                                            SCREW
                                                                                            from £0.47
                                                                                            from £0.47
                                                                                            # 051
                                                                                            MPN: 61682500

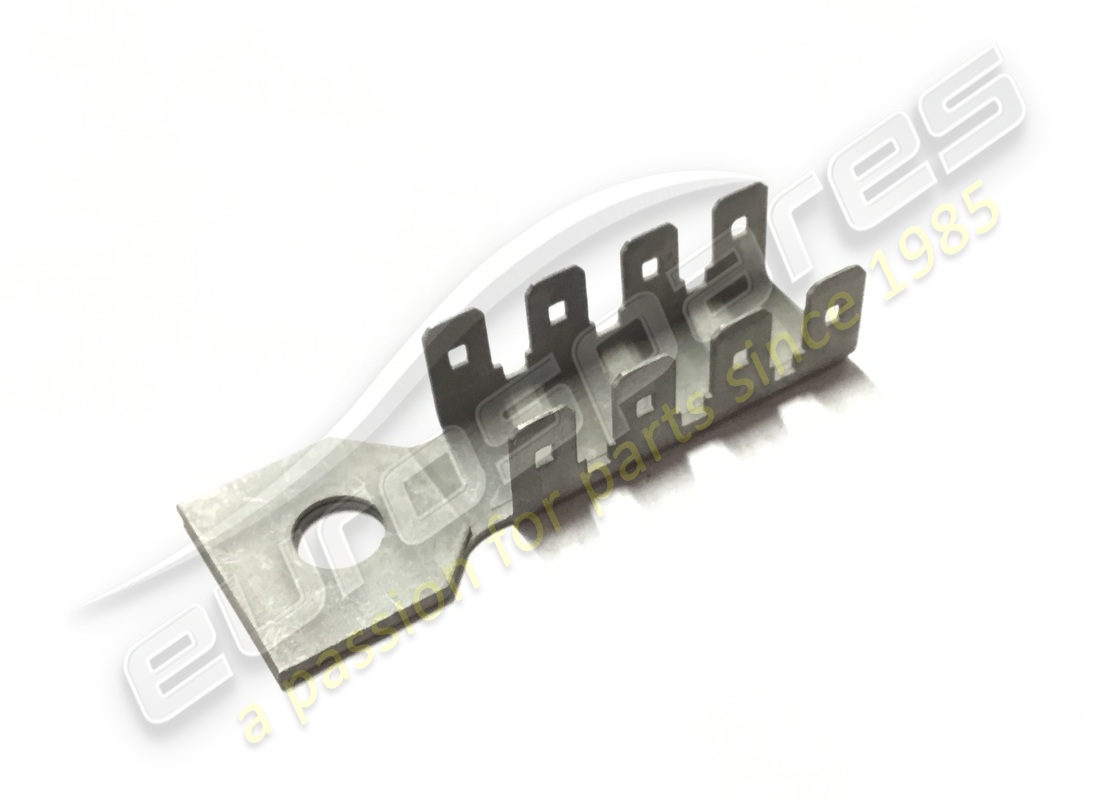

                                                                                            MASS CABLE CONNECTING BRACKET
                                                                                            from £15.83
                                                                                            from £15.83
                                                                                            # 052
                                                                                            MPN: 144267
                                                                                            CABLE FROM GENERATOR TO STARTING MOTOR
                                                                                            Supersession
                                                                                            Supersession
                                                                                            # 053
                                                                                            MPN: 155067
                                                                                            BATTERY-CUT OUT SWITCH CONNECTING PLAIT
                                                                                            Valid for front battery cars
                                                                                            from £112.76
                                                                                            from £112.76
                                                                                            # 054
                                                                                            MPN: 139607
                                                                                            CUT-OUT SWITCH
                                                                                            Valid for front battery cars
                                                                                            Supersession
                                                                                            Supersession
                                                                                            # 055
                                                                                            MPN: 15688278
                                                                                            SCREW
                                                                                            Valid for front battery cars
                                                                                            from £0.71
                                                                                            from £0.71
                                                                                            # 056
                                                                                            MPN: 61067800
                                                                                            BRACKET
                                                                                            Valid for front battery cars
                                                                                            from £1.07
                                                                                            from £1.07
                                                                                            # 057
                                                                                            MPN: 12637806
                                                                                            WASHER
                                                                                            Valid for front battery cars
                                                                                            Supersession
                                                                                            Supersession
                                                                                            # 058
                                                                                            MPN: 155068
                                                                                            CUT OUT SWITCH-MASS CONNECTING PLAIT
                                                                                            Valid for front battery cars
                                                                                            from £50.04
                                                                                            from £50.04
                                                                                            This part replaces part number 116753
                                                                                            # 059
                                                                                            MPN: 63510500
                                                                                            CABLE PROTECTION
                                                                                            Valid for front battery cars
                                                                                            from £15.09
                                                                                            from £15.09
                                                                                            # 060
                                                                                            MPN: 12574211
                                                                                            NUT
                                                                                            Valid for front battery cars
                                                                                            from £0.71
                                                                                            from £0.71
                                                                                            # 061
                                                                                            MPN: 10519401
                                                                                            WASHER
                                                                                            Valid for front battery cars
                                                                                            from £0.71
                                                                                            from £0.71
                                                                                            # 062
                                                                                            MPN: 10441790
                                                                                            BRACKET
                                                                                            Valid for front battery cars
                                                                                            from £0.47
                                                                                            from £0.47
                                                                                            # 063
                                                                                            MPN: 12574211
                                                                                            NUT
                                                                                            Valid for front battery cars
                                                                                            from £0.71
                                                                                            from £0.71
                                                                                            # 064
                                                                                            MPN: 10519401
                                                                                            WASHER
                                                                                            Valid for front battery cars
                                                                                            from £0.71
                                                                                            from £0.71
                                                                                            # 065
                                                                                            MPN: 144727
                                                                                            PROTECTION CAP
                                                                                            Supersession
                                                                                            Supersession
                                                                                            This part replaces part number 123674/T - and 1 more. Click to view details
                                                                                            # 066
                                                                                            MPN: 151337

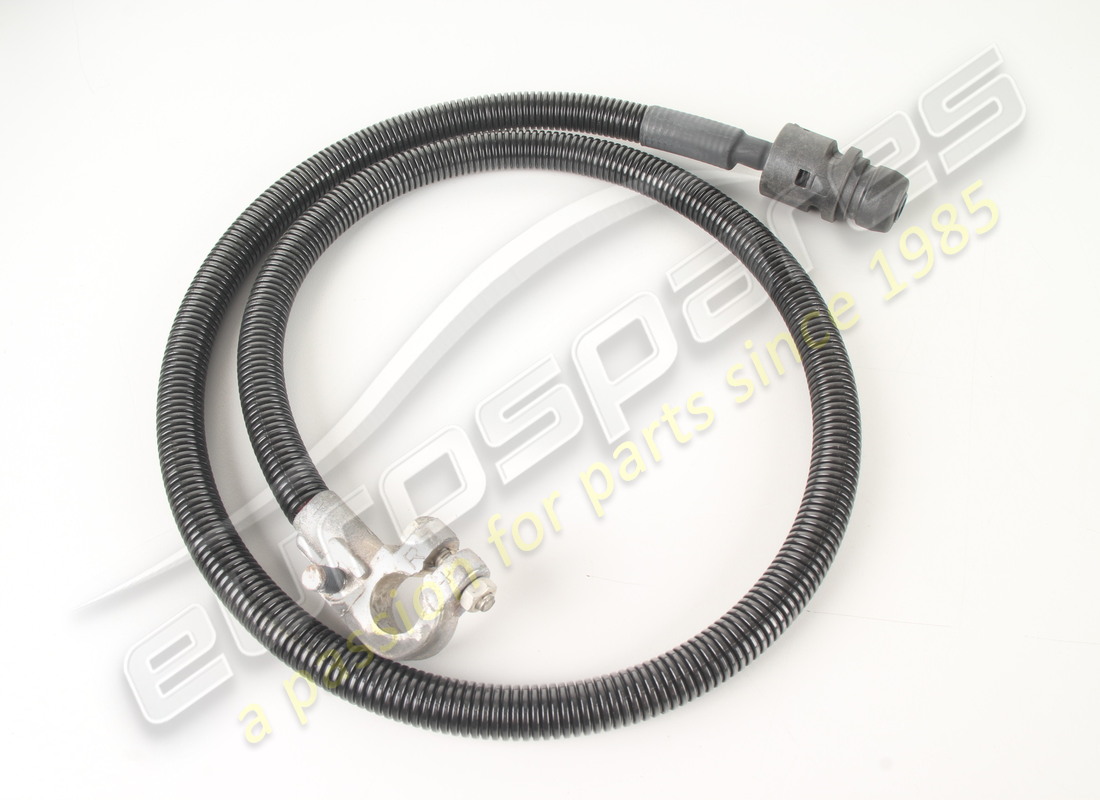

                                                                                            BATTERY TO TERMINAL BOX CONNECTING CABLE
                                                                                            Valid for front battery cars
                                                                                            from £306.64
                                                                                            from £306.64
