ferrari 348 (1993) tb / ts rear suspension - wishbones parts diagram

040 - Rear Suspension - Wishbones

Ferrari 348 (1993) TB / TS Rear Suspension - Wishbones Parts Diagram

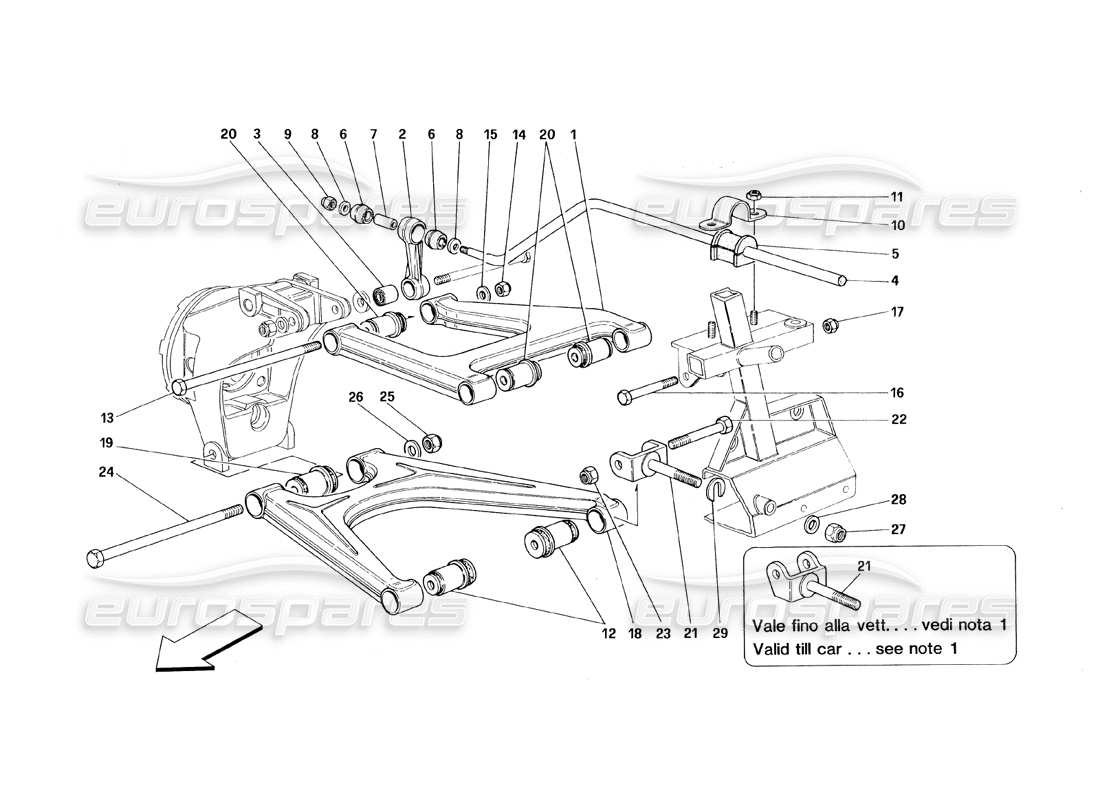

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                      #
                                                      Part number
                                                      Description
                                                      Price

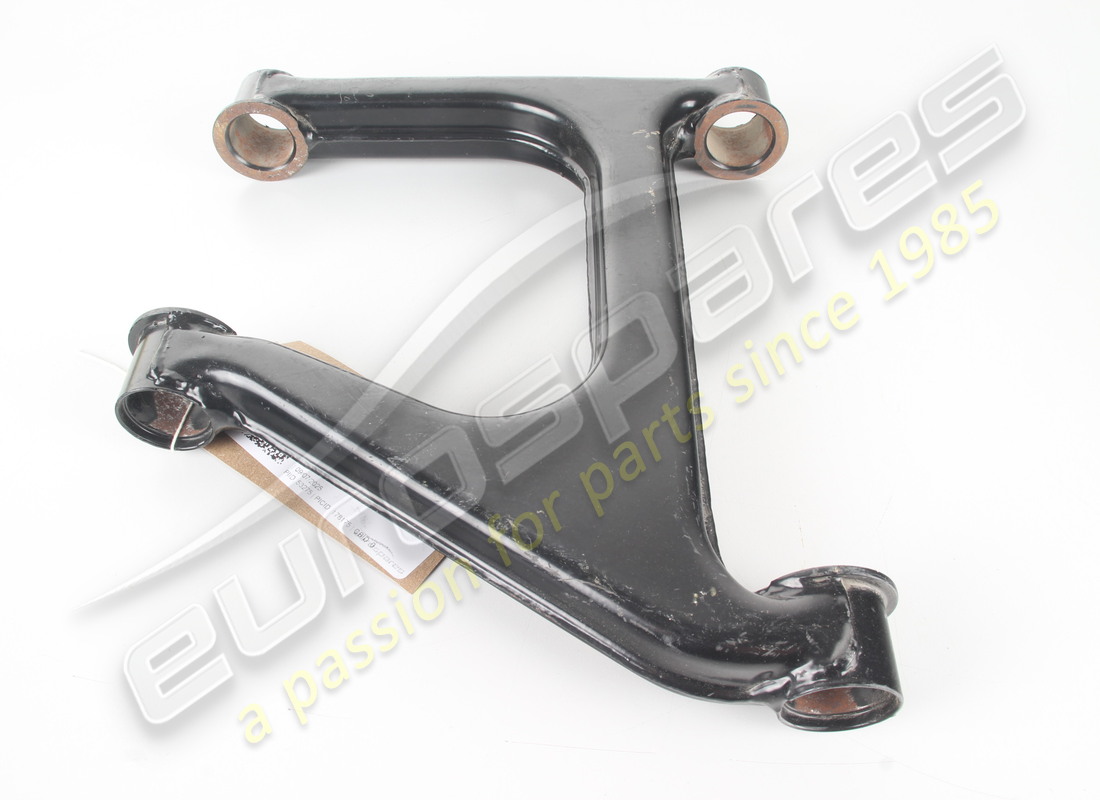

                                                      # 001
                                                      MPN: 131923
                                                      UPPER LEVER
                                                      from £930.57
                                                      from £930.57

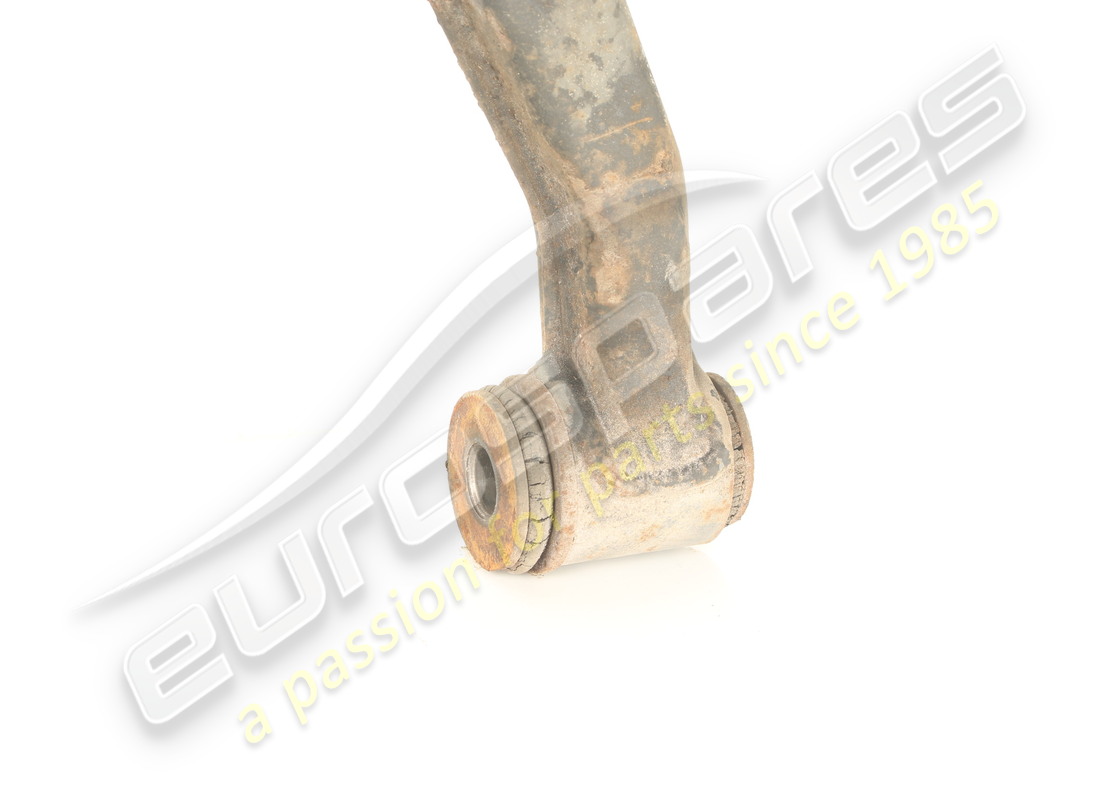

                                                      # 002
                                                      MPN: 134564

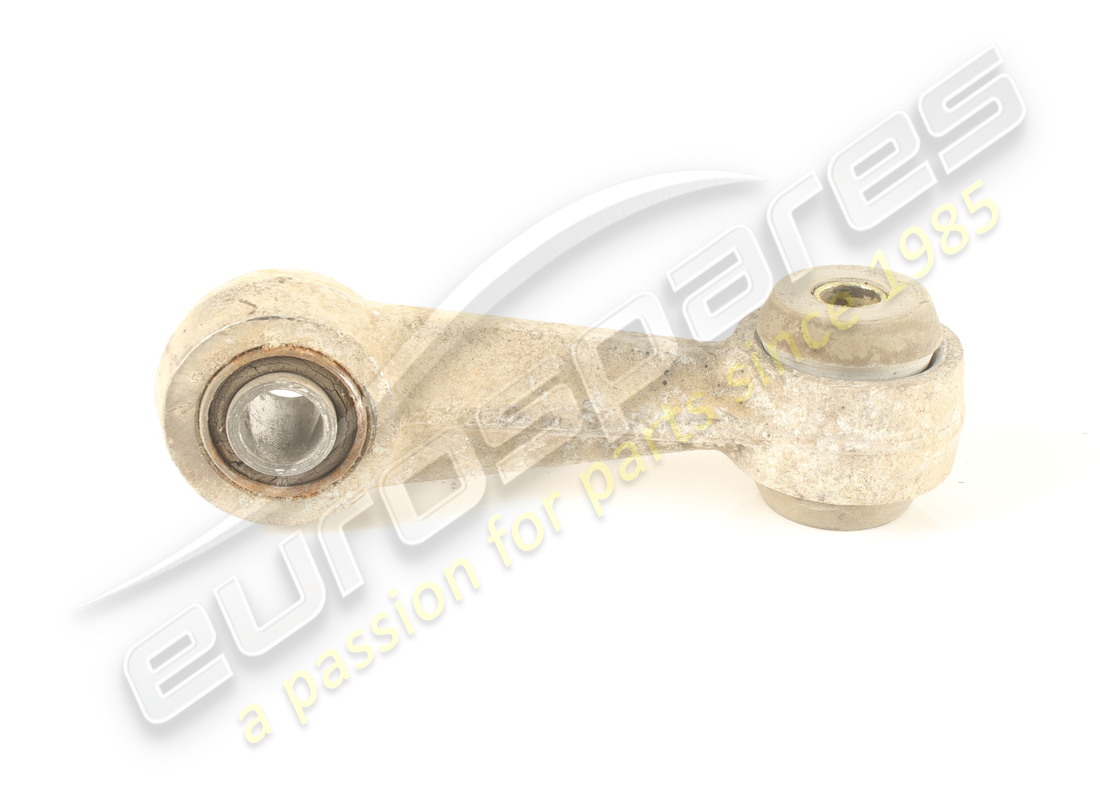

                                                      SHACKLE FOR STABILISER BAR
                                                      from £34.38
                                                      from £34.38
                                                      # 003
                                                      MPN: 100773
                                                      SILENTBLOCK
                                                      from £19.62
                                                      from £19.62
                                                      This part replaces part number 60220 - and 1 more. Click to view details
                                                      # 004
                                                      MPN: 141212

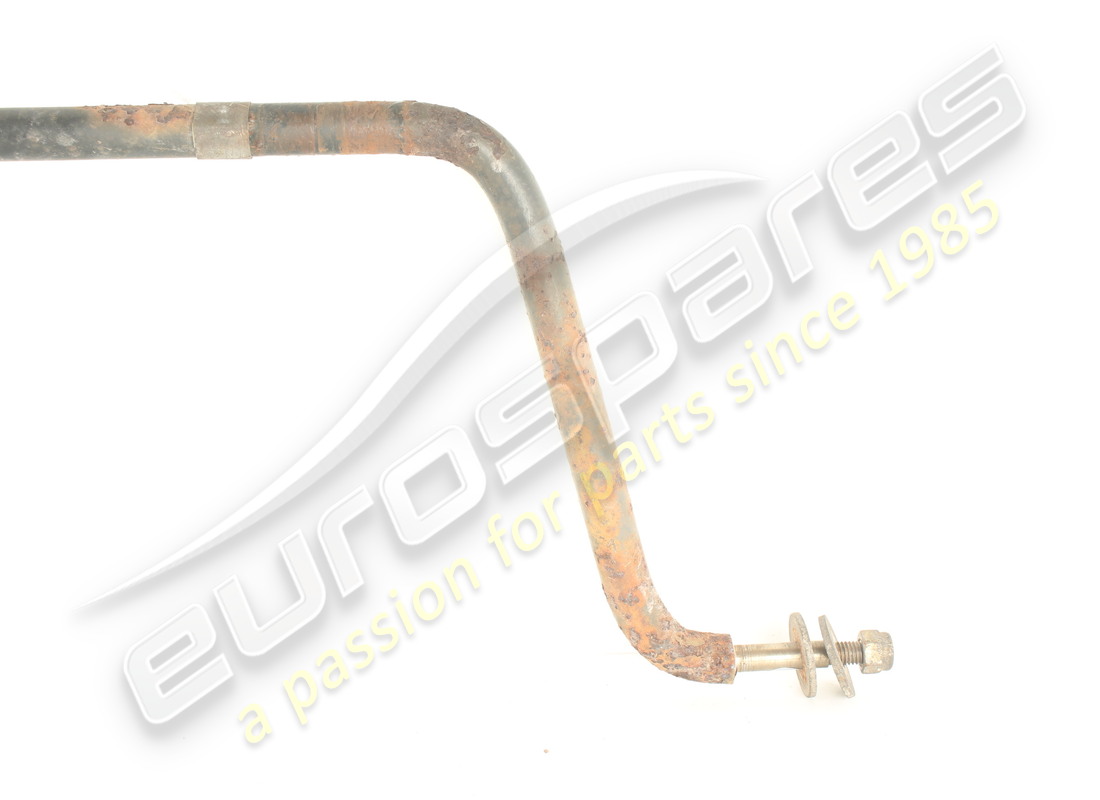

                                                      ANTI-ROLL BAR
                                                      from £86.94
                                                      from £86.94
                                                      # 005
                                                      MPN: 110874
                                                      BAR BUFFER
                                                      from £12.59
                                                      from £12.59
                                                      This part replaces part number 640878 - and 1 more. Click to view details
                                                      # 006
                                                      MPN: 107335
                                                      RUBBER GROMMET
                                                      from £11.22
                                                      from £11.22

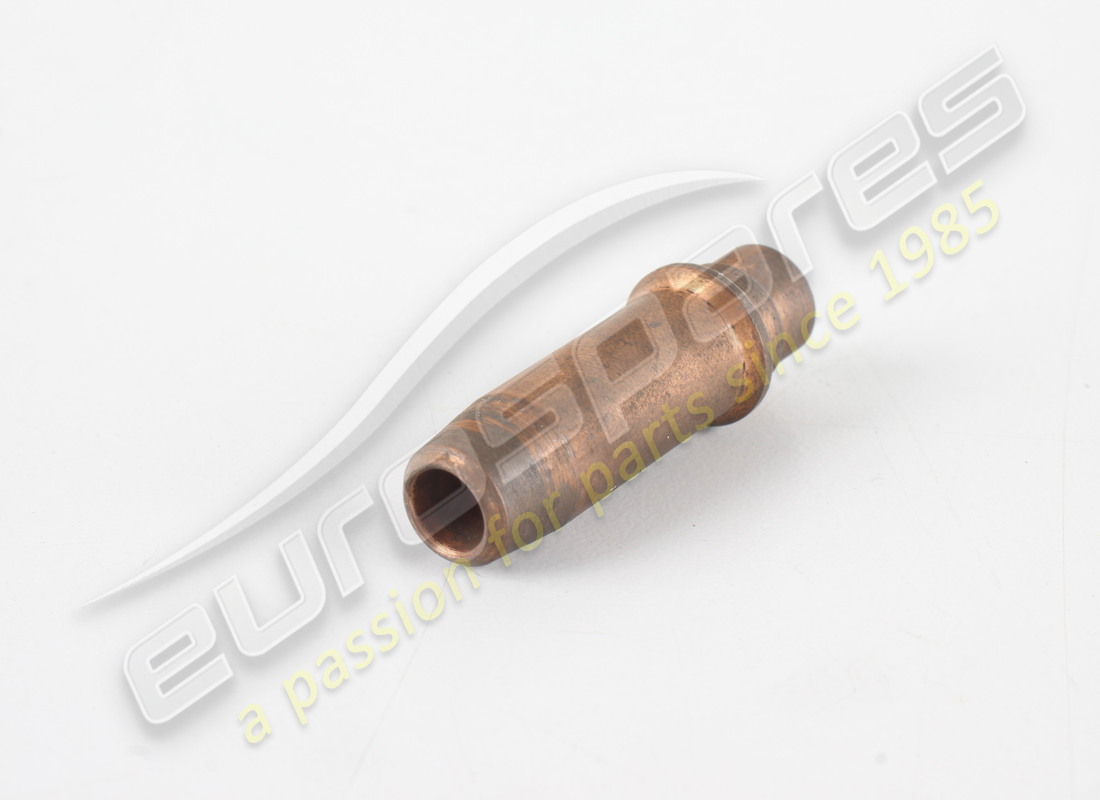

                                                      # 007
                                                      MPN: 108294
                                                      SPACER
                                                      from £45.53
                                                      from £45.53
                                                      This part replaces part number 107336 - and 1 more. Click to view details
                                                      # 008
                                                      MPN: 117285
                                                      WASHER
                                                      from £1.07
                                                      from £1.07
                                                      # 009
                                                      MPN: 16104425
                                                      NUT
                                                      Supersession
                                                      Supersession
                                                      This part replaces part number 16104421 which we have in stock
                                                      # 011
                                                      MPN: 16104411
                                                      NUT
                                                      from £0.47
                                                      from £0.47
                                                      # 012
                                                      MPN: 154539
                                                      FLAMBLOCK
                                                      from £54.00
                                                      from £54.00
                                                      # 013
                                                      MPN: 128904
                                                      SCREW
                                                      from £15.87
                                                      from £15.87
                                                      # 014
                                                      MPN: 102825
                                                      NUT
                                                      from £0.47
                                                      from £0.47
                                                      This part replaces part number 95900617
                                                      # 015
                                                      MPN: 106616
                                                      WASHER
                                                      Supersession
                                                      Supersession
                                                      # 016
                                                      MPN: 106419
                                                      SCREW
                                                      from £10.81
                                                      from £10.81
                                                      This part replaces part number 100808 - and 11 more. Click to view details
                                                      # 017
                                                      MPN: 102825
                                                      NUT
                                                      from £0.47
                                                      from £0.47
                                                      This part replaces part number 95900617
                                                      # 019
                                                      MPN: 154538
                                                      FLAMBLOCK
                                                      from £53.40
                                                      from £53.40
                                                      This part replaces part number 120813 which we have in stock
                                                      # 020
                                                      MPN: 154537
                                                      FLAMBLOCK
                                                      USE : 163038/154536
                                                      from £26.60
                                                      from £26.60
                                                      This part replaces part number 104398 - and 1 more. Click to view details

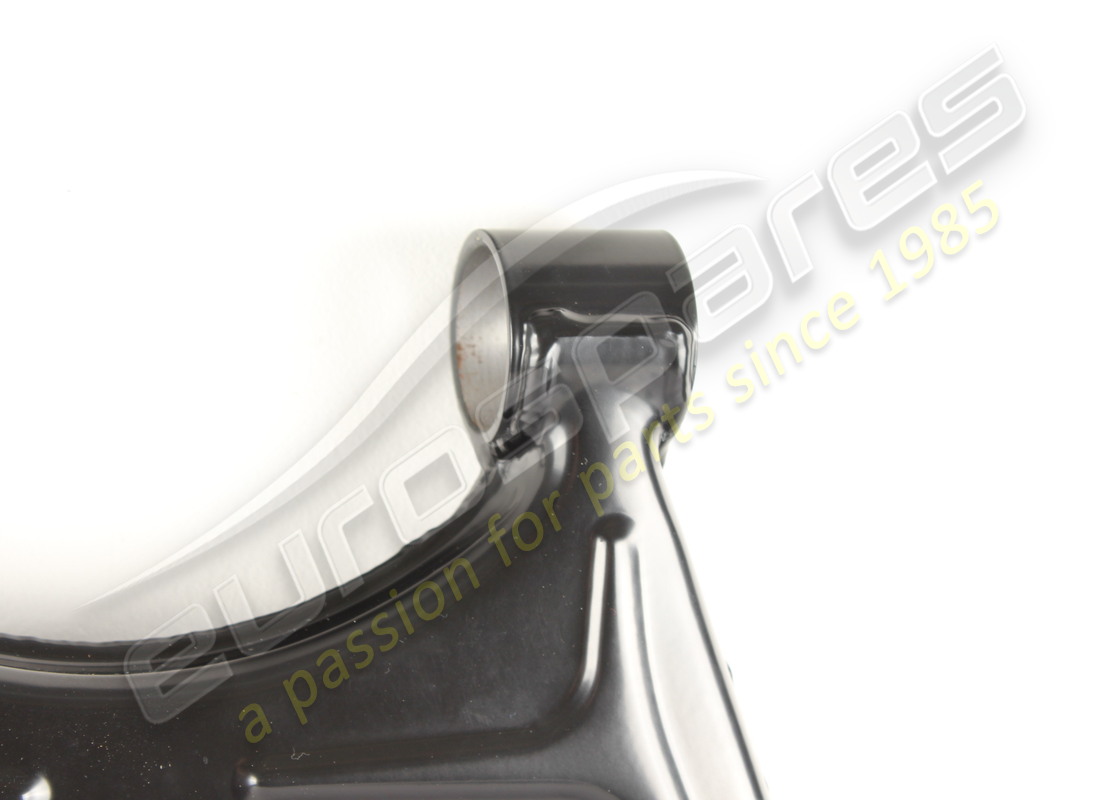

                                                      # 021
                                                      MPN: 159399
                                                      LOWER FORK
                                                      from £202.65
                                                      from £202.65
                                                      This part replaces part number 100784 - and 3 more. Click to view details
                                                      # 021
                                                      MPN: 177707
                                                      LOWER FORK
                                                      Valid from car ... See Note 2
                                                      from £267.31
                                                      from £267.31
                                                      This part replaces part number 116690 which we have in stock - and 3 more. Click to view details
                                                      # 022
                                                      MPN: 106422
                                                      SCREW
                                                      from £8.21
                                                      from £8.21
                                                      # 023
                                                      MPN: 150238
                                                      NUT
                                                      from £0.47
                                                      from £0.47
                                                      This part replaces part number 12575821 - and 2 more. Click to view details
                                                      # 024
                                                      MPN: 136218
                                                      SCREW
                                                      from £9.61
                                                      from £9.61
                                                      # 025
                                                      MPN: 150238
                                                      NUT
                                                      from £0.47
                                                      from £0.47
                                                      This part replaces part number 12575821 - and 2 more. Click to view details
                                                      # 026
                                                      MPN: 105434
                                                      WASHER
                                                      from £20.12
                                                      from £20.12
                                                      # 027
                                                      MPN: 150238
                                                      NUT
                                                      from £0.47
                                                      from £0.47
                                                      This part replaces part number 12575821 - and 2 more. Click to view details
                                                      # 028
                                                      MPN: 148423
                                                      WASHER
                                                      from £0.83
                                                      from £0.83
                                                      # 029
                                                      MPN: 101039
                                                      SPACER WASHER
                                                      mm. 1,0
                                                      from £1.78
                                                      from £1.78
                                                      This part replaces part number 107025 - and 1 more. Click to view details
                                                      # 029
                                                      MPN: 107338
                                                      SPACER WASHER
                                                      mm. 1,5
                                                      from £13.05
                                                      from £13.05
                                                      This part replaces part number 107418
                                                      # 029
                                                      MPN: 107339
                                                      SPACER WASHER
                                                      mm. 2,0
                                                      from £1.19
                                                      from £1.19
                                                      This part replaces part number 107419
                                                      # 029
                                                      MPN: 107340
                                                      SPACER WASHER
                                                      mm. 2,5
                                                      from £1.11
                                                      from £1.11
                                                      This part replaces part number 107420
                                                      # 029
                                                      MPN: 107341
                                                      SPACER WASHER
                                                      mm. 3,0
                                                      from £2.84
                                                      from £2.84
                                                      This part replaces part number 107421
                                                      # 029
                                                      MPN: 107342
                                                      SPACER WASHER
                                                      mm. 3,25
                                                      from £0.48
                                                      from £0.48
                                                      This part replaces part number 107422
