Ferrari 348 (1993) TB / TS Front Suspension - Wishbones Parts Diagram

038 - Front Suspension - Wishbones

Ferrari 348 (1993) TB / TS Front Suspension - Wishbones Parts Diagram

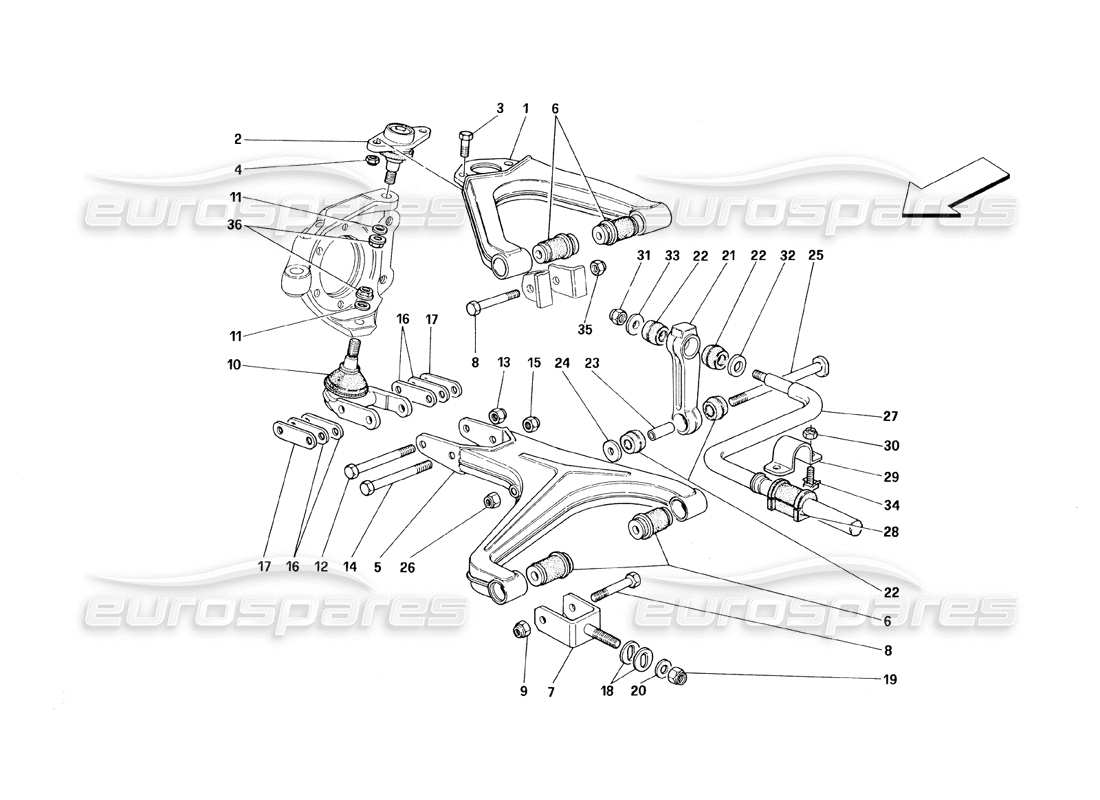

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                  #
                                                                  Part number
                                                                  Description
                                                                  Price

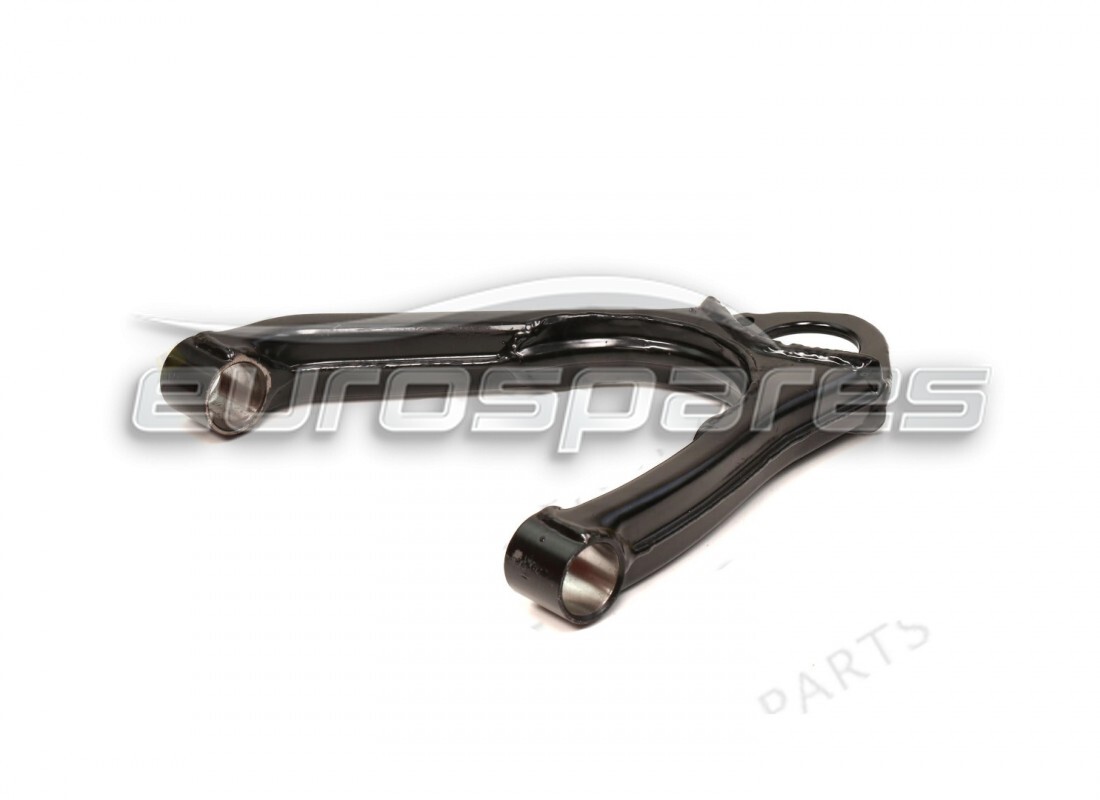

                                                                  # 001
                                                                  MPN: 141432
                                                                  UPPER LEVER
                                                                  Valid till car Nr. 81999
                                                                  from £355.50
                                                                  from £355.50

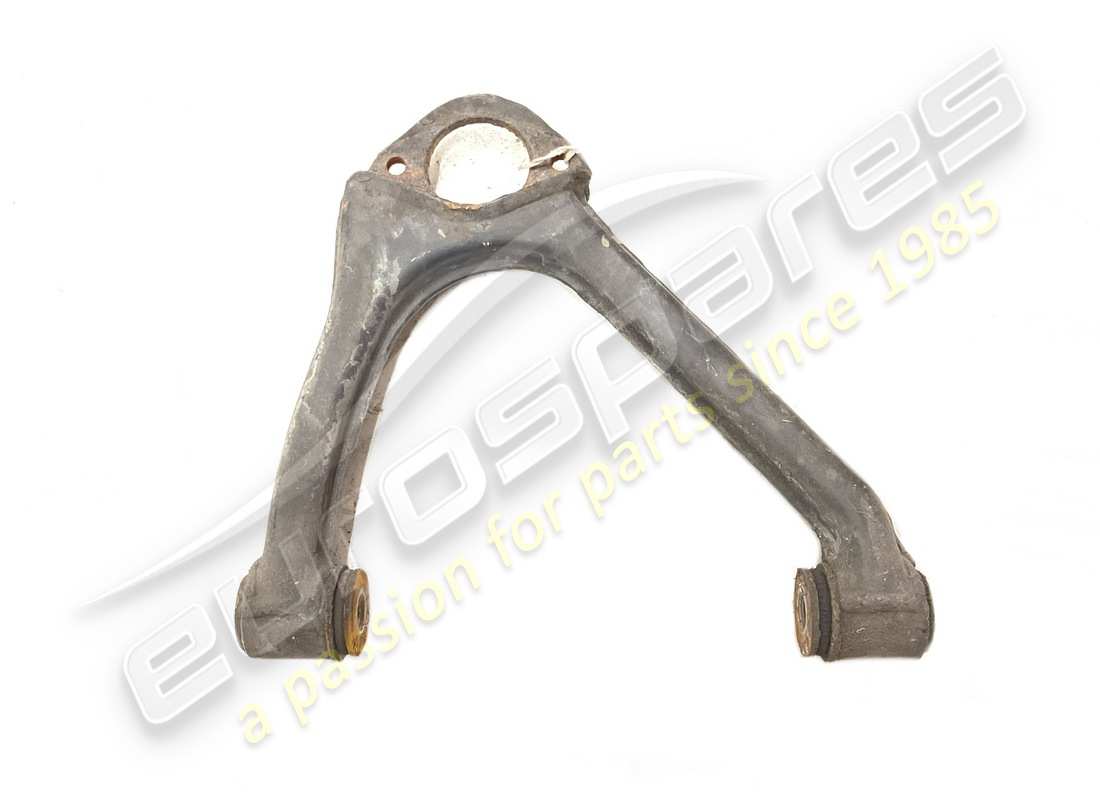

                                                                  # 001
                                                                  MPN: 143010
                                                                  UPPER LEVER
                                                                  Valid from car Nr. 82000
                                                                  from £409.25
                                                                  from £409.25
                                                                  # 002
                                                                  MPN: 132776
                                                                  UPPER BALL JOINT
                                                                  from £50.62
                                                                  from £50.62

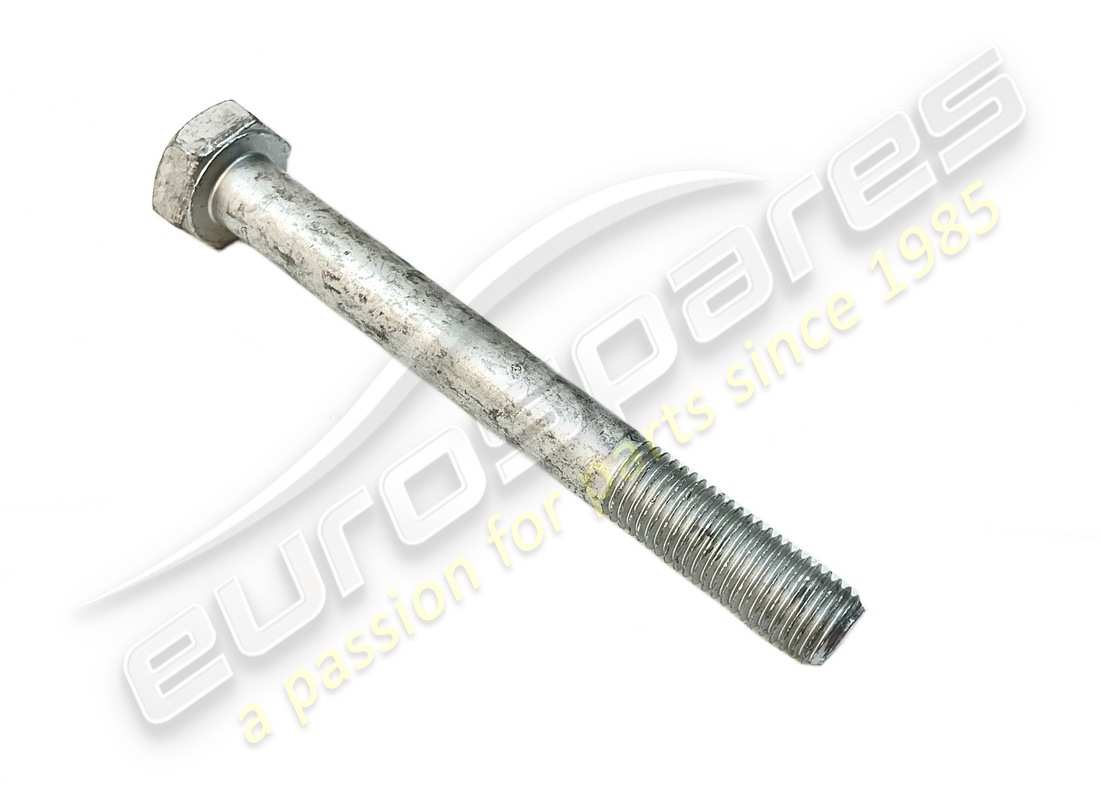

                                                                  # 003
                                                                  MPN: 16043721
                                                                  SCREW
                                                                  from £1.09
                                                                  from £1.09
                                                                  # 004
                                                                  MPN: 104030
                                                                  SELF LOCKING NUT
                                                                  from £0.47
                                                                  from £0.47
                                                                  This part replaces part number 16104125

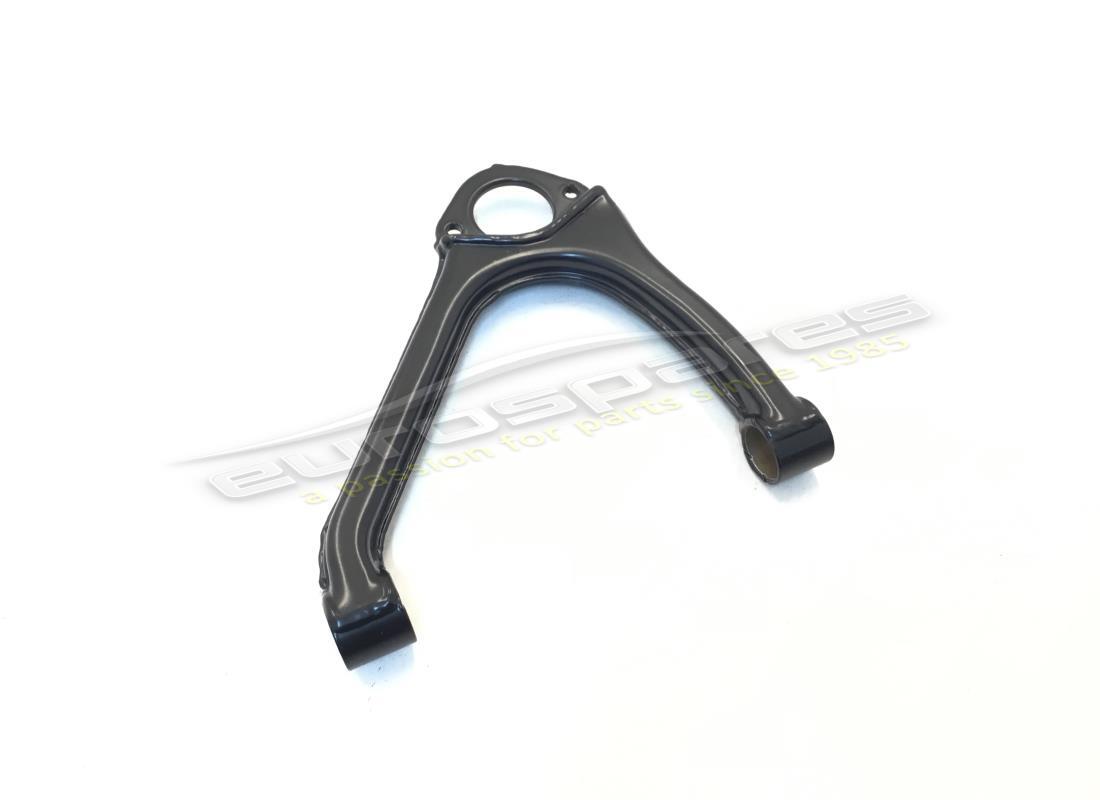

                                                                  # 005
                                                                  MPN: 143005
                                                                  LOWER LEVER
                                                                  from £450.74
                                                                  from £450.74
                                                                  This part replaces part number 132666 - and 1 more. Click to view details
                                                                  # 006
                                                                  MPN: 154537
                                                                  FLAMBLOCK
                                                                  USE : 163038/154536
                                                                  from £26.82
                                                                  from £26.82
                                                                  This part replaces part number 104398 - and 1 more. Click to view details
                                                                  # 007
                                                                  MPN: 142983
                                                                  LOWER FORK
                                                                  from £307.65
                                                                  from £307.65
                                                                  This part replaces part number 136302 - and 1 more. Click to view details
                                                                  # 008
                                                                  MPN: 106419
                                                                  SCREW
                                                                  from £8.11
                                                                  from £8.11
                                                                  This part replaces part number 100808 - and 9 more. Click to view details
                                                                  # 009
                                                                  MPN: 102825
                                                                  NUT
                                                                  from £0.47
                                                                  from £0.47
                                                                  This part replaces part number 95900617
                                                                  # 010
                                                                  MPN: 133944
                                                                  LOWER BALL JOINT
                                                                  from £50.00
                                                                  from £50.00
                                                                  This part replaces part number 114462 - and 13 more. Click to view details
                                                                  # 011
                                                                  MPN: 122237
                                                                  WASHER
                                                                  from £2.21
                                                                  from £2.21
                                                                  # 012
                                                                  MPN: 15971624
                                                                  SCREW
                                                                  from £0.47
                                                                  from £0.47
                                                                  # 013
                                                                  MPN: 102742
                                                                  NUT
                                                                  from £0.47
                                                                  from £0.47
                                                                  This part replaces part number 12557621 - and 2 more. Click to view details
                                                                  # 014
                                                                  MPN: 132667
                                                                  SCREW
                                                                  from £20.99
                                                                  from £20.99
                                                                  # 015
                                                                  MPN: 102825
                                                                  NUT
                                                                  from £0.47
                                                                  from £0.47
                                                                  This part replaces part number 95900617
                                                                  # 016
                                                                  MPN: 101022
                                                                  SETTING PLATE
                                                                  from £0.67
                                                                  from £0.67
                                                                  This part replaces part number 153963 - and 1 more. Click to view details
                                                                  # 017
                                                                  MPN: 101022
                                                                  SETTING PLATE
                                                                  mm. 1.5 Possible fitting
                                                                  from £0.67
                                                                  from £0.67
                                                                  This part replaces part number 153963 - and 1 more. Click to view details
                                                                  # 017
                                                                  MPN: 115073
                                                                  SETTING PLATE
                                                                  mm. 1,2 Possible fitting
                                                                  from £0.77
                                                                  from £0.77
                                                                  This part replaces part number 153964
                                                                  # 018
                                                                  MPN: 107025
                                                                  SPACER WASHER
                                                                  mm. 1,0
                                                                  Supersession
                                                                  Supersession
                                                                  # 018
                                                                  MPN: 107338
                                                                  SPACER WASHER
                                                                  from £12.92
                                                                  from £12.92
                                                                  This part replaces part number 107418
                                                                  # 018
                                                                  MPN: 107339
                                                                  SPACER WASHER
                                                                  mm. 2,0
                                                                  from £1.02
                                                                  from £1.02
                                                                  This part replaces part number 107419
                                                                  # 018
                                                                  MPN: 107340
                                                                  SPACER WASHER
                                                                  mm. 2,5
                                                                  from £1.09
                                                                  from £1.09
                                                                  This part replaces part number 107420
                                                                  # 018
                                                                  MPN: 107341
                                                                  SPACER WASHER
                                                                  mm. 3,0
                                                                  from £2.60
                                                                  from £2.60
                                                                  This part replaces part number 107421 - and 1 more. Click to view details
                                                                  # 018
                                                                  MPN: 107422
                                                                  SPACER WASHER
                                                                  mm. 3,25
                                                                  Supersession
                                                                  Supersession
                                                                  # 019
                                                                  MPN: 150238
                                                                  NUT
                                                                  from £0.47
                                                                  from £0.47
                                                                  This part replaces part number 12575821 - and 2 more. Click to view details
                                                                  # 020
                                                                  MPN: 101041
                                                                  WASHER
                                                                  from £0.47
                                                                  from £0.47
                                                                  This part replaces part number 10730821
                                                                  # 021
                                                                  MPN: 114691
                                                                  SHACKLE FOR STABILISER BAR
                                                                  from £322.83
                                                                  from £322.83
                                                                  # 022
                                                                  MPN: 100984
                                                                  PAD
                                                                  from £6.56
                                                                  from £6.56
                                                                  This part replaces part number 126097 - and 1 more. Click to view details
                                                                  # 023
                                                                  MPN: 100985
                                                                  SPACER
                                                                  from £21.06
                                                                  from £21.06
                                                                  This part replaces part number 64431
                                                                  # 024
                                                                  MPN: 105334
                                                                  WASHER
                                                                  Supersession
                                                                  Supersession
                                                                  # 025
                                                                  MPN: 132665
                                                                  PIVOT
                                                                  from £12.62
                                                                  from £12.62
                                                                  # 026
                                                                  MPN: 102825
                                                                  NUT
                                                                  from £0.47
                                                                  from £0.47
                                                                  This part replaces part number 95900617
                                                                  # 027
                                                                  MPN: 141428
                                                                  ANTI-ROLL BAR
                                                                  from £157.50
                                                                  from £157.50
                                                                  # 028
                                                                  MPN: 118371
                                                                  BAR BUFFER
                                                                  from £27.91
                                                                  from £27.91
                                                                  # 030
                                                                  MPN: 104030
                                                                  SELF LOCKING NUT
                                                                  from £0.47
                                                                  from £0.47
                                                                  This part replaces part number 16104125
                                                                  # 031
                                                                  MPN: 102742
                                                                  NUT
                                                                  from £0.47
                                                                  from £0.47
                                                                  This part replaces part number 12557621 - and 2 more. Click to view details
                                                                  # 032
                                                                  MPN: 10520221
                                                                  WASHER
                                                                  from £0.90
                                                                  from £0.90
                                                                  # 033
                                                                  MPN: 112874
                                                                  WASHER
                                                                  from £10.91
                                                                  from £10.91
                                                                  # 034
                                                                  MPN: 14672491
                                                                  SCREW
                                                                  from £20.06
                                                                  from £20.06
                                                                  # 035
                                                                  MPN: 148020
                                                                  NUT
                                                                  from £2.23
                                                                  from £2.23
                                                                  This part replaces part number 102825 - and 3 more. Click to view details
                                                                  # 036
                                                                  MPN: 149807
                                                                  NUT
                                                                  from £0.61
                                                                  from £0.61
