Ferrari 348 (1993) TB / TS Steering Column Parts Diagram

036 - Steering Column

Ferrari 348 (1993) TB / TS Steering Column Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                            #
                                                                            Part number
                                                                            Description
                                                                            Price
                                                                            # 001
                                                                            MPN: 140945

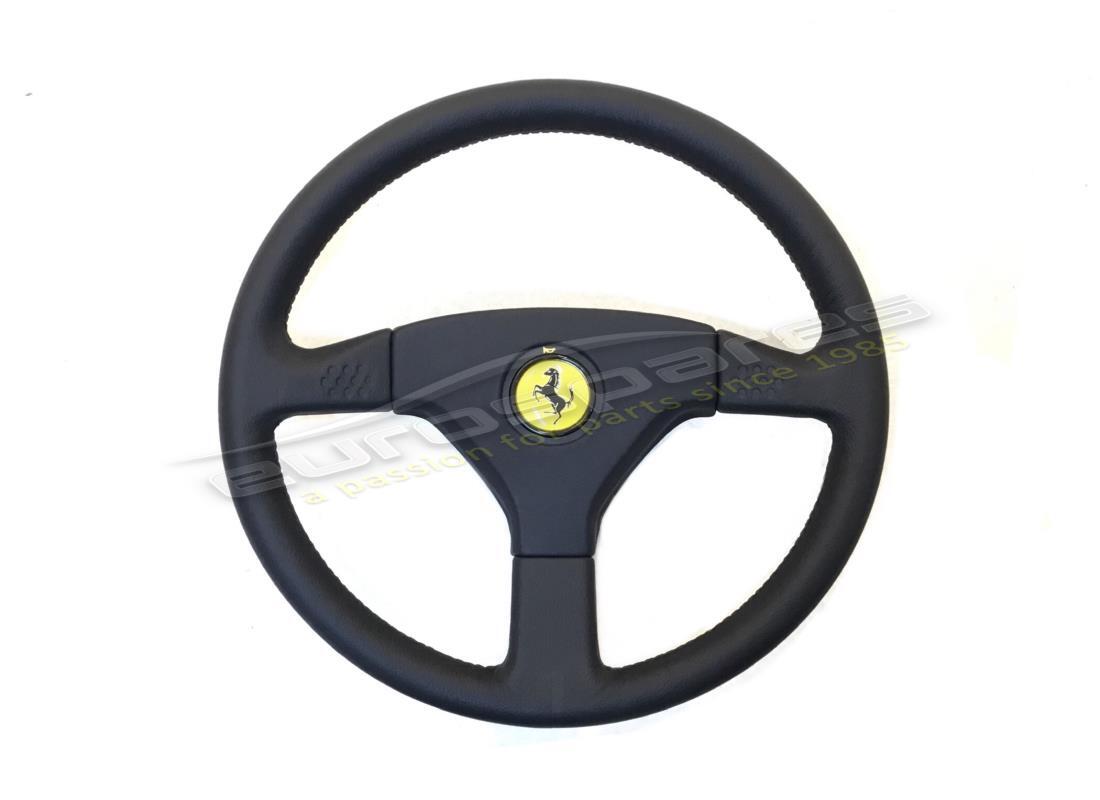

                                                                            STEERING WHEEL
                                                                            from £2,958.99
                                                                            from £2,958.99
                                                                            # 002
                                                                            MPN: 101648
                                                                            NUT
                                                                            from £1.68
                                                                            from £1.68
                                                                            This part replaces part number 106082
                                                                            # 003
                                                                            MPN: 12601779
                                                                            WASHER
                                                                            Supersession
                                                                            Supersession
                                                                            # 004
                                                                            MPN: 138048
                                                                            STEERING WHEEL COVER
                                                                            from £665.40
                                                                            from £665.40
                                                                            # 005
                                                                            MPN: 137819

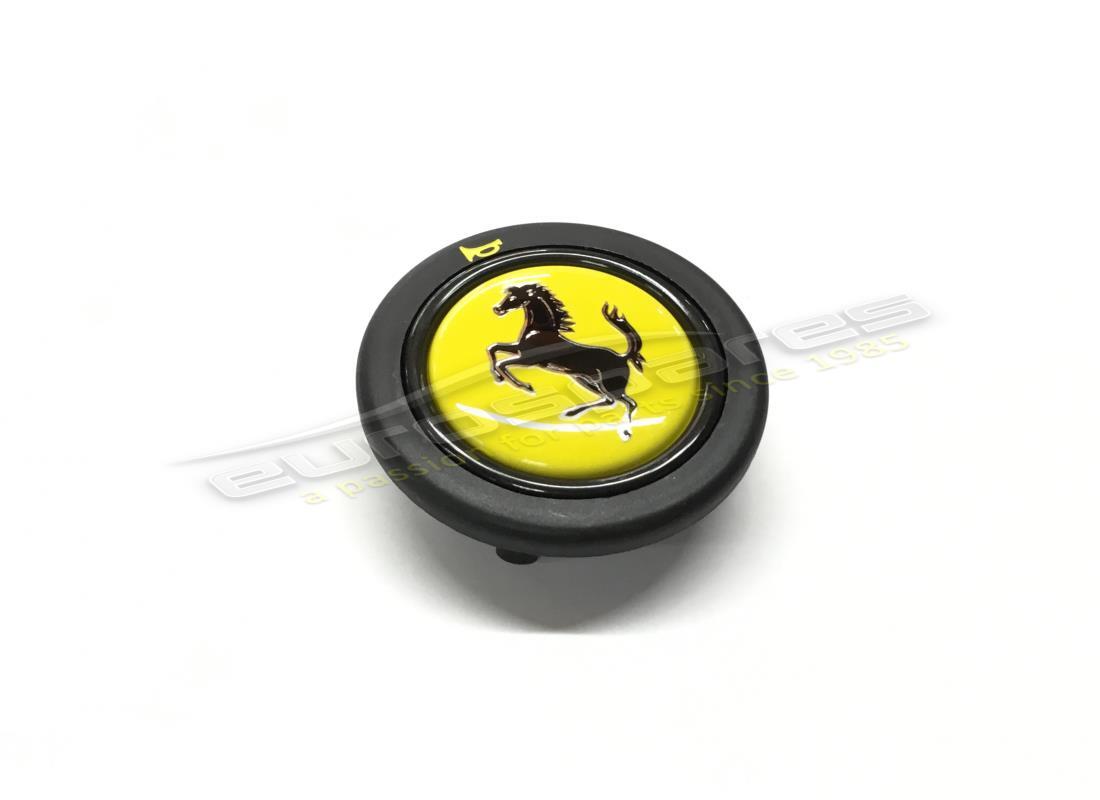

                                                                            ELECTRIC HORN PUSH BUTTON
                                                                            from £124.26
                                                                            from £124.26
                                                                            # 006
                                                                            MPN: 154563
                                                                            COLUMN SWITCH
                                                                            from £3,219.72
                                                                            from £3,219.72
                                                                            This part replaces part number 148642
                                                                            # 007
                                                                            MPN: 15896470
                                                                            NUT
                                                                            (minimum order quantity = 20)
                                                                            from £0.78
                                                                            from £0.78
                                                                            This part replaces part number 15896415 which we have in stock - and 1 more. Click to view details
                                                                            # 008
                                                                            MPN: 12601179
                                                                            WASHER
                                                                            Supersession
                                                                            Supersession
                                                                            This part replaces part number 12601171 - and 1 more. Click to view details
                                                                            # 009
                                                                            MPN: 11060076
                                                                            SEEGER RING
                                                                            from £0.47
                                                                            from £0.47
                                                                            # 010
                                                                            MPN: 134065
                                                                            SPACER WASHER
                                                                            mm. 1,0
                                                                            from £0.95
                                                                            from £0.95
                                                                            # 010
                                                                            MPN: 134066
                                                                            SPACER WASHER
                                                                            mm. 1,1
                                                                            from £0.54
                                                                            from £0.54
                                                                            # 010
                                                                            MPN: 134067
                                                                            SPACER WASHER
                                                                            mm. 1,2
                                                                            from £0.82
                                                                            from £0.82
                                                                            # 010
                                                                            MPN: 134068
                                                                            SPACER WASHER
                                                                            mm. 1,3
                                                                            from £0.75
                                                                            from £0.75
                                                                            # 010
                                                                            MPN: 134069
                                                                            SPACER WASHER
                                                                            mm. 1,4
                                                                            from £1.21
                                                                            from £1.21
                                                                            # 011
                                                                            MPN: 134061
                                                                            BEARING
                                                                            from £6.94
                                                                            from £6.94
                                                                            This part replaces part number 119213
                                                                            # 012
                                                                            MPN: 11001521
                                                                            STUD
                                                                            Supersession
                                                                            Supersession
                                                                            # 013
                                                                            MPN: 133903
                                                                            COLUMN SUPPORT
                                                                            from £731.08
                                                                            from £731.08
                                                                            # 014
                                                                            MPN: 13525170
                                                                            THREADED INSERT
                                                                            from £0.47
                                                                            from £0.47
                                                                            # 015
                                                                            MPN: 138052

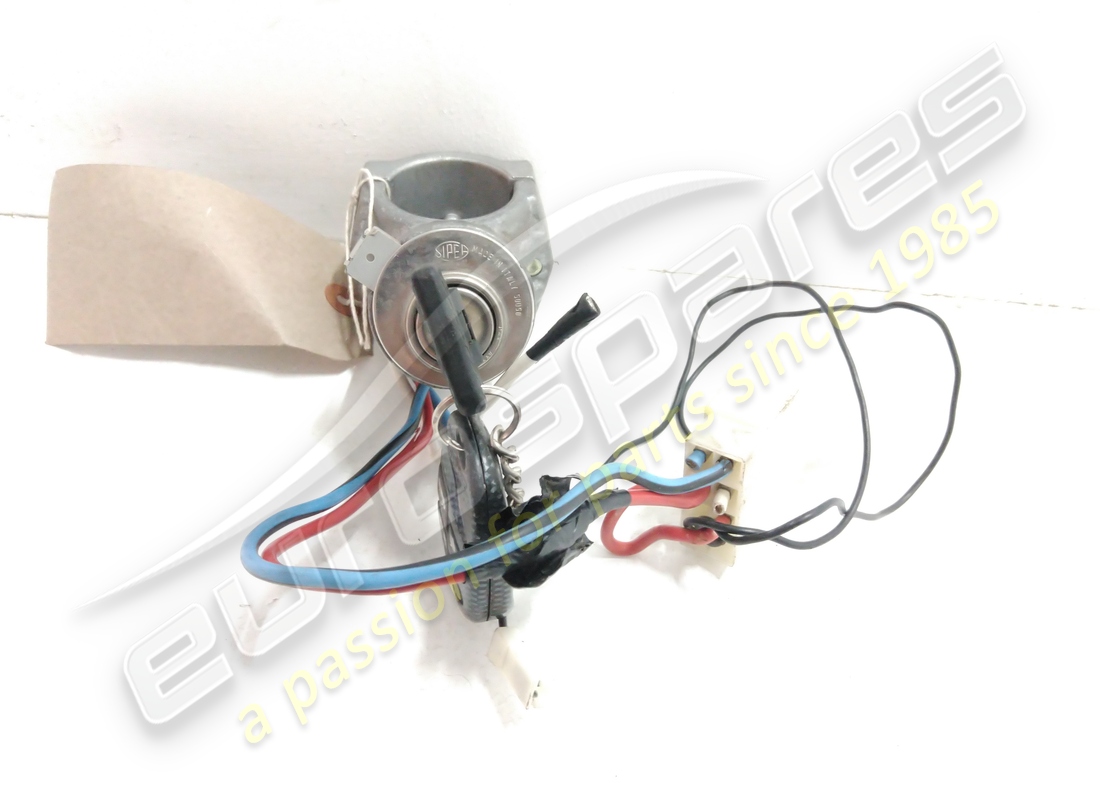

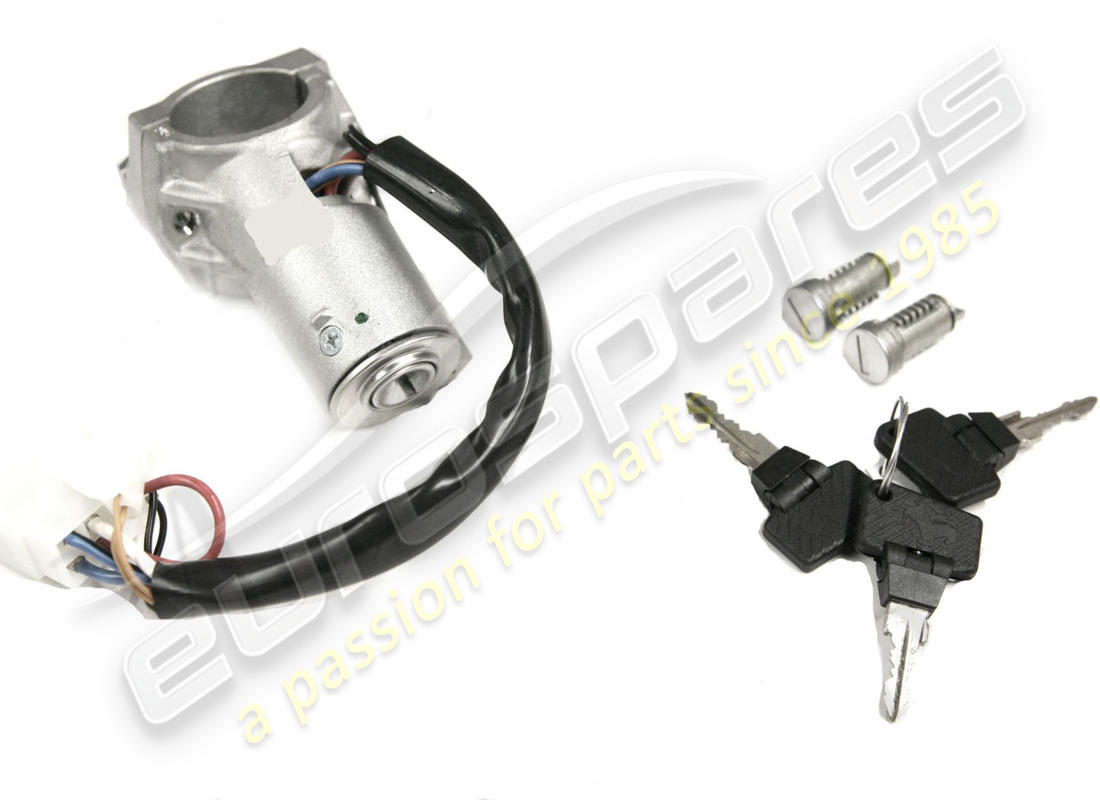

                                                                            ANTI-THEFT DEVICE (COMPLETE OF DOORS LOCKS SET)
                                                                            Not for USA, CDN, J
                                                                            from £567.00
                                                                            from £567.00
                                                                            This part replaces part number 134063 - and 1 more. Click to view details
                                                                            # 015
                                                                            MPN: 138052
                                                                            ANTI-THEFT DEVICE (COMPLETE OF DOORS LOCKS SET)
                                                                            Valid for USA, CDN, J
                                                                            from £567.00
                                                                            from £567.00
                                                                            This part replaces part number 134063 - and 1 more. Click to view details
                                                                            # 016
                                                                            MPN: 101106
                                                                            Key
                                                                            from £4.55
                                                                            from £4.55
                                                                            This part replaces part number 94628
                                                                            # 017
                                                                            MPN: 140939
                                                                            UPPER SHAFT FOR STEERING CONTROL
                                                                            from £243.89
                                                                            from £243.89
                                                                            # 018
                                                                            MPN: 134070
                                                                            SPACER WASHER
                                                                            mm. 1,0
                                                                            from £1.79
                                                                            from £1.79
                                                                            # 018
                                                                            MPN: 134071
                                                                            SPACER WASHER
                                                                            mm. 1,1
                                                                            from £0.82
                                                                            from £0.82
                                                                            # 018
                                                                            MPN: 134072
                                                                            SPACER WASHER
                                                                            mm. 1,2
                                                                            from £0.82
                                                                            from £0.82
                                                                            # 018
                                                                            MPN: 134073
                                                                            SPACER WASHER
                                                                            mm. 1,3
                                                                            from £0.93
                                                                            from £0.93
                                                                            # 018
                                                                            MPN: 134074
                                                                            SPACER WASHER
                                                                            mm. 1,4
                                                                            from £4.06
                                                                            from £4.06
                                                                            # 019
                                                                            MPN: 11066876
                                                                            SEEGER RING
                                                                            from £0.47
                                                                            from £0.47
                                                                            This part replaces part number 11066875
                                                                            # 020
                                                                            MPN: 133870
                                                                            SHAFT FOR LEVER
                                                                            from £5.45
                                                                            from £5.45
                                                                            # 021
                                                                            MPN: 14163870
                                                                            PIN
                                                                            from £1.18
                                                                            from £1.18
                                                                            # 022
                                                                            MPN: 114865
                                                                            WASHER
                                                                            from £0.82
                                                                            from £0.82
                                                                            This part replaces part number 112109
                                                                            # 023
                                                                            MPN: 102825
                                                                            NUT
                                                                            from £0.47
                                                                            from £0.47
                                                                            This part replaces part number 95900617
                                                                            # 024
                                                                            MPN: 125185
                                                                            LOCK LEVER FOR STEERING COLUMN
                                                                            from £38.58
                                                                            from £38.58
                                                                            # 025
                                                                            MPN: 134504
                                                                            BUSHING
                                                                            from £1.74
                                                                            from £1.74
                                                                            # 026
                                                                            MPN: 127496
                                                                            WASHER
                                                                            from £0.47
                                                                            from £0.47
                                                                            This part replaces part number 10516671 - and 2 more. Click to view details
                                                                            # 027
                                                                            MPN: 16043321
                                                                            SCREW
                                                                            from £0.47
                                                                            from £0.47
                                                                            # 028
                                                                            MPN: 12638521
                                                                            WASHER
                                                                            from £0.47
                                                                            from £0.47
                                                                            # 029
                                                                            MPN: 138712
                                                                            LOWER SHAFT FOR STEERING CONTROL
                                                                            from £367.50
                                                                            from £367.50
                                                                            # 030
                                                                            MPN: 12574221
                                                                            NUT
                                                                            Supersession
                                                                            Supersession
                                                                            This part replaces part number 125519 which we have in stock - and 1 more. Click to view details
                                                                            # 031
                                                                            MPN: 125518
                                                                            SCREW
                                                                            from £0.87
                                                                            from £0.87
                                                                            This part replaces part number 103371
                                                                            # 032
                                                                            MPN: 95401152
                                                                            BLANK KEY
                                                                            Supersession
                                                                            Supersession
                                                                            This part replaces part number 61507100
                                                                            # 033
                                                                            MPN: 63318700
                                                                            COVER FOR STEERING ROD
                                                                            from £58.26
                                                                            from £58.26
                                                                            This part replaces part number 62427300
                                                                            # 033
                                                                            MPN: 63318700
                                                                            COVER FOR STEERING ROD
                                                                            Valid from car Ass. Nr. 9227 and for car Ass. Nr. 8944, 8945, 8946
                                                                            from £58.26
                                                                            from £58.26
                                                                            This part replaces part number 62427300
                                                                            # 034
                                                                            MPN: 15961107
                                                                            SCREW
                                                                            from £0.47
                                                                            from £0.47
                                                                            This part replaces part number 15961101
                                                                            # 035
                                                                            MPN: 14499301
                                                                            WASHER
                                                                            from £0.86
                                                                            from £0.86
                                                                            # 036
                                                                            MPN: 13274111
                                                                            SCREW
                                                                            from £2.23
                                                                            from £2.23
                                                                            # 037
                                                                            MPN: 12601179
                                                                            WASHER
                                                                            Supersession
                                                                            Supersession
                                                                            This part replaces part number 12601171 - and 1 more. Click to view details
                                                                            # 038
                                                                            MPN: 15960507
                                                                            SCREW
                                                                            from £0.71
                                                                            from £0.71
                                                                            This part replaces part number 15960501
                                                                            # 039
                                                                            MPN: 12601274
                                                                            WASHER
                                                                            from £0.47
                                                                            from £0.47
                                                                            This part replaces part number 12601221 - and 5 more. Click to view details
                                                                            # 040
                                                                            MPN: 150427
                                                                            SCREW
                                                                            from £3.12
                                                                            from £3.12
                                                                            This part replaces part number 150428 which we have in stock
                                                                            # 041
                                                                            MPN: 150428
                                                                            NUT
                                                                            from £0.41
                                                                            from £0.41
                                                                            # 042
                                                                            MPN: 121611
                                                                            SCREW
                                                                            from £0.76
                                                                            from £0.76
