ferrari 348 (1993) tb / ts hand-brake control parts diagram

034 - Hand-Brake Control

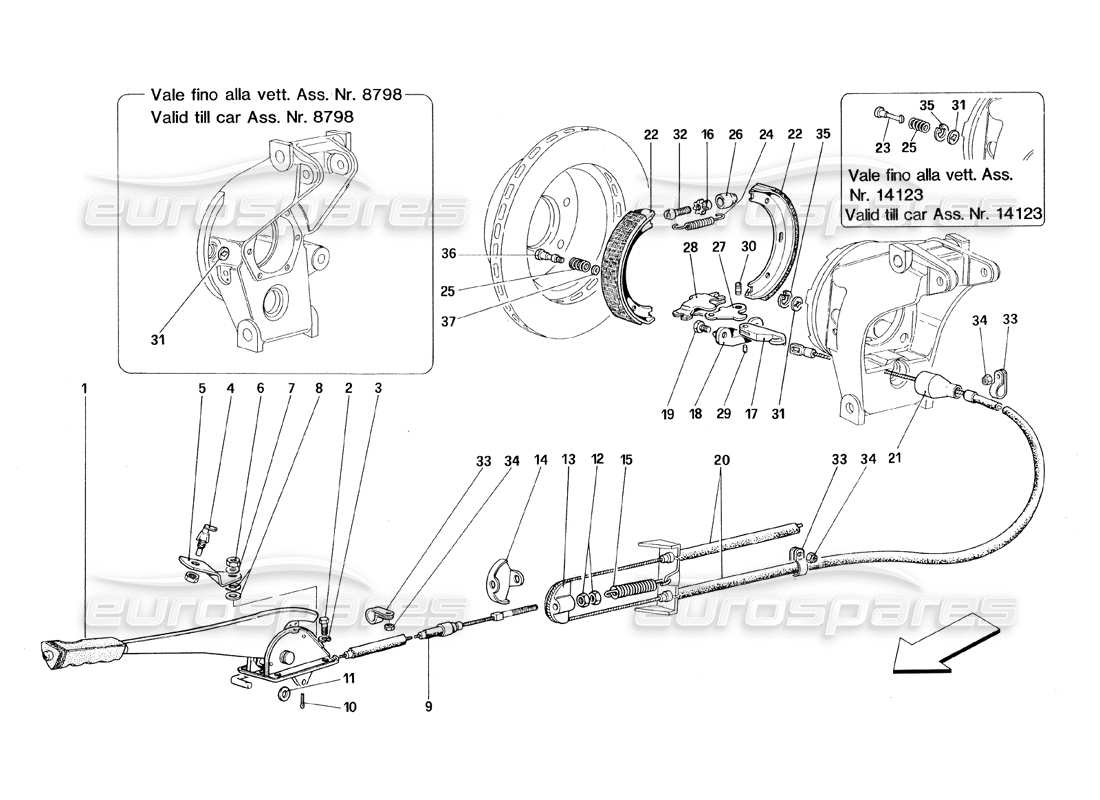

Ferrari 348 (1993) TB / TS Hand-Brake Control Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                    #
                                                    Part number
                                                    Description
                                                    Price
                                                    # 001
                                                    MPN: 141460
                                                    HAND BRAKE LEVER
                                                    Without lining Valid till stock exhaustion
                                                    Supersession
                                                    Supersession
                                                    # 001
                                                    MPN: 154095
                                                    HAND BRAKE LEVER
                                                    Without lining - Valid after stock exhaustion of 141460
                                                    from £360.21
                                                    from £360.21
                                                    This part replaces part number 141460 - and 2 more. Click to view details
                                                    # 001
                                                    MPN: 629965..
                                                    LINING
                                                    For leather colours see table
                                                    Supersession
                                                    Supersession
                                                    # 002
                                                    MPN: 10902124
                                                    SCREW
                                                    from £0.51
                                                    from £0.51
                                                    This part replaces part number 10902111 - and 1 more. Click to view details
                                                    # 003
                                                    MPN: 127494
                                                    WASHER
                                                    (minimum order quantity = 20)
                                                    from £0.53
                                                    from £0.53
                                                    This part replaces part number 10516470 - and 4 more. Click to view details
                                                    # 004
                                                    MPN: 114318
                                                    SWITCH
                                                    from £9.29
                                                    from £9.29
                                                    This part replaces part number 114319
                                                    # 005
                                                    MPN: 114320
                                                    SUPPORT BRACKET
                                                    Supersession
                                                    Supersession
                                                    This part replaces part number 114320 N/L/A
                                                    # 006
                                                    MPN: 15896470
                                                    NUT
                                                    (minimum order quantity = 20)
                                                    from £0.76
                                                    from £0.76
                                                    This part replaces part number 15896415 which we have in stock - and 1 more. Click to view details
                                                    # 007
                                                    MPN: 12605270
                                                    WASHER
                                                    Supersession
                                                    Supersession
                                                    # 008
                                                    MPN: 10519377
                                                    WASHER
                                                    Possible fitting
                                                    Supersession
                                                    Supersession
                                                    This part replaces part number 10519305 which we have in stock - and 1 more. Click to view details
                                                    # 009
                                                    MPN: 141219
                                                    FRONT CABLE
                                                    from £28.67
                                                    from £28.67
                                                    # 010
                                                    MPN: 10796440
                                                    SPLIT PIN
                                                    Supersession
                                                    Supersession
                                                    This part replaces part number 264555
                                                    # 011
                                                    MPN: 10519624
                                                    WASHER
                                                    from £0.54
                                                    from £0.54
                                                    This part replaces part number 10519601 - and 3 more. Click to view details
                                                    # 012
                                                    MPN: 16102311
                                                    NUT
                                                    from £0.42
                                                    from £0.42
                                                    This part replaces part number 16102315
                                                    # 013
                                                    MPN: 118552
                                                    ANCHORAGE FOR REAR CABLE
                                                    from £1.10
                                                    from £1.10
                                                    # 014
                                                    MPN: 118553
                                                    PLATE
                                                    from £15.15
                                                    from £15.15
                                                    # 016
                                                    MPN: 101286
                                                    ADJUSTMENT SCREW NUT
                                                    from £21.71
                                                    from £21.71
                                                    This part replaces part number 680544 - and 6 more. Click to view details
                                                    # 018
                                                    MPN: 106243
                                                    HUB HOLDER SMALL BLOCK
                                                    Valid till car Ass. Nr. 6500
                                                    from £108.85
                                                    from £108.85
                                                    # 018
                                                    MPN: 142861
                                                    HUB HOLDER SMALL BLOCK
                                                    Valid from car Ass. Nr. 6501
                                                    from £148.35
                                                    from £148.35
                                                    # 019
                                                    MPN: 106242
                                                    SCREW
                                                    Valid till car Ass. Nr. 6500
                                                    from £3.48
                                                    from £3.48
                                                    # 019
                                                    MPN: 142856
                                                    SCREW
                                                    Valid from car Ass. Nr. 6501
                                                    from £2.47
                                                    from £2.47
                                                    # 020
                                                    MPN: 141220
                                                    REAR CABLE
                                                    from £44.62
                                                    from £44.62
                                                    # 021
                                                    MPN: 132129
                                                    STOP LIMIT FOR HAND BRAKE SHEATH
                                                    Valid till car Ass. Nr. 8798
                                                    from £30.24
                                                    from £30.24
                                                    This part replaces part number 105735 which we have in stock - and 1 more. Click to view details
                                                    # 021
                                                    MPN: 143938
                                                    STOP LIMIT FOR HAND BRAKE SHEATH
                                                    Valid from car Ass. Nr. 8799
                                                    from £16.23
                                                    from £16.23
                                                    # 022
                                                    MPN: 134847
                                                    HAND BRAKE SHOES
                                                    Set of 4 (25 mm)
                                                    from £36.25
                                                    from £36.25
                                                    This part replaces part number 101270 - and 2 more. Click to view details
                                                    # 022
                                                    MPN: 142886
                                                    COMPLETE BRAKE SHOE
                                                    Valid from car Ass. Nr. 6501Not as spare part now Replaced by 159894 and 159908
                                                    Supersession
                                                    Supersession
                                                    # 022
                                                    MPN: 170701
                                                    COMPLETE BRAKE SHOE
                                                    from £31.74
                                                    from £31.74
                                                    This part replaces part number 162820
                                                    # 022
                                                    MPN: 170701/A
                                                    COMPLETE BRAKE SHOES
                                                    from £78.20
                                                    from £78.20
                                                    This part replaces part number 178382
                                                    # 023
                                                    MPN: 101275
                                                    FIXING SPRING PIN
                                                    Valid till car Ass. Nr. 14123
                                                    from £8.07
                                                    from £8.07
                                                    This part replaces part number 680515 - and 2 more. Click to view details
                                                    # 024
                                                    MPN: 101276
                                                    RETURN SPRING FOR BRAKE SHOES
                                                    from £2.28
                                                    from £2.28
                                                    This part replaces part number 680516 - and 5 more. Click to view details
                                                    # 025
                                                    MPN: 101277
                                                    SPRING
                                                    from £1.31
                                                    from £1.31
                                                    This part replaces part number 680517 - and 1 more. Click to view details
                                                    # 026
                                                    MPN: 101279
                                                    SEAT FOR ADJUSTMENT SCREW
                                                    from £31.50
                                                    from £31.50
                                                    # 027
                                                    MPN: 101280
                                                    INNER CONTROL LEVER
                                                    from £26.20
                                                    from £26.20
                                                    This part replaces part number 680538 - and 6 more. Click to view details
                                                    # 028
                                                    MPN: 101281
                                                    OUTER CONTROL LEVER
                                                    from £34.27
                                                    from £34.27
                                                    This part replaces part number 680539 - and 7 more. Click to view details
                                                    # 029
                                                    MPN: 101282
                                                    FIXING FORK TO INNER LEVER PIN
                                                    from £8.04
                                                    from £8.04
                                                    This part replaces part number 680540
                                                    # 030
                                                    MPN: 101283
                                                    JOINT PIN
                                                    from £8.70
                                                    from £8.70
                                                    This part replaces part number 680541 - and 2 more. Click to view details
                                                    # 031
                                                    MPN: 101284
                                                    PLATE FOR SPRING
                                                    Valid till car Ass. Nr. 14123
                                                    from £2.89
                                                    from £2.89
                                                    This part replaces part number 680542
                                                    # 032
                                                    MPN: 101285
                                                    SCREW
                                                    from £17.78
                                                    from £17.78
                                                    This part replaces part number 680543 - and 8 more. Click to view details
                                                    # 033
                                                    MPN: 10418501
                                                    BRACKET
                                                    from £1.07
                                                    from £1.07
                                                    # 035
                                                    MPN: 11057276
                                                    SEEGER RING
                                                    Valid from car Ass. Nr. 8799 and valid till car Ass. Nr. 14123 L mm. 36--Valid from car Ass. Nr. 14124
                                                    from £0.47
                                                    from £0.47
                                                    # 036
                                                    MPN: 156915
                                                    THREADED PIN
                                                    Valid for hub holder 155426 and 155427
                                                    from £46.39
                                                    from £46.39
                                                    # 036
                                                    MPN: 156916
                                                    THREADED PIN
                                                    L. mm. 29 Valid from car Ass. Nr. 14124 Valid for hub holder 155426 and 155427
                                                    from £31.11
                                                    from £31.11
                                                    # 037
                                                    MPN: 12625221
                                                    WASHER
                                                    from £0.53
                                                    from £0.53
