ferrari 348 (1993) tb / ts brake system (with antiskid) parts diagram

032 - Brake System (With Antiskid)

Ferrari 348 (1993) TB / TS Brake System (With Antiskid) Parts Diagram

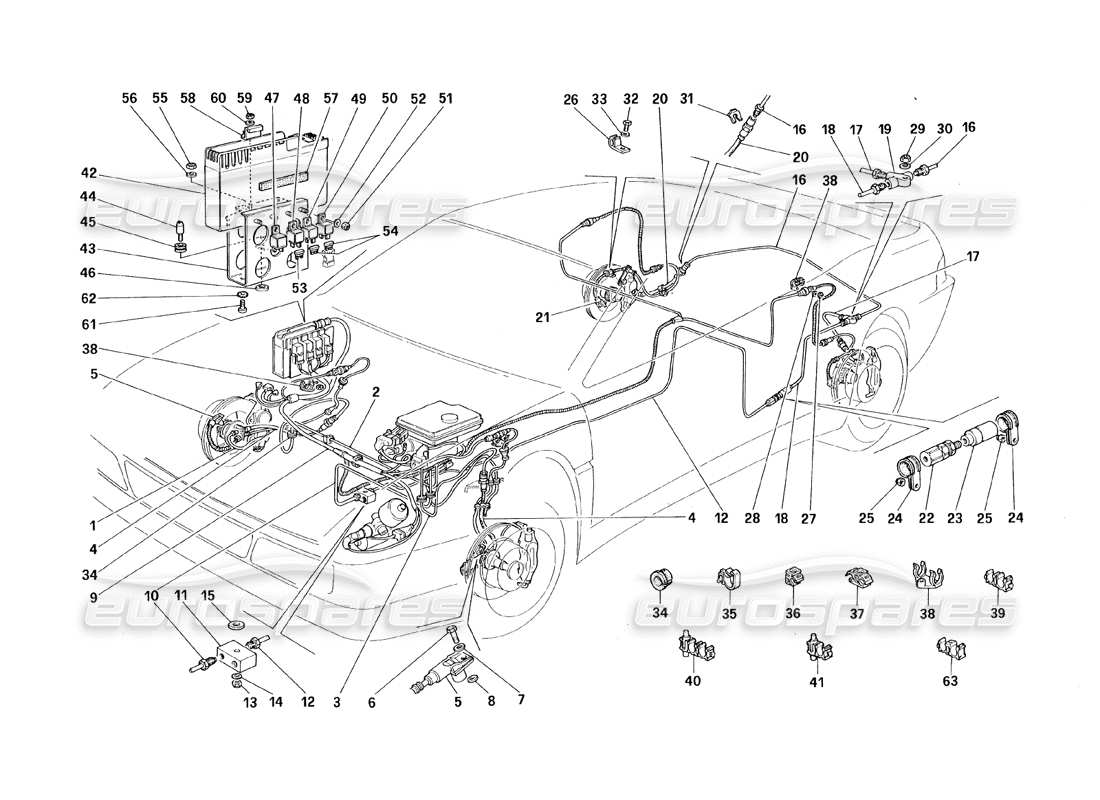

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                            #
                                                                                                            Part number
                                                                                                            Description
                                                                                                            Price
                                                                                                            # 001
                                                                                                            MPN: 143641
                                                                                                            PIPE TO RH FRONT CALIPER
                                                                                                            from £93.90
                                                                                                            from £93.90
                                                                                                            This part replaces part number 101395 - and 1 more. Click to view details
                                                                                                            # 001
                                                                                                            MPN: 143669
                                                                                                            PIPE TO LH FRONT CALIPER
                                                                                                            from £93.90
                                                                                                            from £93.90
                                                                                                            # 002
                                                                                                            MPN: 140676
                                                                                                            BRAKE PIPE FROM CENTER UNIT TO RH FRONT FLEXIBLE PIPE
                                                                                                            Valid till stock exhaustion- NotforGD
                                                                                                            Supersession
                                                                                                            Supersession
                                                                                                            # 002
                                                                                                            MPN: 143639
                                                                                                            BRAKE PIPE FROM CENTER UNIT TO RH FRONT FLEXIBLE PIPE
                                                                                                            Valid after stock exhaustion of 140676 -Not for GD- Valid till car Nr. 95080 TB, Nr. 94925 TS and Nr. 94268 USA TS
                                                                                                            from £11.26
                                                                                                            from £11.26
                                                                                                            This part replaces part number 140676
                                                                                                            # 002
                                                                                                            MPN: 143664
                                                                                                            BRAKE PIPE FROM CENTER UNIT TO RH FRONT FLEXIBLE PIPE
                                                                                                            Valid for GD- Valid till car Nr. 95080 TB and Nr. 94925 TS
                                                                                                            from £8.91
                                                                                                            from £8.91
                                                                                                            # 002
                                                                                                            MPN: 153471
                                                                                                            BRAKE PIPE FROM CENTER UNIT TO RH FRONT FLEXIBLE PIPE
                                                                                                            Not for GD - Valid from car Nr. 95081 TB, Nr. 94926 TS and Nr. 94269 USA TS
                                                                                                            from £12.74
                                                                                                            from £12.74
                                                                                                            # 002
                                                                                                            MPN: 153474
                                                                                                            BRAKE PIPE FROM CENTER UNIT TO RH FRONT FLEXIBLE PIPE
                                                                                                            Valid for GD - Valid from car Nr. 95081 TB and Nr. 94926 TS
                                                                                                            from £9.43
                                                                                                            from £9.43
                                                                                                            # 003
                                                                                                            MPN: 143640
                                                                                                            BRAKE PIPE FROM CENTER UNIT TO LH REAR FLEXIBLE PIPE
                                                                                                            Not for GD- Valid till car Nr. 95080 TB, Nr. 94925 TS and 94268 USA TS
                                                                                                            from £11.86
                                                                                                            from £11.86
                                                                                                            # 003
                                                                                                            MPN: 143661
                                                                                                            3RAKE PIPE FROM CENTER UNIT TO LH REAR FLEXIBLE PIPE
                                                                                                            Valid for GD- Valid till car Nr. 95080 TB and Nr. 94925 TS
                                                                                                            from £12.01
                                                                                                            from £12.01
                                                                                                            # 003
                                                                                                            MPN: 153472
                                                                                                            BRAKE PIPE FROM CENTER UNIT TO LH REAR FLEXIBLE PIPE
                                                                                                            Not for GD- Valid from car Nr. 95081 TB, Nr. 94926 TS and Nr. 94269 USA TS
                                                                                                            from £8.16
                                                                                                            from £8.16
                                                                                                            # 003
                                                                                                            MPN: 153473
                                                                                                            3RAKE PIPE FROM CENTER UNIT TO LH REAR FLEXIBLE PIPE
                                                                                                            Valid for GD - Valid from car Nr. 95081 TB and Nr. 94926 TS
                                                                                                            from £12.10
                                                                                                            from £12.10
                                                                                                            # 004
                                                                                                            MPN: 137313
                                                                                                            FRONT BRAKE FLEXIBLE PIPE
                                                                                                            from £45.00
                                                                                                            from £45.00
                                                                                                            # 005
                                                                                                            MPN: 139639

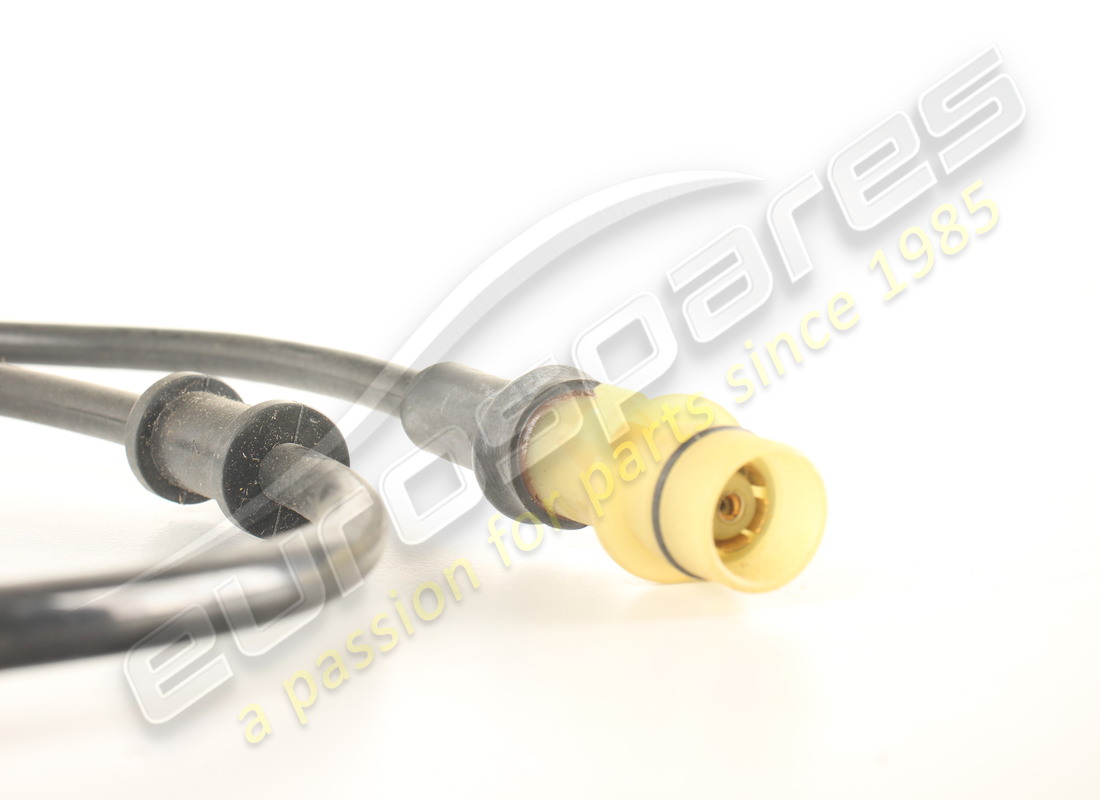

                                                                                                            FRONT SENSOR
                                                                                                            from £172.61
                                                                                                            from £172.61
                                                                                                            # 006
                                                                                                            MPN: 10902124
                                                                                                            SCREW
                                                                                                            from £0.51
                                                                                                            from £0.51
                                                                                                            This part replaces part number 10902111 - and 1 more. Click to view details
                                                                                                            # 007
                                                                                                            MPN: 12601274
                                                                                                            WASHER
                                                                                                            from £0.47
                                                                                                            from £0.47
                                                                                                            This part replaces part number 12601221 - and 5 more. Click to view details
                                                                                                            # 008
                                                                                                            MPN: 136401
                                                                                                            WASHER
                                                                                                            Possible fitting Valid till stock exhaustion
                                                                                                            from £0.59
                                                                                                            from £0.59
                                                                                                            # 008
                                                                                                            MPN: 154747
                                                                                                            THICKNESS
                                                                                                            Possible fitting - Valid after stock exhaustion of 136401
                                                                                                            from £0.70
                                                                                                            from £0.70
                                                                                                            # 009
                                                                                                            MPN: 134436
                                                                                                            ANTISKID COMPLETE CABLE
                                                                                                            Not for GD
                                                                                                            from £659.84
                                                                                                            from £659.84
                                                                                                            # 009
                                                                                                            MPN: 142530
                                                                                                            ANTISKID COMPLETE CABLE
                                                                                                            Valid for GD
                                                                                                            from £358.72
                                                                                                            from £358.72
                                                                                                            # 010
                                                                                                            MPN: 143067
                                                                                                            BRAKE PIPE FROM CENTER UNIT TO 2-WAY UNION
                                                                                                            Valid for GD
                                                                                                            from £8.02
                                                                                                            from £8.02
                                                                                                            # 010
                                                                                                            MPN: 143642
                                                                                                            BRAKE PIPE FROM CENTER UNIT T0 2-WAYUNIT
                                                                                                            Not for GD
                                                                                                            from £6.77
                                                                                                            from £6.77
                                                                                                            # 012
                                                                                                            MPN: 141687
                                                                                                            PIPE FROM 2-WAY UNION TO BRAKING CORRECTOR
                                                                                                            Supersession
                                                                                                            Supersession
                                                                                                            # 014
                                                                                                            MPN: 12639701
                                                                                                            WASHER
                                                                                                            Supersession
                                                                                                            Supersession
                                                                                                            This part replaces part number 12639704
                                                                                                            # 015
                                                                                                            MPN: 143041
                                                                                                            SPACER
                                                                                                            from £0.47
                                                                                                            from £0.47
                                                                                                            # 016
                                                                                                            MPN: 143646

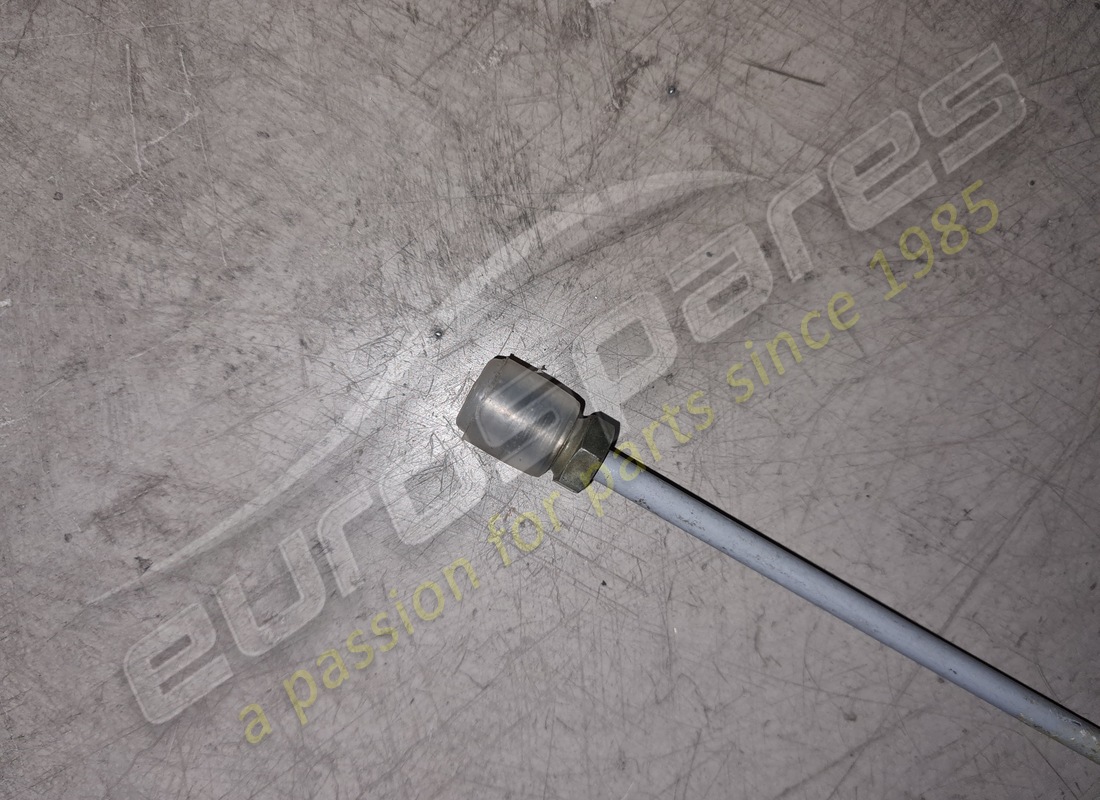

                                                                                                            BRAKE PIPE FROM 3-WAY UNION TO REAR RH FLEXIBLE
                                                                                                            from £4.84
                                                                                                            from £4.84
                                                                                                            # 017
                                                                                                            MPN: 143668
                                                                                                            BRAKE PIPE FROM 3-WAY UNION TO REAR LH FLEXIBLE
                                                                                                            from £30.03
                                                                                                            from £30.03
                                                                                                            # 018
                                                                                                            MPN: 143645
                                                                                                            BRAKE PIPE FROM CORRECTOR TO 3-WAY UNION
                                                                                                            from £4.14
                                                                                                            from £4.14
                                                                                                            # 019
                                                                                                            MPN: 101394
                                                                                                            3-WAY UNION
                                                                                                            from £27.42
                                                                                                            from £27.42
                                                                                                            This part replaces part number 680980 - and 7 more. Click to view details
                                                                                                            # 020
                                                                                                            MPN: 271712
                                                                                                            REAR BRAKE HOSE
                                                                                                            from £14.88
                                                                                                            from £14.88
                                                                                                            This part replaces part number 118100
                                                                                                            # 021
                                                                                                            MPN: 139479
                                                                                                            REAR SENSOR
                                                                                                            from £192.91
                                                                                                            from £192.91
                                                                                                            # 022
                                                                                                            MPN: 134597

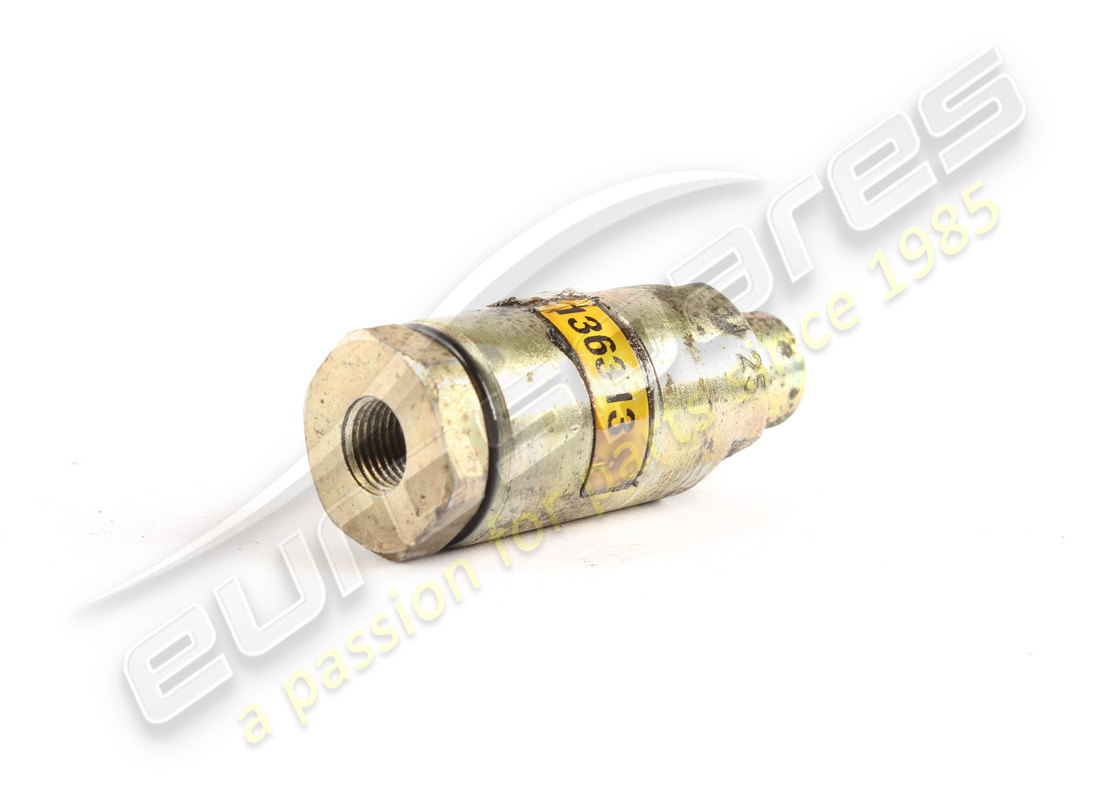

                                                                                                            DELAY VALVE
                                                                                                            from £662.59
                                                                                                            from £662.59
                                                                                                            # 023
                                                                                                            MPN: 136313

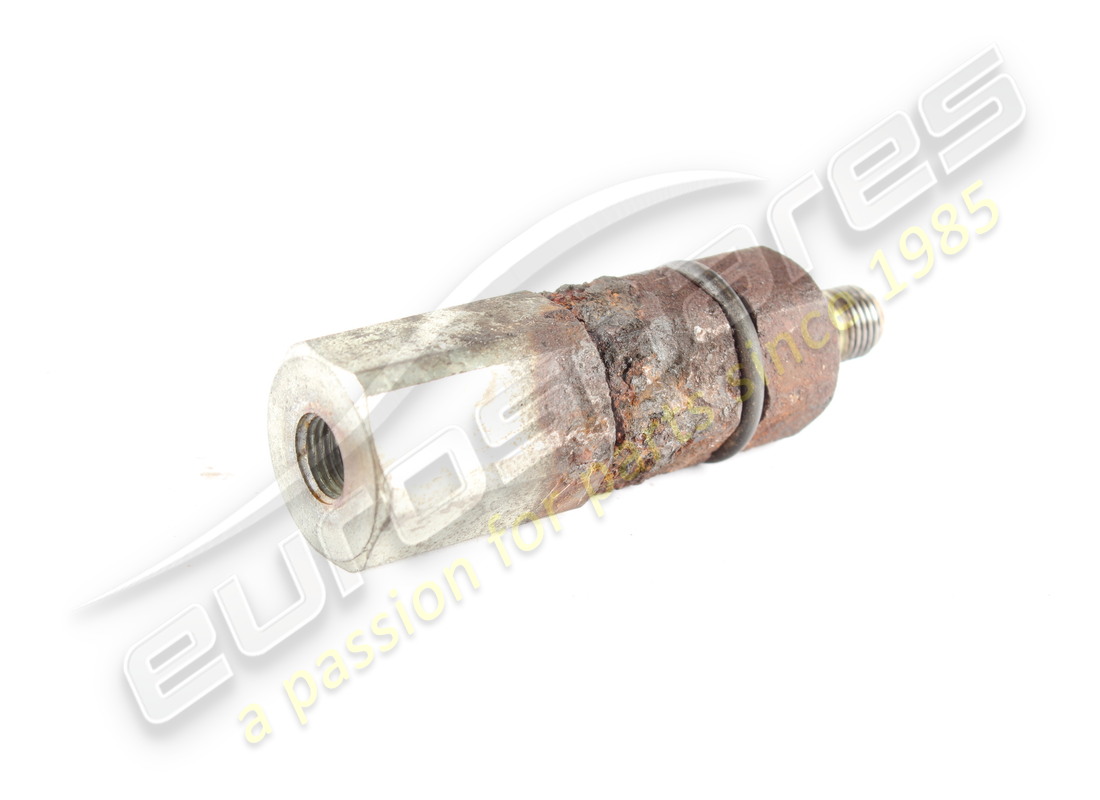

                                                                                                            VALVE CORRECTOR
                                                                                                            from £48.56
                                                                                                            from £48.56
                                                                                                            # 024
                                                                                                            MPN: 10441990
                                                                                                            BRACKET
                                                                                                            from £0.47
                                                                                                            from £0.47
                                                                                                            # 026
                                                                                                            MPN: 131783
                                                                                                            CLIP
                                                                                                            Supersession
                                                                                                            Supersession
                                                                                                            This part replaces part number 131783 N/L/A
                                                                                                            # 027
                                                                                                            MPN: 12574011
                                                                                                            NUT
                                                                                                            For GD q.ty 2
                                                                                                            from £0.47
                                                                                                            from £0.47
                                                                                                            # 028
                                                                                                            MPN: 10519201
                                                                                                            WASHER
                                                                                                            For GD q.ty 2
                                                                                                            from £0.47
                                                                                                            from £0.47
                                                                                                            This part replaces part number 10519281
                                                                                                            # 030
                                                                                                            MPN: 12639701
                                                                                                            WASHER
                                                                                                            Supersession
                                                                                                            Supersession
                                                                                                            This part replaces part number 12639704
                                                                                                            # 031
                                                                                                            MPN: 116374
                                                                                                            CLIP
                                                                                                            from £1.16
                                                                                                            from £1.16
                                                                                                            # 032
                                                                                                            MPN: 10902124
                                                                                                            SCREW
                                                                                                            from £0.53
                                                                                                            from £0.53
                                                                                                            This part replaces part number 10902111 - and 1 more. Click to view details
                                                                                                            # 033
                                                                                                            MPN: 12601274
                                                                                                            WASHER
                                                                                                            from £0.47
                                                                                                            from £0.47
                                                                                                            This part replaces part number 12601221 - and 5 more. Click to view details
                                                                                                            # 034
                                                                                                            MPN: 105369
                                                                                                            CABLE GROMMET
                                                                                                            from £19.10
                                                                                                            from £19.10
                                                                                                            # 035
                                                                                                            MPN: 140798
                                                                                                            CUP
                                                                                                            Supersession
                                                                                                            Supersession
                                                                                                            # 036
                                                                                                            MPN: 141505
                                                                                                            CLIP
                                                                                                            from £0.56
                                                                                                            from £0.56
                                                                                                            # 037
                                                                                                            MPN: 145473
                                                                                                            CLIP
                                                                                                            from £0.47
                                                                                                            from £0.47
                                                                                                            # 038
                                                                                                            MPN: 128292
                                                                                                            CLIP
                                                                                                            For GD q.ty 2
                                                                                                            from £1.36
                                                                                                            from £1.36
                                                                                                            # 039
                                                                                                            MPN: 140130
                                                                                                            REAR PIPE FIXING MODULE
                                                                                                            from £0.47
                                                                                                            from £0.47
                                                                                                            # 039
                                                                                                            MPN: 145544
                                                                                                            FRONT PIPE FIXING MODULE
                                                                                                            from £0.71
                                                                                                            from £0.71
                                                                                                            # 040
                                                                                                            MPN: 140164

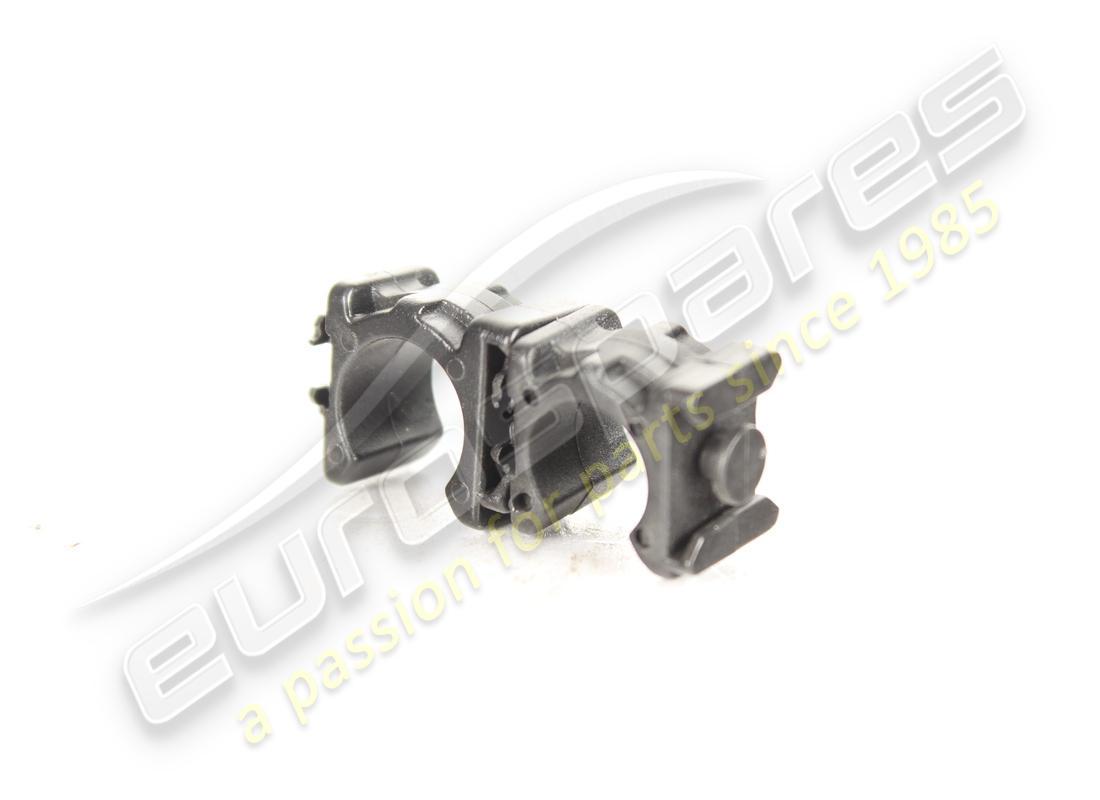

                                                                                                            CLIP
                                                                                                            from £0.68
                                                                                                            from £0.68
                                                                                                            # 041
                                                                                                            MPN: 140163
                                                                                                            CLIP
                                                                                                            from £0.47
                                                                                                            from £0.47
                                                                                                            # 042
                                                                                                            MPN: 148838
                                                                                                            ELECTRONIC CONTROL STATION
                                                                                                            from £3,984.75
                                                                                                            from £3,984.75
                                                                                                            # 043
                                                                                                            MPN: 138499

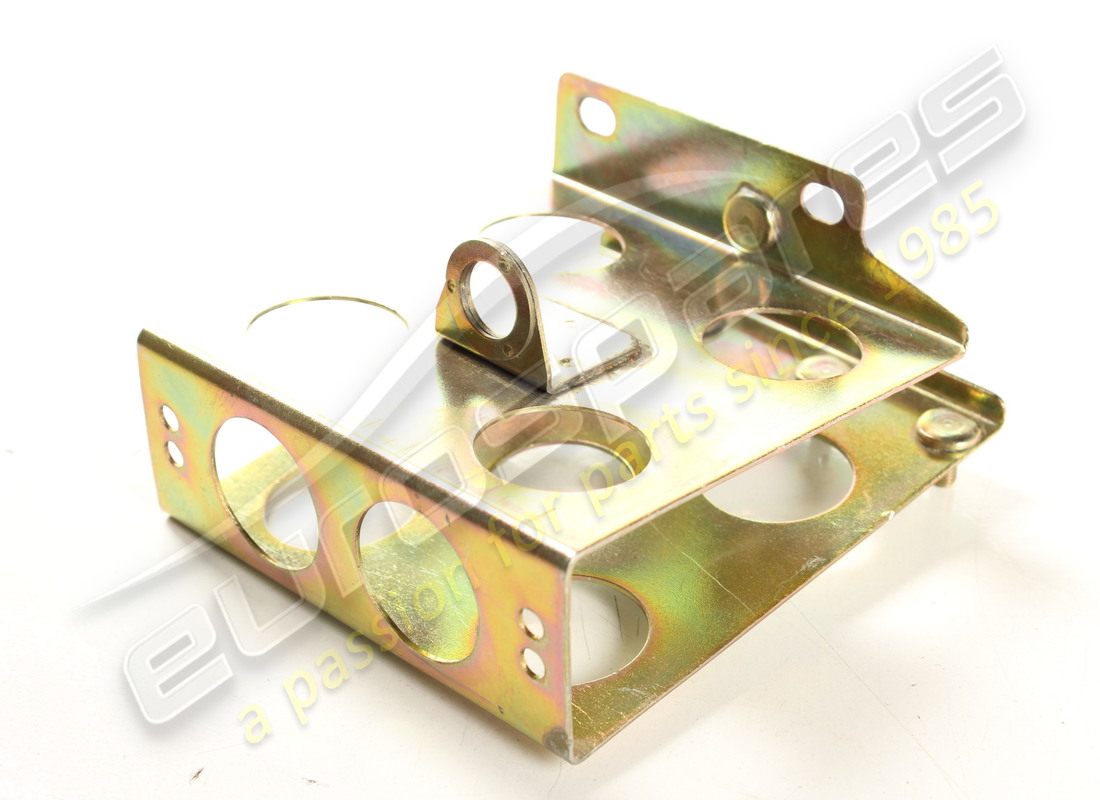

                                                                                                            BRACKET FOR CONTROL UNIT FIXING
                                                                                                            Not for GD
                                                                                                            from £52.26
                                                                                                            from £52.26
                                                                                                            # 043
                                                                                                            MPN: 142381
                                                                                                            BRACKET FOR CONTROL UNIT FIXING
                                                                                                            Valid for GD
                                                                                                            from £31.64
                                                                                                            from £31.64
                                                                                                            # 044
                                                                                                            MPN: 137144
                                                                                                            PIN
                                                                                                            from £1.38
                                                                                                            from £1.38
                                                                                                            # 045
                                                                                                            MPN: 103549
                                                                                                            CABLE GROMMET
                                                                                                            from £0.70
                                                                                                            from £0.70
                                                                                                            # 046
                                                                                                            MPN: 104731
                                                                                                            WASHER
                                                                                                            from £1.40
                                                                                                            from £1.40
                                                                                                            # 047
                                                                                                            MPN: 131785
                                                                                                            DIODES CONTAINER
                                                                                                            from £23.76
                                                                                                            from £23.76
                                                                                                            # 048
                                                                                                            MPN: 131940

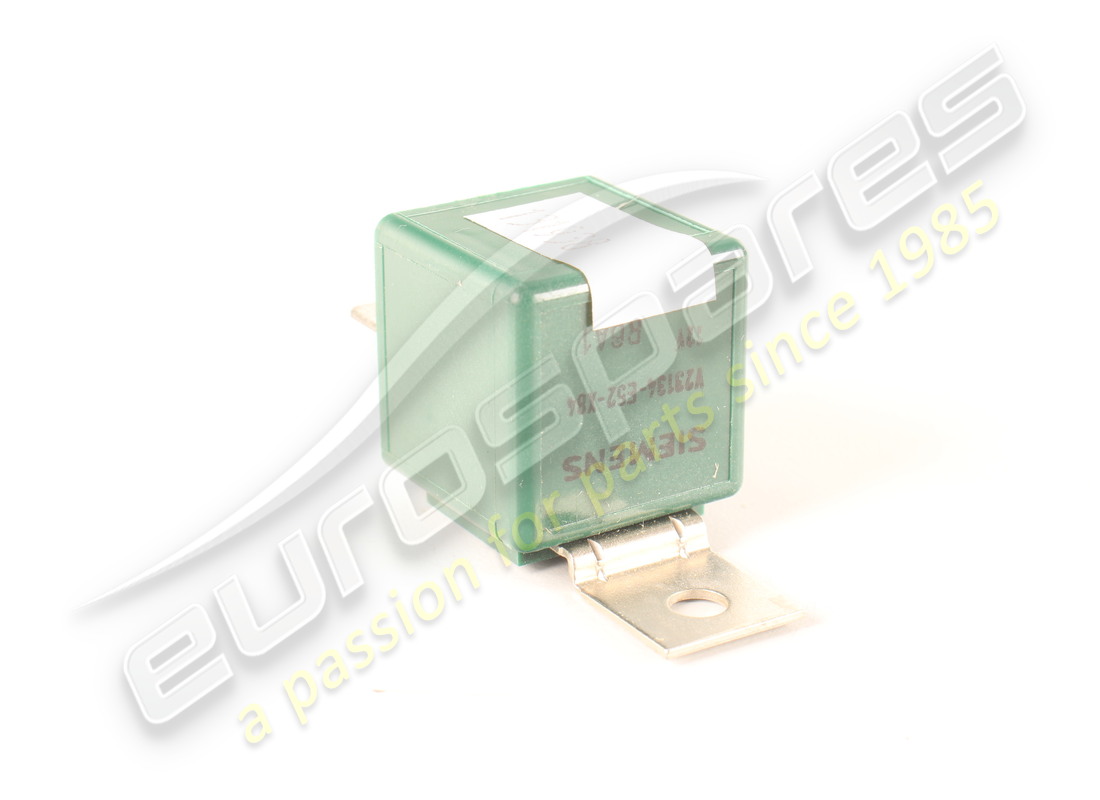

                                                                                                            SYSTEM RELEASE RELAY
                                                                                                            from £66.58
                                                                                                            from £66.58
                                                                                                            # 049
                                                                                                            MPN: 131938
                                                                                                            ELECTRONIC UNIT RELAY
                                                                                                            from £60.15
                                                                                                            from £60.15
                                                                                                            # 050
                                                                                                            MPN: 131939
                                                                                                            PUMP MOTOR RELAY
                                                                                                            from £45.38
                                                                                                            from £45.38
                                                                                                            # 051
                                                                                                            MPN: 12574115
                                                                                                            NUT
                                                                                                            from £1.08
                                                                                                            from £1.08
                                                                                                            # 052
                                                                                                            MPN: 10519377
                                                                                                            WASHER
                                                                                                            Supersession
                                                                                                            Supersession
                                                                                                            This part replaces part number 10519305 - and 1 more. Click to view details
                                                                                                            # 053
                                                                                                            MPN: 131942
                                                                                                            FUSE 3 A.
                                                                                                            from £0.47
                                                                                                            from £0.47
                                                                                                            This part replaces part number MC3742/10
                                                                                                            # 054
                                                                                                            MPN: 131941
                                                                                                            FUSE 30 A.
                                                                                                            from £0.47
                                                                                                            from £0.47
                                                                                                            This part replaces part number MC3742/6
                                                                                                            # 055
                                                                                                            MPN: 12574211
                                                                                                            NUT
                                                                                                            from £0.71
                                                                                                            from £0.71
                                                                                                            # 056
                                                                                                            MPN: 12646601
                                                                                                            WASHER
                                                                                                            from £0.71
                                                                                                            from £0.71
                                                                                                            # 057
                                                                                                            MPN: 144823
                                                                                                            GASKET
                                                                                                            from £1.65
                                                                                                            from £1.65
                                                                                                            # 058
                                                                                                            MPN: 138500
                                                                                                            PLATE
                                                                                                            Not for GD
                                                                                                            from £5.24
                                                                                                            from £5.24
                                                                                                            # 058
                                                                                                            MPN: 142382
                                                                                                            PLATE
                                                                                                            Valid for GD
                                                                                                            from £2.47
                                                                                                            from £2.47
                                                                                                            # 059
                                                                                                            MPN: 12574115
                                                                                                            NUT
                                                                                                            from £1.08
                                                                                                            from £1.08
                                                                                                            # 060
                                                                                                            MPN: 10519377
                                                                                                            WASHER
                                                                                                            Supersession
                                                                                                            Supersession
                                                                                                            This part replaces part number 10519305 - and 1 more. Click to view details
                                                                                                            # 061
                                                                                                            MPN: 11021111
                                                                                                            SCREW
                                                                                                            from £0.47
                                                                                                            from £0.47
                                                                                                            This part replaces part number 131745 which we have in stock
                                                                                                            # 062
                                                                                                            MPN: 10615279
                                                                                                            WASHER
                                                                                                            Supersession
                                                                                                            Supersession
                                                                                                            # 063
                                                                                                            MPN: 145812
                                                                                                            CUP
                                                                                                            from £0.58
                                                                                                            from £0.58
                                                                                                            Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
