ferrari 348 (1993) tb / ts differential & axle shafts parts diagram

029 - Differential & Axle Shafts

Ferrari 348 (1993) TB / TS Differential & Axle Shafts Parts Diagram

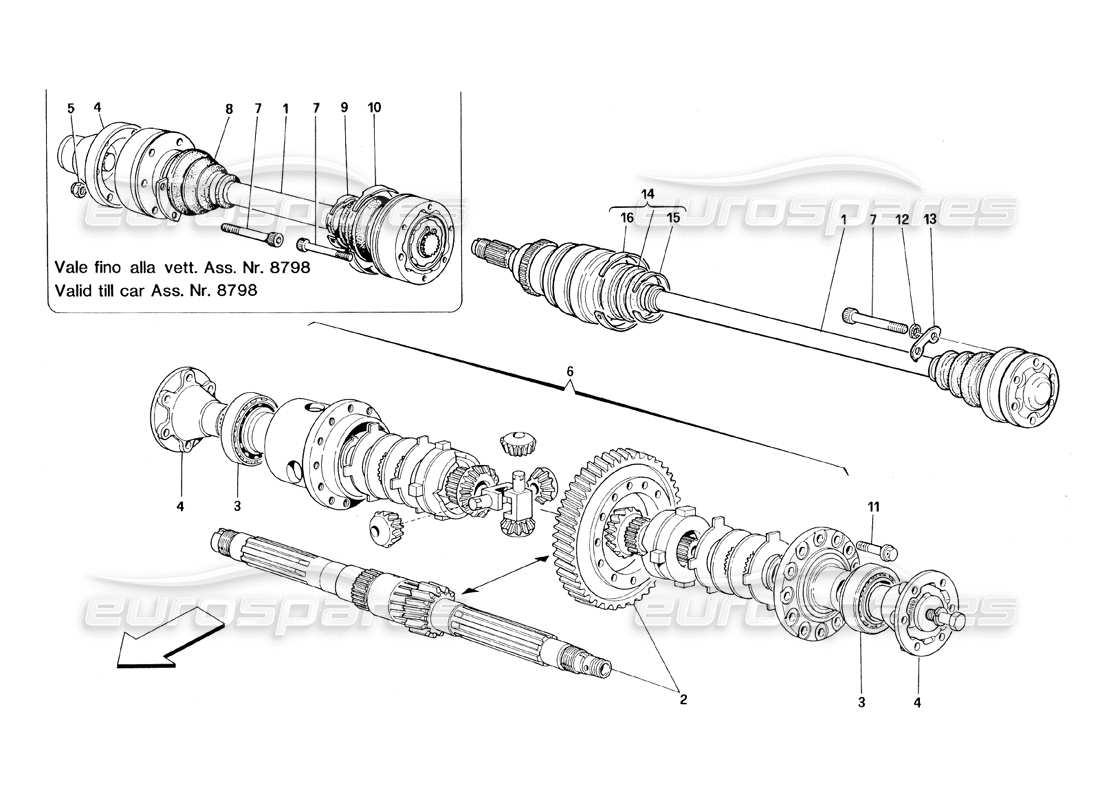

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
            #
            Part number
            Description
            Price
            # 001
            MPN: 116016

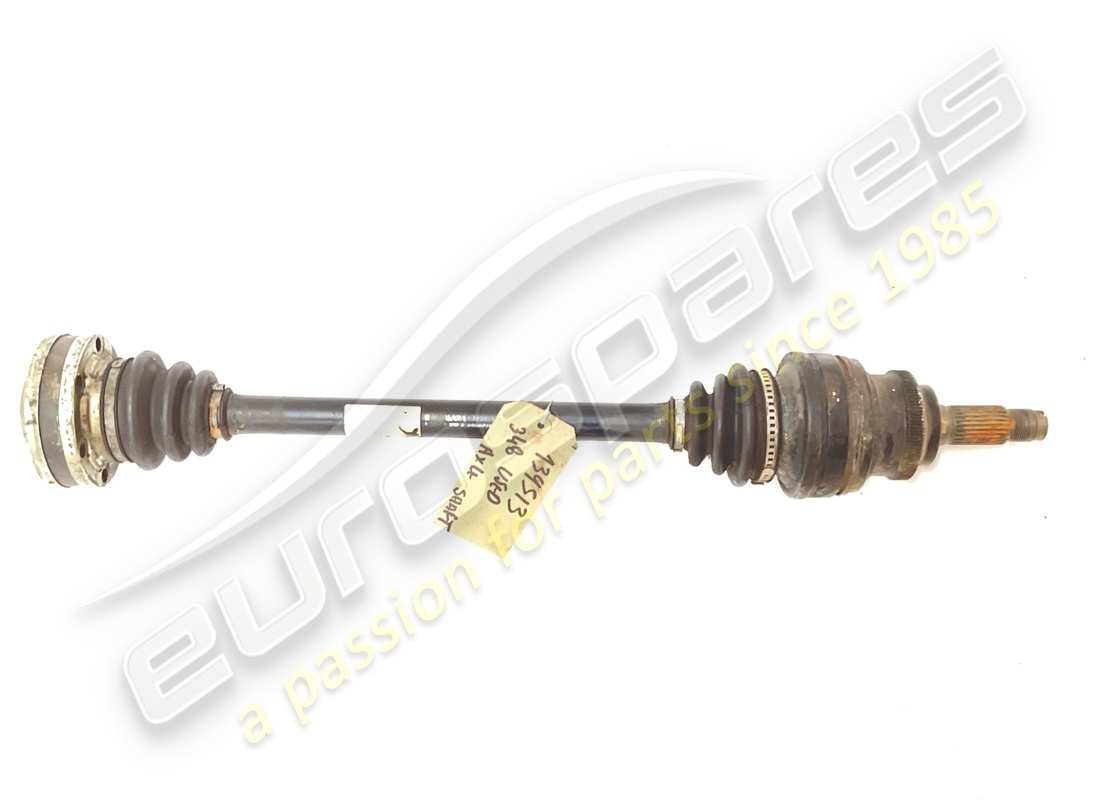

            AXLE SHAFT
            Valid till car Ass. Nr. 8798
            from £1,592.04
            from £1,592.04
            # 001
            MPN: 139513
            AXLE SHAFT
            Valid from car Ass. Nr. 8799
            from £2,439.44
            from £2,439.44
            # 002
            MPN: 70000577
            COMPLETE BEVEL GEAR PAIR
            Valid for gearbox 141685 and 152041
            from £4,344.57
            from £4,344.57
            # 002
            MPN: 70088653
            COMPLETE BEVEL GEAR PAIR
            Valid for gearbox 139499
            # 003
            MPN: 125390
            BEARING
            from £94.53
            from £94.53
            # 004
            MPN: 128256

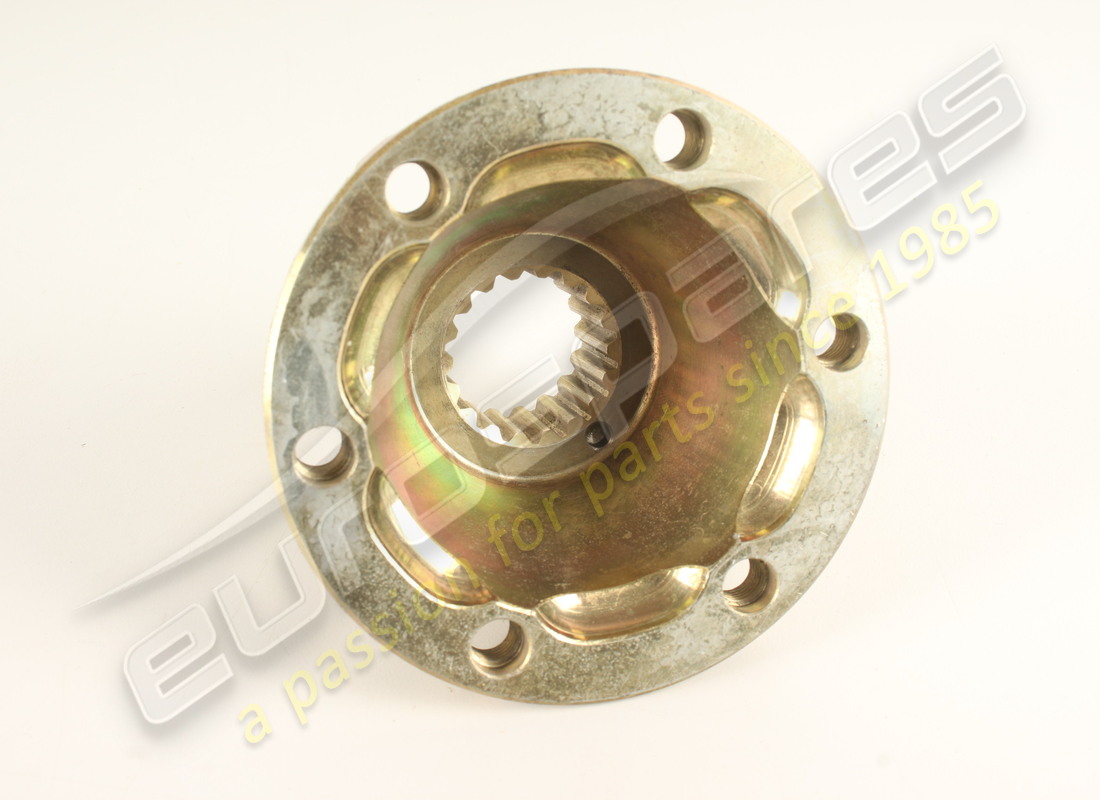

            FLANGE FOR AXLE COUPLING
            Valid till car Ass. Nr. 8798
            from £73.00
            from £73.00
            # 004
            MPN: 139898
            FLANGE FOR AXLE COUPLING
            Valid from car Ass. Nr. 8799
            from £69.77
            from £69.77
            # 005
            MPN: 101633
            DRIVESHAFT NUT
            (original)
            from £4.29
            from £4.29
            # 006
            MPN: 101626
            COMPLETE DIFFERENTIAL
            Valid till stock exhaustion
            Supersession
            Supersession
            This part replaces part number 101623
            # 006
            MPN: 147258
            COMPLETE DIFFERENTIAL
            Valid after stock exhaustion of 101626
            from £4,430.57
            from £4,430.57
            This part replaces part number 101626
            # 007
            MPN: 101632
            DRIVESHAFT BOLT
            from £11.72
            from £11.72
            This part replaces part number 103432 - and 5 more. Click to view details
            # 007
            MPN: 223916
            SCREW
            from £1.38
            from £1.38
            This part replaces part number 181910
            # 008
            MPN: 95860404
            AXLE BOOT
            from £9.95
            from £9.95
            This part replaces part number 95860404/A
            # 009
            MPN: 117956
            SMALL CLAMP
            Valid till car Ass. Nr. 8798
            from £2.52
            from £2.52
            # 010
            MPN: 117957
            BIG CLAMP
            Valid till car Ass. Nr. 8798
            from £3.56
            from £3.56
            # 011
            MPN: 152613
            SCREW
            from £8.17
            from £8.17
            # 012
            MPN: 12605674
            WASHER
            Valid from car Ass. Nr. 8799
            from £0.47
            from £0.47
            This part replaces part number 12605679
            # 013
            MPN: 149415
            SCRAPING PLATE
            Valid from car Ass. Nr. 8799
            from £1.00
            from £1.00
            # 014
            MPN: 70000868
            PROTECTION REPLACEMENT SET -WHEEL SIDE
            Valid from car Ass. Nr. 8799
            from £68.38
            from £68.38
            This part replaces part number 70000782
            # 014
            MPN: 70006022
            PROTECTION REPLACEMENT SET - GEARBOX SIDE
            from £54.95
            from £54.95
            This part replaces part number 70000867
            # 015
            MPN: 154213
            SMALL CLAMP
            Valid from car Ass. Nr. 8799
            from £2.25
            from £2.25
            This part replaces part number 167570
            # 016
            MPN: 172347
            BIG CLAMP
            from £4.02
            from £4.02
            This part replaces part number 154214 - and 1 more. Click to view details
