Ferrari 348 (1993) TB / TS Inside Gearbox Controls Parts Diagram

027 - Inside Gearbox Controls

Ferrari 348 (1993) TB / TS Inside Gearbox Controls Parts Diagram

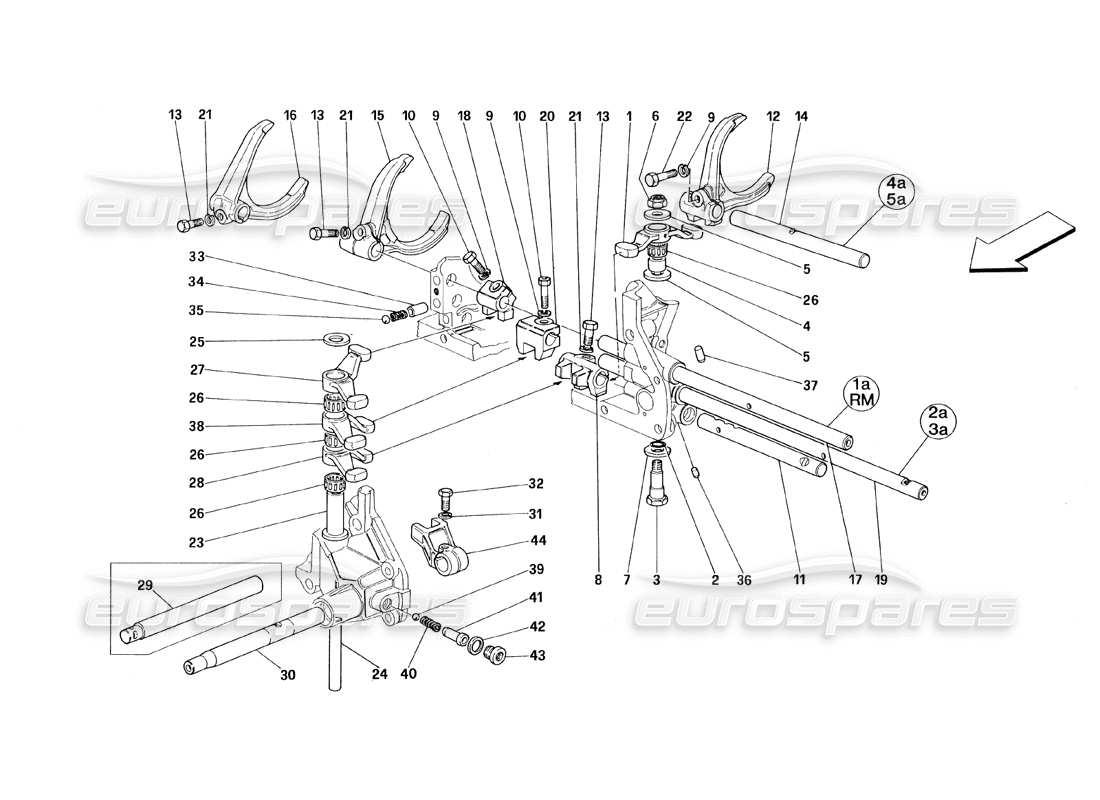

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                      #
                                                                      Part number
                                                                      Description
                                                                      Price
                                                                      # 001
                                                                      MPN: 138743
                                                                      FORK ROCKER ARM 4TH AND
                                                                      5th GEAR
                                                                      from £85.11
                                                                      from £85.11
                                                                      # 002
                                                                      MPN: 128702
                                                                      O.R. GASKET
                                                                      from £1.71
                                                                      from £1.71
                                                                      # 003
                                                                      MPN: 138739
                                                                      ROCKER ARM FASTENING SCREW
                                                                      from £52.92
                                                                      from £52.92
                                                                      # 004
                                                                      MPN: 138733
                                                                      BUSHING
                                                                      from £6.58
                                                                      from £6.58
                                                                      # 005
                                                                      MPN: 131930
                                                                      SPACER WASHER
                                                                      mm. 2,0
                                                                      from £0.51
                                                                      from £0.51
                                                                      # 005
                                                                      MPN: 139725
                                                                      SPACER WASHER
                                                                      mm. 3,0
                                                                      from £14.23
                                                                      from £14.23
                                                                      # 005
                                                                      MPN: 139726
                                                                      SPACER WASHER
                                                                      mm. 3,1
                                                                      from £14.23
                                                                      from £14.23
                                                                      # 005
                                                                      MPN: 139727
                                                                      SPACER WASHER
                                                                      mm. 2,5
                                                                      from £14.98
                                                                      from £14.98
                                                                      # 005
                                                                      MPN: 139728
                                                                      SPACER WASHER
                                                                      mm. 2,6
                                                                      from £26.20
                                                                      from £26.20
                                                                      # 005
                                                                      MPN: 139729
                                                                      SPACER WASHER
                                                                      mm. 2,7
                                                                      from £14.83
                                                                      from £14.83
                                                                      # 005
                                                                      MPN: 141208
                                                                      SPACER WASHER
                                                                      mm. 1,9
                                                                      from £7.84
                                                                      from £7.84
                                                                      # 005
                                                                      MPN: 141210
                                                                      SPACER WASHER
                                                                      mm. 2,1
                                                                      from £7.84
                                                                      from £7.84
                                                                      # 005
                                                                      MPN: 141211
                                                                      SPACER WASHER
                                                                      mm. 2,2
                                                                      from £7.85
                                                                      from £7.85
                                                                      # 005
                                                                      MPN: 142187
                                                                      SPACER WASHER
                                                                      mm. 2,3
                                                                      from £7.72
                                                                      from £7.72
                                                                      # 005
                                                                      MPN: 142188
                                                                      SPACER WASHER
                                                                      mm. 2,4
                                                                      from £7.72
                                                                      from £7.72
                                                                      # 006
                                                                      MPN: 16109221
                                                                      NUT
                                                                      from £0.49
                                                                      from £0.49
                                                                      # 007
                                                                      MPN: 128509
                                                                      WASHER
                                                                      from £10.15
                                                                      from £10.15
                                                                      # 008
                                                                      MPN: 138750
                                                                      ROD FORK FOR 4TH AND 5TH GEAR
                                                                      from £51.77
                                                                      from £51.77
                                                                      # 010
                                                                      MPN: 14306431
                                                                      SCREW
                                                                      from £0.87
                                                                      from £0.87
                                                                      # 011
                                                                      MPN: 138727
                                                                      FORK ROD FOR 4TH AND 5TH GEAR
                                                                      from £26.20
                                                                      from £26.20
                                                                      # 012
                                                                      MPN: 138696
                                                                      CONTROL FORK FOR 4TH AND 5TH GEAR
                                                                      from £129.67
                                                                      from £129.67
                                                                      # 013
                                                                      MPN: 16043631
                                                                      SCREW
                                                                      from £0.47
                                                                      from £0.47
                                                                      # 014
                                                                      MPN: 138723
                                                                      4TH AND 5TH GEAR FORK ROD
                                                                      from £34.82
                                                                      from £34.82
                                                                      # 015
                                                                      MPN: 131077
                                                                      CONTROL FORK FOR 1ST GEAR AND REVERSE
                                                                      from £102.39
                                                                      from £102.39
                                                                      # 016
                                                                      MPN: 131078
                                                                      CONTROL FORK FOR 2ND AND 3RD GEAR
                                                                      from £77.18
                                                                      from £77.18
                                                                      # 017
                                                                      MPN: 131266
                                                                      1ST AND REVERSE GEAR FORK ROD
                                                                      from £135.23
                                                                      from £135.23
                                                                      # 018
                                                                      MPN: 131075
                                                                      ROD FORK 1ST GEAR AND REVERSE
                                                                      from £30.65
                                                                      from £30.65
                                                                      # 019
                                                                      MPN: 131267
                                                                      ROD FOR 2ND AND 3RD GEAR
                                                                      from £353.78
                                                                      from £353.78
                                                                      # 020
                                                                      MPN: 131076
                                                                      ROD FORK FOR 2ND AND 3RD GEAR
                                                                      from £30.15
                                                                      from £30.15
                                                                      # 021
                                                                      MPN: 127496
                                                                      WASHER
                                                                      from £0.47
                                                                      from £0.47
                                                                      This part replaces part number 10516671 - and 2 more. Click to view details
                                                                      # 022
                                                                      MPN: 16043721
                                                                      SCREW
                                                                      from £1.09
                                                                      from £1.09
                                                                      # 023
                                                                      MPN: 131929
                                                                      ROCKER LEVER TRACK
                                                                      from £59.02
                                                                      from £59.02
                                                                      # 024
                                                                      MPN: 131928
                                                                      ROCKER ARMS SEAL PIN
                                                                      from £11.38
                                                                      from £11.38
                                                                      # 025
                                                                      MPN: 131930
                                                                      WASHER
                                                                      from £0.51
                                                                      from £0.51
                                                                      # 026
                                                                      MPN: 131895
                                                                      ROLLER CAGE
                                                                      from £3.40
                                                                      from £3.40
                                                                      # 027
                                                                      MPN: 131073
                                                                      FORK ROCKER ARM 1ST GEAR AND REVERSE
                                                                      from £66.69
                                                                      from £66.69
                                                                      # 028
                                                                      MPN: 131074
                                                                      FORK ROCKER ARM 4TH AND 5TH GEAR
                                                                      from £73.36
                                                                      from £73.36
                                                                      # 029
                                                                      MPN: 138755
                                                                      CONTROL ROD FOR GEAR BOX
                                                                      Valid for intermediate body 143278 Valid till stock exhaustion
                                                                      from £187.09
                                                                      from £187.09
                                                                      # 030
                                                                      MPN: 143316
                                                                      CONTROL ROD FOR GEAR BOX
                                                                      Valid for intermediate body 146950 and 149584 Valid after stock exhaustion of 138755
                                                                      from £61.51
                                                                      from £61.51
                                                                      This part replaces part number 138755 which we have in stock
                                                                      # 031
                                                                      MPN: 127496
                                                                      WASHER
                                                                      from £0.47
                                                                      from £0.47
                                                                      This part replaces part number 10516671 - and 2 more. Click to view details
                                                                      # 032
                                                                      MPN: 16043934
                                                                      SCREW
                                                                      from £0.47
                                                                      from £0.47
                                                                      This part replaces part number 16043921 - and 1 more. Click to view details
                                                                      # 033
                                                                      MPN: 115376
                                                                      BUSHING
                                                                      from £29.31
                                                                      from £29.31
                                                                      # 034
                                                                      MPN: 100750
                                                                      SPRING
                                                                      from £0.91
                                                                      from £0.91
                                                                      This part replaces part number 523899
                                                                      # 035
                                                                      MPN: 101612
                                                                      BALL
                                                                      from £0.70
                                                                      from £0.70
                                                                      This part replaces part number 93309
                                                                      # 036
                                                                      MPN: 104276
                                                                      2ND AND 3RD GEAR ROD STOP ROLLER
                                                                      from £5.72
                                                                      from £5.72
                                                                      This part replaces part number 523961
                                                                      # 037
                                                                      MPN: 131337
                                                                      1ST AND REVERSE, 4TH AND 5TH GEAR RODS STOP ROLLER
                                                                      from £5.97
                                                                      from £5.97
                                                                      # 038
                                                                      MPN: 144018
                                                                      FORK ROCKER ARM 2ND AND 3RD GEAR
                                                                      from £357.00
                                                                      from £357.00
                                                                      This part replaces part number 163484 which we have in stock
                                                                      # 039
                                                                      MPN: 125858
                                                                      BALL
                                                                      For intermediate body 146950 and 149584
                                                                      from £0.47
                                                                      from £0.47
                                                                      # 040
                                                                      MPN: 142199
                                                                      SPRING
                                                                      For intermediate body 146950 and 149584
                                                                      from £2.48
                                                                      from £2.48
                                                                      # 041
                                                                      MPN: 143325
                                                                      BUSHING
                                                                      For intermediate body 146950 and 149584
                                                                      from £2.61
                                                                      from £2.61
                                                                      # 042
                                                                      MPN: 10259960
                                                                      GASKET
                                                                      For intermediate body 146950 and 149584
                                                                      from £0.47
                                                                      from £0.47
                                                                      This part replaces part number 95017
                                                                      # 043
                                                                      MPN: 10273140
                                                                      PLUG
                                                                      For intermediate body 146950 and 149584
                                                                      from £1.50
                                                                      from £1.50
                                                                      # 044
                                                                      MPN: 131072
                                                                      ROCKER LEVER
                                                                      For intermediate body 146950 and 149584
                                                                      Supersession
                                                                      Supersession
                                                                      Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
