025 - Main Shaft Gears

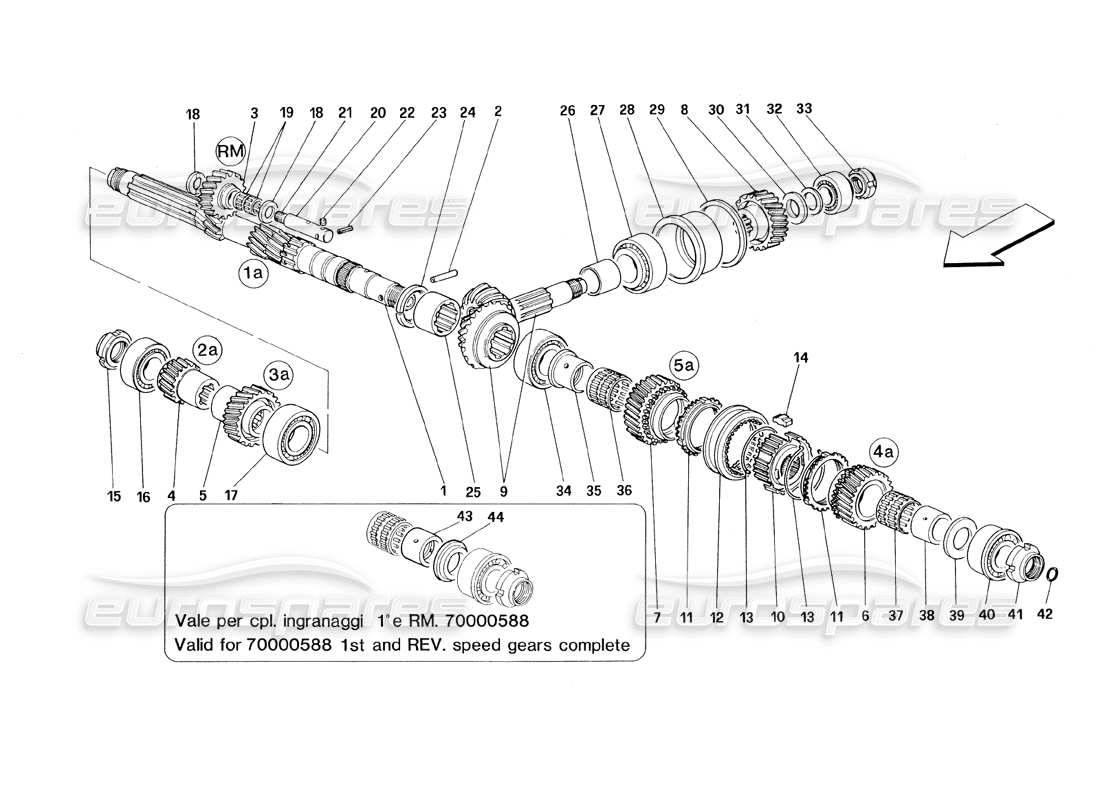

Ferrari 348 (1993) TB / TS Main Shaft Gears Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                              #
                                                              Part number
                                                              Description
                                                              Price
                                                              # 000
                                                              MPN: 133931

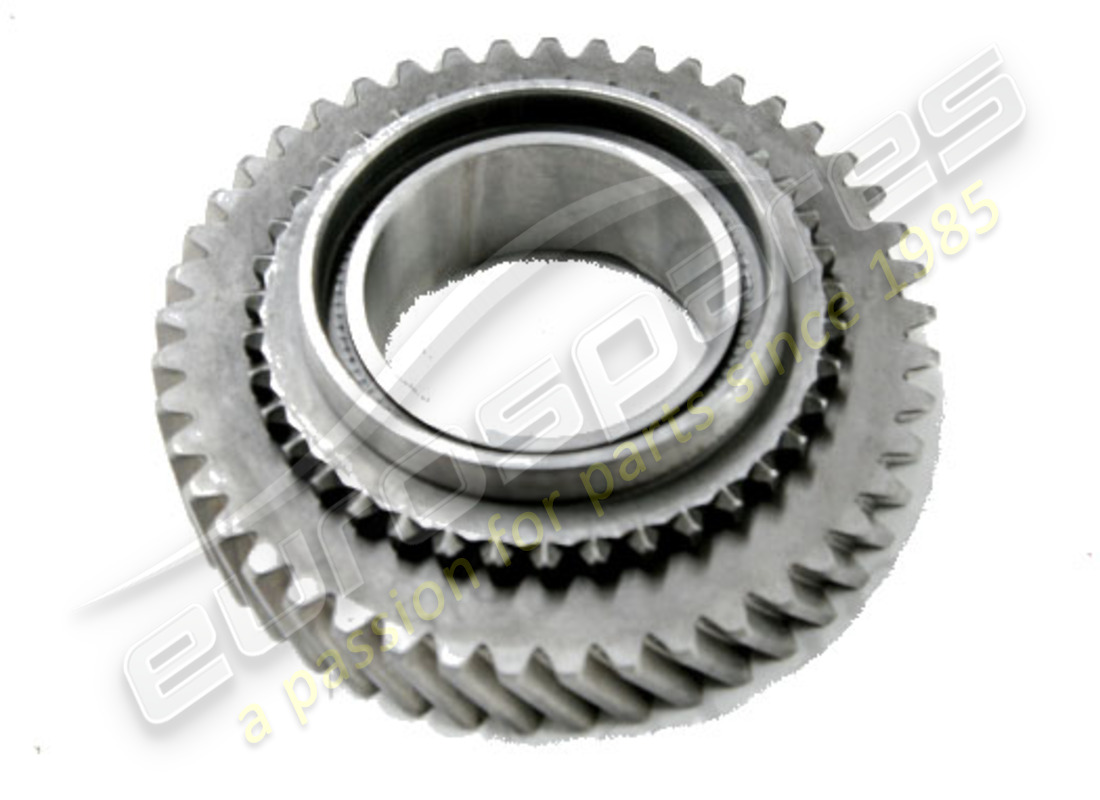

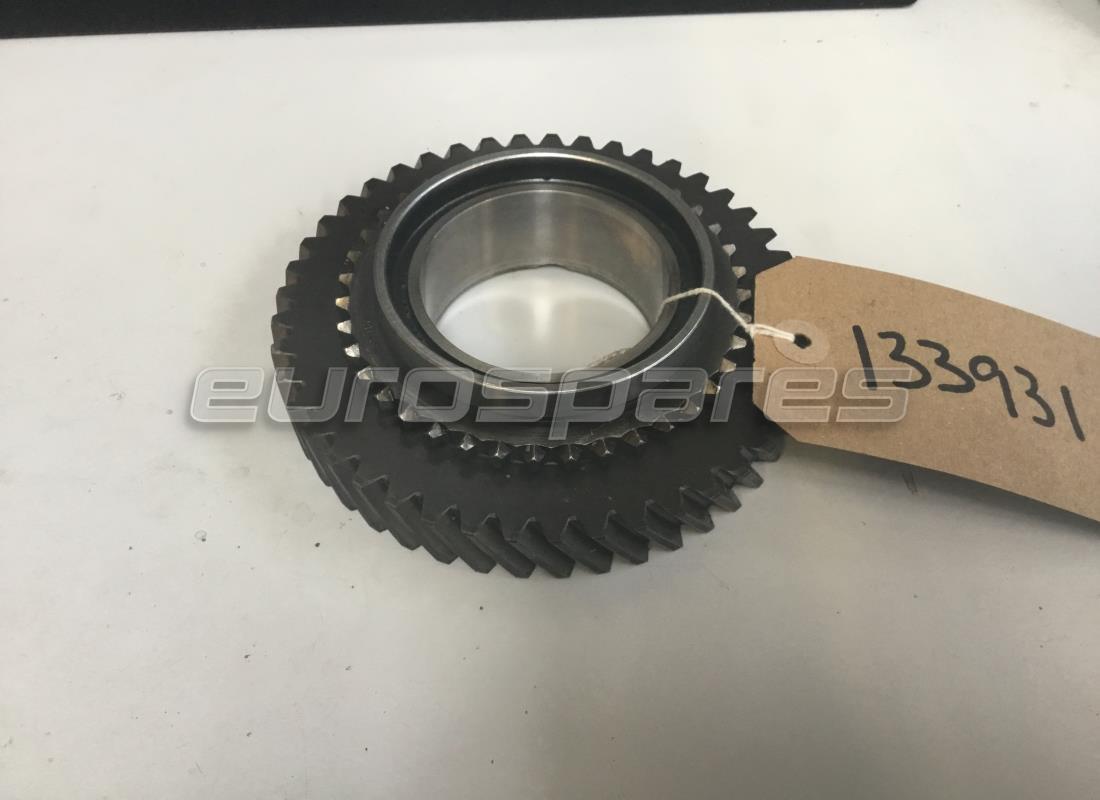

                                                              1ST GEAR
                                                              from £914.22
                                                              from £914.22
                                                              # 000
                                                              MPN: 138509

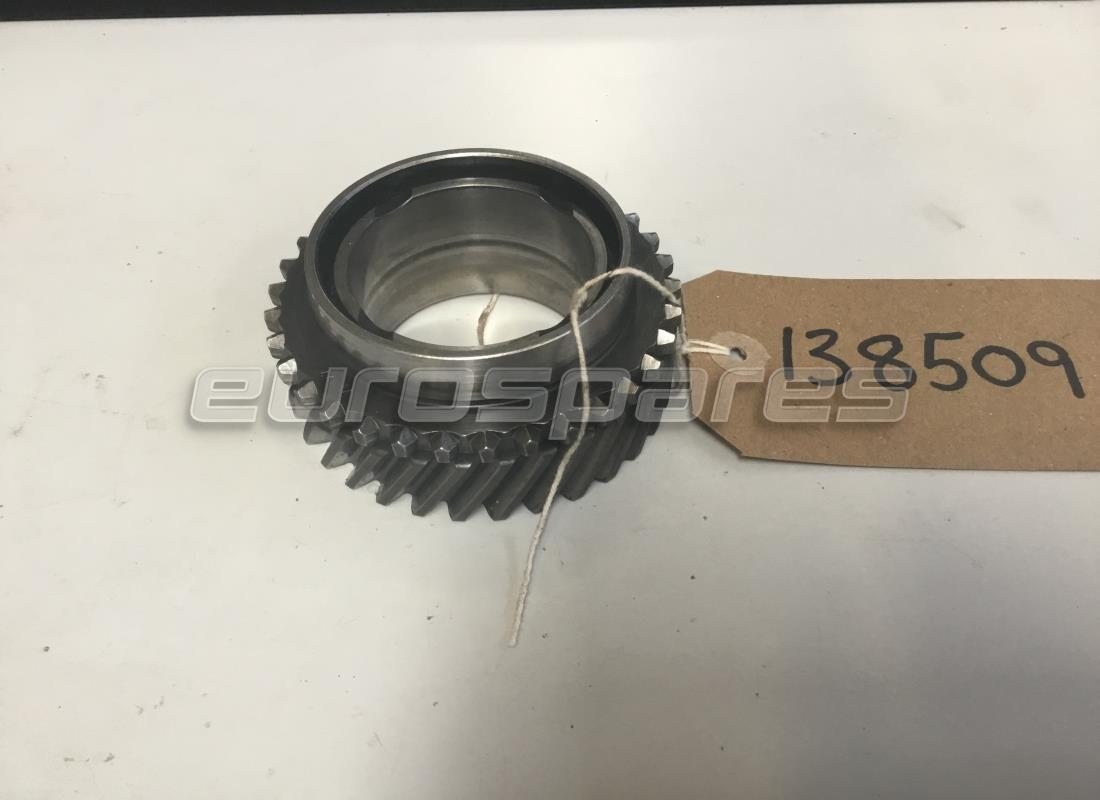

                                                              4TH GEAR
                                                              from £379.73
                                                              from £379.73
                                                              # 000
                                                              MPN: 70000588
                                                              PINION KIT FOR 1ST GEAR AND REVERSE -
                                                              Valid for grooved roller race Pos. 43 and spacer Pos. 44 - Valid till stock exhaustion
                                                              Supersession
                                                              Supersession
                                                              # 000
                                                              MPN: 70000589
                                                              PINION SET FOR 2ND GEAR
                                                              from £3,633.52
                                                              from £3,633.52
                                                              This part replaces part number 132544 - and 1 more. Click to view details
                                                              # 000
                                                              MPN: 70000590
                                                              PINION SET FOR 3RD GEAR
                                                              from £692.71
                                                              from £692.71
                                                              This part replaces part number 132552 which we have in stock - and 3 more. Click to view details
                                                              # 000
                                                              MPN: 70000591
                                                              PINION SET FOR 4TH GEAR
                                                              Valid for grooved roller races Pos. 43 and spacer Pos. 44 Valid till stock exhaustion
                                                              Supersession
                                                              Supersession
                                                              This part replaces part number 138508 which we have in stock - and 1 more. Click to view details
                                                              # 000
                                                              MPN: 70000592
                                                              PINION SET FOR 5TH GEAR
                                                              from £593.89
                                                              from £593.89
                                                              This part replaces part number 138510 which we have in stock - and 3 more. Click to view details
                                                              # 000
                                                              MPN: 70000595
                                                              CLUTCH-PINION SHAFT TRANSMISSION CYLINDRIC TORQUE (25/27 TRANSMISSION RATIO) WITH 10 GROOVE CLUTCH SHAFT
                                                              Supersession
                                                              Supersession
                                                              This part replaces part number 131281 which we have in stock
                                                              # 000
                                                              MPN: 70000635
                                                              CLUTCH-PINION SHAFT TRANSMISSION CYLINDRIC TORQUE (26/27 TRANSMISSION RATIO) WITH 10 GROOVE CLUTCH SHAFT
                                                              Supersession
                                                              Supersession
                                                              # 000
                                                              MPN: 70000783
                                                              PINION KIT FOR 1ST GEAR AND REVERSE
                                                              Valid for ungrooved roller race Pos. 38 and spacer Pos. 39 Valid after stock exhaustion of 70000588
                                                              from £3,284.66
                                                              from £3,284.66
                                                              This part replaces part number 132787 - and 2 more. Click to view details
                                                              # 000
                                                              MPN: 70000784
                                                              PINION SET FOR 4TH GEAR
                                                              Valid for ungrooved roller race Pos. 38 and spacer Pos. 39 Valid after stock exhaustion of 70000591
                                                              from £1,257.00
                                                              from £1,257.00
                                                              This part replaces part number 150900 - and 1 more. Click to view details
                                                              # 000
                                                              MPN: 70000797
                                                              GEAR TRANSMISSION TORQUE (10 GROOVE SHAFT-TRANSMISSION RATIO 26/27)
                                                              Supersession
                                                              Supersession
                                                              # 000
                                                              MPN: 70000798
                                                              GEAR TRANSMISSION TORQUE (10 GROOVE SHAFT TRANSMISSION RATIO 26/27)
                                                              Supersession
                                                              Supersession
                                                              # 001
                                                              MPN: 144861
                                                              MAIN SHAFT FOR GEARS
                                                              Not as spare part With the assembly 70000588 and 70000783
                                                              from £2,078.51
                                                              from £2,078.51
                                                              # 002
                                                              MPN: 14601470
                                                              PIN
                                                              from £0.71
                                                              from £0.71
                                                              # 003
                                                              -
                                                              IDLE GEAR FOR REVERSE
                                                              # 004
                                                              -
                                                              PINION FOR 2ND GEAR
                                                              # 005
                                                              -
                                                              PINION FOR 3RD GEAR
                                                              # 006
                                                              -
                                                              PINION FOR 4TH GEAR
                                                              # 007
                                                              -
                                                              PINION FOR 5TH GEAR
                                                              # 008
                                                              -
                                                              GEAR ON PINION
                                                              # 009
                                                              MPN: 168047

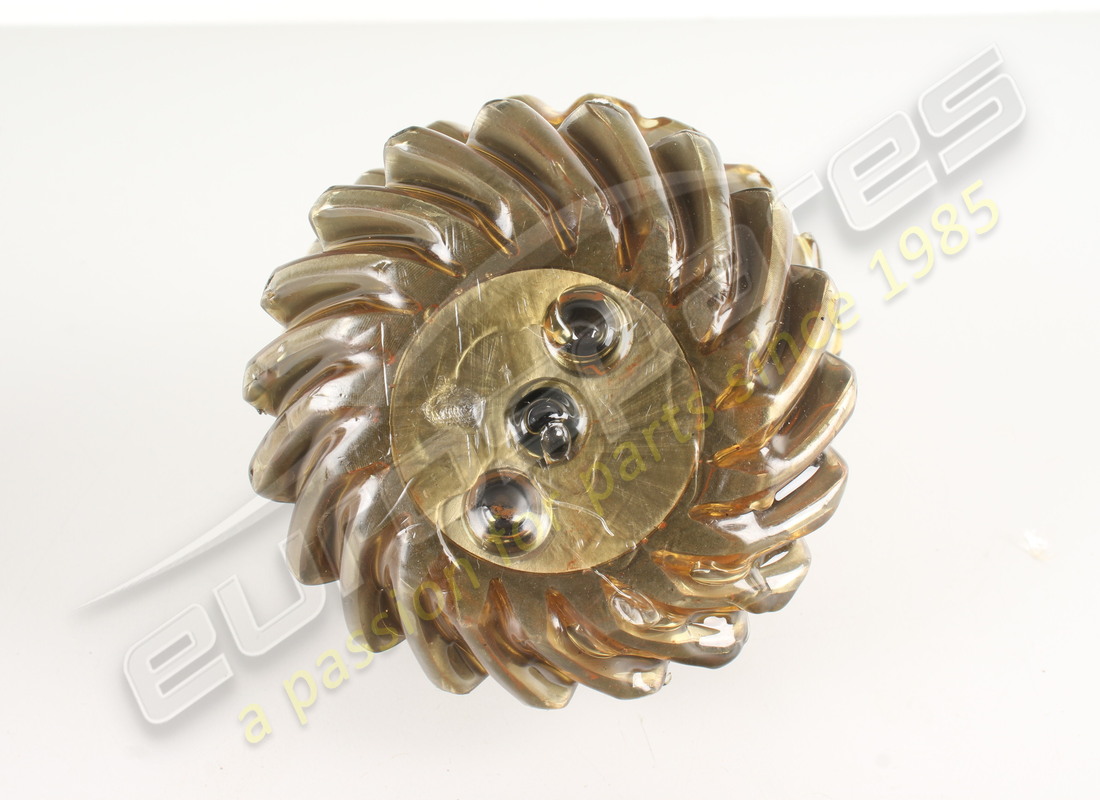

                                                              COMPLETE BEVEL SET
                                                              from £675.99
                                                              from £675.99
                                                              This part replaces part number 163866
                                                              # 010
                                                              MPN: 106046
                                                              SYNCHRONIZER BODY
                                                              from £674.44
                                                              from £674.44
                                                              # 011
                                                              MPN: 106048
                                                              SYNCHRONIZER FLOATING RING
                                                              from £598.28
                                                              from £598.28
                                                              # 012
                                                              MPN: 131801
                                                              SLEEVE FOR SYNCHRONIZER
                                                              from £349.56
                                                              from £349.56
                                                              # 013
                                                              MPN: 145244
                                                              RING SPRING
                                                              from £1.90
                                                              from £1.90
                                                              # 014
                                                              MPN: 126201
                                                              PAD FOR SYNCHRONIZER
                                                              from £50.58
                                                              from £50.58
                                                              This part replaces part number 106049 - and 1 more. Click to view details
                                                              # 015
                                                              MPN: 153002
                                                              RING NUT
                                                              from £124.21
                                                              from £124.21
                                                              This part replaces part number 131774 - and 1 more. Click to view details
                                                              # 016
                                                              MPN: 108656
                                                              BEARING
                                                              from £309.40
                                                              from £309.40
                                                              This part replaces part number 104257
                                                              # 017
                                                              MPN: 228055
                                                              BEARING
                                                              from £45.99
                                                              from £45.99
                                                              This part replaces part number 131056 - and 1 more. Click to view details
                                                              # 018
                                                              MPN: 131425
                                                              SPACER
                                                              from £8.17
                                                              from £8.17
                                                              # 019
                                                              MPN: 104734
                                                              REVERSE IDLE GEAR ROLLER CAGE
                                                              from £5.57
                                                              from £5.57
                                                              # 020
                                                              MPN: 131798
                                                              REVERSE IDLE GEAR PIN
                                                              from £36.95
                                                              from £36.95
                                                              # 021
                                                              MPN: 10275550
                                                              PLUG
                                                              from £0.78
                                                              from £0.78
                                                              # 022
                                                              MPN: 65928500
                                                              PLUG
                                                              from £24.36
                                                              from £24.36
                                                              This part replaces part number 10267550
                                                              # 023
                                                              MPN: 14601470
                                                              PIN
                                                              from £0.71
                                                              from £0.71

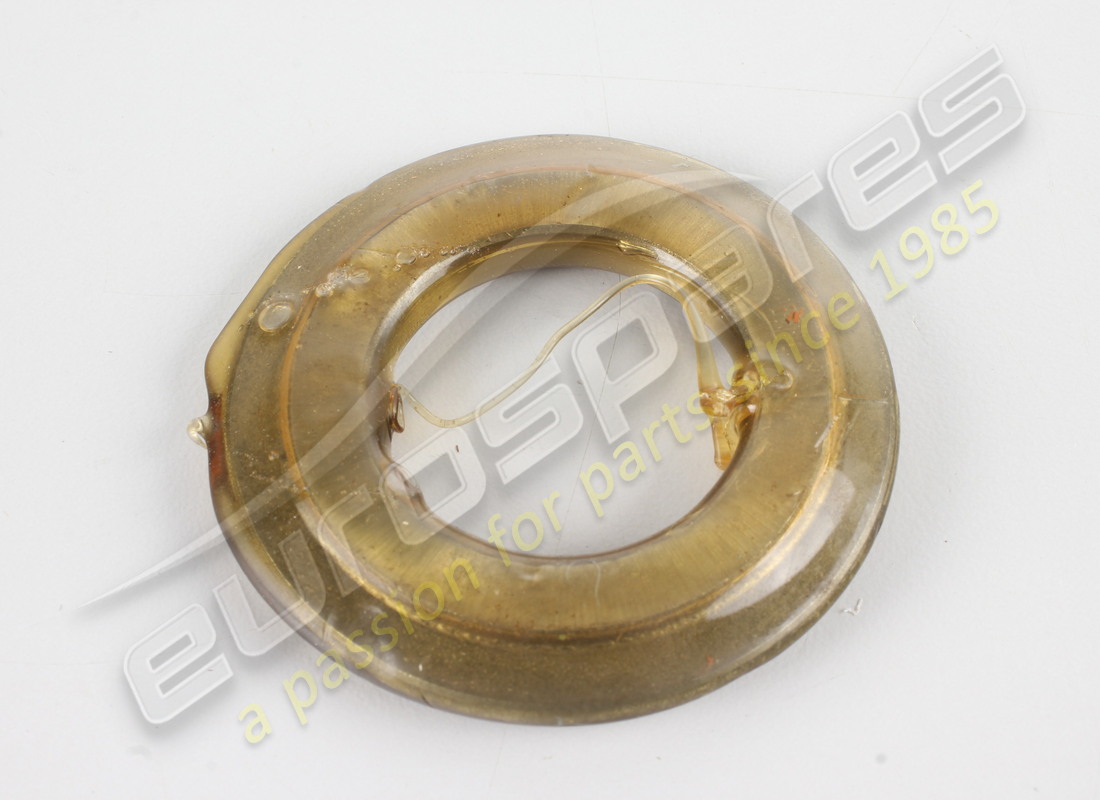

                                                              # 024
                                                              MPN: 144617
                                                              SPACER RING
                                                              from £25.21
                                                              from £25.21
                                                              # 025
                                                              MPN: 144616
                                                              SPACER
                                                              from £72.14
                                                              from £72.14
                                                              # 026
                                                              MPN: 131335
                                                              BAG FOR BEARING
                                                              from £300.69
                                                              from £300.69
                                                              # 027
                                                              MPN: 131015
                                                              BEARING
                                                              from £232.08
                                                              from £232.08
                                                              # 028
                                                              MPN: 131356
                                                              BAG FOR BEARING
                                                              Supersession
                                                              Supersession
                                                              # 029
                                                              MPN: 131388
                                                              SPACER
                                                              mm. 1,8
                                                              from £31.50
                                                              from £31.50
                                                              # 029
                                                              MPN: 131389
                                                              SPACER
                                                              mm. 1,9
                                                              from £16.21
                                                              from £16.21
                                                              # 029
                                                              MPN: 131390
                                                              SPACER
                                                              mm. 2,0
                                                              from £31.50
                                                              from £31.50
                                                              # 029
                                                              MPN: 131391
                                                              SPACER
                                                              mm. 2,1
                                                              from £15.75
                                                              from £15.75
                                                              # 029
                                                              MPN: 131392
                                                              SPACER
                                                              mm. 2,2
                                                              from £12.60
                                                              from £12.60
                                                              # 029
                                                              MPN: 131393
                                                              SPACER
                                                              mm. 2,3
                                                              from £3.06
                                                              from £3.06
                                                              # 030
                                                              MPN: 131372
                                                              SPACER
                                                              from £12.49
                                                              from £12.49
                                                              # 031
                                                              MPN: 131374
                                                              SPACER
                                                              mm. 1,8
                                                              from £8.70
                                                              from £8.70
                                                              # 031
                                                              MPN: 131375
                                                              SPACER
                                                              mm. 1,9
                                                              from £19.57
                                                              from £19.57
                                                              # 031
                                                              MPN: 131376
                                                              SPACER
                                                              mm. 2,0
                                                              from £8.70
                                                              from £8.70
                                                              # 031
                                                              MPN: 131377
                                                              SPACER
                                                              mm. 2,1
                                                              from £10.00
                                                              from £10.00
                                                              # 031
                                                              MPN: 131378
                                                              SPACER
                                                              mm. 2,2
                                                              from £8.70
                                                              from £8.70
                                                              # 031
                                                              MPN: 131379
                                                              SPACER
                                                              mm. 2,3
                                                              from £35.01
                                                              from £35.01
                                                              # 031
                                                              MPN: 141044
                                                              SPACER
                                                              mm. 1,95
                                                              from £15.00
                                                              from £15.00
                                                              # 031
                                                              MPN: 141046
                                                              SPACER
                                                              mm. 2,05
                                                              from £3.61
                                                              from £3.61
                                                              # 031
                                                              MPN: 141048
                                                              SPACER
                                                              mm. 2,15
                                                              from £3.62
                                                              from £3.62
                                                              # 032
                                                              MPN: 131016
                                                              BEARING
                                                              from £60.05
                                                              from £60.05
                                                              # 033
                                                              MPN: 105137
                                                              RING NUT
                                                              Supersession
                                                              Supersession
                                                              # 033
                                                              MPN: RNT-45
                                                              RING NUT TOOL
                                                              Use with nut part number 105137
                                                              from £90.40
                                                              from £90.40
                                                              # 034
                                                              MPN: 138714
                                                              BEARING
                                                              from £646.29
                                                              from £646.29
                                                              # 035
                                                              MPN: 131358
                                                              ROLLER CAGE RACE
                                                              from £215.01
                                                              from £215.01
                                                              # 036
                                                              MPN: 109002
                                                              5TH GEAR ROLLER CAGE
                                                              from £16.40
                                                              from £16.40
                                                              This part replaces part number 114059
                                                              # 037
                                                              MPN: 109002
                                                              4TH GEAR ROLLER CAGE
                                                              from £16.40
                                                              from £16.40
                                                              This part replaces part number 114059
                                                              # 038
                                                              MPN: 150899
                                                              TRACK FOR 4TH GEAR ROLLER CAGE
                                                              Ungrooved
                                                              from £85.61
                                                              from £85.61
                                                              # 039
                                                              MPN: 150892
                                                              SPACER
                                                              mm.5.0 Valid for ungrooved roller race Pos. 38
                                                              from £58.93
                                                              from £58.93
                                                              # 039
                                                              MPN: 150893
                                                              SPACER
                                                              MM. 4.7
                                                              from £126.58
                                                              from £126.58
                                                              # 039
                                                              MPN: 150894
                                                              SPACER
                                                              from £78.68
                                                              from £78.68
                                                              # 039
                                                              MPN: 150895
                                                              SPACER
                                                              mm. 4.9 Valid for ungrooved roller race Pos. 38
                                                              from £59.02
                                                              from £59.02
                                                              # 039
                                                              MPN: 150896
                                                              SPACER
                                                              mm. 5.2 Valid for ungrooved roller race Pos. 38
                                                              from £16.34
                                                              from £16.34
                                                              # 039
                                                              MPN: 150902
                                                              SPACER
                                                              mm. 5.1 Valid for ungrooved roller race Pos. 38
                                                              from £14.71
                                                              from £14.71
                                                              # 039
                                                              MPN: 153885
                                                              SPACER
                                                              mm. 5.3 Valid for ungrooved roller race Pos. 38
                                                              from £33.68
                                                              from £33.68
                                                              # 039
                                                              MPN: 153886
                                                              SPACER
                                                              Valid for ungrooved roller race Pos. 38
                                                              from £19.26
                                                              from £19.26
                                                              # 039
                                                              MPN: 154118
                                                              SPACER
                                                              mm. 5.5 Valid for ungrooved roller race Pos. 38
                                                              from £19.78
                                                              from £19.78
                                                              # 040
                                                              MPN: 155694
                                                              BEARING
                                                              from £69.05
                                                              from £69.05
                                                              This part replaces part number 149774
                                                              # 041
                                                              MPN: 131775
                                                              RING NUT
                                                              Supersession
                                                              Supersession
                                                              # 042
                                                              MPN: 109724
                                                              O.R. GASKET
                                                              from £0.65
                                                              from £0.65
                                                              # 043
                                                              MPN: 131357
                                                              TRACK FOR 4TH GEAR ROLLER CAGE
                                                              With grooving
                                                              from £58.04
                                                              from £58.04
                                                              # 044
                                                              MPN: 145232
                                                              SPACER
                                                              mm. 5.0 Valid for grooved roller race Pos. 43
                                                              from £41.02
                                                              from £41.02
                                                              # 044
                                                              MPN: 145233
                                                              SPACER
                                                              mm. 4.7 Valid for grooved roller race POS.43
                                                              from £23.48
                                                              from £23.48
                                                              # 044
                                                              MPN: 145234
                                                              SPACER
                                                              mm. 4.8 -Valid for grooved roller race Pos. 43
                                                              from £23.60
                                                              from £23.60
                                                              # 044
                                                              MPN: 145235
                                                              SPACER
                                                              mm. 4.9 Valid for grooved roller race Pos. 43
                                                              from £23.60
                                                              from £23.60
                                                              # 044
                                                              MPN: 145236
                                                              SPACER
                                                              mm. 5.1 Valid for grooved roller race Pos. 43
                                                              from £23.60
                                                              from £23.60
                                                              # 044
                                                              MPN: 145237
                                                              SPACER
                                                              mm. 5.2 Valid for grooved roller race POS.43
                                                              from £142.01
                                                              from £142.01
