ferrari 348 (1993) tb / ts clutch release control parts diagram

022 - clutch release control

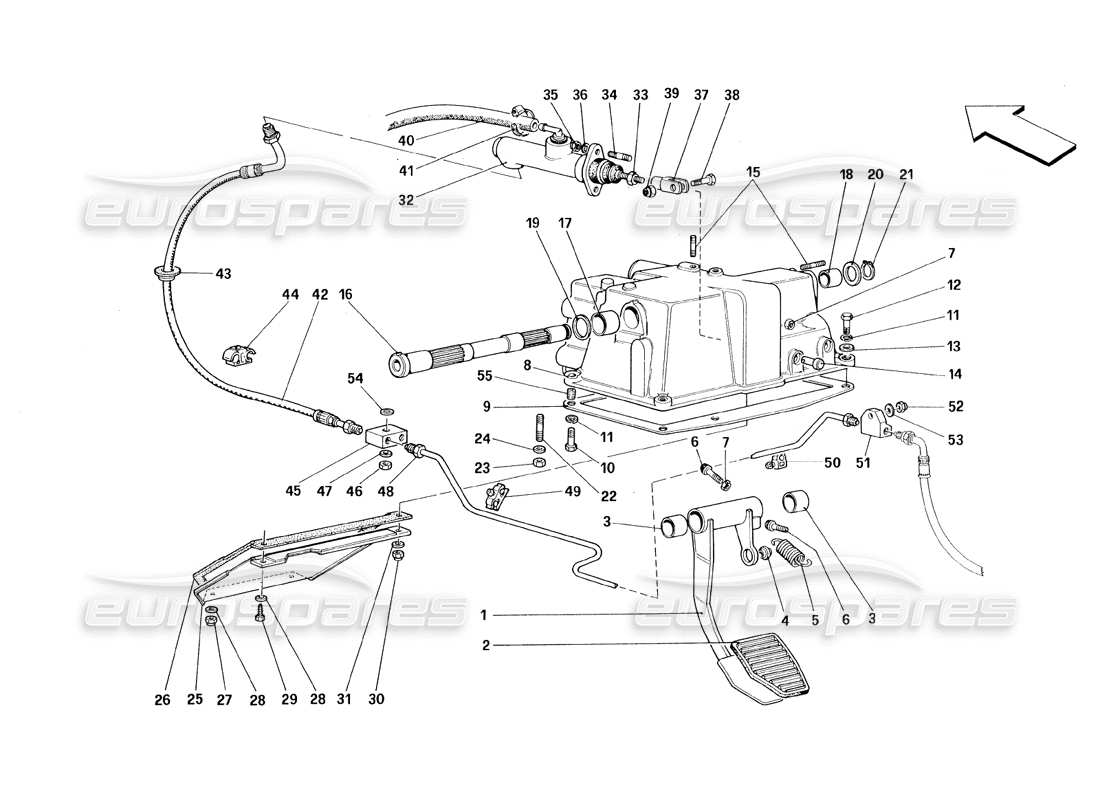

Ferrari 348 (1993) TB / TS Clutch Release Control Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                          #
                                                                                          Part number
                                                                                          Description
                                                                                          Price
                                                                                          # 001
                                                                                          MPN: 139391
                                                                                          CLUTCH PEDAL
                                                                                          Valid till car Nr. 90916
                                                                                          from £604.45
                                                                                          from £604.45
                                                                                          # 001
                                                                                          MPN: 149293
                                                                                          CLUTCH PEDAL
                                                                                          Valid from car Nr. 90917
                                                                                          from £163.89
                                                                                          from £163.89
                                                                                          # 002
                                                                                          MPN: 132818
                                                                                          PEDAL RUBBER
                                                                                          Valid for pedal 139391
                                                                                          from £6.71
                                                                                          from £6.71
                                                                                          # 002
                                                                                          MPN: 149295
                                                                                          PEDAL RUBBER
                                                                                          Valid for pedal 149293
                                                                                          from £63.67
                                                                                          from £63.67
                                                                                          # 003
                                                                                          MPN: 103163
                                                                                          BUSHING
                                                                                          from £2.85
                                                                                          from £2.85
                                                                                          # 004
                                                                                          MPN: 109407
                                                                                          JOINT
                                                                                          from £21.95
                                                                                          from £21.95
                                                                                          # 005
                                                                                          MPN: 101305
                                                                                          SPRING
                                                                                          from £8.15
                                                                                          from £8.15
                                                                                          This part replaces part number 660343
                                                                                          # 006
                                                                                          MPN: 144011
                                                                                          PIN
                                                                                          Supersession
                                                                                          Supersession
                                                                                          # 007
                                                                                          MPN: 147690
                                                                                          LHD PEDAL SUPPORT
                                                                                          -Not for ABS BOSCH
                                                                                          from £4,658.00
                                                                                          from £4,658.00
                                                                                          This part replaces part number 143745
                                                                                          # 007
                                                                                          MPN: 148260
                                                                                          COMPLETE PEDAL SUPPORT
                                                                                          Valid till car Ass. Nr. 1869
                                                                                          from £791.24
                                                                                          from £791.24
                                                                                          This part replaces part number 138077
                                                                                          # 007
                                                                                          MPN: 16102311
                                                                                          NUT
                                                                                          from £0.43
                                                                                          from £0.43
                                                                                          This part replaces part number 16102315
                                                                                          # 008
                                                                                          -
                                                                                          PEDAL SUPPORT
                                                                                          # 009
                                                                                          MPN: 129615
                                                                                          GASKET
                                                                                          from £8.77
                                                                                          from £8.77
                                                                                          # 010
                                                                                          MPN: 16043321
                                                                                          SCREW
                                                                                          Valid till car Ass. Nr. 1869
                                                                                          from £0.47
                                                                                          from £0.47
                                                                                          # 011
                                                                                          MPN: 127496
                                                                                          WASHER
                                                                                          Valid till car Ass. Nr. 1869
                                                                                          from £0.53
                                                                                          from £0.53
                                                                                          This part replaces part number 10516671 - and 2 more. Click to view details
                                                                                          # 012
                                                                                          MPN: 16043721
                                                                                          SCREW
                                                                                          Valid till car Ass. Nr. 1869
                                                                                          from £1.08
                                                                                          from £1.08
                                                                                          # 013
                                                                                          MPN: 10519624
                                                                                          WASHER
                                                                                          from £0.54
                                                                                          from £0.54
                                                                                          This part replaces part number 10519601 - and 3 more. Click to view details
                                                                                          # 014
                                                                                          MPN: 129612
                                                                                          PIN
                                                                                          from £1.41
                                                                                          from £1.41
                                                                                          # 015
                                                                                          MPN: 11500121
                                                                                          STUD
                                                                                          Supersession
                                                                                          Supersession
                                                                                          This part replaces part number 13540820
                                                                                          # 016
                                                                                          MPN: 129613
                                                                                          PEDALS SUPPORT PIN
                                                                                          from £1,101.55
                                                                                          from £1,101.55
                                                                                          # 017
                                                                                          MPN: 101314
                                                                                          BUSHING
                                                                                          from £2.18
                                                                                          from £2.18
                                                                                          This part replaces part number 660867
                                                                                          # 018
                                                                                          MPN: 112153
                                                                                          BUSHING
                                                                                          from £1.86
                                                                                          from £1.86
                                                                                          # 019
                                                                                          MPN: 112125
                                                                                          SPACER WASHER
                                                                                          from £1.04
                                                                                          from £1.04
                                                                                          # 020
                                                                                          MPN: 112127
                                                                                          WASHER
                                                                                          mm. 0,9 Possible fitting
                                                                                          from £0.47
                                                                                          from £0.47
                                                                                          # 020
                                                                                          MPN: 112128
                                                                                          WASHER
                                                                                          mm. 1,0 Possible fitting
                                                                                          from £24.34
                                                                                          from £24.34
                                                                                          # 020
                                                                                          MPN: 112129
                                                                                          WASHER
                                                                                          mm.1,1 Possible fitting
                                                                                          from £0.47
                                                                                          from £0.47
                                                                                          # 020
                                                                                          MPN: 112130
                                                                                          WASHER
                                                                                          mm. 1,2 Possible fitting
                                                                                          from £0.47
                                                                                          from £0.47
                                                                                          # 020
                                                                                          MPN: 112131
                                                                                          WASHER
                                                                                          mm. 1,3 Possible fitting
                                                                                          from £0.47
                                                                                          from £0.47
                                                                                          # 021
                                                                                          MPN: 11066676
                                                                                          SEEGER RING
                                                                                          from £0.51
                                                                                          from £0.51
                                                                                          This part replaces part number 11066675
                                                                                          # 022
                                                                                          MPN: 16100814
                                                                                          STUD
                                                                                          Valid from car Ass. Nr. 1870
                                                                                          from £0.71
                                                                                          from £0.71
                                                                                          This part replaces part number 16100811 - and 1 more. Click to view details
                                                                                          # 023
                                                                                          MPN: 104030
                                                                                          SELF LOCKING NUT
                                                                                          from £0.47
                                                                                          from £0.47
                                                                                          This part replaces part number 16104125
                                                                                          # 024
                                                                                          MPN: 14499401
                                                                                          WASHER
                                                                                          Valid from car Ass. Nr. 1870
                                                                                          from £0.47
                                                                                          from £0.47
                                                                                          # 025
                                                                                          MPN: 62097800
                                                                                          PEDAL SUPPORT PROTECTION
                                                                                          Valid till car Ass. Nr. 1869
                                                                                          from £18.43
                                                                                          from £18.43
                                                                                          # 025
                                                                                          MPN: 62877200
                                                                                          PEDAL SUPPORT PROTECTION
                                                                                          Valid from car Ass. Nr. 1870
                                                                                          from £205.43
                                                                                          from £205.43
                                                                                          # 026
                                                                                          MPN: 62694400
                                                                                          GASKET
                                                                                          from £6.81
                                                                                          from £6.81
                                                                                          # 027
                                                                                          MPN: 12574211
                                                                                          NUT
                                                                                          from £0.71
                                                                                          from £0.71
                                                                                          # 028
                                                                                          MPN: 12646601
                                                                                          WASHER
                                                                                          from £0.71
                                                                                          from £0.71
                                                                                          # 029
                                                                                          MPN: 15925601
                                                                                          SCREW
                                                                                          from £0.47
                                                                                          from £0.47
                                                                                          # 030
                                                                                          MPN: 104030
                                                                                          SELF LOCKING NUT
                                                                                          from £0.47
                                                                                          from £0.47
                                                                                          This part replaces part number 16104125
                                                                                          # 032
                                                                                          MPN: 175211
                                                                                          Clutch Pump
                                                                                          from £88.42
                                                                                          from £88.42
                                                                                          This part replaces part number 123416 - and 4 more. Click to view details
                                                                                          # 033
                                                                                          MPN: 16102311
                                                                                          NUT
                                                                                          from £0.43
                                                                                          from £0.43
                                                                                          This part replaces part number 16102315
                                                                                          # 034
                                                                                          MPN: 16100814
                                                                                          STUD
                                                                                          from £0.71
                                                                                          from £0.71
                                                                                          This part replaces part number 16100811 - and 1 more. Click to view details
                                                                                          # 035
                                                                                          MPN: 133215
                                                                                          NUT
                                                                                          Supersession
                                                                                          Supersession
                                                                                          This part replaces part number 64342800
                                                                                          # 037
                                                                                          MPN: 10248271
                                                                                          FORK
                                                                                          from £12.83
                                                                                          from £12.83
                                                                                          # 038
                                                                                          MPN: 130926
                                                                                          SCREW
                                                                                          from £3.70
                                                                                          from £3.70
                                                                                          # 040
                                                                                          MPN: 151845
                                                                                          PIPE
                                                                                          from £34.21
                                                                                          from £34.21
                                                                                          This part replaces part number 120929 - and 1 more. Click to view details
                                                                                          # 041
                                                                                          MPN: 12179190
                                                                                          SCREW COLLAR
                                                                                          Supersession
                                                                                          Supersession
                                                                                          This part replaces part number 102604
                                                                                          # 042
                                                                                          MPN: 140669
                                                                                          HOSE
                                                                                          from £126.34
                                                                                          from £126.34
                                                                                          # 043
                                                                                          MPN: 105369
                                                                                          CABLE GROMMET
                                                                                          from £19.10
                                                                                          from £19.10
                                                                                          # 044
                                                                                          MPN: 141699
                                                                                          CLIP
                                                                                          from £0.74
                                                                                          from £0.74
                                                                                          # 047
                                                                                          MPN: 12639701
                                                                                          WASHER
                                                                                          Supersession
                                                                                          Supersession
                                                                                          This part replaces part number 12639704
                                                                                          # 048
                                                                                          MPN: 140666
                                                                                          INTERMEDIATE TUBE
                                                                                          from £81.05
                                                                                          from £81.05
                                                                                          # 049
                                                                                          MPN: 145473
                                                                                          CLIP
                                                                                          from £0.47
                                                                                          from £0.47
                                                                                          # 050
                                                                                          MPN: 141521
                                                                                          CLIP
                                                                                          from £1.98
                                                                                          from £1.98
                                                                                          # 053
                                                                                          MPN: 12639701
                                                                                          WASHER
                                                                                          Supersession
                                                                                          Supersession
                                                                                          This part replaces part number 12639704
                                                                                          # 054
                                                                                          MPN: 143041
                                                                                          SPACER
                                                                                          from £0.47
                                                                                          from £0.47
                                                                                          # 055
                                                                                          MPN: 13525770
                                                                                          THREADED INSERT
                                                                                          from £1.55
                                                                                          from £1.55
                                                                                          This part replaces part number 103830
                                                                                          Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
