Eurospares -Valid for Catalytic Vehicles -Not for USA Spyder
014A - Exhaust System

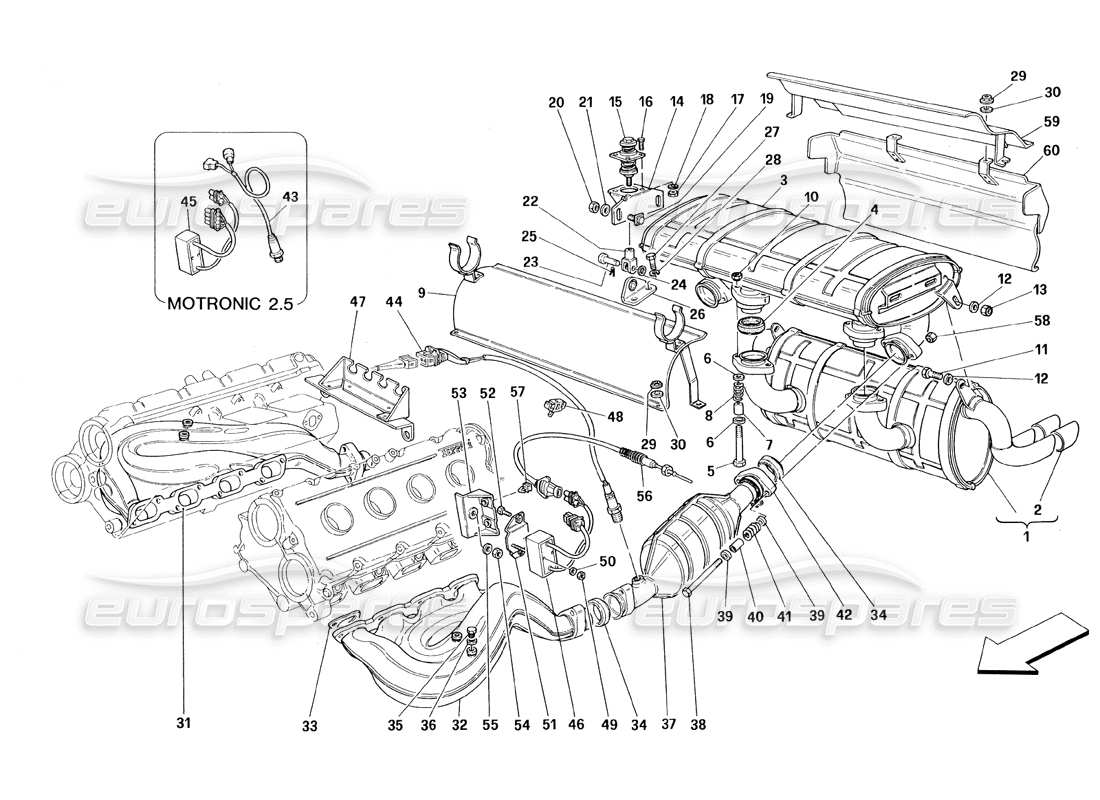

Ferrari 348 (1993) TB / TS Exhaust System Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit

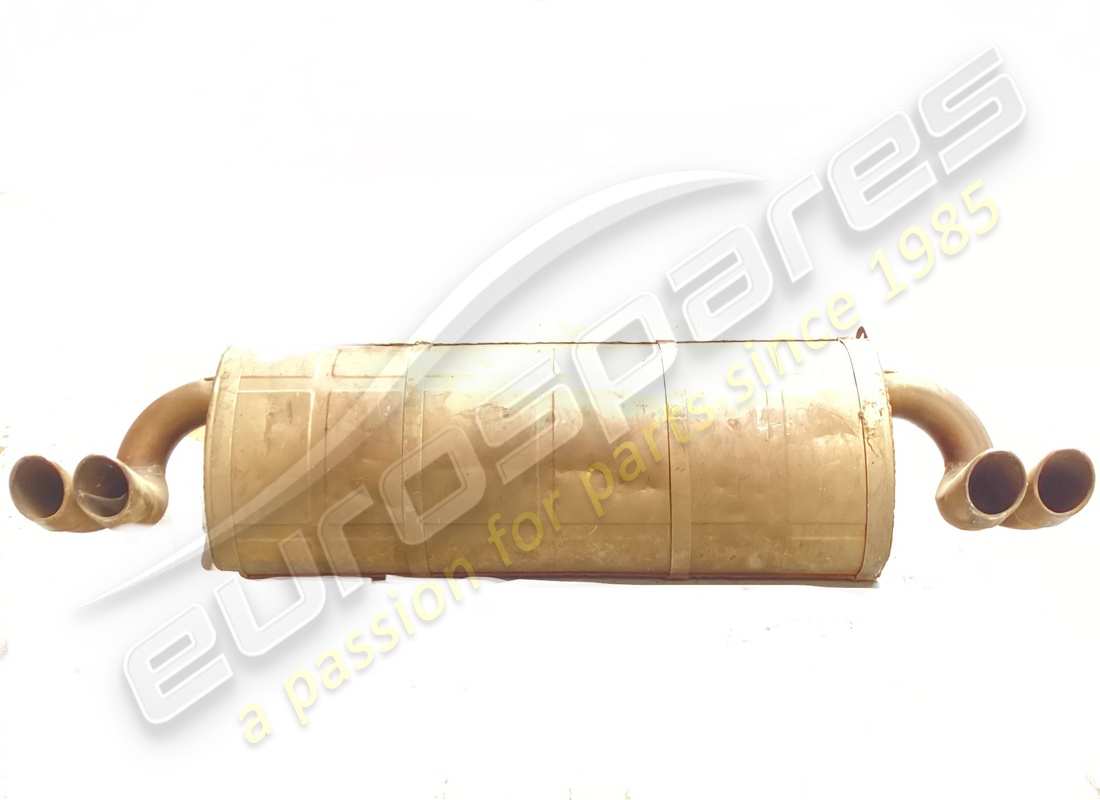

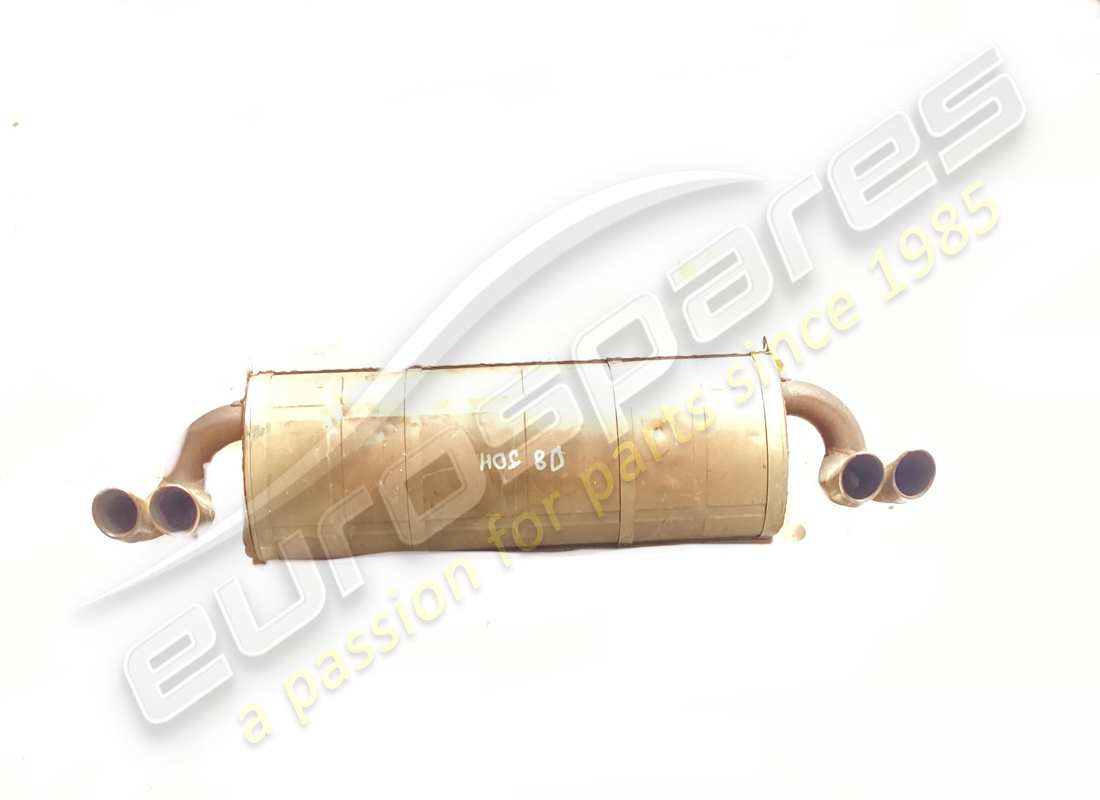

# 001
MPN: 136278
REAR SILENCER
from £597.85
from £597.85

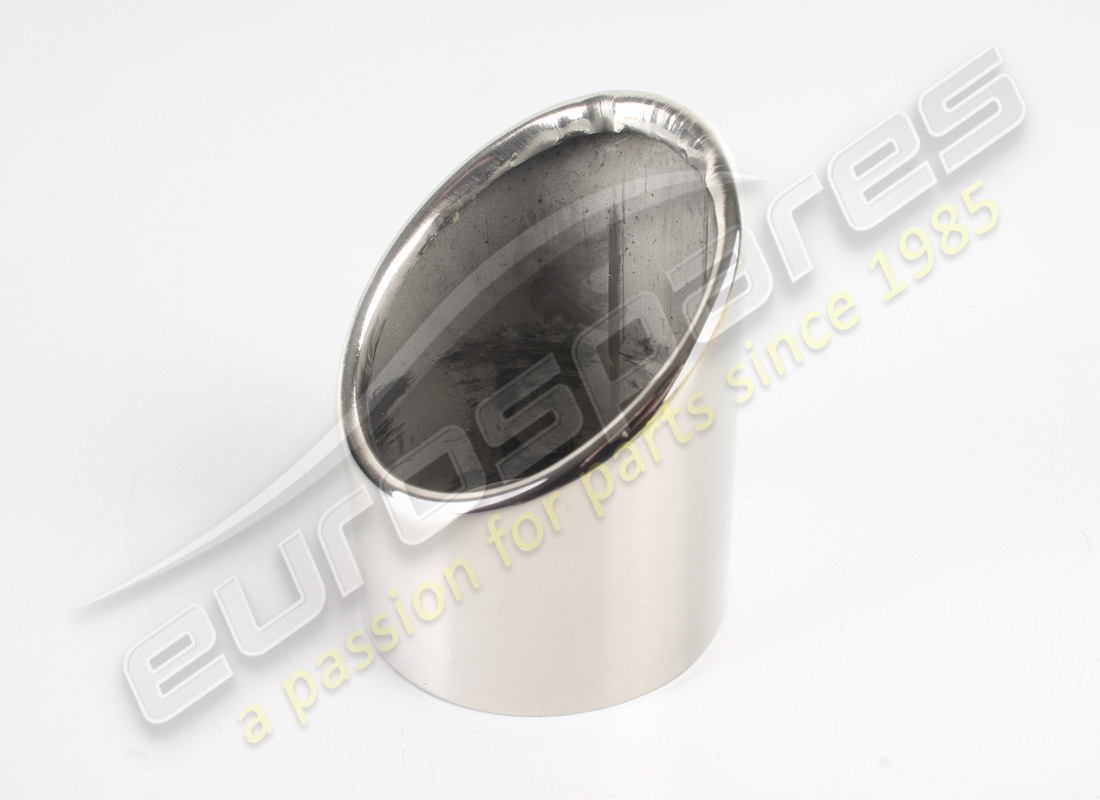

# 002
MPN: 136894
TERMINAL COVER
from £34.55
from £34.55
# 003
MPN: 136277
FRONT MUFFLER
from £286.58
from £286.58

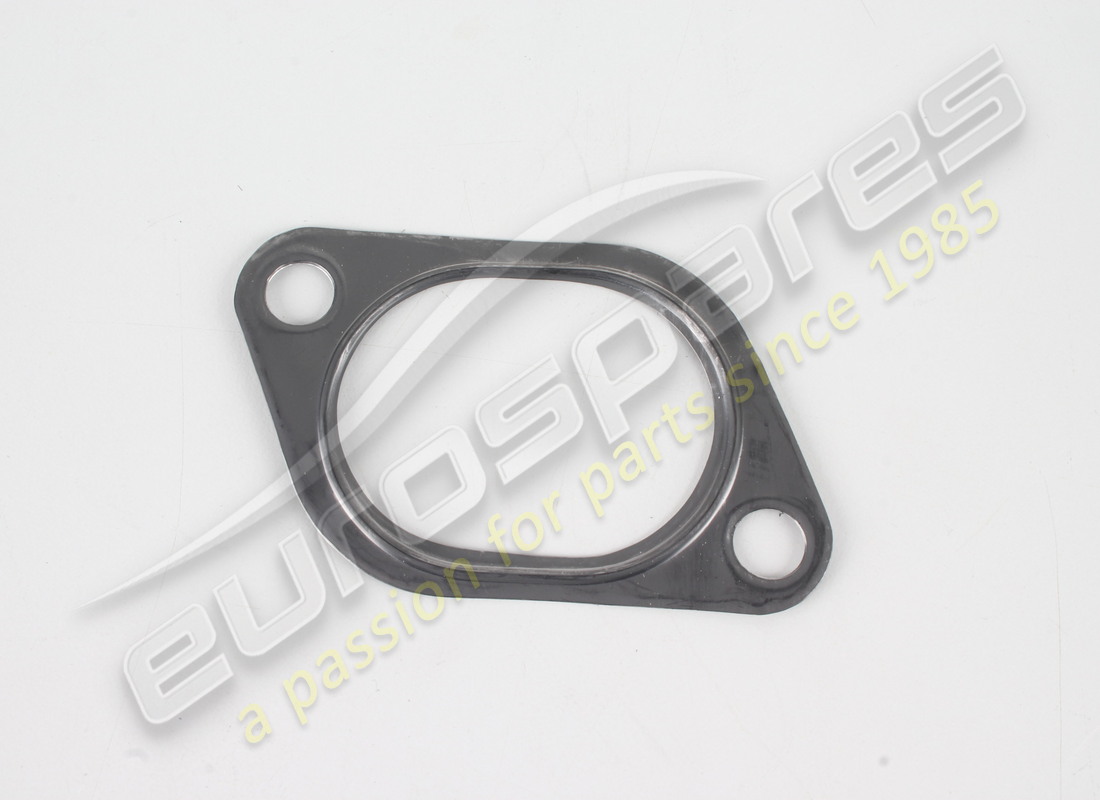

# 004
MPN: 154984
GASKET
from £12.35
from £12.35
This part replaces part number 118338 - and 2 more. Click to view details
# 005
MPN: 137431
SCREW
from £27.27
from £27.27
# 006
MPN: 128010
WASHER
from £2.16
from £2.16
# 007
MPN: 114749
SPACER
from £1.28
from £1.28
# 008
MPN: 111743
SPRING
from £7.12
from £7.12
# 009
MPN: 62663300
EXHAUST PROTECTION PANEL
from £336.00
from £336.00
This part replaces part number 62662900 - and 1 more. Click to view details
# 010
MPN: 114748
NUT
from £7.97
from £7.97
# 011
MPN: 16043421
SCREW
from £2.78
from £2.78
This part replaces part number 95524
# 012
MPN: 128010
WASHER
from £2.16
from £2.16
# 013
MPN: 114748
NUT
from £7.97
from £7.97
# 014
MPN: 136877
BRACKET
from £162.26
from £162.26
# 015
MPN: 139180
PAD
from £170.08
from £170.08
# 016
MPN: 10977624
SCREW
from £0.47
from £0.47
This part replaces part number 10977611 - and 1 more. Click to view details
# 017
MPN: 15896470
NUT
(minimum order quantity = 20)
from £0.79
from £0.79
This part replaces part number 15896415 which we have in stock - and 1 more. Click to view details
# 018
MPN: 127493
WASHER
from £0.48
from £0.48
This part replaces part number 106849 - and 1 more. Click to view details
# 019
MPN: 137534
SCREW
from £12.38
from £12.38
# 020
MPN: 114748
NUT
from £7.97
from £7.97
# 021
MPN: 128010
WASHER
from £2.16
from £2.16
# 022
MPN: 10007871
FORK
from £5.83
from £5.83
# 023
MPN: 10050811
PIN
from £5.22
from £5.22
This part replaces part number 10050810
# 024
MPN: 10519624
WASHER
from £0.47
from £0.47
This part replaces part number 10519601 - and 3 more. Click to view details
# 025
MPN: 10734301
SPLIT PIN
from £0.47
from £0.47
# 026
MPN: 145741
SMALL PLATE
from £66.20
from £66.20
# 027
MPN: 16043221
SCREW
from £0.47
from £0.47
This part replaces part number 13842414 - and 1 more. Click to view details
# 028
MPN: 127496
WASHER
from £0.47
from £0.47
This part replaces part number 10516671 - and 2 more. Click to view details
# 029
MPN: 14058411
NUT
from £0.47
from £0.47
# 030
MPN: 12644421
WASHER
Supersession
Supersession
# 031
MPN: 136275
RH EXHAUST MANIFOLD
With plugs for CO suction
from £605.78
from £605.78
This part replaces part number 149947 - and 1 more. Click to view details
# 031
MPN: 149947
RH EXHAUST MANIFOLD
Without plugs for CO suction Valid for USA, CDN, CH
Supersession
Supersession
# 032
MPN: 136276
LH EXHAUST MANIFOLD
With plugs for CO suction
from £576.93
from £576.93
This part replaces part number 149948 - and 1 more. Click to view details
# 032
MPN: 149948
LH EXHAUST MANIFOLD
Without plugs for CO suction Valid for USA, CDN, CH
Supersession
Supersession
# 033
MPN: 138076
GASKET
from £6.30
from £6.30
This part replaces part number 133908
# 034
MPN: 154984
GASKET
from £11.79
from £11.79
This part replaces part number 118338 - and 2 more. Click to view details
# 035
MPN: 110860
THREADED PLUG
from £7.65
from £7.65
This part replaces part number 11903240
# 036
MPN: 10298460
GASKET
from £0.47
from £0.47
This part replaces part number 93353
# 037
MPN: 134001
RH CATALYST
not as spare part - replaced by part number: 160506 (replace in pairs)
Supersession
Supersession
This part replaces part number 136273
# 037
MPN: 143871
EXHAUST PRE-MUFFLER
Valid for not catalyzed cars With pipes for CO suction
from £183.37
from £183.37
# 037
MPN: 151609
EXHAUST PRE-MUFFLER
Valid for not catalyzed cars Valid for oxygen sensor 151667
from £265.30
from £265.30

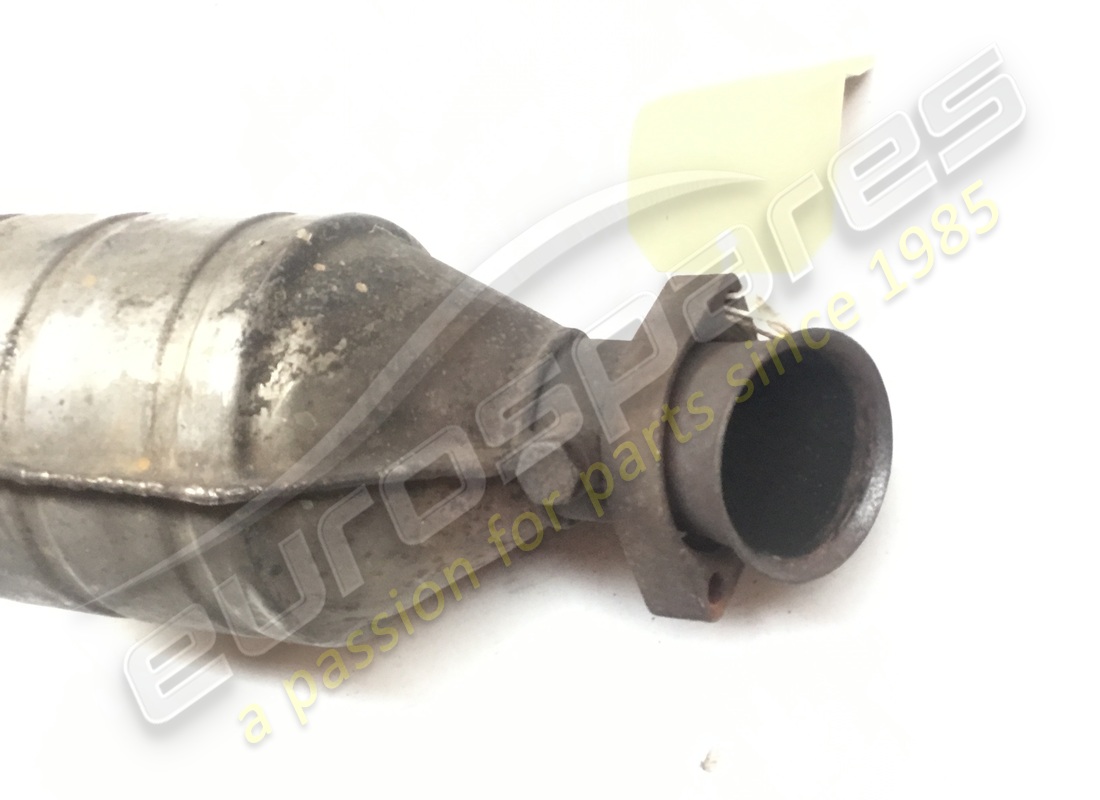

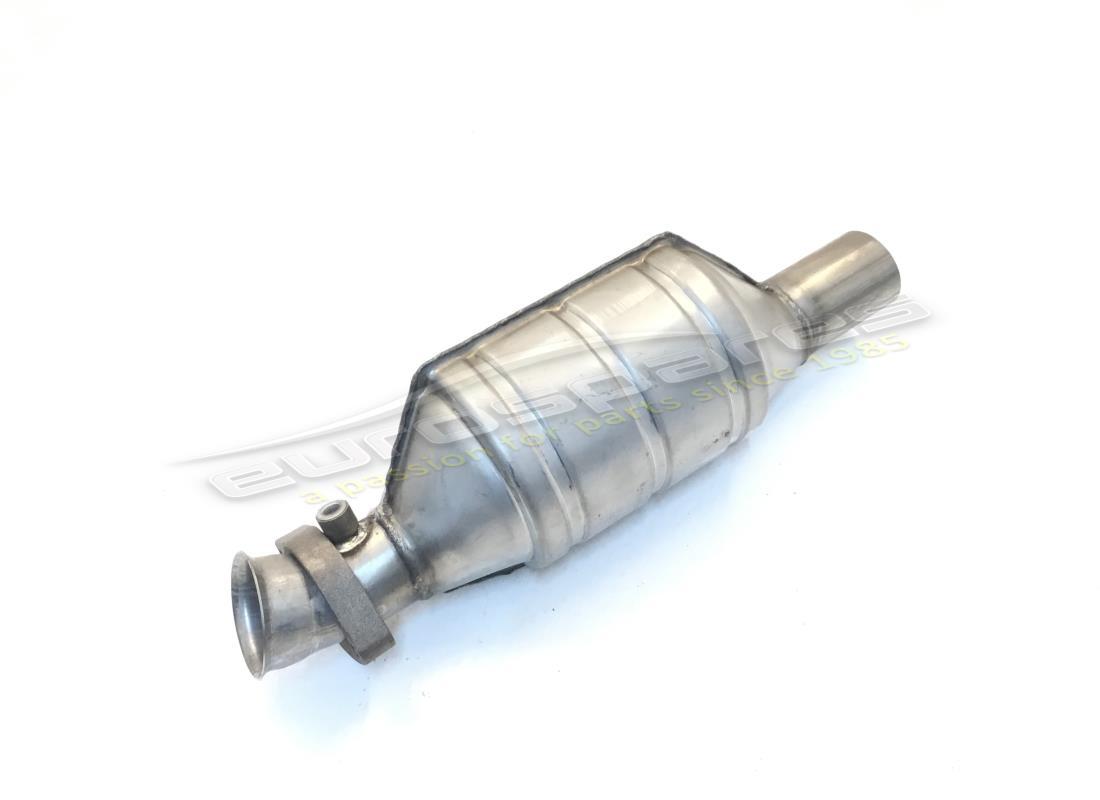

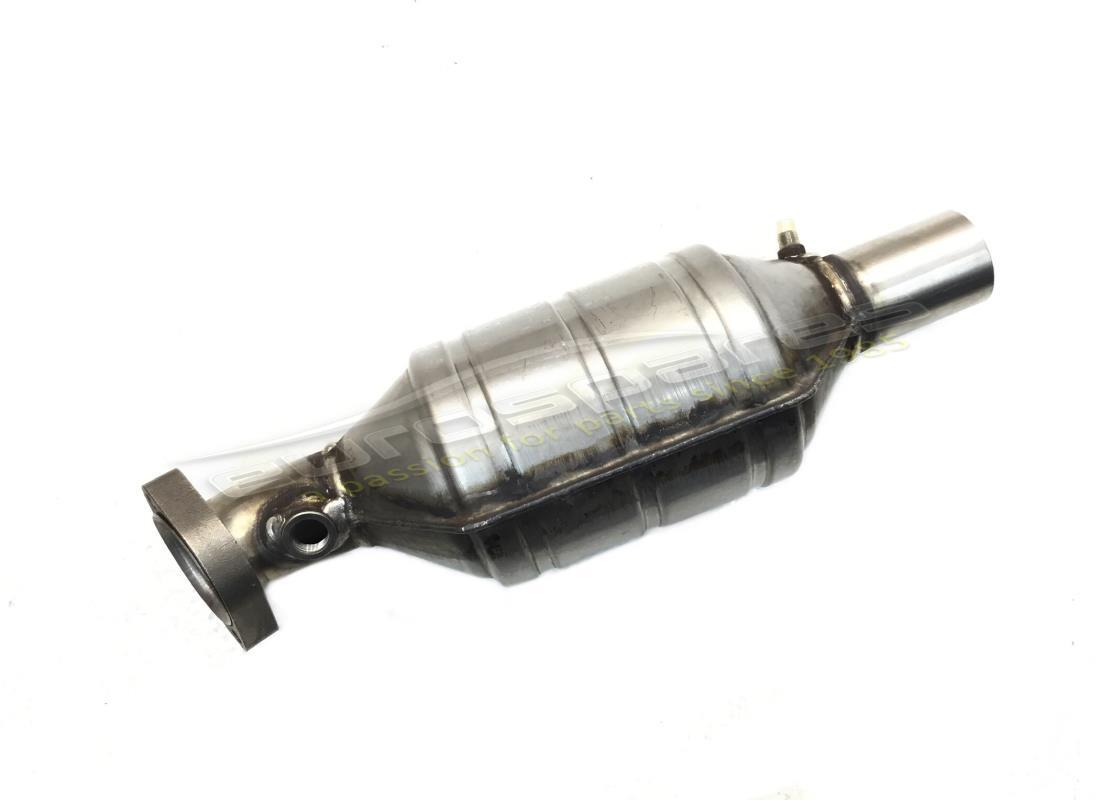

# 037
MPN: 160506
CATALYTIC CONVERTER
Supersession
Supersession
This part replaces part number 134001 - and 2 more. Click to view details
# 037
MPN: 160506
CATALYTIC CONVERTER
Supersession
Supersession
This part replaces part number 134001 - and 2 more. Click to view details
# 038
MPN: 137431
SCREW
from £27.27
from £27.27
# 039
MPN: 128010
WASHER
from £2.16
from £2.16
# 040
MPN: 114749
SPACER
from £1.28
from £1.28
# 041
MPN: 111743
SPRING
from £7.12
from £7.12
# 042
MPN: 141874
FLANGED STUB PIPE
from £207.64
from £207.64

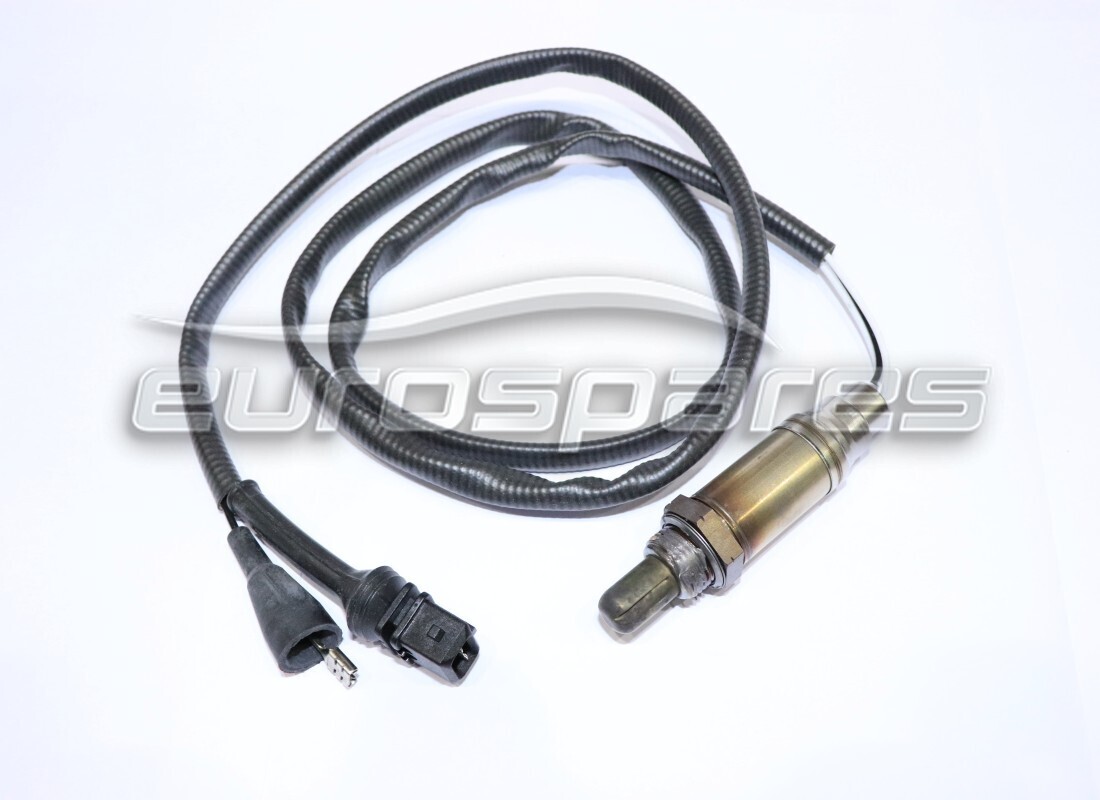

# 043
MPN: 121515
OXYGEN SENSOR
Valid for M. 2.5
from £190.51
from £190.51
This part replaces part number 125881

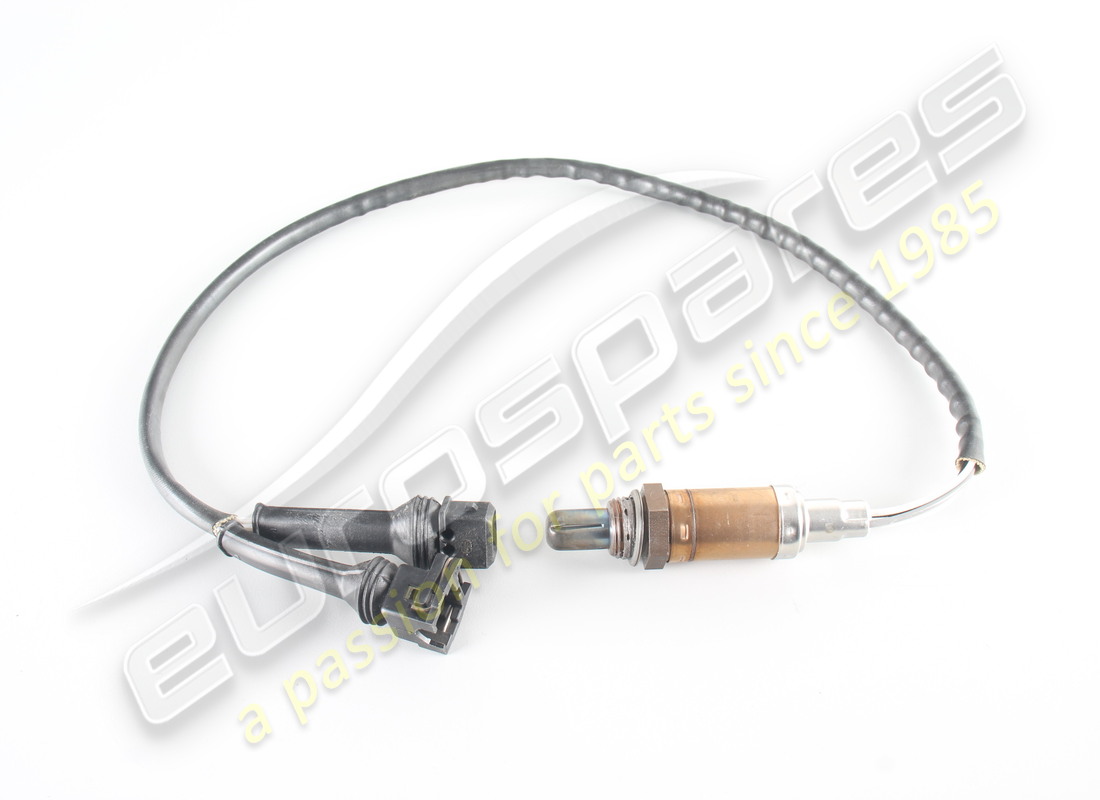

# 044
MPN: 142514
OXYGEN SENSOR
Valid for M. 2.7 Valid for ignition/supply contro system
from £239.29
from £239.29
# 044
MPN: 146650
OXYGEN SENSOR
Valid for M. 2.7 Valid for ignition/supply control system 147176 ref. BOSCH 0261200489
from £154.36
from £154.36
# 044
MPN: 151667
OXYGEN SENSOR
Valid for not catalyzed cars with pre-muffler 151609
from £369.82
from £369.82

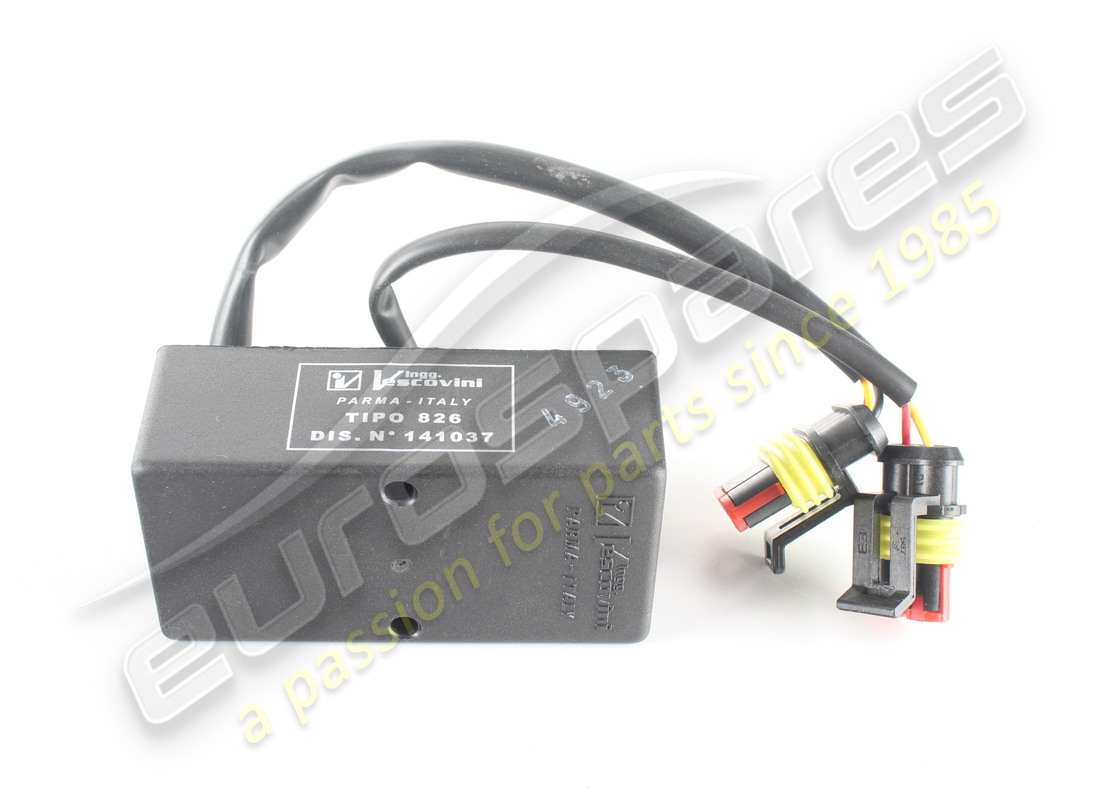

# 045
MPN: 141037
CONTROL STATION
Valid for M 2.5 Not for SA
from £341.91
from £341.91
# 046
MPN: 142581
CONTROL STATION
Valid for M. 2.7 Valid for SA
from £426.98
from £426.98
# 047
MPN: 145487
BRACKET
Valid for M. 2.7
from £11.76
from £11.76
# 048
MPN: 145473
CLIP
Valid for M. 2.7
from £0.47
from £0.47
# 049
MPN: 12574011
NUT
from £0.47
from £0.47
# 050
MPN: 14496204
WASHER
from £0.47
from £0.47
This part replaces part number 14496201
# 051
MPN: 62844200
BRACKET FOR CONTROL UNIT
from £9.66
from £9.66
# 052
MPN: 10444621
SCREW
from £0.47
from £0.47
# 053
MPN: 143851
SUPPORT
from £2.36
from £2.36
# 054
MPN: 12575411
NUT
Supersession
Supersession
# 055
MPN: 12639701
WASHER
Supersession
Supersession
This part replaces part number 12639704
# 056
MPN: 144270
THERMOCOUPLE
from £557.62
from £557.62
# 057
MPN: 144036
CLIP
from £0.47
from £0.47
# 058
MPN: 114748
NUT
from £7.97
from £7.97
# 059
MPN: 63006500
UPPER REAR SHIELD
from £814.95
from £814.95
# 060
MPN: 63547900
BUMPER PROTECTION SHIELD
valid till car Ass.nr.12478 valid for fiberglass bumber valid fro USA,CDN,SA and J
from £818.67
from £818.67
# 060
MPN: 63632900
BUMPER PROTECTION SHIELD
Valid from car Ass. Nr. 12479 Valid for RIM bumper Not for USA, CDN, SA and J
from £548.87
from £548.87
