ferrari 348 (1993) tb / ts lh cylinder head parts diagram

004 - LH cylinder head

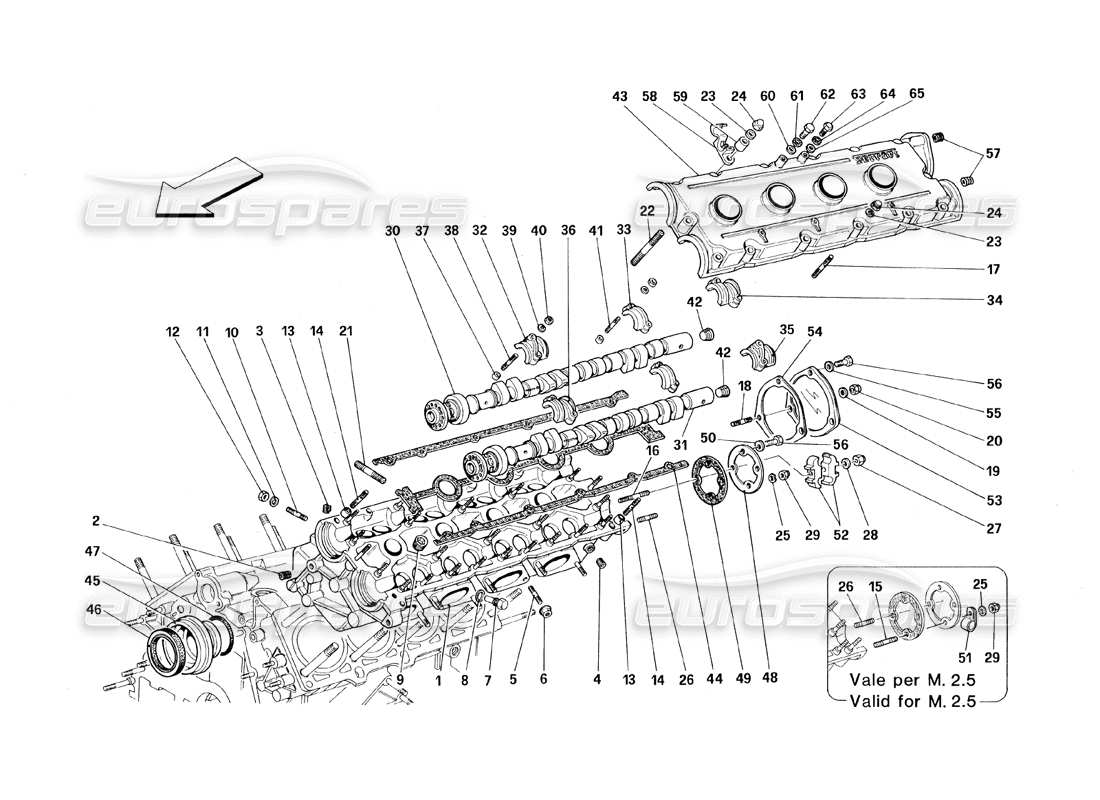

Ferrari 348 (1993) TB / TS L.H. Cylinder Head Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                            #
                                                                                            Part number
                                                                                            Description
                                                                                            Price
                                                                                            # 000
                                                                                            MPN: 133994

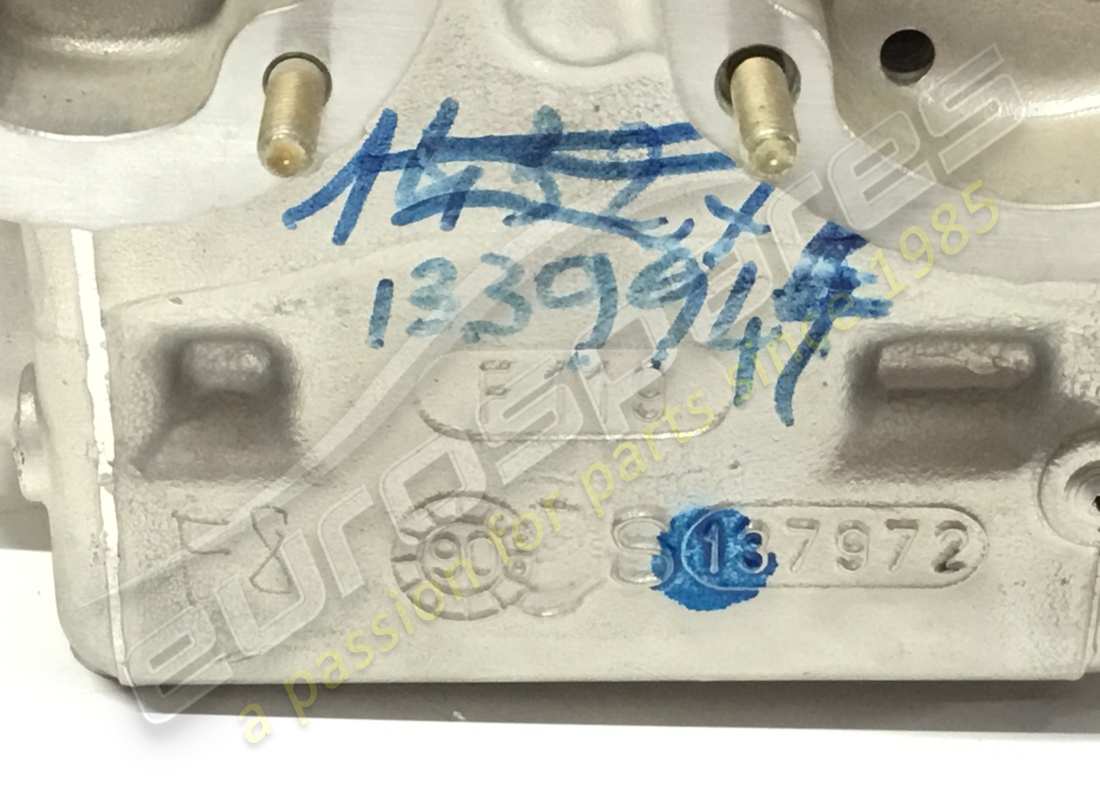

                                                                                            COMPLETE LH CYLINDERS HEAD
                                                                                            Valid for M. 2.5
                                                                                            from £3,144.75
                                                                                            from £3,144.75
                                                                                            # 000
                                                                                            MPN: 149502
                                                                                            COMPLETE LH CYLINDERS HEAD
                                                                                            Valid for M. 2.7
                                                                                            from £5,126.71
                                                                                            from £5,126.71
                                                                                            This part replaces part number 133994 which we have in stock - and 1 more. Click to view details
                                                                                            # 001
                                                                                            -
                                                                                            LH HEAD
                                                                                            # 002
                                                                                            MPN: 13525870
                                                                                            THREADED INSERT
                                                                                            from £1.40
                                                                                            from £1.40
                                                                                            This part replaces part number 105510
                                                                                            # 003
                                                                                            MPN: 13525870
                                                                                            THREADED INSERT
                                                                                            from £1.40
                                                                                            from £1.40
                                                                                            This part replaces part number 105510
                                                                                            # 004
                                                                                            MPN: 14326150
                                                                                            THREADED PLUG
                                                                                            from £0.50
                                                                                            from £0.50
                                                                                            This part replaces part number 12326150
                                                                                            # 005
                                                                                            MPN: 12354524
                                                                                            STUD SECURING WATER MANIFOLDS
                                                                                            from £15.48
                                                                                            from £15.48
                                                                                            This part replaces part number 12354521
                                                                                            # 006
                                                                                            MPN: 138392
                                                                                            NUT
                                                                                            (minimum order quantity = 25)
                                                                                            from £0.58
                                                                                            from £0.58
                                                                                            # 007
                                                                                            MPN: 139489
                                                                                            PLUG
                                                                                            Not for catalyzed cars
                                                                                            from £7.93
                                                                                            from £7.93
                                                                                            # 008
                                                                                            MPN: 10257060
                                                                                            GASKET
                                                                                            Not for catalyzed cars
                                                                                            from £0.47
                                                                                            from £0.47
                                                                                            This part replaces part number 10253060 - and 2 more. Click to view details
                                                                                            # 009
                                                                                            MPN: 127635
                                                                                            PLUG
                                                                                            from £1.47
                                                                                            from £1.47
                                                                                            This part replaces part number 183447
                                                                                            # 010
                                                                                            MPN: 13541621
                                                                                            STUD SECURING WATER MANIFOLDS (CYL. 5,8)
                                                                                            Supersession
                                                                                            Supersession
                                                                                            # 011
                                                                                            MPN: 11197774
                                                                                            WASHER
                                                                                            from £0.53
                                                                                            from £0.53
                                                                                            This part replaces part number 11197770 - and 3 more. Click to view details
                                                                                            # 012
                                                                                            MPN: 15896211
                                                                                            NUT
                                                                                            Supersession
                                                                                            Supersession
                                                                                            This part replaces part number 15896210
                                                                                            # 013
                                                                                            MPN: 102725
                                                                                            DOWEL
                                                                                            from £0.65
                                                                                            from £0.65
                                                                                            # 014
                                                                                            MPN: 13541721
                                                                                            STUD
                                                                                            Supersession
                                                                                            Supersession
                                                                                            # 015
                                                                                            MPN: 11500521
                                                                                            STUD
                                                                                            from £1.85
                                                                                            from £1.85
                                                                                            # 016
                                                                                            MPN: 11501421
                                                                                            STUD
                                                                                            from £0.47
                                                                                            from £0.47
                                                                                            # 017
                                                                                            MPN: 13541621
                                                                                            STUD
                                                                                            Valid for M. 2.5
                                                                                            Supersession
                                                                                            Supersession
                                                                                            # 018
                                                                                            MPN: 11500521
                                                                                            STUD
                                                                                            Valid for M. 2.7
                                                                                            from £1.85
                                                                                            from £1.85
                                                                                            # 019
                                                                                            MPN: 11197774
                                                                                            WASHER
                                                                                            from £0.54
                                                                                            from £0.54
                                                                                            This part replaces part number 11197770 - and 3 more. Click to view details
                                                                                            # 020
                                                                                            MPN: 102741
                                                                                            NUT
                                                                                            from £0.47
                                                                                            from £0.47
                                                                                            This part replaces part number 12575411 - and 1 more. Click to view details
                                                                                            # 021
                                                                                            MPN: 13541721
                                                                                            STUD SECURING WATER MANIFOLDS (CYL. 6,7)
                                                                                            Supersession
                                                                                            Supersession
                                                                                            # 022
                                                                                            MPN: 13541721
                                                                                            STUD
                                                                                            Supersession
                                                                                            Supersession
                                                                                            # 022
                                                                                            MPN: 13541921
                                                                                            STUD
                                                                                            Valid for spacer 140085 - Valid without spacer 140085
                                                                                            Supersession
                                                                                            Supersession
                                                                                            # 023
                                                                                            MPN: 11197774
                                                                                            WASHER
                                                                                            from £0.52
                                                                                            from £0.52
                                                                                            This part replaces part number 11197770 - and 3 more. Click to view details
                                                                                            # 024
                                                                                            MPN: 100044
                                                                                            NUT
                                                                                            from £0.26
                                                                                            from £0.26
                                                                                            This part replaces part number 151230 - and 1 more. Click to view details
                                                                                            # 025
                                                                                            MPN: 12601274
                                                                                            WASHER
                                                                                            For M. 2.5 q.ty 2
                                                                                            from £0.47
                                                                                            from £0.47
                                                                                            This part replaces part number 12601221 - and 5 more. Click to view details
                                                                                            # 026
                                                                                            MPN: 11500321
                                                                                            STUD
                                                                                            Supersession
                                                                                            Supersession
                                                                                            # 027
                                                                                            MPN: 12574211
                                                                                            NUT
                                                                                            Valid for M. 2.7
                                                                                            from £0.71
                                                                                            from £0.71
                                                                                            # 028
                                                                                            MPN: 10519401
                                                                                            WASHER
                                                                                            Valid for M. 2.7
                                                                                            from £0.71
                                                                                            from £0.71
                                                                                            # 029
                                                                                            MPN: 12575411
                                                                                            NUT
                                                                                            For M. 2.5 q.ty 2
                                                                                            Supersession
                                                                                            Supersession
                                                                                            # 030
                                                                                            MPN: 139336
                                                                                            COMPLETE LH INDUCTION DISTRIBUTION SHAFT
                                                                                            from £563.34
                                                                                            from £563.34
                                                                                            # 031
                                                                                            MPN: 139338
                                                                                            COMPLETE LH EXHAUST CAM SHAFT
                                                                                            from £1,241.11
                                                                                            from £1,241.11
                                                                                            # 032
                                                                                            -
                                                                                            INLET SIDE FRONT CAP
                                                                                            # 033
                                                                                            -
                                                                                            INTERMEDIATE CAP
                                                                                            # 034
                                                                                            -
                                                                                            INLET SIDE REAR CAP
                                                                                            # 035
                                                                                            -
                                                                                            EXHAUST SIDE REAR CAP
                                                                                            # 036
                                                                                            -
                                                                                            EXHAUST SIDE FRONT CAP
                                                                                            # 037
                                                                                            MPN: 102725
                                                                                            DOWEL
                                                                                            from £0.57
                                                                                            from £0.57
                                                                                            # 038
                                                                                            MPN: 102754
                                                                                            STUD (OUTER CAPS)
                                                                                            from £5.00
                                                                                            from £5.00
                                                                                            # 039
                                                                                            MPN: 11197774
                                                                                            WASHER
                                                                                            from £0.51
                                                                                            from £0.51
                                                                                            This part replaces part number 11197770 - and 3 more. Click to view details
                                                                                            # 040
                                                                                            MPN: 15896211
                                                                                            NUT
                                                                                            Supersession
                                                                                            Supersession
                                                                                            This part replaces part number 15896210
                                                                                            # 041
                                                                                            MPN: 102735
                                                                                            STUD
                                                                                            from £11.07
                                                                                            from £11.07
                                                                                            This part replaces part number 4146561
                                                                                            # 042
                                                                                            MPN: 10269750
                                                                                            (INNER CAPS) THREADED PLUG
                                                                                            from £0.90
                                                                                            from £0.90
                                                                                            This part replaces part number 95184
                                                                                            # 043
                                                                                            -
                                                                                            LH CYLINDER HEAD COVER
                                                                                            # 044
                                                                                            MPN: 150084
                                                                                            LH GASKET
                                                                                            Alternative use - FCCG001 Cam cover set
                                                                                            from £27.89
                                                                                            from £27.89
                                                                                            This part replaces part number 117264 - and 1 more. Click to view details
                                                                                            # 044
                                                                                            MPN: FCCG001/B
                                                                                            Cam Cover Gasket Set & Seal kit
                                                                                            Includes FCCG001 & seals - x4 134714 / x4 117275.
                                                                                            # 045
                                                                                            MPN: 144973
                                                                                            SMALL COVER
                                                                                            from £370.72
                                                                                            from £370.72
                                                                                            This part replaces part number 117257 - and 2 more. Click to view details
                                                                                            # 046
                                                                                            MPN: 134714
                                                                                            OIL SEAL
                                                                                            from £10.35
                                                                                            from £10.35
                                                                                            This part replaces part number 110314
                                                                                            # 047
                                                                                            MPN: 117275
                                                                                            O.R. GASKET
                                                                                            from £2.93
                                                                                            from £2.93
                                                                                            # 048
                                                                                            MPN: 103796
                                                                                            REAR SMALL COVER
                                                                                            from £167.71
                                                                                            from £167.71
                                                                                            # 049
                                                                                            MPN: 150075
                                                                                            GASKET
                                                                                            from £16.19
                                                                                            from £16.19
                                                                                            This part replaces part number 104694 - and 3 more. Click to view details
                                                                                            # 050
                                                                                            MPN: 12601274
                                                                                            WASHER
                                                                                            from £0.47
                                                                                            from £0.47
                                                                                            This part replaces part number 12601221 - and 5 more. Click to view details
                                                                                            # 051
                                                                                            MPN: 10418401
                                                                                            BRACKET
                                                                                            -Valid for M. 2.5-
                                                                                            from £1.54
                                                                                            from £1.54
                                                                                            # 052
                                                                                            MPN: 62658700
                                                                                            CLIP
                                                                                            -Valid for M. 2.7-
                                                                                            from £23.02
                                                                                            from £23.02
                                                                                            # 053
                                                                                            MPN: 140102
                                                                                            REAR SMALL COVER
                                                                                            from £28.52
                                                                                            from £28.52
                                                                                            # 054
                                                                                            MPN: 150074
                                                                                            GASKET
                                                                                            from £5.30
                                                                                            from £5.30
                                                                                            This part replaces part number 133744
                                                                                            # 055
                                                                                            MPN: 11197774
                                                                                            WASHER
                                                                                            from £0.54
                                                                                            from £0.54
                                                                                            This part replaces part number 11197770 - and 3 more. Click to view details
                                                                                            # 056
                                                                                            MPN: 10902324
                                                                                            SCREW
                                                                                            from £0.47
                                                                                            from £0.47
                                                                                            This part replaces part number 10902311 which we have in stock - and 3 more. Click to view details
                                                                                            # 057
                                                                                            MPN: 13525470
                                                                                            THREADED INSERT
                                                                                            from £0.50
                                                                                            from £0.50
                                                                                            This part replaces part number 107333
                                                                                            # 058
                                                                                            MPN: 129544
                                                                                            CLIP
                                                                                            from £0.96
                                                                                            from £0.96
                                                                                            # 059
                                                                                            MPN: 140085
                                                                                            SPACER
                                                                                            from £19.55
                                                                                            from £19.55
                                                                                            # 060
                                                                                            MPN: 12648201
                                                                                            WASHER
                                                                                            from £1.39
                                                                                            from £1.39
                                                                                            # 062
                                                                                            MPN: 10977524
                                                                                            SCREW
                                                                                            from £0.53
                                                                                            from £0.53
                                                                                            # 063
                                                                                            MPN: 10977624
                                                                                            SCREW
                                                                                            from £0.47
                                                                                            from £0.47
                                                                                            This part replaces part number 10977611 - and 1 more. Click to view details
                                                                                            # 064
                                                                                            MPN: 149951
                                                                                            WASHER
                                                                                            from £0.47
                                                                                            from £0.47
                                                                                            This part replaces part number 10615301 which we have in stock - and 4 more. Click to view details
                                                                                            # 065
                                                                                            MPN: 10519377
                                                                                            WASHER
                                                                                            Supersession
                                                                                            Supersession
                                                                                            This part replaces part number 10519305 which we have in stock - and 1 more. Click to view details
