041 - Radiator and Water Pump

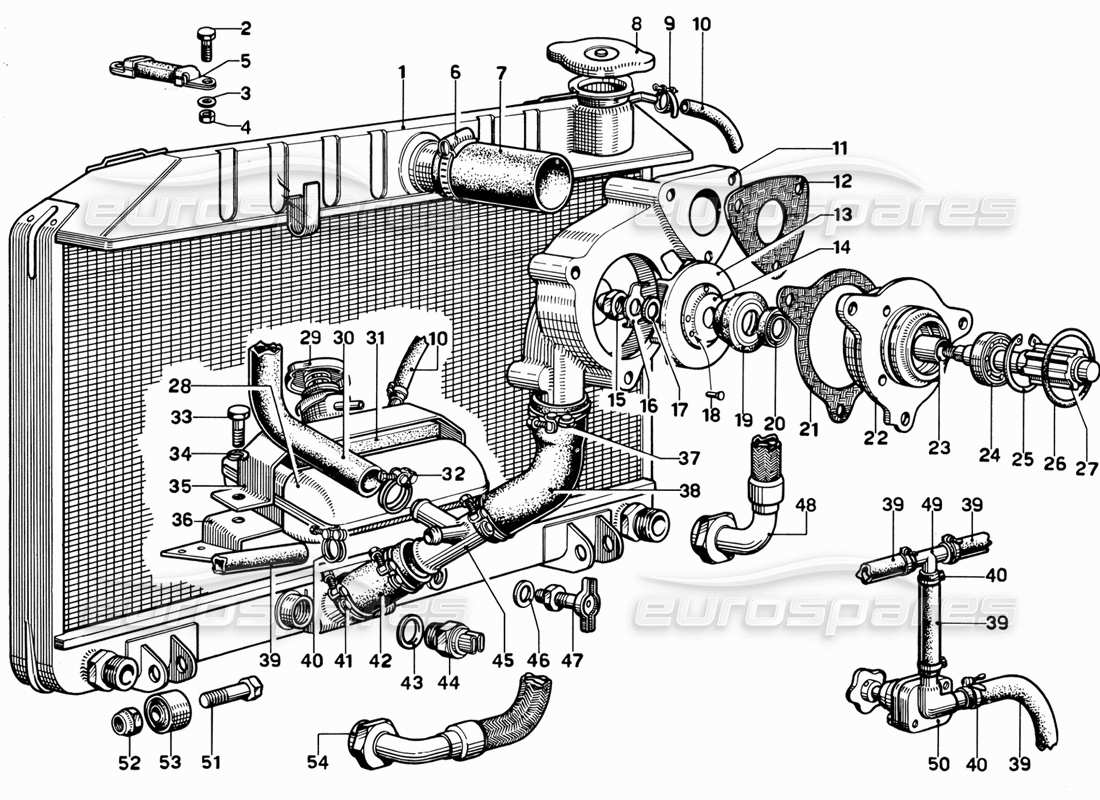

Ferrari 365 GT 2+2 (Mechanical) Radiator and Water Pump Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 800181
RADIATORE ACQUA
(1971 onwards)
# 001
MPN: 800245
RADIATORE ACQUA
(MK1)
from £5,460.00
from £5,460.00
# 002
MPN: 6x1x16 - UNI 5739
BOLT
# 003
MPN: REG - 6
WASHER
# 004
MPN: sxi-uNl 5588
NUT
# 005
MPN: 101497
EXHAUST STRAP
not as spare part - use part number: 101497
from £6.61
from £6.61
This part replaces part number 20180 - and 1 more. Click to view details
# 006
MPN: 95027
CLAMP 212/S 38X54
This part replaces part number 94103
# 007
MPN: 95053
RUBBER SLEEVE
from £40.91
from £40.91
This part replaces part number 95592
# 008
MPN: 101484
RADIATOR CAP
original FIM
from £21.94
from £21.94
# 009
MPN: 94938
RIBBON CLAMP
# 010
MPN: PRESS - 07 x 16 x 600
RUBBER HOSE FROM THE RADIATOR TO THE NOISE
# 011
MPN: 16745
CORPO POMPA ACQUA
Supersession
Supersession
# 012
MPN: 26615
GASKET
Use on Exhaustion of 26715
from £3.78
from £3.78
This part replaces part number 26715
# 012
MPN: 26715
GASKET
USE 26615
Supersession
Supersession
# 013
MPN: 26681
GIRANTE POMPA ACQUA
from £211.00
from £211.00
This part replaces part number 26733
# 014
MPN: 26702
SPACER FOR IMPELLER
from £62.22
from £62.22
# 015
MPN: 26701
IMPELLER ASSEMBLY
# 015
MPN: 92896
CAP NUT
Supersession
Supersession
# 016
MPN: 100434
PLATE
from £7.26
from £7.26
This part replaces part number 92361 - and 1 more. Click to view details
# 017
MPN: 93798
WASHER
Supersession
Supersession
# 018
MPN: R12
NAIL FOR SPACER
# 019
MPN: 95850601
WATER PUMP SEAL
from £76.15
from £76.15
# 020
MPN: 105548
SEAL
use on exhaustion of 1927/6
from £17.92
from £17.92
# 020
MPN: 1927/6
SEAL
USE 105548
# 021
MPN: 26617
GASKET
from £6.50
from £6.50
# 022
MPN: 26680
FLANGIA
from £389.87
from £389.87
# 023
MPN: 26683
SPACER
Supersession
Supersession
# 024
MPN: 95890204
CUSCINETTO A SFERE
from £51.34
from £51.34
This part replaces part number 93457
# 025
MPN: J37x1,5
SEEGER RING
# 026
MPN: 95860022
SEALING RING
(replaces: OR 156)
from £2.27
from £2.27
# 026
MPN: OR 156
SEALING RING
not as spare part - use part number: 95860022
# 027
MPN: 26682
PUMP SHAFT
from £449.77
from £449.77
# 028

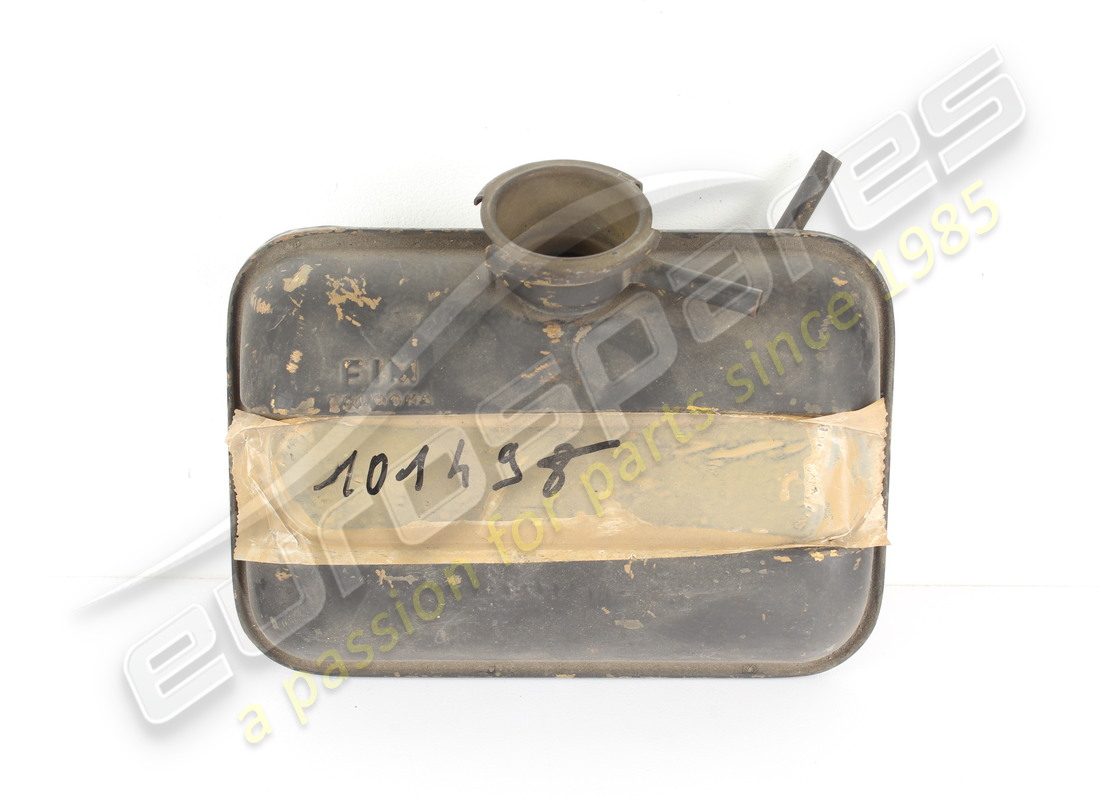

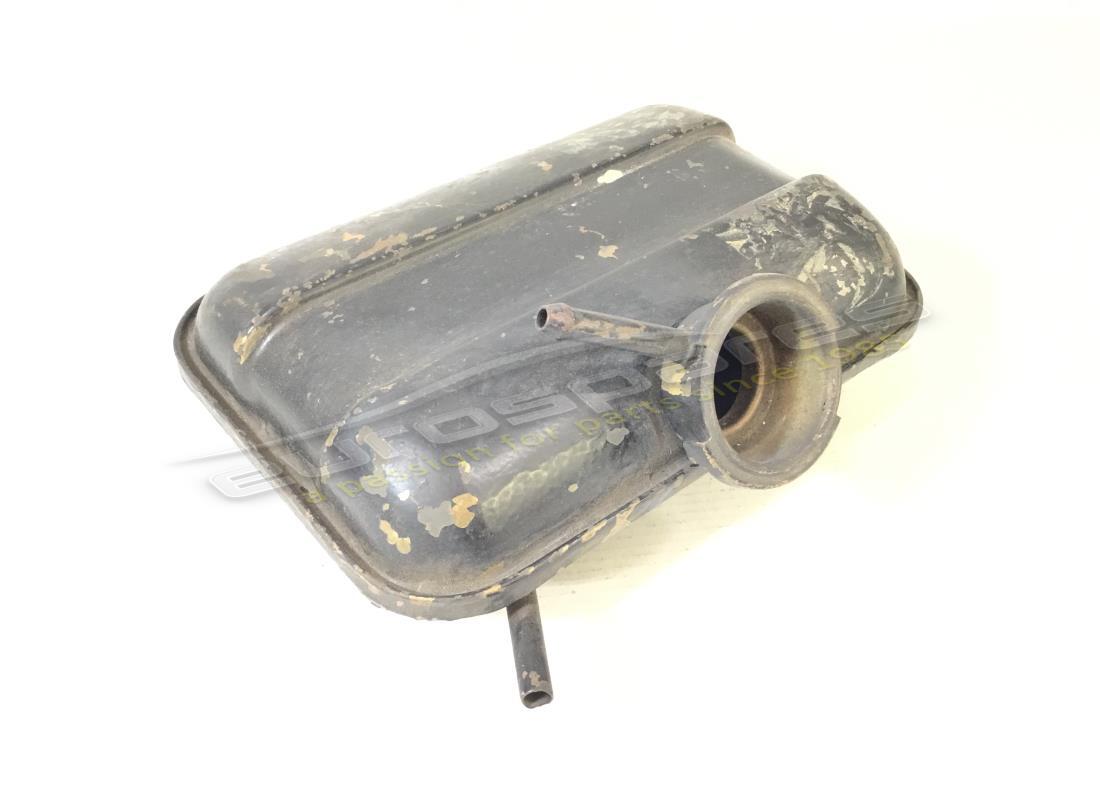

MPN: 101498
NOURICE PER RADIATORE
from £399.00
from £399.00
# 029

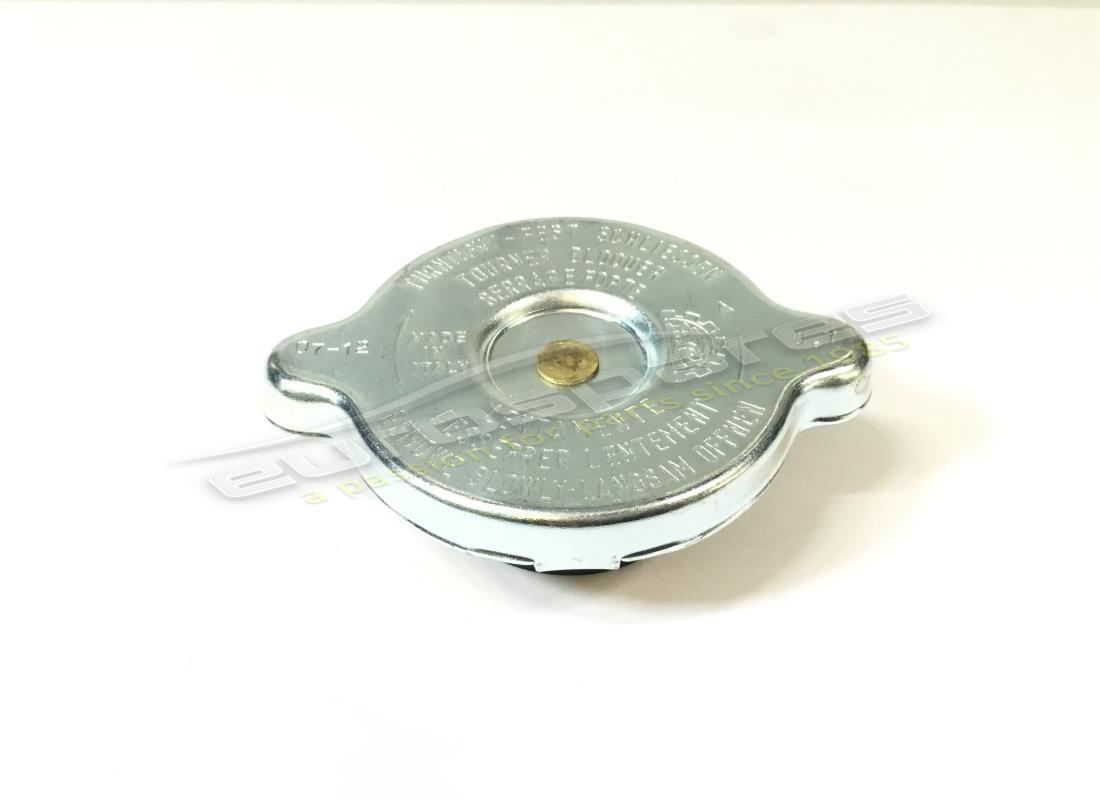

MPN: 101499/A
RADIATOR PRESSURE CAP
Round Radiator cap (0.7 BAR)
from £10.14
from £10.14
This part replaces part number 101499 - and 1 more. Click to view details
# 029

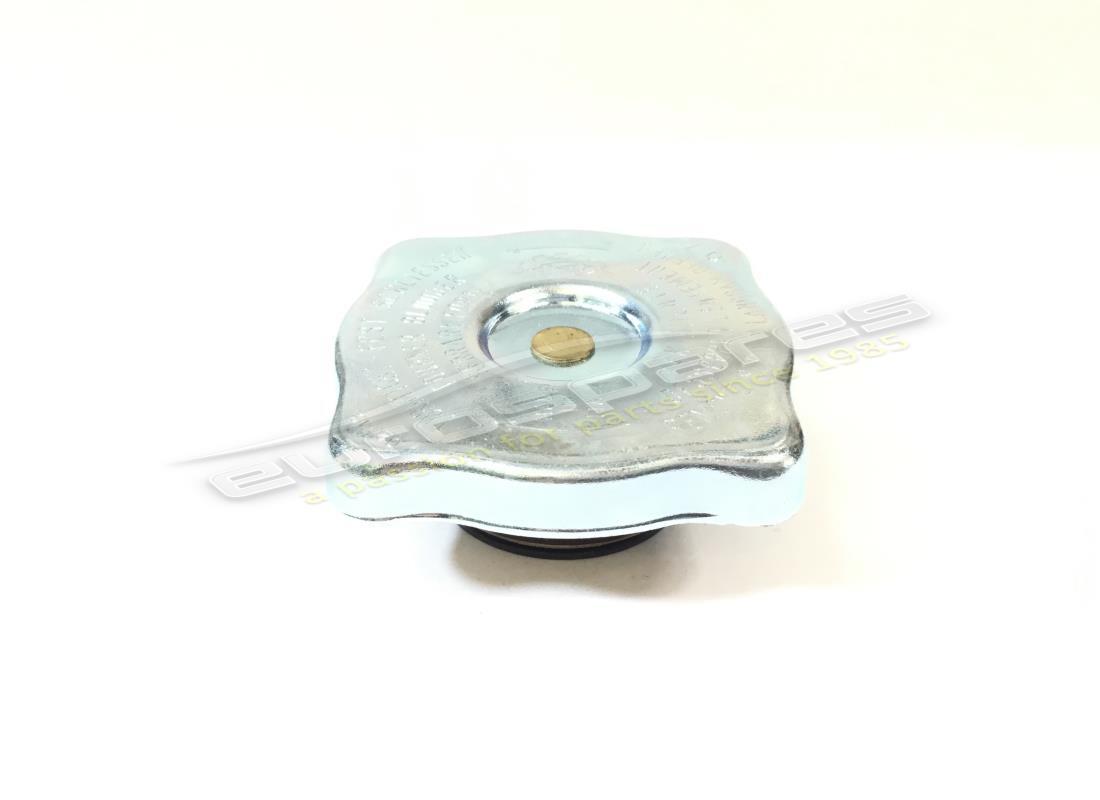

MPN: 101499/B
RADIATOR PRESSURE CAP
Square Radiator cap (0.7 BAR)
from £8.93
from £8.93
# 030
MPN: 26694
TUBO PER BY-PASS
Supersession
Supersession
This part replaces part number 26752
# 031
MPN: 252.733/D
SOFT RUBBER
# 032
MPN: TWO C-25-26
JUBILEE CLIP
# 033
MPN: 8x30-UNI-5740
BOLT
# 034
MPN: REG. 8
WASHER
Supersession
Supersession
# 035
MPN: 252733/C
BRACKET / SUPPORT
from £52.25
from £52.25
# 036
MPN: 800138
BRACKET / SUPPORT
from £54.65
from £54.65
# 037
MPN: TIPO C.-45-47
JUBILEE CLIP
# 038
MPN: 26693
WATER INLET HOSE
from £87.42
from £87.42
# 039
MPN: SAFTA - CALOR - 12 x 20 x 1000
RUBBER TUBE FOR CHIN WARMING
# 040
MPN: TWO 19-20
JUBILEE CLIP
# 041
MPN: TWO C-39-41
JUBILEE CLIP
# 042
MPN: 95053
WATER OUTLET SLEEVE
from £40.91
from £40.91
This part replaces part number 95592
# 043
MPN: 101508
GASKET
from £0.61
from £0.61
This part replaces part number 94706
# 044

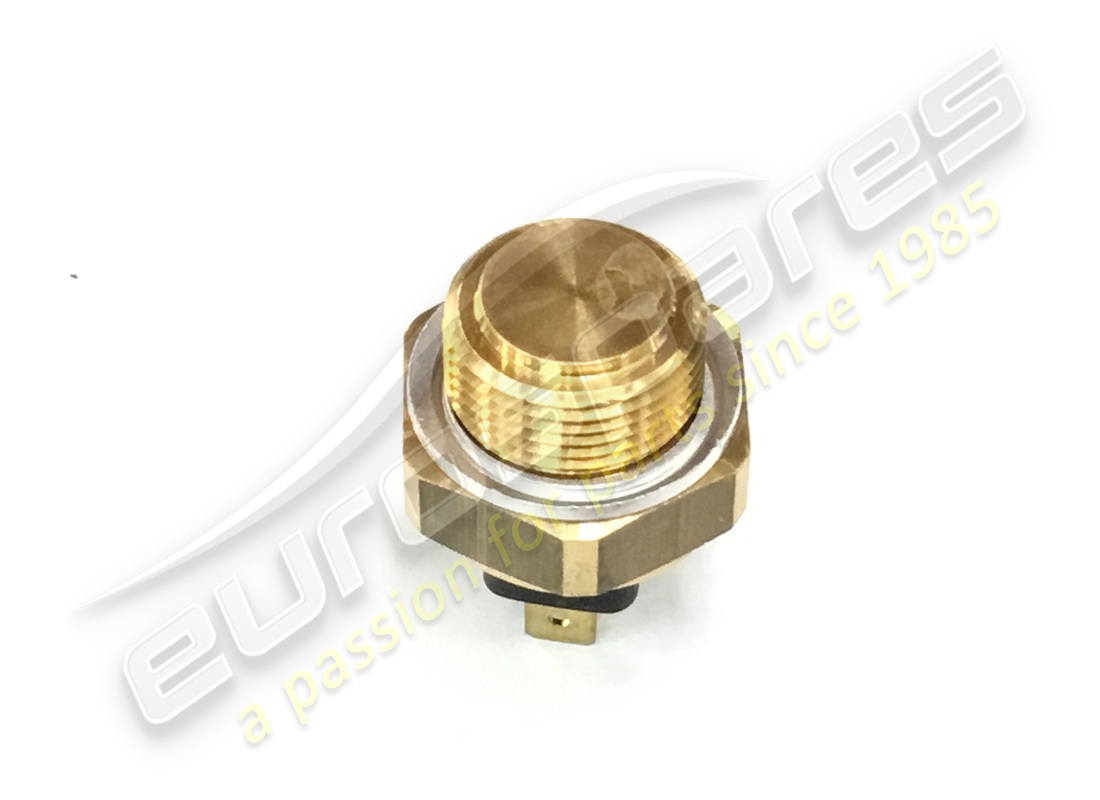

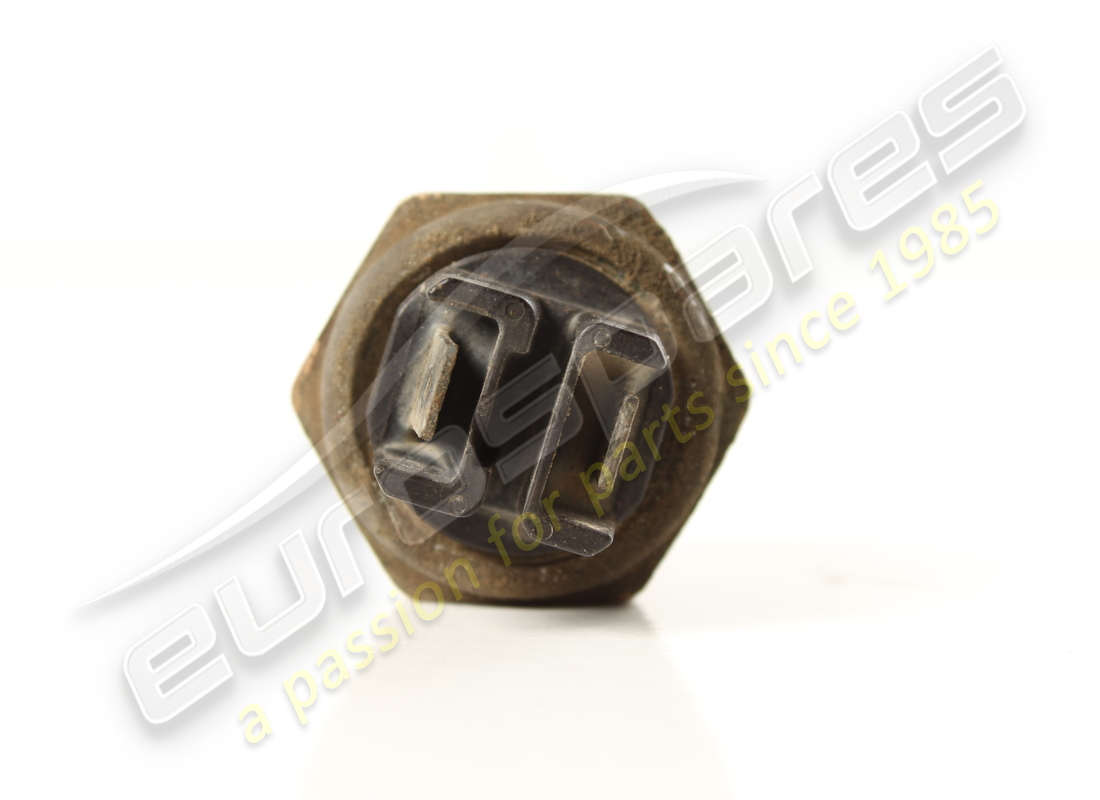

MPN: 168008
TERMOCONTATTO 84°/75°
from £28.44
from £28.44
This part replaces part number 101507 - and 1 more. Click to view details
# 045
MPN: 26692
SEAT WITH FITTINGS
from £71.01
from £71.01
# 046
MPN: 101484
RADIATOR CAP
FIM
from £21.94
from £21.94
# 047
MPN: 101484
RADIATOR CAP
FIM
from £21.94
from £21.94
# 048
MPN: 9240265
PIPE FROM THE EXCHANGER TO THE OIL FILTER
(LHD only)
from £341.82
from £341.82
# 048
MPN: 9240265/RHD
PIPE FROM THE EXCHANGER TO THE OIL FILTER
(RHD only)
from £263.54
from £263.54
# 049
MPN: 680025
UNION 3-WAY
Supersession
Supersession
# 050

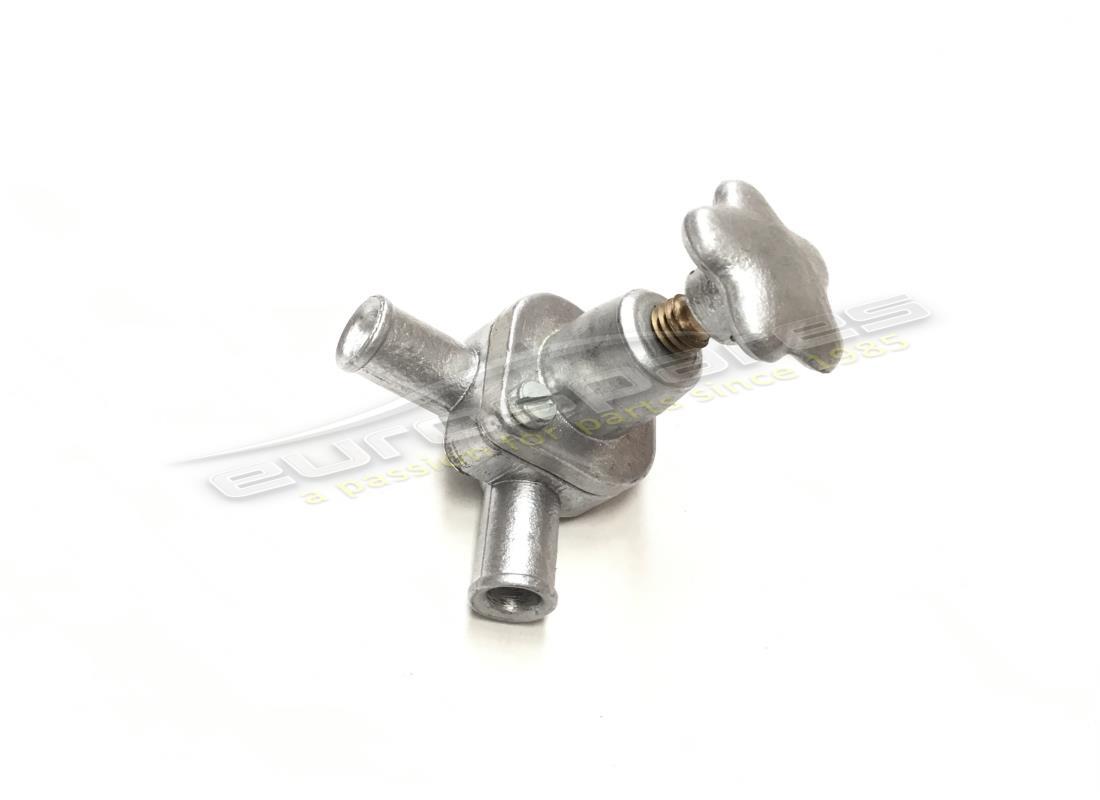

MPN: 100880
AUXILIARY TAP FOR HEATING
from £121.22
from £121.22
This part replaces part number 400112
# 051
MPN: iaxso UNI-5738
BOLT
# 052
MPN: 95900611
NUT
Supersession
Supersession
# 053

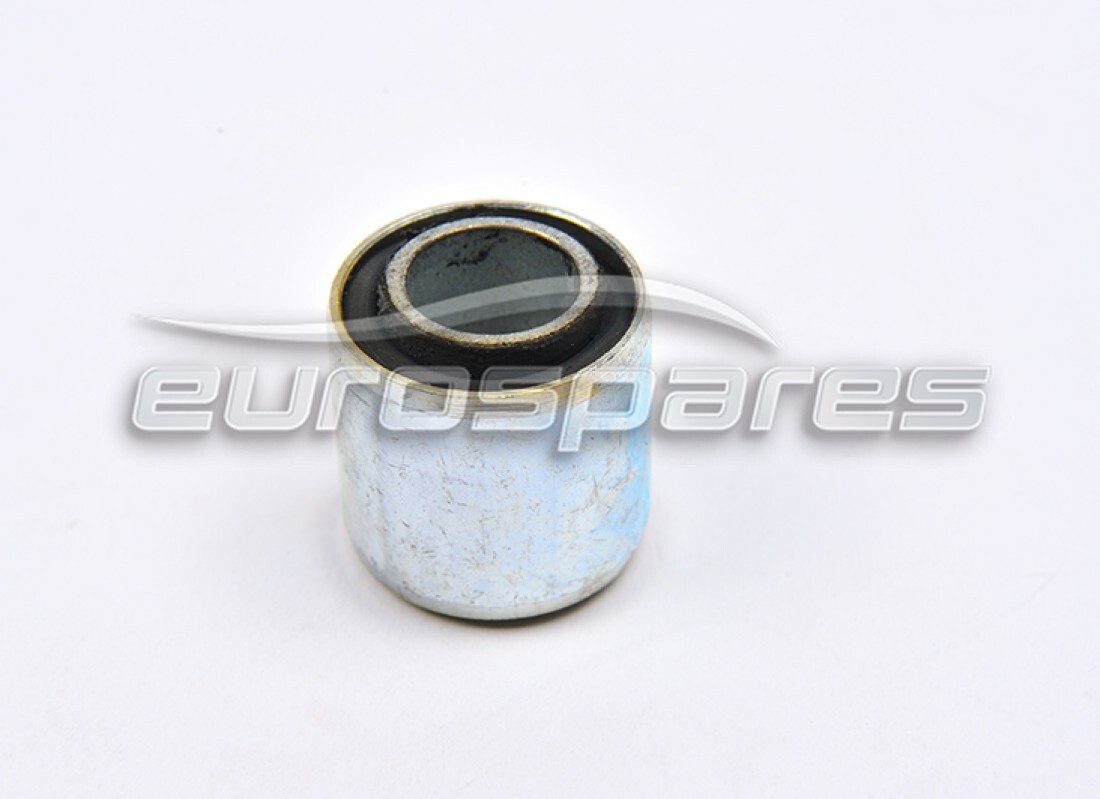

MPN: 94678
SILENTBLOC
from £18.18
from £18.18
# 054
MPN: 800193
TARGHETTA AUTOADESIVA << CON VALVOLA TERMOSTATI >>
# 054
MPN: 800194
TARGHETTA AUTOADESIVA « SENZA VALVOLA TERMOSTATICA »
# 054
MPN: 9240368
OIL PIPE ASSEMBLY FROM ENGINE TO EXCHANGER
from £558.12
from £558.12
