030 - Front Wheel Suspension - Upper Arms

Ferrari 365 GT 2+2 (Mechanical) Front Wheel Suspension - Upper Arms Parts Diagram

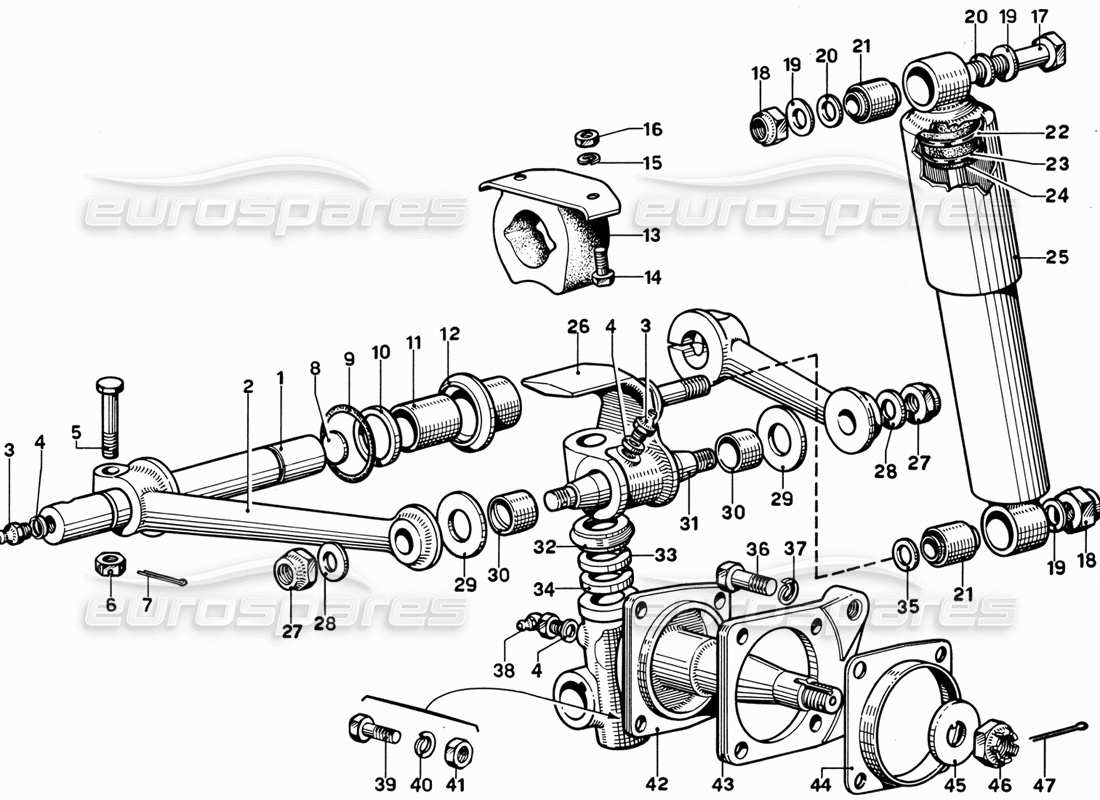

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                          #
                                                                                          Part number
                                                                                          Description
                                                                                          Price
                                                                                          # 001
                                                                                          MPN: 64836
                                                                                          PIVOT
                                                                                          from £276.79
                                                                                          from £276.79
                                                                                          # 002
                                                                                          MPN: 64831
                                                                                          LEVER
                                                                                          from £545.66
                                                                                          from £545.66
                                                                                          # 003
                                                                                          MPN: 8x1 FIG 32
                                                                                          GREASER
                                                                                          # 004
                                                                                          MPN: 94076
                                                                                          WASHER
                                                                                          from £0.75
                                                                                          from £0.75
                                                                                          # 005
                                                                                          MPN: 94438
                                                                                          BOLT
                                                                                          from £39.22
                                                                                          from £39.22
                                                                                          # 006
                                                                                          MPN: 94439
                                                                                          NUT
                                                                                          from £17.20
                                                                                          from £17.20
                                                                                          # 007
                                                                                          MPN: C1
                                                                                          SPLIT PIN
                                                                                          Supersession
                                                                                          Supersession
                                                                                          # 009
                                                                                          MPN: 95860201
                                                                                          SEAL
                                                                                          from £4.12
                                                                                          from £4.12
                                                                                          # 010
                                                                                          MPN: 64841
                                                                                          WASHER
                                                                                          not as spare part - use part number: 64841/1 or 64841/2 or 64841/3
                                                                                          # 010
                                                                                          MPN: 64841/1
                                                                                          WASHER
                                                                                          (2.70mm)
                                                                                          from £71.09
                                                                                          from £71.09
                                                                                          # 010
                                                                                          MPN: 64841/2
                                                                                          WASHER
                                                                                          (2.85mm)
                                                                                          from £71.09
                                                                                          from £71.09
                                                                                          # 010
                                                                                          MPN: 64841/3
                                                                                          WASHER
                                                                                          (3.00mm)
                                                                                          from £71.09
                                                                                          from £71.09
                                                                                          # 011
                                                                                          MPN: 64838
                                                                                          BUSH FOR PINS
                                                                                          from £98.66
                                                                                          from £98.66
                                                                                          # 012
                                                                                          MPN: 64827
                                                                                          BUSSOLA DI ESTREMITA
                                                                                          from £74.94
                                                                                          from £74.94
                                                                                          # 013
                                                                                          MPN: 61429
                                                                                          TAMPONE ARRESTO SCUOTIMENTO SUPERIORE
                                                                                          from £155.02
                                                                                          from £155.02
                                                                                          # 014
                                                                                          MPN: 8X16-UNI 5739
                                                                                          BOLT
                                                                                          # 016
                                                                                          MPN: 8x1.25 UNI 5588
                                                                                          NUT
                                                                                          # 017
                                                                                          MPN: 14 x 65 UNI 5738
                                                                                          BOLT
                                                                                          # 019
                                                                                          MPN: 94784
                                                                                          WASHER
                                                                                          from £10.37
                                                                                          from £10.37
                                                                                          # 021
                                                                                          MPN: 94678
                                                                                          SILENTBLOC RIV-88.110.441
                                                                                          from £17.94
                                                                                          from £17.94
                                                                                          # 022
                                                                                          MPN: 4125
                                                                                          SEAL
                                                                                          Supersession
                                                                                          Supersession
                                                                                          # 023
                                                                                          MPN: 101043
                                                                                          RING
                                                                                          (replaces: OR 4106)
                                                                                          from £1.04
                                                                                          from £1.04
                                                                                          This part replaces part number 4106
                                                                                          # 023
                                                                                          MPN: 101043
                                                                                          RING
                                                                                          from £1.04
                                                                                          from £1.04
                                                                                          This part replaces part number 4106
                                                                                          # 024
                                                                                          MPN: 65185
                                                                                          TAMPONE FINE CORSA
                                                                                          from £14.75
                                                                                          from £14.75
                                                                                          # 025
                                                                                          MPN: 640876
                                                                                          FRONT SHOCK KONI
                                                                                          from £961.05
                                                                                          from £961.05
                                                                                          # 026
                                                                                          MPN: 65203
                                                                                          L. BUFFER SUPPORT NODE.
                                                                                          from £2,987.15
                                                                                          from £2,987.15
                                                                                          # 026
                                                                                          MPN: 65204
                                                                                          R. BUFFER SUPPORT NODE.
                                                                                          from £2,527.92
                                                                                          from £2,527.92
                                                                                          # 027
                                                                                          MPN: STOP-16x1,5x12
                                                                                          NUT
                                                                                          # 029
                                                                                          MPN: 64598
                                                                                          WASHER
                                                                                          not as spare part - use part number: 64598/1 > 64598/10
                                                                                          # 029
                                                                                          MPN: 64598/1
                                                                                          WASHER
                                                                                          (2.75mm)
                                                                                          from £65.58
                                                                                          from £65.58
                                                                                          # 029
                                                                                          MPN: 64598/10
                                                                                          WASHER
                                                                                          (3.85mm)
                                                                                          from £68.86
                                                                                          from £68.86
                                                                                          # 029
                                                                                          MPN: 64598/2
                                                                                          WASHER
                                                                                          (2.85mm)
                                                                                          from £68.86
                                                                                          from £68.86
                                                                                          # 029
                                                                                          MPN: 64598/3
                                                                                          WASHER
                                                                                          (3.05mm)
                                                                                          from £68.86
                                                                                          from £68.86
                                                                                          # 029
                                                                                          MPN: 64598/4
                                                                                          WASHER
                                                                                          (3.15mm)
                                                                                          from £68.86
                                                                                          from £68.86
                                                                                          # 029
                                                                                          MPN: 64598/5
                                                                                          WASHER
                                                                                          (3.35mm)
                                                                                          from £68.86
                                                                                          from £68.86
                                                                                          # 029
                                                                                          MPN: 64598/6
                                                                                          WASHER
                                                                                          (3.45mm)
                                                                                          from £68.86
                                                                                          from £68.86
                                                                                          # 029
                                                                                          MPN: 64598/7
                                                                                          WASHER
                                                                                          (3.55mm)
                                                                                          from £65.58
                                                                                          from £65.58
                                                                                          # 029
                                                                                          MPN: 64598/8
                                                                                          WASHER
                                                                                          (3.65mm)
                                                                                          from £68.86
                                                                                          from £68.86
                                                                                          # 029
                                                                                          MPN: 64598/9
                                                                                          WASHER
                                                                                          (3.75mm)
                                                                                          from £68.86
                                                                                          from £68.86
                                                                                          # 030
                                                                                          MPN: 65143
                                                                                          BUSH FOR TAPERED PINS
                                                                                          from £40.92
                                                                                          from £40.92
                                                                                          # 031
                                                                                          MPN: 640788
                                                                                          PIVOT
                                                                                          from £202.48
                                                                                          from £202.48
                                                                                          This part replaces part number 64537
                                                                                          # 032
                                                                                          MPN: 64220
                                                                                          SCODELLINO PER RALLE
                                                                                          from £60.05
                                                                                          from £60.05
                                                                                          # 033
                                                                                          MPN: 64548
                                                                                          RALLA SUPERIORE
                                                                                          from £51.45
                                                                                          from £51.45
                                                                                          # 034
                                                                                          MPN: 64549
                                                                                          RALLA INFERIORE
                                                                                          from £57.21
                                                                                          from £57.21
                                                                                          # 035
                                                                                          MPN: 94978
                                                                                          WASHER
                                                                                          from £0.47
                                                                                          from £0.47
                                                                                          # 036
                                                                                          MPN: 95121
                                                                                          BOLT
                                                                                          from £5.80
                                                                                          from £5.80
                                                                                          # 037
                                                                                          MPN: REG 7/16
                                                                                          WASHER
                                                                                          # 038
                                                                                          MPN: TIPO B-8x1 F 36
                                                                                          ANGLE GREASE GREASE
                                                                                          # 039
                                                                                          MPN: 94799
                                                                                          BOLT
                                                                                          from £4.61
                                                                                          from £4.61
                                                                                          # 040
                                                                                          MPN: REG. 10
                                                                                          WASHER
                                                                                          # 041
                                                                                          MPN: 10x1,5 UNI-5588
                                                                                          NUT
                                                                                          # 042
                                                                                          MPN: 640833
                                                                                          LEFT AND RIGHT KNEE
                                                                                          from £586.10
                                                                                          from £586.10
                                                                                          # 043
                                                                                          MPN: 680409

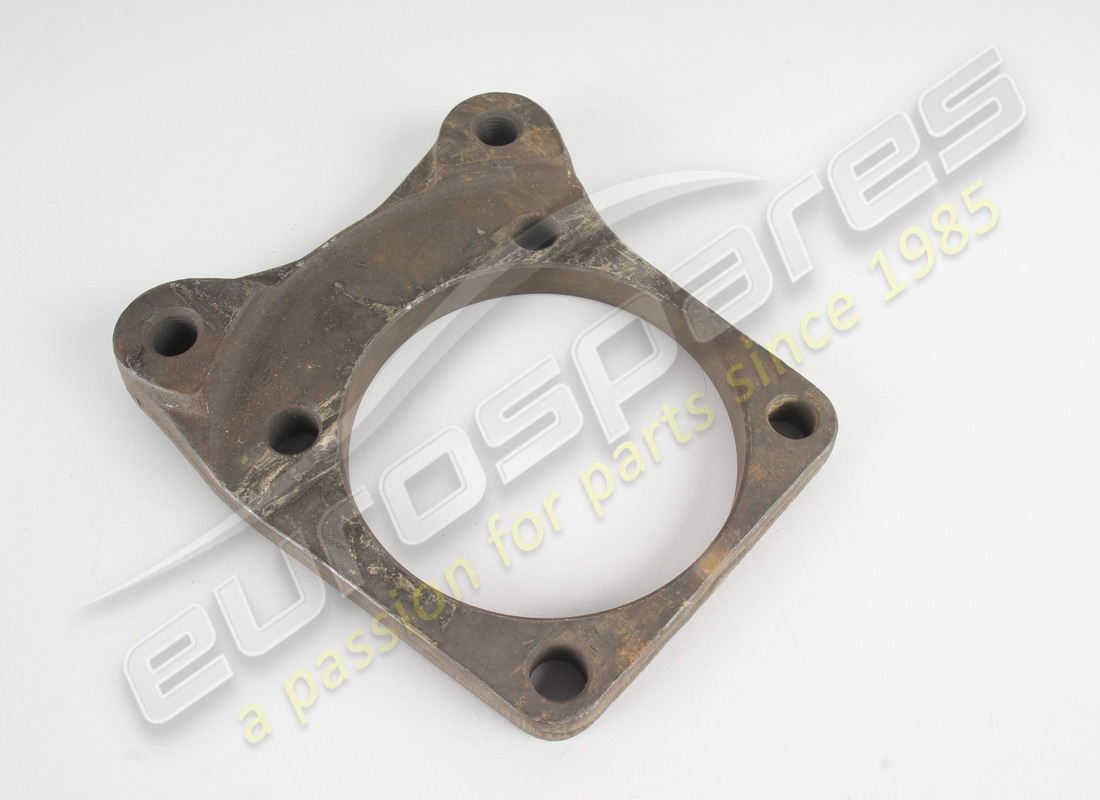

                                                                                          FLANGIA PORTA CALIPER
                                                                                          from £100.80
                                                                                          from £100.80
                                                                                          # 044
                                                                                          MPN: 680410
                                                                                          GUSCIO PARAPOLVERE
                                                                                          from £17.63
                                                                                          from £17.63
                                                                                          # 045
                                                                                          MPN: 640349
                                                                                          WASHER
                                                                                          Supersession
                                                                                          Supersession
                                                                                          # 046
                                                                                          MPN: 92429
                                                                                          NUT
                                                                                          from £35.94
                                                                                          from £35.94
                                                                                          This part replaces part number 10724621
                                                                                          # 046
                                                                                          MPN: 92431
                                                                                          NUT
                                                                                          from £26.15
                                                                                          from £26.15
                                                                                          This part replaces part number 11638021
                                                                                          # 047
                                                                                          MPN: C1
                                                                                          SPLIT PIN
                                                                                          Supersession
                                                                                          Supersession
