Ferrari 365 GT 2+2 (Mechanical) Lay Shaft Parts Diagram

020 - Lay Shaft

Ferrari 365 GT 2+2 (Mechanical) Lay Shaft Parts Diagram

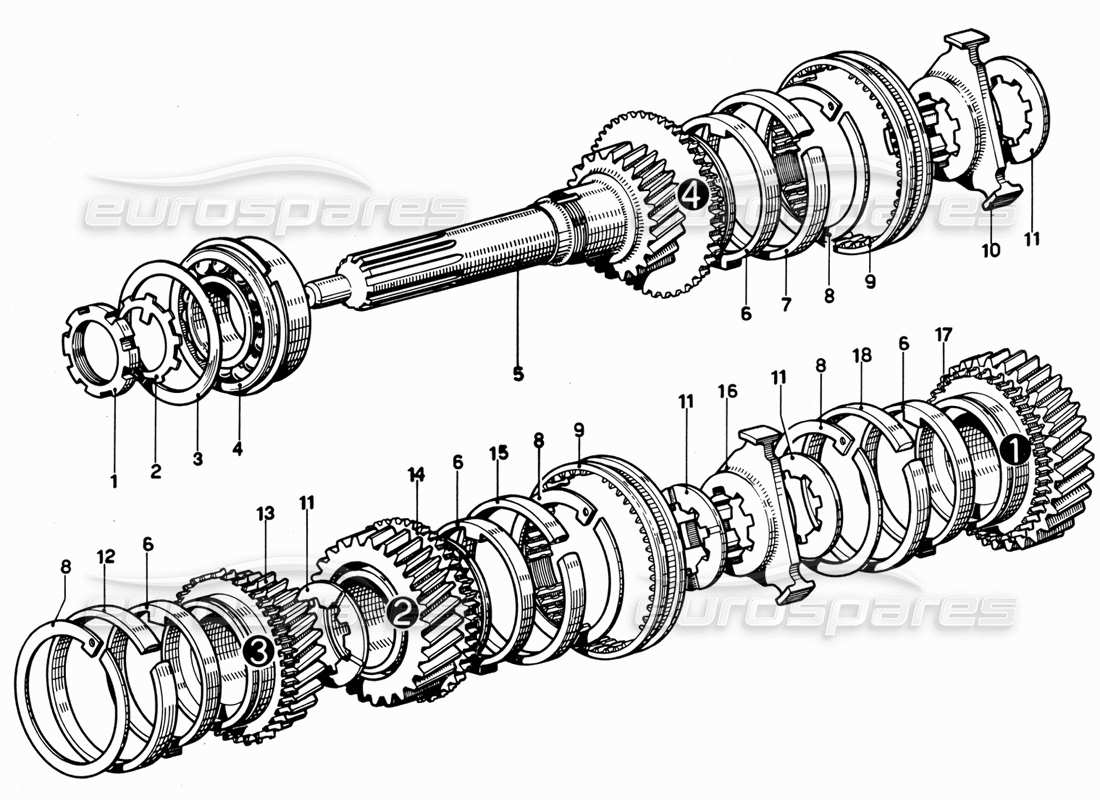

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                  #
                                  Part number
                                  Description
                                  Price
                                  # 001
                                  MPN: 93330
                                  BEARING NUT .
                                  from £86.69
                                  from £86.69
                                  # 002
                                  MPN: 93747
                                  WASHER
                                  from £31.08
                                  from £31.08
                                  # 003
                                  MPN: 522666
                                  SPACER FOR FLANGE
                                  from £21.64
                                  from £21.64
                                  # 004
                                  MPN: 10-16-07
                                  BEARING FOR INDEX SHAFT
                                  from £1,578.12
                                  from £1,578.12
                                  This part replaces part number 94874 - and 1 more. Click to view details
                                  # 005
                                  MPN: 520802
                                  RETURN SHAFT
                                  from £1,185.34
                                  from £1,185.34
                                  # 006
                                  MPN: 53515
                                  RING
                                  from £439.02
                                  from £439.02
                                  # 007
                                  MPN: 521767
                                  RING
                                  93.5 mm
                                  from £299.67
                                  from £299.67
                                  # 008
                                  MPN: 53514
                                  RING
                                  from £85.61
                                  from £85.61
                                  # 009
                                  MPN: 522047
                                  MANICOTTO DI COMANDO 3 E 4 VELOCITÀ
                                  from £662.80
                                  from £662.80
                                  This part replaces part number 53511
                                  # 010
                                  MPN: 521494
                                  NUCLEO DI GUIDA 3 E 4 VELOCITÀ
                                  from £223.91
                                  from £223.91
                                  # 011
                                  MPN: 521257
                                  DISTANZIALE PER 1 2 3 VELOCITÀ
                                  from £17.97
                                  from £17.97
                                  # 012
                                  MPN: 521769
                                  RING
                                  from £463.46
                                  from £463.46
                                  This part replaces part number 53512
                                  # 013
                                  MPN: 522686
                                  ASSIEME INGRANAGGIO 3 VELOCITÀ
                                  from £341.04
                                  from £341.04
                                  # 014
                                  MPN: 521333
                                  ASSIEME INGRANAGGIO 2 VELOCITÀ
                                  from £635.02
                                  from £635.02
                                  # 015
                                  MPN: 521768
                                  RING
                                  Supersession
                                  Supersession
                                  # 016
                                  MPN: 521306
                                  NUCLEO DI GUIDA 1 2 CITÀVELO
                                  from £484.84
                                  from £484.84
                                  # 017
                                  MPN: 521332
                                  1ST GEAR
                                  365 GT 2+2 MK1 up to 12810
                                  from £1,044.75
                                  from £1,044.75
                                  # 018
                                  MPN: 521767
                                  RING
                                  93.5 mm
                                  from £299.67
                                  from £299.67
                                  # 019
                                  MPN: 522844
                                  MANICOTTO DI COMANDO PER 1 VELOCITÀ
                                  Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
