012 - Timing (Accessories)

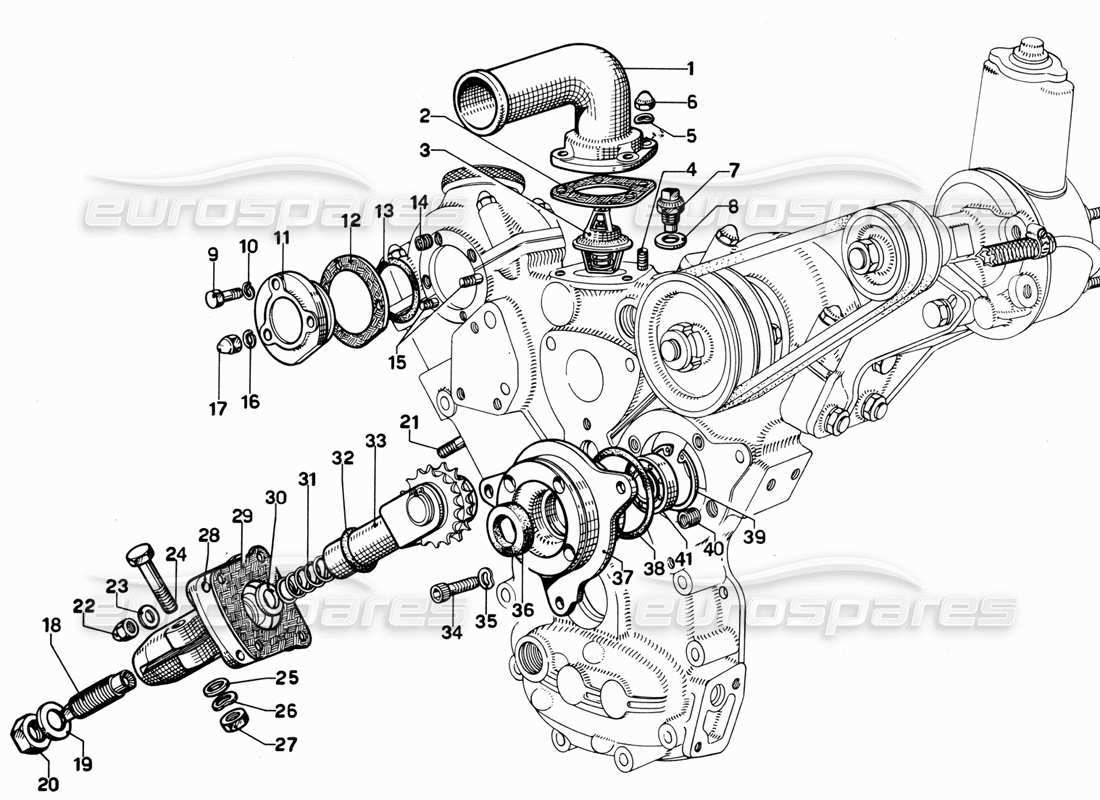

Ferrari 365 GT 2+2 (Mechanical) Timing (Accessories) Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 9220037
UNION
from £90.95
from £90.95
# 002
MPN: 22765
GASKET
from £3.58
from £3.58
# 003
MPN: 95400600
TERMOSTATO (APERTURA A 79°C)
Supersession
Supersession
This part replaces part number 4138769 - and 1 more. Click to view details
# 004
MPN: 95920110
THREADED STUD
from £1.31
from £1.31
# 005
MPN: REO6
STUD
Supersession
Supersession
# 006
MPN: 101239
NUT
from £1.60
from £1.60
# 007
MPN: 100453
OIL THERMISTOR
from £13.95
from £13.95
This part replaces part number 100345 - and 1 more. Click to view details
# 008
MPN: 10257060
GASKET
from £0.47
from £0.47
This part replaces part number 10253060 - and 2 more. Click to view details
# 009
MPN: 6x16-UNI-5739
BOLT
# 010
MPN: REO6
STUD
Supersession
Supersession
# 011
MPN: 220029
COVER
from £19.82
from £19.82
# 012
MPN: 9220036
GASKET
from £5.07
from £5.07
# 013
MPN: 95860076
O RING
from £2.35
from £2.35
# 014
MPN: 6 X 100 X 9
BUSH
# 015
MPN: 95920110
STUD
from £1.31
from £1.31
# 016
MPN: REO6
STUD
Supersession
Supersession
# 017
MPN: 101239
NUT
from £1.60
from £1.60
# 018
MPN: 220066
CHAIN TENSIONER ASSEMBLY
from £83.19
from £83.19
# 018
MPN: 22489
THREADED PIVOT
# 019
MPN: 94179
WASHER
# 020
MPN: 1 D 16-UNI 210
NUT
# 021
MPN: P 5
THREADED STUD
# 022
MPN: 101239
NUT
from £1.60
from £1.60
# 023
MPN: REO6
WASHER
Supersession
Supersession
# 024
MPN: 10x45-UNI-5738
BOLT
# 025
MPN: 10 R 2
WASHER
# 026
MPN: REG. 10
WASHER
# 027
MPN: 2 D 10-UNI-5588
NUT
# 028
MPN: 22488
SUPPORT
from £581.45
from £581.45
# 029
MPN: 220290
GASKET
from £5.46
from £5.46
This part replaces part number 22156
# 030
MPN: 22145
WASHER
from £3.86
from £3.86
# 031
MPN: 104565
SPRING
from £24.21
from £24.21
# 032
MPN: 4125
SEALING RING
Supersession
Supersession
# 033
MPN: 22989
CORPO TENDITORE
# 034
MPN: VTCE-625 A
SCREW
# 035
MPN: 95930508
WASHER
# 036
MPN: 105548
SEALING RING
use on exhaustion of 1927/6
from £17.92
from £17.92
# 036
MPN: 1927/6
SEALING RING
USE 105548
# 037
MPN: 26680
FLANGE ON THE DISTRIBUTION
from £389.87
from £389.87
# 038
MPN: 95860022
SEALING RING
(replaces: OR 156)
from £2.27
from £2.27
# 038
MPN: OR 156
SEALING RING
not as spare part - use part number: 95860022
# 039
MPN: J37x1,5
SEEGER RING
# 040
MPN: 6 x 100 x 12
BUSHINGS FOR WATER PUMP
# 041
MPN: 95890204
CUSCINETTO A SFERE
Use on Exhaustion of 93457
from £51.34
from £51.34
This part replaces part number 93457
# 041
MPN: 95890204
CUSCINETTO A SFERE
from £51.34
from £51.34
This part replaces part number 93457
