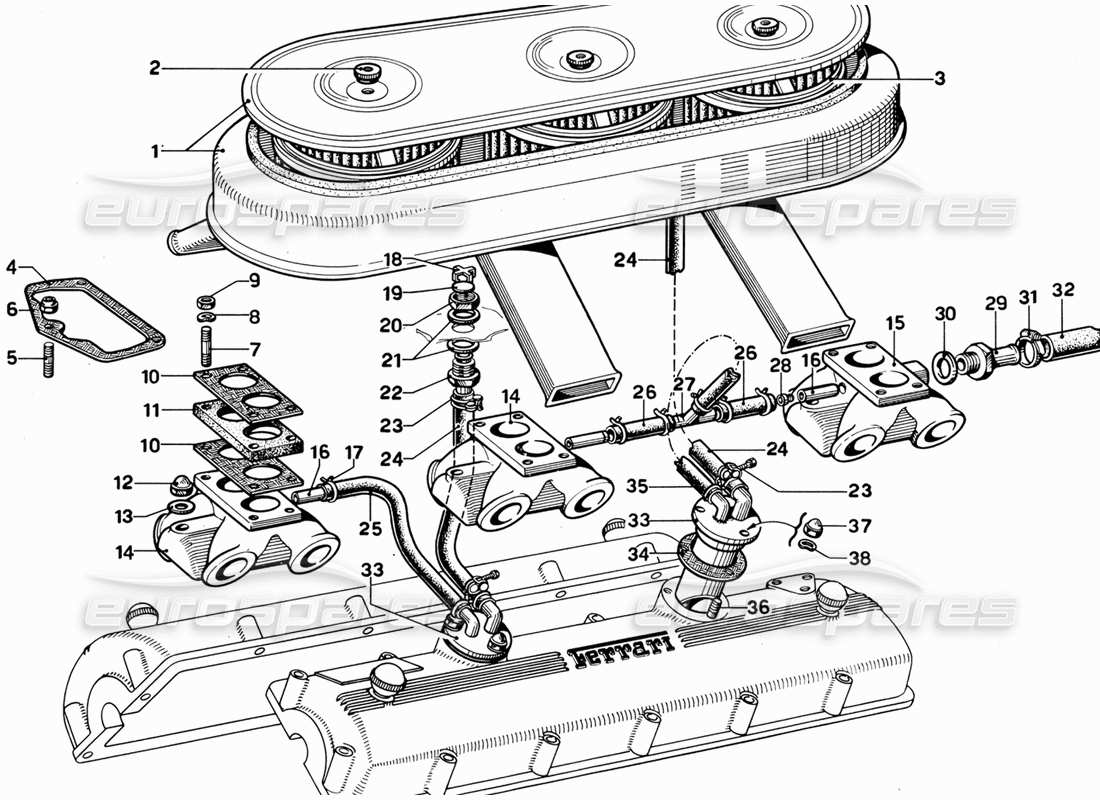

ferrari 365 gt 2+2 (mechanical) air inlet with blow-by parts diagram

007 - air inlet with blow-by

Ferrari 365 GT 2+2 (Mechanical) Air Inlet With Blow-By Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                            #
                                                                            Part number
                                                                            Description
                                                                            Price

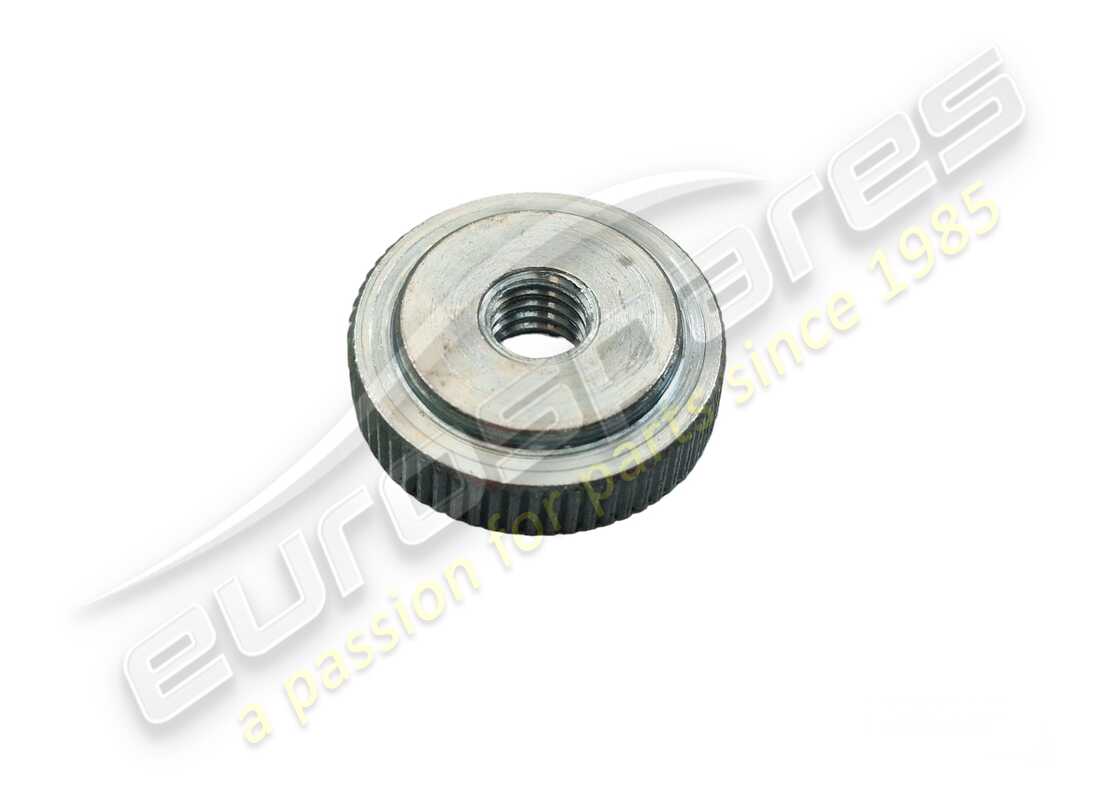

                                                                            # 002
                                                                            MPN: 104550
                                                                            AIR BOX KNURLED NUT
                                                                            from £6.28
                                                                            from £6.28
                                                                            This part replaces part number 95100135 - and 1 more. Click to view details

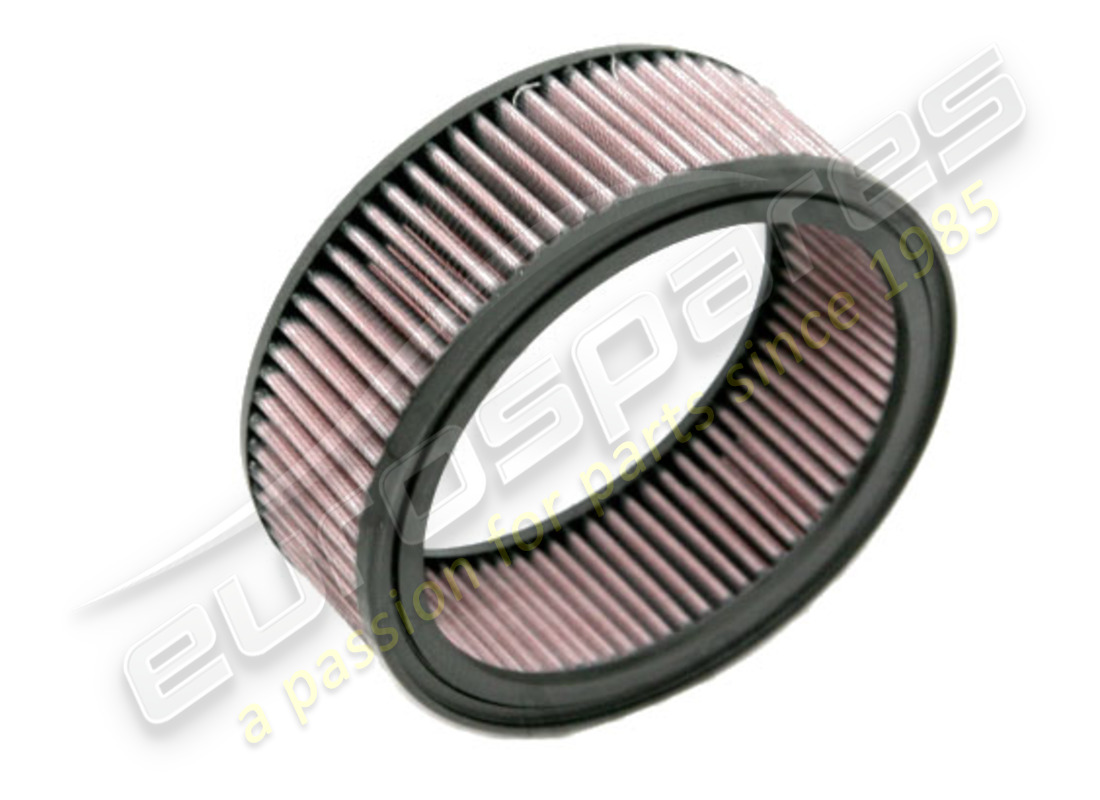

                                                                            # 003
                                                                            MPN: 95180054
                                                                            AIR FILTER
                                                                            Width: 195mm, Thickness: 16mm, Height: 73mm. (for 55mm height use: 95180052/A | For 70mm height use 95180052)
                                                                            from £43.06
                                                                            from £43.06

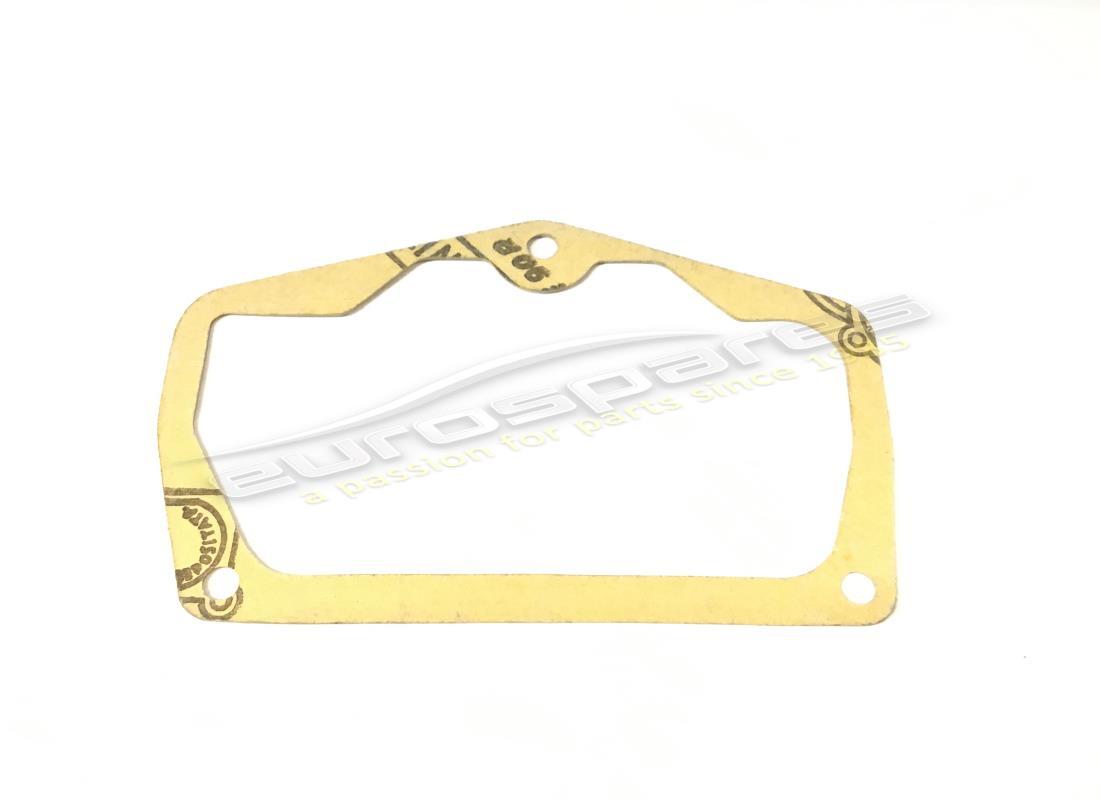

                                                                            # 004
                                                                            MPN: 19554
                                                                            GASKET
                                                                            from £3.32
                                                                            from £3.32
                                                                            # 005
                                                                            MPN: 64955.002
                                                                            STUD
                                                                            from £6.45
                                                                            from £6.45
                                                                            This part replaces part number 64955.003
                                                                            # 007
                                                                            MPN: P 2
                                                                            THREADED STUD
                                                                            Supersession
                                                                            Supersession
                                                                            # 008
                                                                            MPN: REO - 8
                                                                            WASHER
                                                                            Supersession
                                                                            Supersession
                                                                            # 009
                                                                            MPN: 8x1-UNI - 5588 I
                                                                            NUT
                                                                            # 010
                                                                            MPN: 18846
                                                                            GASKET
                                                                            from £3.48
                                                                            from £3.48
                                                                            This part replaces part number 19167
                                                                            # 011
                                                                            MPN: 19166
                                                                            SPACER
                                                                            from £71.34
                                                                            from £71.34
                                                                            # 012
                                                                            MPN: 110MB
                                                                            NUT
                                                                            Supersession
                                                                            Supersession
                                                                            # 013
                                                                            MPN: REO-10
                                                                            WASHER

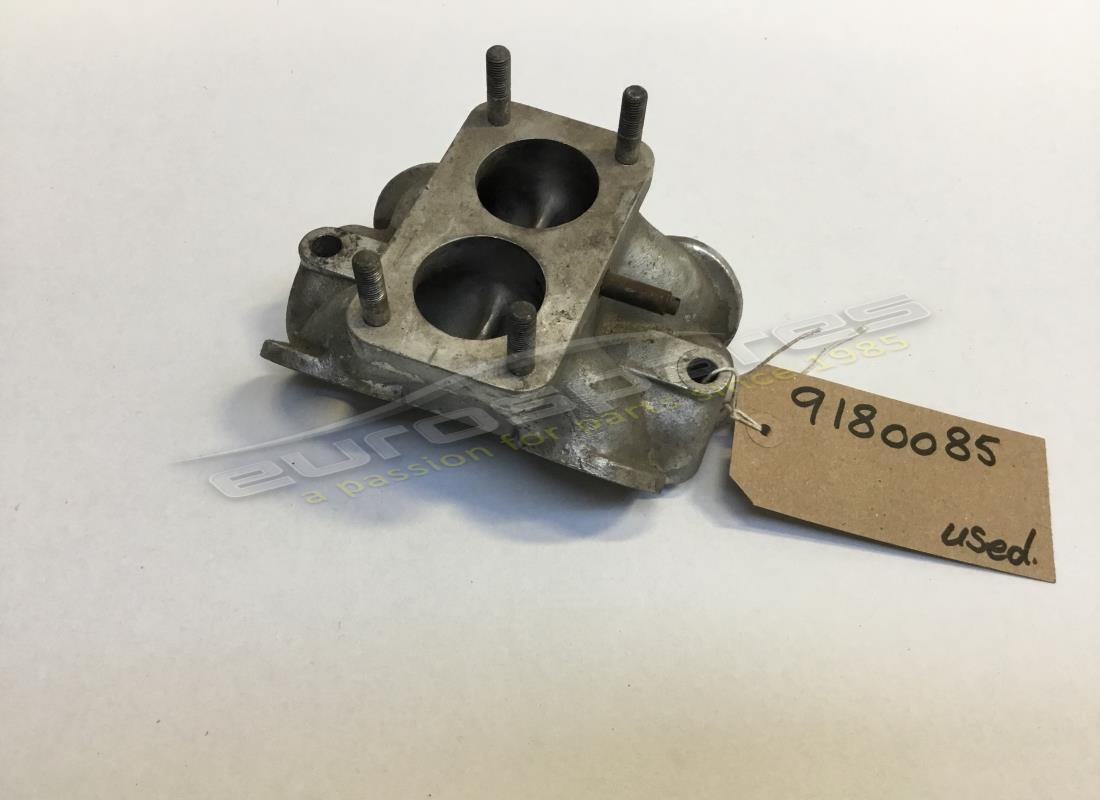

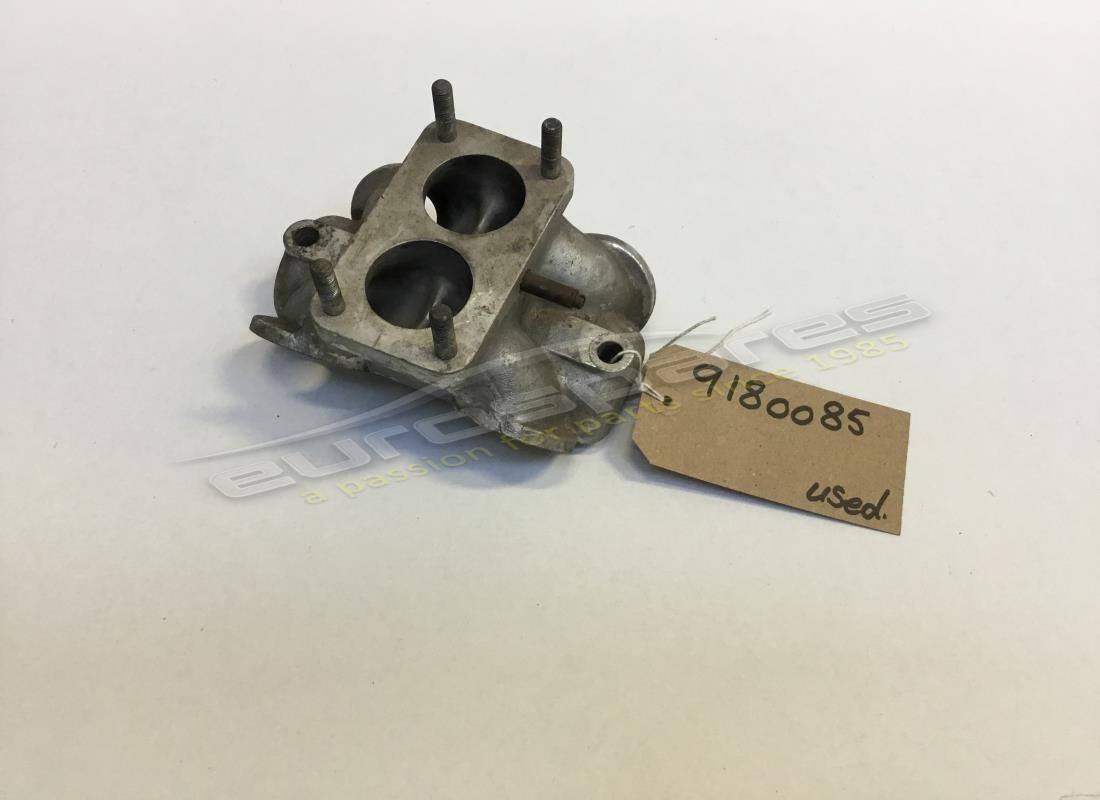

                                                                            # 014
                                                                            MPN: 9180085
                                                                            FUEL MANIFOLD
                                                                            from £147.87
                                                                            from £147.87
                                                                            # 015
                                                                            MPN: 9180086
                                                                            FUEL MANIFOLD WITH BRAKE SERVO CONNECTION. .
                                                                            from £147.87
                                                                            from £147.87
                                                                            # 016
                                                                            MPN: 21012
                                                                            PIPE ON THE MANIFOLD
                                                                            from £9.42
                                                                            from £9.42
                                                                            # 017
                                                                            MPN: 94951
                                                                            FASCETTA STRINGITUBO
                                                                            # 018
                                                                            MPN: 106755
                                                                            CLIP
                                                                            from £4.56
                                                                            from £4.56
                                                                            This part replaces part number 21062
                                                                            # 019
                                                                            MPN: 21061
                                                                            DISCHETTO PER VALVOLA
                                                                            from £4.07
                                                                            from £4.07
                                                                            # 020
                                                                            MPN: 21064
                                                                            LOCKNUT
                                                                            from £4.55
                                                                            from £4.55
                                                                            # 021
                                                                            MPN: 95248
                                                                            GASKET
                                                                            from £1.89
                                                                            from £1.89
                                                                            # 021
                                                                            MPN: 95248
                                                                            GASKET
                                                                            from £1.89
                                                                            from £1.89
                                                                            # 022
                                                                            MPN: 21063
                                                                            VALVE BODY
                                                                            from £29.02
                                                                            from £29.02
                                                                            # 023
                                                                            MPN: 2F.TIPOCI3÷14
                                                                            JUBILEE CLIP
                                                                            # 024
                                                                            MPN: 21093 - GEMMA
                                                                            PIPE ON THE VENT FOR AIR INTAKE CONNECTION
                                                                            # 025
                                                                            MPN: 21009 - GEMMA
                                                                            PIPE FROM FRONT VENT TO FRONT MANIFOLD
                                                                            # 026
                                                                            MPN: 95042
                                                                            MANICOTTO SUL 3 VIE POSTE RIORE
                                                                            # 027

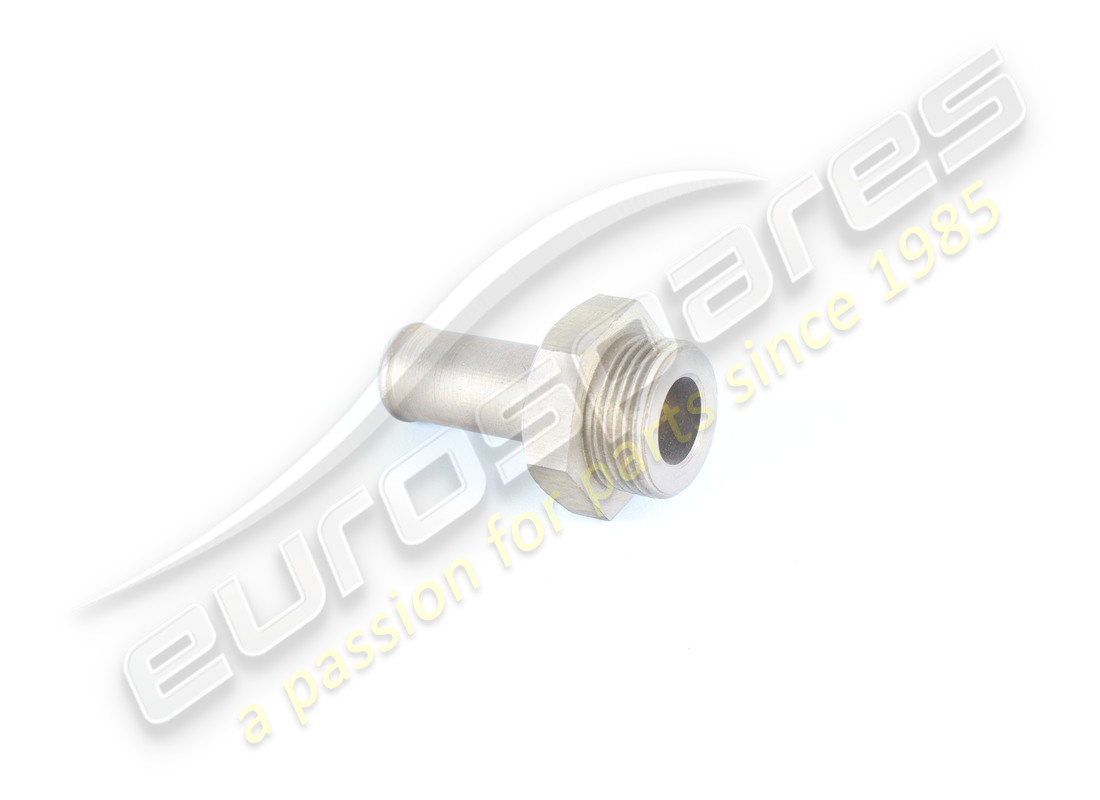

                                                                            MPN: 21011
                                                                            UNION
                                                                            from £38.60
                                                                            from £38.60
                                                                            # 028
                                                                            MPN: 21094
                                                                            SCREW
                                                                            from £5.18
                                                                            from £5.18
                                                                            # 029
                                                                            MPN: 69545
                                                                            UNION
                                                                            from £168.82
                                                                            from £168.82
                                                                            # 031
                                                                            MPN: 95024
                                                                            FASCETTA 112/S- 22=29
                                                                            # 032
                                                                            MPN: NDN 13
                                                                            RUBBER HOSE FOR BRAKE SERVO
                                                                            # 033
                                                                            MPN: 21092
                                                                            ASSIEME SFIATO SUL COYERCHIO TESTE
                                                                            from £201.68
                                                                            from £201.68
                                                                            # 034
                                                                            MPN: 95045
                                                                            GASKET
                                                                            from £2.66
                                                                            from £2.66
                                                                            # 035
                                                                            MPN: 21010
                                                                            HOSE FROM REAR VENT TO THREE WAY
                                                                            # 036
                                                                            -
                                                                            THREADED STUD
                                                                            # 037
                                                                            MPN: 101239
                                                                            NUT
                                                                            from £1.60
                                                                            from £1.60
                                                                            This part replaces part number 92310
                                                                            # 038
                                                                            MPN: REG - 6
                                                                            WASHER
