021 - Interior switches - Air vents & Trim

Ferrari 365 GT 2+2 (Coachwork) Interior switches - Air vents & Trim Parts Diagram

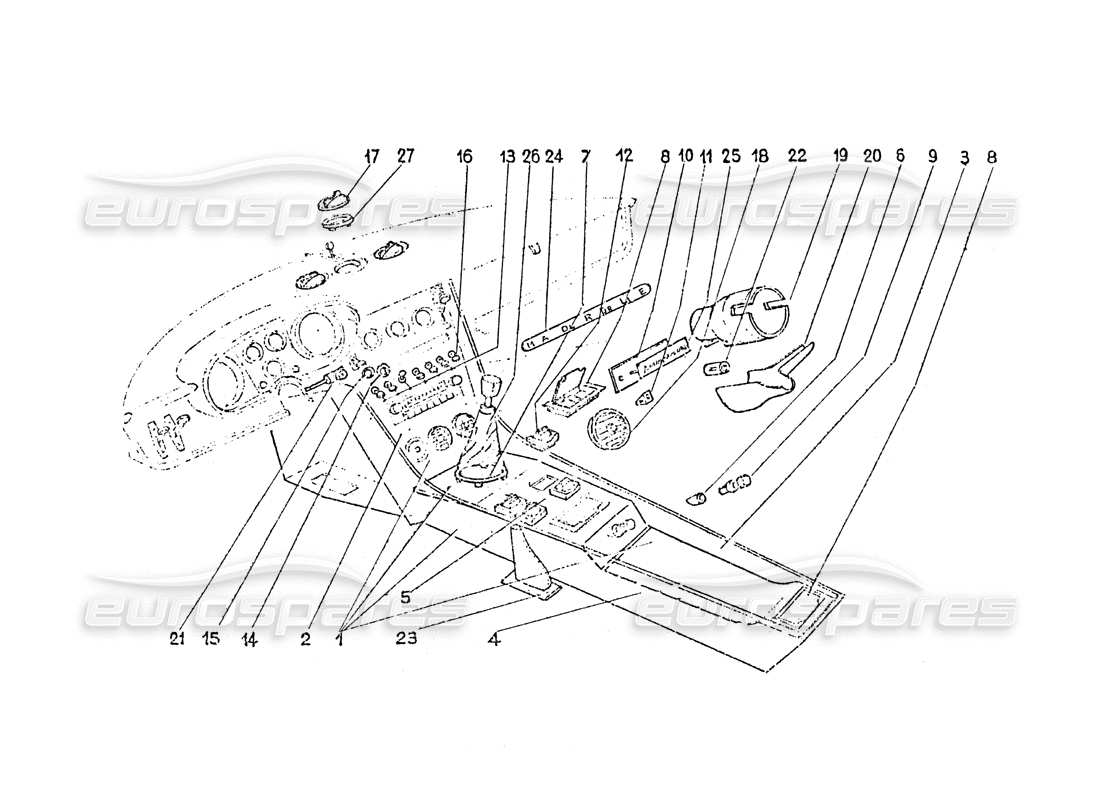

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                            #
                                            Part number
                                            Description
                                            Price
                                            # 001
                                            MPN: 251-62-160-00
                                            MOBILETTO SOTTO PLANCIA CPL.
                                            SOLO G.S.
                                            from £465.17
                                            from £465.17
                                            # 001

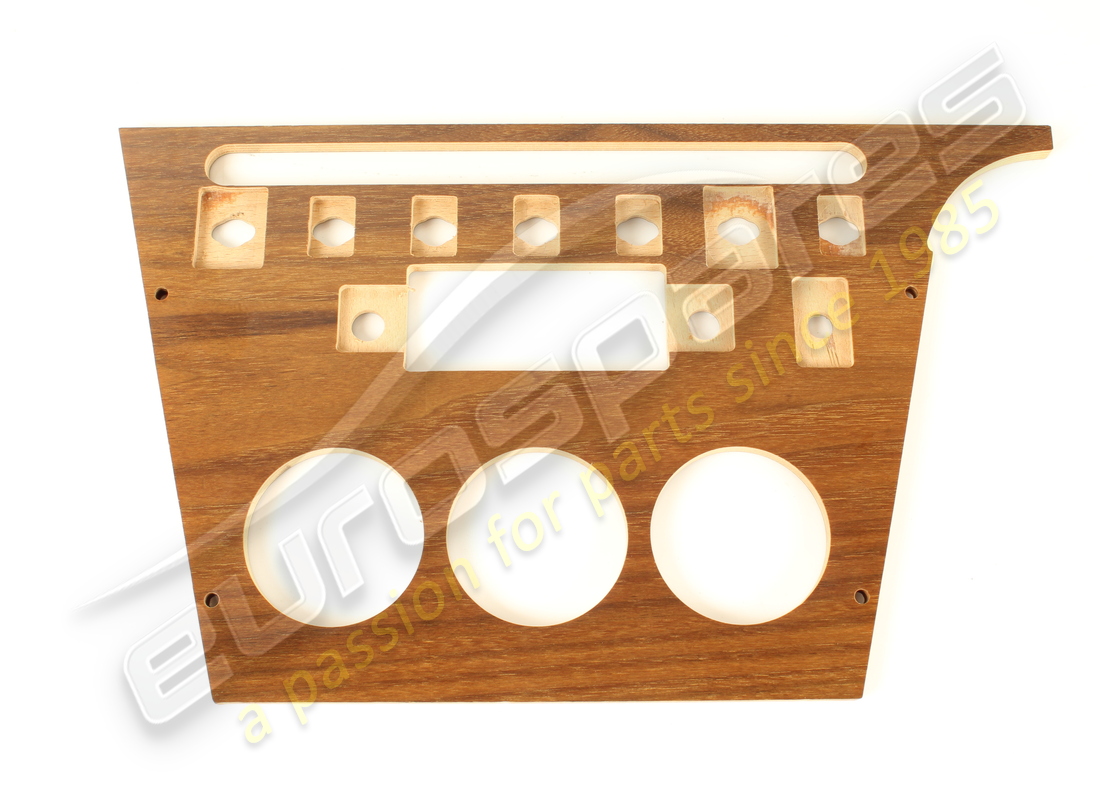

                                            MPN: 251-62-190-10
                                            DASH PANEL
                                            Valid for cars with x4 window switches
                                            from £157.50
                                            from £157.50
                                            # 001

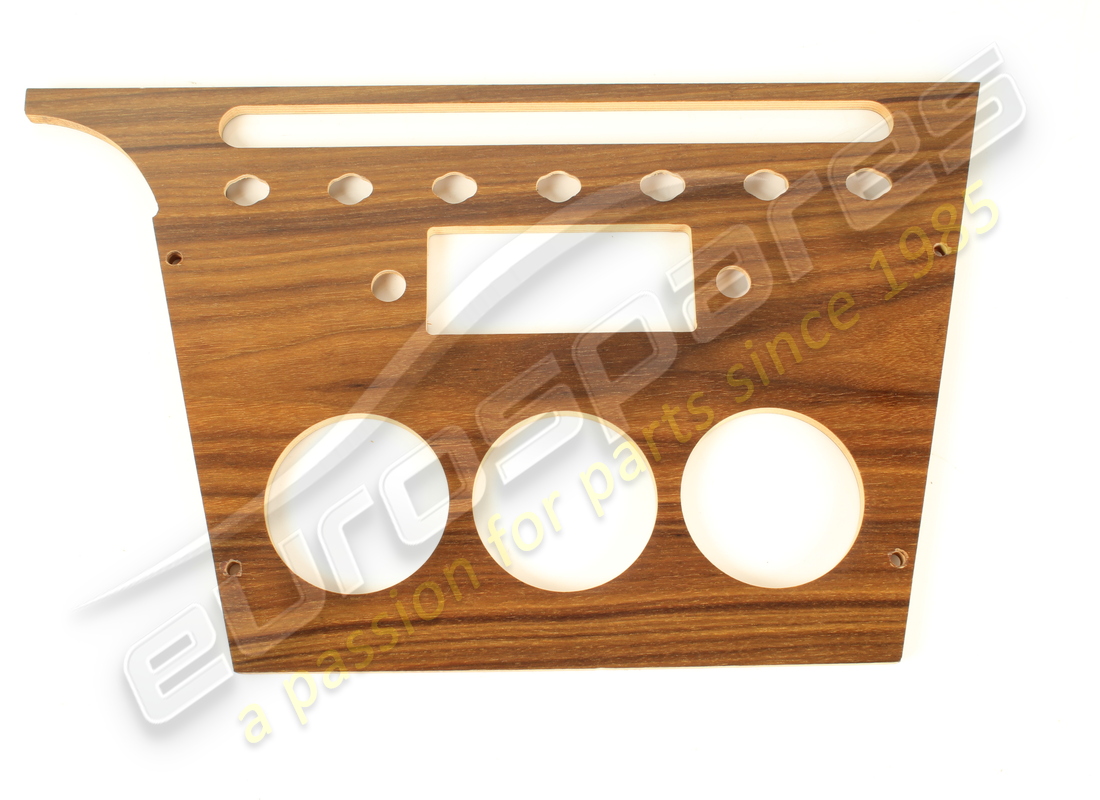

                                            MPN: 251-62-190-20
                                            DASH PANEL
                                            Valid for cars with x2 window switches
                                            from £157.50
                                            from £157.50
                                            # 001
                                            MPN: 252-62-160-00
                                            MOBILETTO SOTTO PLANCIA CPL.
                                            SOLO G.D.
                                            # 002
                                            MPN: 251-62-164-00
                                            FRONT WOOD CABINET UNDER THE DASHBOARD
                                            200/SOLO G.S.
                                            from £493.50
                                            from £493.50
                                            # 002
                                            MPN: 251-62-164-10
                                            PARETE FRONTALE MOBILETTO SOTTO - PL. G.S.
                                            DVN.201 - solo EUROPA FVN.440
                                            # 002
                                            MPN: 251-62-164-20
                                            PARETE FRONTALE MOBILETTO SOTTO PLANCIA (PER VETTURE CON RADIO VOXSON)
                                            DVN.441 - solo EUROPA escluse INGHILTERRA e U.S.A.
                                            from £430.50
                                            from £430.50
                                            # 002
                                            MPN: 251-62-165-00
                                            FRONT WALL CABINET UNDER - DASHBOARD
                                            DVN.201 - solo U.S.A.
                                            from £493.50
                                            from £493.50
                                            # 002
                                            MPN: 252-62-164-00
                                            FRONT WOOD CABINET UNDER THE DASHBOARD
                                            200/SOLO G.D.
                                            from £493.50
                                            from £493.50
                                            # 002
                                            MPN: 252-62-164-10
                                            PARETE FRONTALE MOBILETTO SOTTO - PL. G.D.
                                            DVN.201 - solo EUROPA FVN.441
                                            # 003
                                            MPN: 251-62-170-00
                                            WALL AROUND CABINET UNDER THE COVERED DASHBOARD
                                            SOLO G.S.
                                            # 003
                                            MPN: 252-62-170-00
                                            WALL AROUND CABINET UNDER THE COVERED DASHBOARD
                                            SOLO G.D.
                                            # 004
                                            MPN: 251-62-180-00
                                            PACKAGED CABINET BACKPACK
                                            # 005
                                            MPN: 251-62-190-00
                                            FONDELLO ANT.MOBILETTO CONFEZIONATO
                                            # 006
                                            MPN: 251-62-198-00
                                            SPACER FOR CIGARETTE LIGHTER
                                            FVN.200
                                            # 007
                                            MPN: 251-62-894-02
                                            PLATE FOR GEAR LEVER GAITER
                                            from £141.75
                                            from £141.75
                                            # 008
                                            MPN: 251-64-920-02
                                            PORTACENERE CPL.
                                            # 009
                                            MPN: 251-76-670-02
                                            CIGARETTE LIGHTER ON CABINET UNDER THE DASHBOARD
                                            from £82.81
                                            from £82.81
                                            # 010
                                            MPN: 243-76-680-00
                                            Mostrina ricoprimento vano radio (solo per vetture prive di radio)
                                            # 011
                                            MPN: 251-80-274-06
                                            SQUADRETTA D FISS.RADIO
                                            # 011
                                            MPN: 251-80-275-06
                                            SQUADRETTA S FISS.RADIO
                                            # 012
                                            MPN: 246-80-860-02
                                            INTERRUTTORO PER ALZACR.ELETTRICO
                                            from £1,148.39
                                            from £1,148.39
                                            This part replaces part number 242-30-710-02
                                            # 013
                                            MPN: 244-80-864-00
                                            TOGGLE SWITCH FOR VARIOUS SERVICES
                                            from £59.59
                                            from £59.59
                                            # 014
                                            MPN: 244-80-882-02
                                            SWITCH LOCKING RING
                                            from £5.19
                                            from £5.19
                                            This part replaces part number 242-80-882-02 - and 2 more. Click to view details
                                            # 015
                                            MPN: 246-80-882-02
                                            WASHER
                                            from £1.44
                                            from £1.44
                                            # 016
                                            MPN: 251-80-884-00
                                            TOGGLE SWITCH FOR EMERGENCY LIGHTS AND AUTOFLUX
                                            SOLO U.S.A.
                                            from £90.89
                                            from £90.89
                                            # 017
                                            MPN: 20103800
                                            DIFFUSER
                                            from £403.95
                                            from £403.95
                                            # 018
                                            MPN: 242-86-910-02
                                            AIR VENTILATION VENT ON CABINET
                                            from £697.51
                                            from £697.51
                                            # 019
                                            MPN: 251-88-202-06
                                            FAIRING FOR STEERING COLUMN
                                            FERRARI
                                            # 020
                                            MPN: 251-88-220-00
                                            LOWER GUIDE COLUMN GUARD
                                            # 021
                                            MPN: 251-88-250-00
                                            DISPOSITIVO BLOCCASTERZO - AVVIAMENTO
                                            # 022
                                            MPN: 251-88-260-03
                                            ANTI-THEFT COVER
                                            # 023
                                            MPN: 251-90-100-00
                                            HANDBRAKE GAITER
                                            SOLO G.S.
                                            # 023
                                            MPN: 252-90-100-00
                                            HANDBRAKE GAITER
                                            SOLO G.D.
                                            # 024

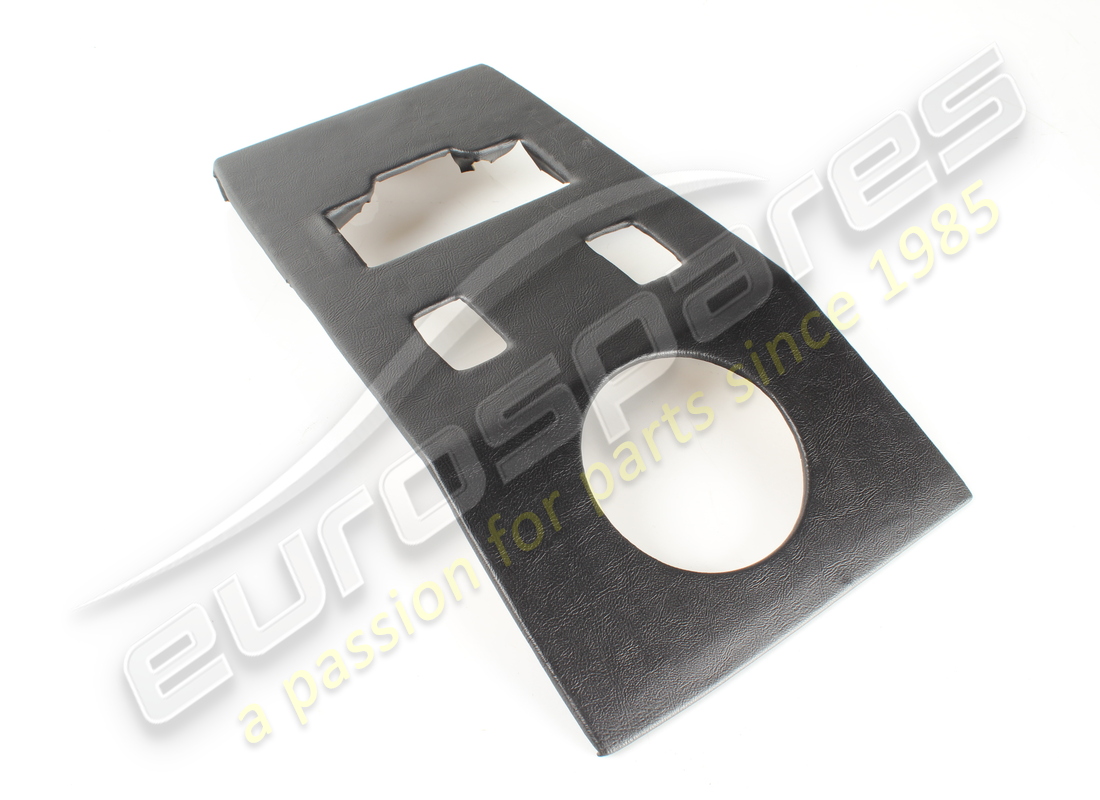

                                            MPN: 251-98-054-00
                                            PLATE FOR DASHBOARD SWITCHES
                                            from £181.65
                                            from £181.65
                                            # 026

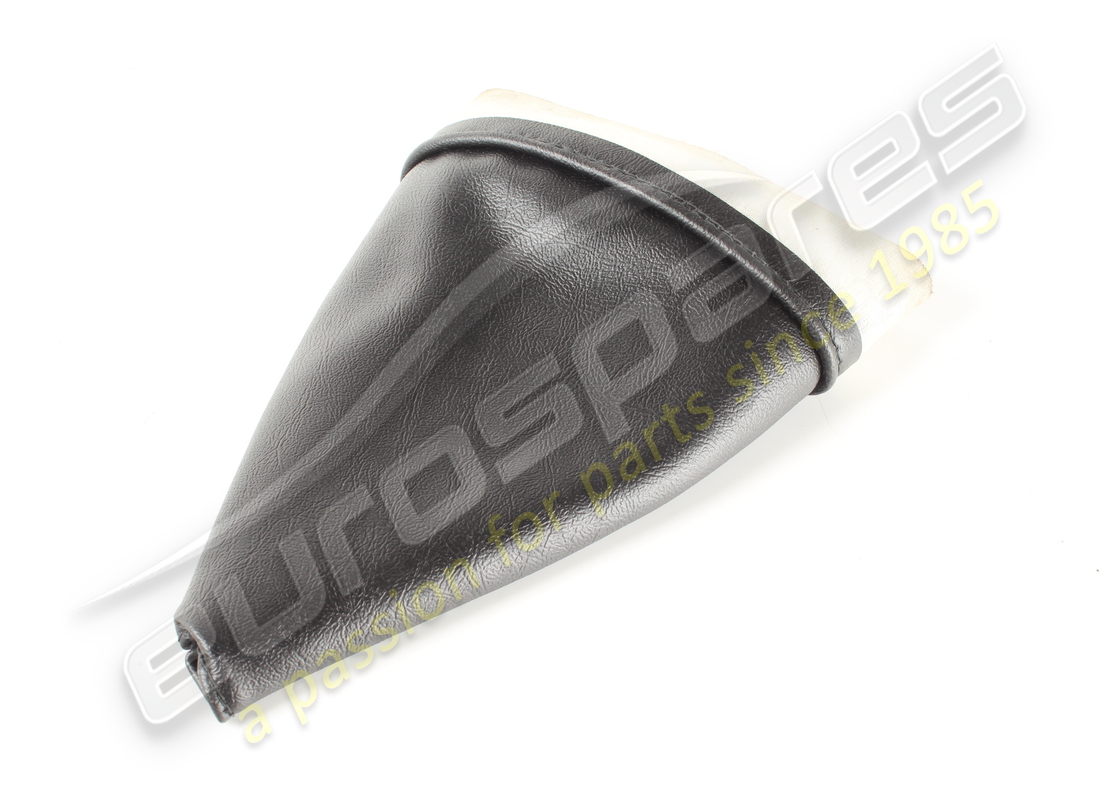

                                            MPN: 251-62-896-00
                                            PACKAGED GEAR LEVER GAITER
                                            from £22.60
                                            from £22.60
                                            # 027

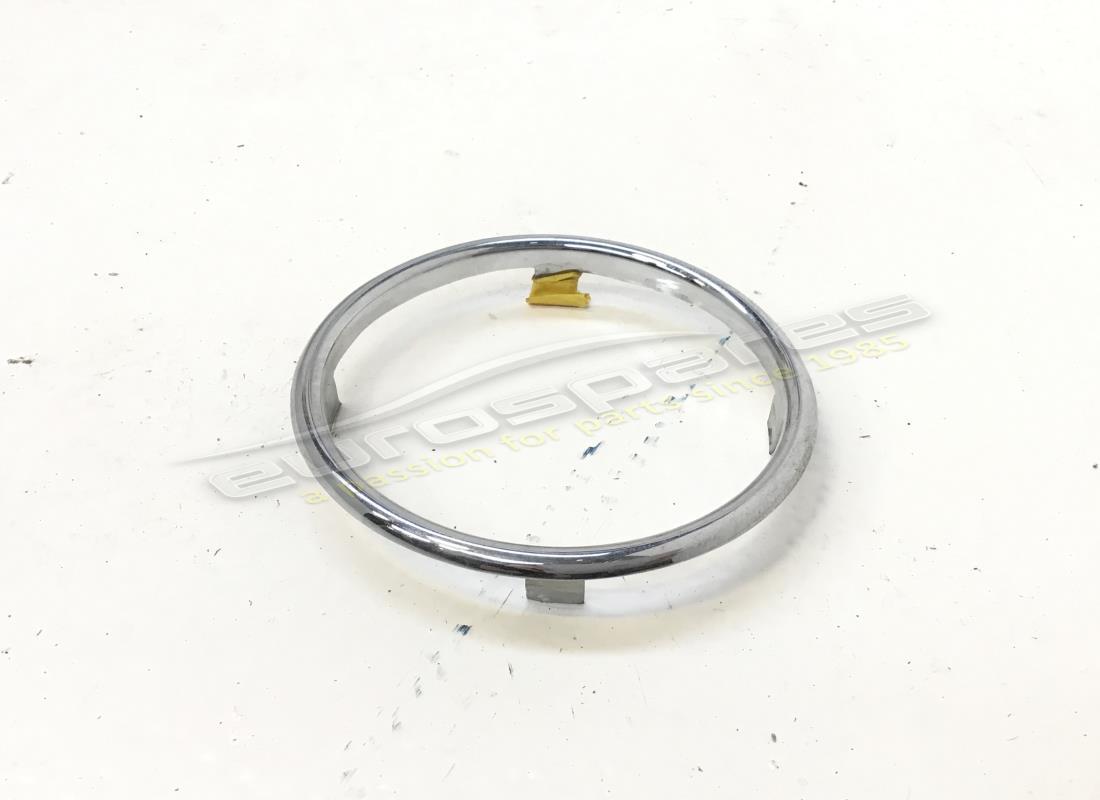

                                            MPN: 251-86-424-03
                                            RING
                                            from £25.39
                                            from £25.39
                                            # 028
                                            MPN: 251-76-510-00
                                            BLANK KEYS FOR STARTING DOORS
                                            1.key
                                            from £30.72
                                            from £30.72
                                            # 029
                                            MPN: 251-76-516-00
                                            RING
                                            This part replaces part number 95400806
                                            # 030

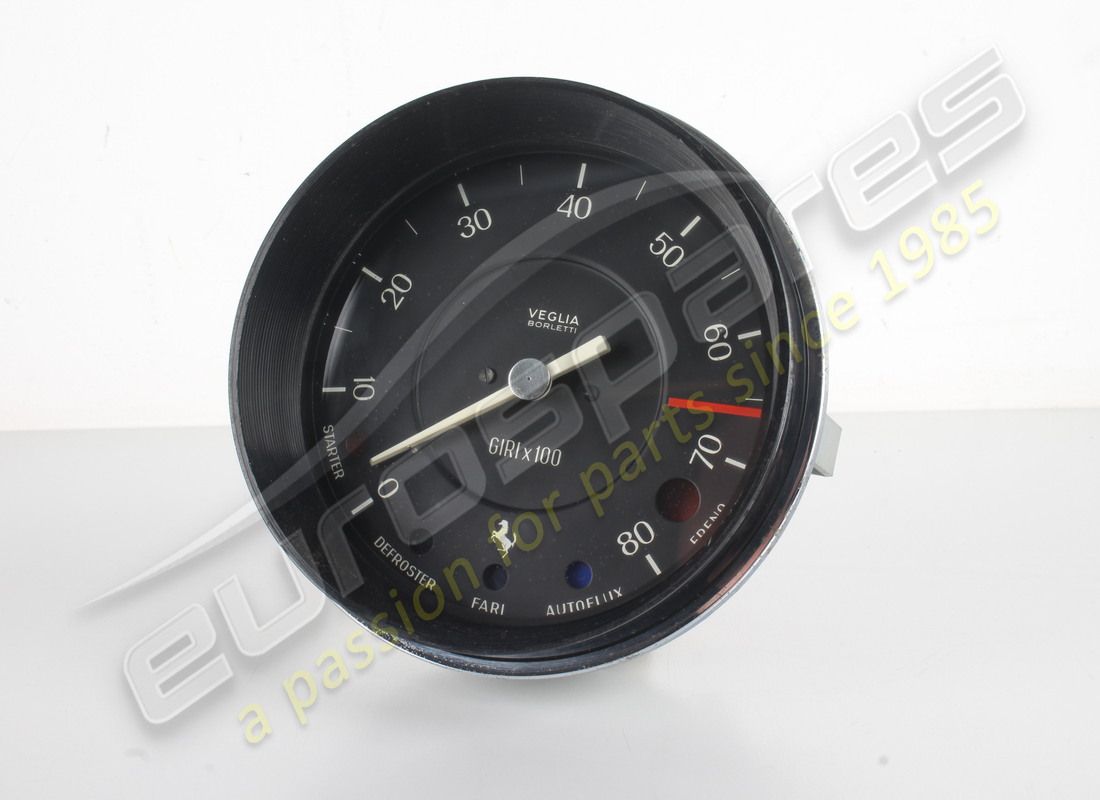

                                            MPN: 95400203
                                            REV COUNTER
                                            from £1,181.25
                                            from £1,181.25
