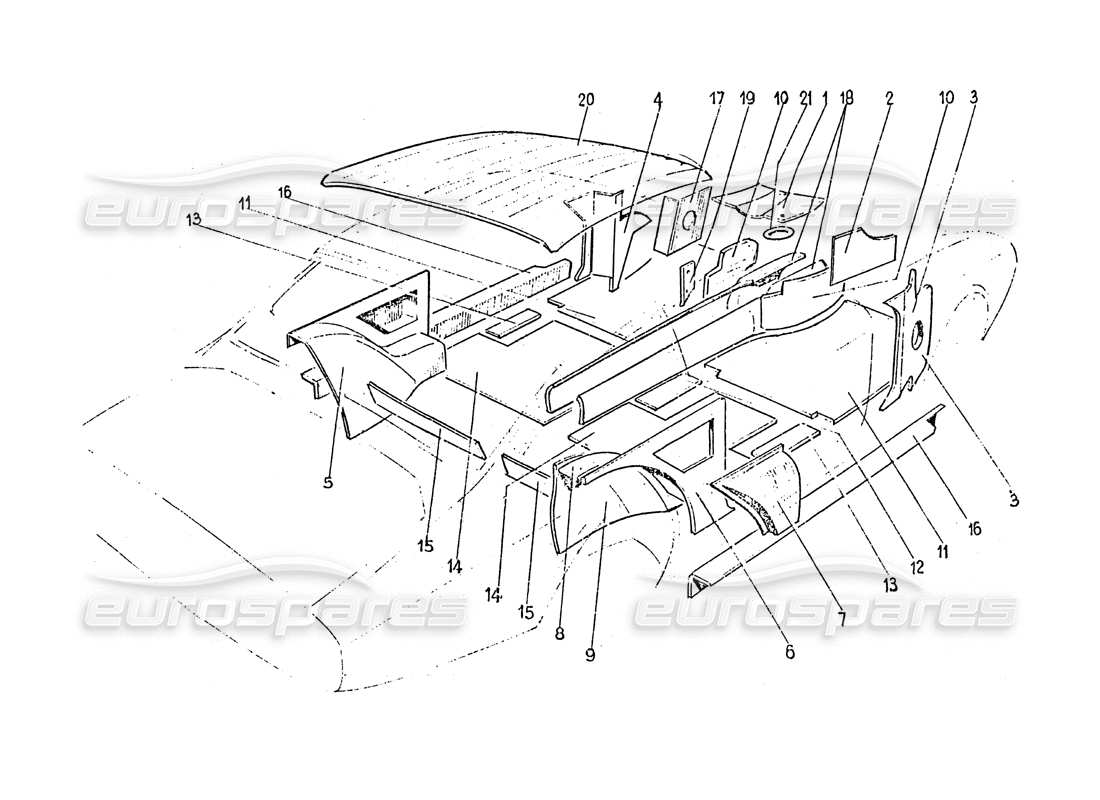

Ferrari 365 GT 2+2 (Coachwork) Inner trim panels Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 251-62-130-00
APRON UNDER THE DASHBOARD
SOLO G.S.
# 001
MPN: 252-62-130-00
APRON UNDER THE DASHBOARD
SOLO G.D.
# 002
MPN: 251-62-140-00
FIANCHETTO LATER.ANTER.MOBILETTO (CONFEZ.) D
SOLO G.S.
# 002
MPN: 251-62-141-00
FIANCHETTO LATER.ANTER.MOBILETTO (CONFEZ.) S
SOLO G.S.
# 002
MPN: 252-62-140-00
FIANCHETTO LATER.ANTER.MOBILETTO (CONFEZ.) D
SOLO G.D.
# 002
MPN: 252-62-141-00
FIANCHETTO LATER.ANTER.MOBILETTO (CONFEZ.) S
SOLO G.D.
# 003
MPN: 251-62-200-00
FIANCHETTO LATER.ANTER. D (CONFEZIONATO)
SOLO G.S.
# 003
MPN: 252-62-200-00
FIANCHETTO LATER.ANTER. D (CONFEZIONATO)
SOLO G.D.
from £102.00
from £102.00
# 004
MPN: 251-62-201-00
FIANCHETTO LATER.ANTER. S (CONFEZIONATO)
SOLO G.S.
# 004
MPN: 252-62-201-00
FIANCHETTO LATER.ANTER. S (CONFEZIONATO)
SOLO G.D.
# 005
MPN: 251-62-250-00
FIANCHETTO LATER.POST. D CPL.
N.200 - Comprndo voci: 6-7-8-9
# 005
MPN: 251-62-250-10
FIANCHETTO LAT.POST.D CPL.
DVN.201 - solo EUROPA esclusa INGHILTERRA
# 005
MPN: 251-62-251-00
FIANCHETTO LATER.POST. S CPL.
# 005
MPN: 251-62-251-10
FIANCHETTO LAT.POST.S CPL.
DVN.201 - solo EUROPA esclusa INGHILTERRA
# 005
MPN: 251-63-250-00
FIANCHETTO LAT.POST.D CPL.
DVN.201 - solo e INGHILTERRA
# 005
MPN: 251-63-251-00
FIANCHETTO LAT.POST.S CPL.
DVN.201 - solo e INGHILTERRA
# 006
MPN: 251-62-252-09
FIANCHETTO LATER.POST. D
from £303.80
from £303.80
# 006
MPN: 251-62-253-09
FIANCHETTO LATER.POST. S
from £327.78
from £327.78
# 007
MPN: 251-62-280-00
BAG FOR REAR SIDE SIDE (PACKAGED)
FVN.200
# 007
MPN: 251-62-280-10
BAG FOR REAR SIDE SIDE. D
DVN.201—solo EUROPA
# 007
MPN: 251-62-281-00
BAG FOR REAR SIDE SIDE (PACKAGED)
FVN.200
# 007
MPN: 251-62-281-10
BAG FOR REAR SIDE SIDE. S
DVN.201—solo EUROPA
# 007
MPN: 251-63-280-00
BAG FOR REAR SIDE SIDE. D
DVN.201—solo U.S.A.
# 007
MPN: 251-63-281-00
BAG FOR REAR SIDE SIDE. S
DVN.201—solo U.S.A.
# 008
MPN: 251-66-950-00
FASCIA P.APPOGGIABRACCIA LAT. POSTERIORE D CONFEZIONATA
# 008
MPN: 251-66-951-00
FASCIA P.APPOGGIABRACCIA LAT. POSTERIORE S CONFEZIONATA
# 009
MPN: 251-62-730-00
RIVESTIM.SU PASSARUOTA POST.D CONFEZ.
# 009
MPN: 251-62-731-00
RIVESTIM.SU PASSARUOTA POST.S CONFEZ.
# 010
MPN: 251-62-772-00
CENTRAL FIREPROOF CARPET
SOLO G.S.
# 010
MPN: 251-62-773-00
CENTRAL FIREPROOF CARPET S
SOLO G.S.
# 010
MPN: 252-62-772-00
CENTRAL FIREPROOF CARPET
SOLO G.D.
# 010
MPN: 252-62-773-00
CENTRAL FIREPROOF CARPET S
SOLO G.D.
# 011
MPN: 251-62-804-00
TAPPETO ANTER. D PAVIMENTO INT.VETTURA
# 011
MPN: 251-62-805-00
TAPPETO ANTER. S PAVIMENTO INT.VETTURA
# 012
MPN: 251-62-810-00
TAPPETO LATER.INTERNO GUIDE SEDILE
# 013
MPN: 251-62-814-00
TAPPETO LATER.ESTERNO GUIDE SEDILE
# 014
MPN: 251-62-816-00
REAR CARPET AND INTERIOR FLOOR OF THE VEHICLE
# 014
MPN: 251-62-817-00
REAR CARPET INSIDE CAR FLOOR
# 015
MPN: 251-62-836-00
CARPET FOR REAR SEAT VERTICAL CROSSBAR
# 015
MPN: 251-62-837-00
MAT FOR REAR SEAT VERTICAL CROSSBAR
# 016
MPN: 251-62-850-00
RIVESTIMENTO INT.LONGHERONE D CONFEZIONATO
# 016
MPN: 251-62-851-00
RIVESTIMENTO INT.LONGHERONE S CONFEZIONATO
# 017
MPN: 246-62-860-00
TAPPETO GOMMA RIVEST.SCATOLA GUIDA - G.D.
# 017
MPN: 251-62-860-00
RUBBER CARPET COVERING GS STEERING BOX
# 018
MPN: 251-62-862-00
RIVESTIMENTO LATER.D TUNNEL
# 018
MPN: 251-62-863-00
RIVESTIMENTO LATER.S TUNNEL
# 019
MPN: 251-62-890-08
PIASTRA PROTEZ.TAPPETO PEDALE ACCELERAT.
# 020
MPN: 251-62-900-00
IMPERIAL PACKED ROOF
