ferrari 365 gt 2+2 (coachwork) doors & trim parts diagram

006 - Doors & Trim

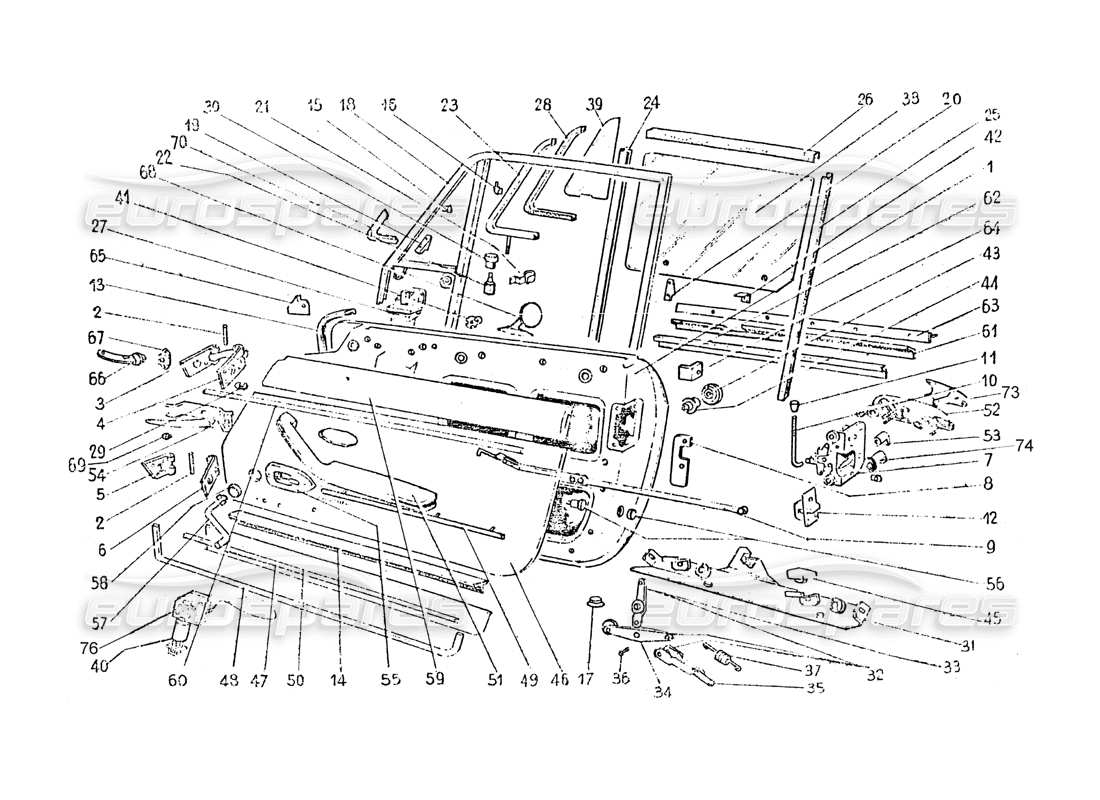

Ferrari 365 GT 2+2 (Coachwork) Doors & Trim Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                                                      #
                                                                                                                                      Part number
                                                                                                                                      Description
                                                                                                                                      Price
                                                                                                                                      # 001
                                                                                                                                      MPN: 251-30-004-07
                                                                                                                                      PORTER COMPL.DI OSSATURA E RIVESTIM.D
                                                                                                                                      FVN.200
                                                                                                                                      from £1,408.75
                                                                                                                                      from £1,408.75
                                                                                                                                      # 001
                                                                                                                                      MPN: 251-30-005-08
                                                                                                                                      PORTER COMPL.DI OSSATURA E RIVESTIM.S
                                                                                                                                      FVN.200
                                                                                                                                      # 002
                                                                                                                                      MPN: 241-30-068-00
                                                                                                                                      PIVOT
                                                                                                                                      from £25.52
                                                                                                                                      from £25.52
                                                                                                                                      # 003
                                                                                                                                      MPN: 251-30-072-07
                                                                                                                                      FIXED ELEMENT UPPER DOOR HINGE
                                                                                                                                      # 003
                                                                                                                                      MPN: 251-30-073-07
                                                                                                                                      FIXED ELEMENT UPPER DOOR HINGE
                                                                                                                                      # 003
                                                                                                                                      MPN: 251-30-174-08
                                                                                                                                      MOSTRINA RICOPRIM.SERRATURA D PORTA
                                                                                                                                      # 003
                                                                                                                                      MPN: 251-30-175-02
                                                                                                                                      MOSTRINA RICOPRIM.SERRATURA S PORTA
                                                                                                                                      from £21.41
                                                                                                                                      from £21.41
                                                                                                                                      # 004
                                                                                                                                      MPN: 251-30-074-07
                                                                                                                                      DOOR HINGE MOVING ELEMENT
                                                                                                                                      # 005
                                                                                                                                      MPN: 251-30-082-07
                                                                                                                                      LOWER FIXED ELEMENT R HINGE
                                                                                                                                      # 005
                                                                                                                                      MPN: 251-30-083-07
                                                                                                                                      LOWER FIXED ELEMENT L. HINGE
                                                                                                                                      # 006
                                                                                                                                      MPN: 241-30-084-07
                                                                                                                                      DOOR HINGE MOVING ELEMENT
                                                                                                                                      # 006
                                                                                                                                      MPN: 241-30-085-07
                                                                                                                                      MOVING ELEMENT HINGE S DOOR
                                                                                                                                      # 007
                                                                                                                                      MPN: 251-30-170-01
                                                                                                                                      SERRATURA D PORTA
                                                                                                                                      from £84.00
                                                                                                                                      from £84.00
                                                                                                                                      # 007
                                                                                                                                      MPN: 251-30-171-01
                                                                                                                                      DOOR LOCK
                                                                                                                                      from £84.00
                                                                                                                                      from £84.00
                                                                                                                                      # 008
                                                                                                                                      MPN: 251-30-174-02
                                                                                                                                      RHS CHROME PLATE
                                                                                                                                      from £19.22
                                                                                                                                      from £19.22
                                                                                                                                      # 008
                                                                                                                                      MPN: 251-30-175-02
                                                                                                                                      LHS CHROME PLATE
                                                                                                                                      from £21.41
                                                                                                                                      from £21.41
                                                                                                                                      # 009
                                                                                                                                      MPN: 251-30-176-01
                                                                                                                                      TIRANTO RIMANDO SERRATURA D PORTA
                                                                                                                                      from £63.04
                                                                                                                                      from £63.04
                                                                                                                                      # 009
                                                                                                                                      MPN: 251-30-177-01
                                                                                                                                      TIRANTO RIMANDO SERRATURA S PORTA
                                                                                                                                      # 010
                                                                                                                                      MPN: 251-30-194-01
                                                                                                                                      DOOR LOCK SAFETY CONTROL ROD
                                                                                                                                      # 011
                                                                                                                                      MPN: 242-30-198-00
                                                                                                                                      POOL FOR DOOR SAFETY CONTROL ROD
                                                                                                                                      from £60.90
                                                                                                                                      from £60.90
                                                                                                                                      # 012
                                                                                                                                      MPN: 251-30-210-01
                                                                                                                                      RECEIPT FOR DOOR LOCK
                                                                                                                                      from £65.10
                                                                                                                                      from £65.10
                                                                                                                                      # 012
                                                                                                                                      MPN: 251-30-211-01
                                                                                                                                      RECEIPT FOR DOOR LOCK
                                                                                                                                      from £65.10
                                                                                                                                      from £65.10
                                                                                                                                      # 013
                                                                                                                                      MPN: 251-30-224-00
                                                                                                                                      GUERNIZ.ANTER.CONTORNO PORTA
                                                                                                                                      from £7.24
                                                                                                                                      from £7.24
                                                                                                                                      This part replaces part number 20047601
                                                                                                                                      # 014
                                                                                                                                      MPN: 251-30-226-00
                                                                                                                                      RUBBER AIR SEAL LOWER PART OF DOOR
                                                                                                                                      # 015
                                                                                                                                      MPN: 251-30-272-02
                                                                                                                                      CERNIERA D SUPER. VOLETTO
                                                                                                                                      from £9.55
                                                                                                                                      from £9.55
                                                                                                                                      # 015
                                                                                                                                      MPN: 251-30-273-02
                                                                                                                                      CERNIERA S SUPER.VOLETTO
                                                                                                                                      from £9.55
                                                                                                                                      from £9.55
                                                                                                                                      # 016
                                                                                                                                      MPN: 251-30-274-02
                                                                                                                                      CERNIERA D INFER.VOLETTO
                                                                                                                                      from £9.55
                                                                                                                                      from £9.55
                                                                                                                                      # 016
                                                                                                                                      MPN: 251-30-275-02
                                                                                                                                      CERNIERA S INFER.VOLETTO
                                                                                                                                      from £9.55
                                                                                                                                      from £9.55
                                                                                                                                      # 017
                                                                                                                                      MPN: 144-10-288-00
                                                                                                                                      TAPPO CHIUSURA FORO REGOLAZ.TENDIFUNE
                                                                                                                                      # 018
                                                                                                                                      MPN: 251-30-294-08
                                                                                                                                      DOOR GLASS CONTOUR FRAME D CPL.
                                                                                                                                      from £892.50
                                                                                                                                      from £892.50
                                                                                                                                      # 018
                                                                                                                                      MPN: 251-30-295-08
                                                                                                                                      DOOR GLASS CONTOUR FRAME S CPL.
                                                                                                                                      from £1,491.00
                                                                                                                                      from £1,491.00
                                                                                                                                      # 019
                                                                                                                                      MPN: 251-30-296-04
                                                                                                                                      UPPER PLUS. FRONT R. DOOR PILLAR
                                                                                                                                      from £38.85
                                                                                                                                      from £38.85
                                                                                                                                      # 019
                                                                                                                                      MPN: 251-30-297-04
                                                                                                                                      UPPER PILLAR PLUSH. FRONT LEFT DOOR
                                                                                                                                      from £38.85
                                                                                                                                      from £38.85
                                                                                                                                      # 020
                                                                                                                                      MPN: 251-30-298-04
                                                                                                                                      R. DOOR UPPER PILLAR PLUG
                                                                                                                                      from £31.50
                                                                                                                                      from £31.50
                                                                                                                                      # 020
                                                                                                                                      MPN: 251-30-299-05
                                                                                                                                      SUPER.SLIDE.POSTER.L. DOOR PLUSH
                                                                                                                                      from £31.50
                                                                                                                                      from £31.50
                                                                                                                                      # 021
                                                                                                                                      MPN: 251-30-324-01
                                                                                                                                      MORSETTO PER FRIZIONE COMANDO VOLETTO
                                                                                                                                      # 022
                                                                                                                                      MPN: 251-30-326-01
                                                                                                                                      CODOLO COMANDO ROTAZIONE VOLETTO D
                                                                                                                                      from £5.94
                                                                                                                                      from £5.94
                                                                                                                                      # 022
                                                                                                                                      MPN: 251-30-327-01
                                                                                                                                      CODOLO COMANDO ROTAZIONE VOLETTO S
                                                                                                                                      # 023
                                                                                                                                      MPN: 251-30-334-08
                                                                                                                                      TELARINO VOLETTO MOBILE D
                                                                                                                                      from £106.65
                                                                                                                                      from £106.65
                                                                                                                                      # 023
                                                                                                                                      MPN: 251-30-335-08
                                                                                                                                      TELARINO VOLETTO MOBILE S
                                                                                                                                      from £111.99
                                                                                                                                      from £111.99
                                                                                                                                      # 024
                                                                                                                                      MPN: 251-30-354-00
                                                                                                                                      CANALINA ANTERIORE SCORRIMENTO CRISTALLO
                                                                                                                                      # 025
                                                                                                                                      MPN: 251-30-356-00
                                                                                                                                      CANALINA POSTERIORE SCORRIMENTO CRISTALLO
                                                                                                                                      # 026
                                                                                                                                      MPN: 251-30-360-00
                                                                                                                                      CANALINA SUPERIORE TOLARINO PORTA
                                                                                                                                      # 027
                                                                                                                                      MPN: 251-30-362-00
                                                                                                                                      ELECTRIC MOTOR FOR VOLETTO MOBILE D
                                                                                                                                      from £577.50
                                                                                                                                      from £577.50
                                                                                                                                      This part replaces part number 95403539 - and 2 more. Click to view details
                                                                                                                                      # 027
                                                                                                                                      MPN: 251-30-363-00
                                                                                                                                      ELECTRIC MOTOR FOR VOLETTO MOBILE S
                                                                                                                                      from £370.84
                                                                                                                                      from £370.84
                                                                                                                                      This part replaces part number 95403540 - and 1 more. Click to view details
                                                                                                                                      # 028
                                                                                                                                      MPN: 251-30-372-00
                                                                                                                                      GOMMA POIMETRALE VOLETTO MOBILE D
                                                                                                                                      from £105.24
                                                                                                                                      from £105.24
                                                                                                                                      # 028
                                                                                                                                      MPN: 251-30-373-00
                                                                                                                                      GOMMA POIMETRALE VOLETTO MOBILE S
                                                                                                                                      from £765.59
                                                                                                                                      from £765.59
                                                                                                                                      # 030
                                                                                                                                      MPN: 241-30-430-00
                                                                                                                                      BUSH
                                                                                                                                      from £5.03
                                                                                                                                      from £5.03
                                                                                                                                      # 031
                                                                                                                                      MPN: 251-30-490-01
                                                                                                                                      TRAVERSA D INFER.RITEGNO PULEGGIA CPL.
                                                                                                                                      # 031
                                                                                                                                      MPN: 251-30-491-01
                                                                                                                                      TRAVERSA S INFER.RITEGNO PULEGGIA CPL.
                                                                                                                                      # 032
                                                                                                                                      MPN: 251-30-500-01
                                                                                                                                      DISPOSITIVO TENDIFUNE CPL. D
                                                                                                                                      Comprende voci: 33-34-35-36
                                                                                                                                      from £126.00
                                                                                                                                      from £126.00
                                                                                                                                      # 032
                                                                                                                                      MPN: 251-30-501-01
                                                                                                                                      DISPOSITIVO TENDIFUNE CPL. S
                                                                                                                                      from £126.00
                                                                                                                                      from £126.00
                                                                                                                                      # 033
                                                                                                                                      MPN: 251-30-502-01
                                                                                                                                      LEVER
                                                                                                                                      # 034
                                                                                                                                      MPN: 251-30-504-01
                                                                                                                                      LEVER
                                                                                                                                      # 035
                                                                                                                                      MPN: 251-30-506-01
                                                                                                                                      FORK
                                                                                                                                      # 036
                                                                                                                                      MPN: 0-922-1-035-1
                                                                                                                                      VITO PER REGOLAZIONE TENDIFUNE
                                                                                                                                      # 037
                                                                                                                                      MPN: 251-30-508-01
                                                                                                                                      SPRING
                                                                                                                                      # 038
                                                                                                                                      MPN: 251-30-510-00
                                                                                                                                      R. DOOR DESCENDING CRYSTAL
                                                                                                                                      from £133.57
                                                                                                                                      from £133.57
                                                                                                                                      # 038
                                                                                                                                      MPN: 251-30-511-00
                                                                                                                                      CRYSTAL DESCENDING S. DOOR
                                                                                                                                      from £242.86
                                                                                                                                      from £242.86
                                                                                                                                      # 039
                                                                                                                                      MPN: 251-30-528-00
                                                                                                                                      CRISTALLO VOLETTO PORTA D
                                                                                                                                      from £71.90
                                                                                                                                      from £71.90
                                                                                                                                      # 039
                                                                                                                                      MPN: 251-30-529-00
                                                                                                                                      CRISTALLO VOLETTO PORTA S
                                                                                                                                      from £130.73
                                                                                                                                      from £130.73
                                                                                                                                      # 040
                                                                                                                                      MPN: 246-30-542-00
                                                                                                                                      MOTORIDUTTORE ALZACRIST.ELETTRICO
                                                                                                                                      (3 wirings type)
                                                                                                                                      from £1,051.79
                                                                                                                                      from £1,051.79
                                                                                                                                      This part replaces part number 95403541
                                                                                                                                      # 040
                                                                                                                                      MPN: 251-30-540-00
                                                                                                                                      ELECTRIC WINDOW MOTOR FOR DOOR D CPL.
                                                                                                                                      (3 wirings type)
                                                                                                                                      from £964.14
                                                                                                                                      from £964.14
                                                                                                                                      This part replaces part number 95403502 - and 1 more. Click to view details
                                                                                                                                      # 041
                                                                                                                                      MPN: 144-30-552-01
                                                                                                                                      BUSH
                                                                                                                                      from £6.36
                                                                                                                                      from £6.36
                                                                                                                                      # 042
                                                                                                                                      MPN: 251-30-554-01
                                                                                                                                      BRACKET / SUPPORT
                                                                                                                                      # 043
                                                                                                                                      MPN: 241-30-576-00
                                                                                                                                      WINDOW REGULATOR CABLE SLIDING PULLEY
                                                                                                                                      from £21.00
                                                                                                                                      from £21.00
                                                                                                                                      # 044
                                                                                                                                      MPN: 251-30-578-01
                                                                                                                                      PIVOT
                                                                                                                                      from £5.44
                                                                                                                                      from £5.44
                                                                                                                                      # 045
                                                                                                                                      MPN: 802-30-584-00
                                                                                                                                      ARRESTO INFER. CRISTALLO
                                                                                                                                      # 046
                                                                                                                                      MPN: 251-30-592-00
                                                                                                                                      PANNELLO INTERNO PORTA D CPL.
                                                                                                                                      FVN. 200
                                                                                                                                      # 046
                                                                                                                                      MPN: 251-30-593-00
                                                                                                                                      PANNELLO INTERNO PORTA S CPL.
                                                                                                                                      FVN. 200
                                                                                                                                      # 047
                                                                                                                                      MPN: 251-30-660-08
                                                                                                                                      GRINDING TOP. BUFFER PLATE ON INTERNAL DOOR PANEL
                                                                                                                                      # 048
                                                                                                                                      MPN: 251-30-662-08
                                                                                                                                      MOLURA PERIMETRALE PIASTRA PARAC.PANN.PORTA 1 D
                                                                                                                                      from £183.75
                                                                                                                                      from £183.75
                                                                                                                                      # 048
                                                                                                                                      MPN: 251-30-663-08
                                                                                                                                      MOLURA PERIMETRALE PIASTRA PARAC.PANN.PORTA 1 S
                                                                                                                                      from £183.75
                                                                                                                                      from £183.75
                                                                                                                                      # 049
                                                                                                                                      MPN: 251-30-666-08
                                                                                                                                      MOLURA SUPER.PANNELLO INT.PORTA D
                                                                                                                                      # 049
                                                                                                                                      MPN: 251-30-667-08
                                                                                                                                      MOLURA SUPER.PANNELLO INT.PORTA S
                                                                                                                                      # 050
                                                                                                                                      MPN: 251-30-674-08
                                                                                                                                      PIASTRA PARACOLPI SU PANN.INT.PORTA D
                                                                                                                                      # 050
                                                                                                                                      MPN: 251-30-675-08
                                                                                                                                      PIASTRA PARACOLPI SU PANN.INT.PORTA S
                                                                                                                                      # 051
                                                                                                                                      MPN: 251-30-700-00
                                                                                                                                      APPOGGIABRACCIA SU PANNELLO PORTA D CPL.
                                                                                                                                      from £262.50
                                                                                                                                      from £262.50
                                                                                                                                      # 051
                                                                                                                                      MPN: 251-30-701-00
                                                                                                                                      APPOGGIABRACCIA SU PANNELLO PORTA S CPL.
                                                                                                                                      from £262.50
                                                                                                                                      from £262.50
                                                                                                                                      # 052
                                                                                                                                      MPN: 251-30-750-02
                                                                                                                                      MANIGLIA ESTERNA PORTA D CPL.
                                                                                                                                      from £108.67
                                                                                                                                      from £108.67
                                                                                                                                      # 052
                                                                                                                                      MPN: 251-30-751-02
                                                                                                                                      MANIGLIA ESTERNA PORTA S CPL.
                                                                                                                                      # 052
                                                                                                                                      MPN: 251-30-754-02
                                                                                                                                      EXT. DOOR HANDLE D WITHOUT BLOCK
                                                                                                                                      from £204.63
                                                                                                                                      from £204.63
                                                                                                                                      This part replaces part number 251-30-755-02
                                                                                                                                      # 052
                                                                                                                                      MPN: 251-30-755-02
                                                                                                                                      EXTERNAL DOOR HANDLE S WITHOUT BLOCK
                                                                                                                                      Supersession
                                                                                                                                      Supersession
                                                                                                                                      # 053
                                                                                                                                      MPN: 251-30-790-02
                                                                                                                                      DOOR HANDLE BLOCK
                                                                                                                                      from £77.06
                                                                                                                                      from £77.06
                                                                                                                                      # 054
                                                                                                                                      MPN: 242-30-813-02
                                                                                                                                      MANIGLIA INTERNA APERT.PORTA
                                                                                                                                      from £1,042.20
                                                                                                                                      from £1,042.20
                                                                                                                                      This part replaces part number 242-30-812-02 - and 2 more. Click to view details
                                                                                                                                      # 055
                                                                                                                                      MPN: 242-30-830-02
                                                                                                                                      DOOR LOCK REFERENCE HANDLE PLATE
                                                                                                                                      from £168.00
                                                                                                                                      from £168.00
                                                                                                                                      # 056
                                                                                                                                      MPN: 251-80-840-00
                                                                                                                                      OPEN DOOR INDICATOR LIGHT
                                                                                                                                      Supersession
                                                                                                                                      Supersession
                                                                                                                                      # 057
                                                                                                                                      MPN: 251-30-880-02
                                                                                                                                      MANIGLIA DI SOCCORSO P.ALZACRIST.ELETTR.
                                                                                                                                      Intercamb.con 57/A
                                                                                                                                      from £43.96
                                                                                                                                      from £43.96
                                                                                                                                      This part replaces part number 95403508
                                                                                                                                      # 058
                                                                                                                                      MPN: 251-30-884-00
                                                                                                                                      TAPPO OTTURAZIONE FORO MAN.SOCC.ALZACR. EL.
                                                                                                                                      from £4.55
                                                                                                                                      from £4.55
                                                                                                                                      # 059
                                                                                                                                      MPN: 251-30-898-00
                                                                                                                                      SUPER CABINETWORK. PACKAGED DOOR
                                                                                                                                      from £220.50
                                                                                                                                      from £220.50
                                                                                                                                      # 059
                                                                                                                                      MPN: 251-30-899-00
                                                                                                                                      SUPER. DOOR CABINETWORK PACKAGED
                                                                                                                                      from £220.50
                                                                                                                                      from £220.50
                                                                                                                                      # 060
                                                                                                                                      MPN: 251-30-912-08
                                                                                                                                      MOLURA INFER.EBANISTER.SUPER.PORTA D
                                                                                                                                      # 060
                                                                                                                                      MPN: 251-30-913-08
                                                                                                                                      MOLURA INFER.EBANISTER.SUPER.PORTA S
                                                                                                                                      # 061
                                                                                                                                      MPN: 251-30-901-01
                                                                                                                                      RUBBER SEAL ON L. DOOR BELT
                                                                                                                                      FVN.359
                                                                                                                                      # 061
                                                                                                                                      MPN: 251-30-902-00
                                                                                                                                      GUERNIZ.GOMMA SU CINTURA PORTA D
                                                                                                                                      FVN.359
                                                                                                                                      # 062
                                                                                                                                      MPN: 251-30-924-00
                                                                                                                                      IAMIERINO RITEGNO GOMMA SU CINT.PORTA D
                                                                                                                                      FVN.359
                                                                                                                                      from £69.15
                                                                                                                                      from £69.15
                                                                                                                                      # 062
                                                                                                                                      MPN: 251-30-925-00
                                                                                                                                      IAMIERINO RITEGNO GOMMA SU CINT.PORTA S
                                                                                                                                      FVN.359
                                                                                                                                      from £69.15
                                                                                                                                      from £69.15
                                                                                                                                      # 063
                                                                                                                                      MPN: 251-30-922-08
                                                                                                                                      MOLDING ON R DOOR BELT
                                                                                                                                      from £152.25
                                                                                                                                      from £152.25
                                                                                                                                      # 063
                                                                                                                                      MPN: 251-30-923-08
                                                                                                                                      MOLDING ON L. DOOR BELT
                                                                                                                                      from £152.25
                                                                                                                                      from £152.25
                                                                                                                                      # 064
                                                                                                                                      MPN: 251-30-938-04
                                                                                                                                      MOSTRINA SU LESENA POSTER. PORTA. D
                                                                                                                                      from £26.25
                                                                                                                                      from £26.25
                                                                                                                                      # 064
                                                                                                                                      MPN: 251-30-939-04
                                                                                                                                      MOSTRINA SU LESENA POSTER. PORTA. S
                                                                                                                                      # 065
                                                                                                                                      MPN: 251-30-944-04
                                                                                                                                      MOSTRINA SU LESENA ANTER.PORTA D
                                                                                                                                      from £50.40
                                                                                                                                      from £50.40
                                                                                                                                      # 065
                                                                                                                                      MPN: 251-30-945-04
                                                                                                                                      MOSTRINA SU LESENA ANTER.PORTA S
                                                                                                                                      from £50.40
                                                                                                                                      from £50.40
                                                                                                                                      # 066
                                                                                                                                      MPN: 691-30-962-01
                                                                                                                                      TIE ROD
                                                                                                                                      from £80.54
                                                                                                                                      from £80.54
                                                                                                                                      # 067
                                                                                                                                      MPN: 242-30-978-01
                                                                                                                                      ARRESTO PORTA CPL.
                                                                                                                                      # 068
                                                                                                                                      MPN: 243-44-360-00
                                                                                                                                      EXT REARVIEW MIRROR. USA ONLY
                                                                                                                                      # 069
                                                                                                                                      MPN: 691-34-084-00
                                                                                                                                      DOOR CEILING LIGHT BUTTON PLUG
                                                                                                                                      # 070
                                                                                                                                      MPN: 251-30-422-02
                                                                                                                                      GUERNIZ.INTERNA ANT.CONTORNO VOLETTO D
                                                                                                                                      from £78.86
                                                                                                                                      from £78.86
                                                                                                                                      # 070
                                                                                                                                      MPN: 251-30-423-02
                                                                                                                                      GUERNIZ.INTERNAANT. CONTORNO VOLETTO S
                                                                                                                                      # 071
                                                                                                                                      MPN: 251-30-270-04
                                                                                                                                      DEFLETTORE POST.TELARINO D
                                                                                                                                      from £2.95
                                                                                                                                      from £2.95
                                                                                                                                      # 071
                                                                                                                                      MPN: 251-30-271-04
                                                                                                                                      DEFLETTORE POST.TELARINO S
                                                                                                                                      # 072
                                                                                                                                      MPN: 251-30-284-08
                                                                                                                                      TELARINO PORTA D CPL.
                                                                                                                                      Composto da rif: 18 e 23
                                                                                                                                      # 072
                                                                                                                                      MPN: 251-30-285-08
                                                                                                                                      TELARINO PORTA S CPL.
                                                                                                                                      Composto da rif: 18 e 23
                                                                                                                                      # 073
                                                                                                                                      MPN: 251-30-752-02
                                                                                                                                      LEVER
                                                                                                                                      Part number changed to 207-30-538-00
                                                                                                                                      # 074
                                                                                                                                      MPN: 251-30-774-00
                                                                                                                                      MANICOTTO SCORR.COM.APERT.SICUREZZA PORTA
                                                                                                                                      # 075
                                                                                                                                      MPN: 251-30-592-10
                                                                                                                                      PANNELLO D INTERNO PORTA CPL.
                                                                                                                                      DVN.201 esclusa INGHILTERRA
                                                                                                                                      # 075
                                                                                                                                      MPN: 251-30-592-19
                                                                                                                                      PANNELLO D INTERNO PORTA CPL.
                                                                                                                                      DVN.201 esclusa INGHILTERRA
                                                                                                                                      # 075
                                                                                                                                      MPN: 251-30-593-10
                                                                                                                                      PANNELLO S INTERNO PORTA CPL.
                                                                                                                                      DVN.201 esclusa INGHILTERRA
                                                                                                                                      # 075
                                                                                                                                      MPN: 251-30-593-19
                                                                                                                                      PANNELLO S INTERNO PORTA CPL.
                                                                                                                                      DVN.201 esclusa INGHILTERRA
                                                                                                                                      # 076
                                                                                                                                      MPN: 251-30-540-09
                                                                                                                                      MACCHINETTA ALZACRISTALLO ELETTR.SENZA MOTOR. D
                                                                                                                                      from £129.60
                                                                                                                                      from £129.60
                                                                                                                                      # 076
                                                                                                                                      MPN: 251-30-541-09
                                                                                                                                      MACCHINETTA ALZACRISTALLO ELETTR.SENZA MOTOR. S
                                                                                                                                      from £133.91
                                                                                                                                      from £133.91
                                                                                                                                      # 077
                                                                                                                                      MPN: 251-30-004-17
                                                                                                                                      PORTA D COMPLETA DI OSSAT.E RIVEST.
                                                                                                                                      DVN.201
                                                                                                                                      # 077
                                                                                                                                      MPN: 251-30-005-17
                                                                                                                                      PORTA S COMPLETA DI OSSAT.E RIVEST.
                                                                                                                                      DVN.201
                                                                                                                                      from £1,890.00
                                                                                                                                      from £1,890.00
                                                                                                                                      # 078
                                                                                                                                      MPN: 410-30-880-06
                                                                                                                                      EMERGENCY WINDOW HANDLE.
                                                                                                                                      For electric motor
                                                                                                                                      from £295.00
                                                                                                                                      from £295.00
                                                                                                                                      This part replaces part number 95403509
                                                                                                                                      # 079
                                                                                                                                      MPN: 251-30-920-10

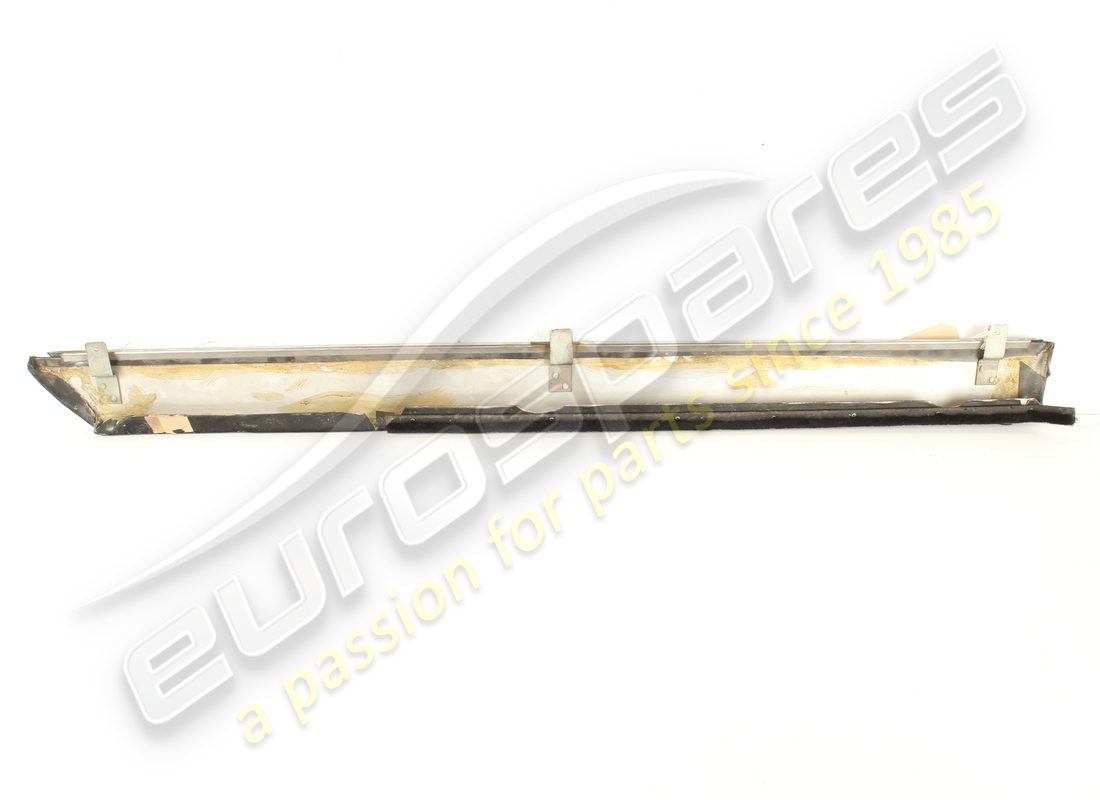

                                                                                                                                      GUERNIZ.VELLUTATA SU CINT.PORTA
                                                                                                                                      DVN.360
                                                                                                                                      # 080
                                                                                                                                      MPN: 251-30-921-10

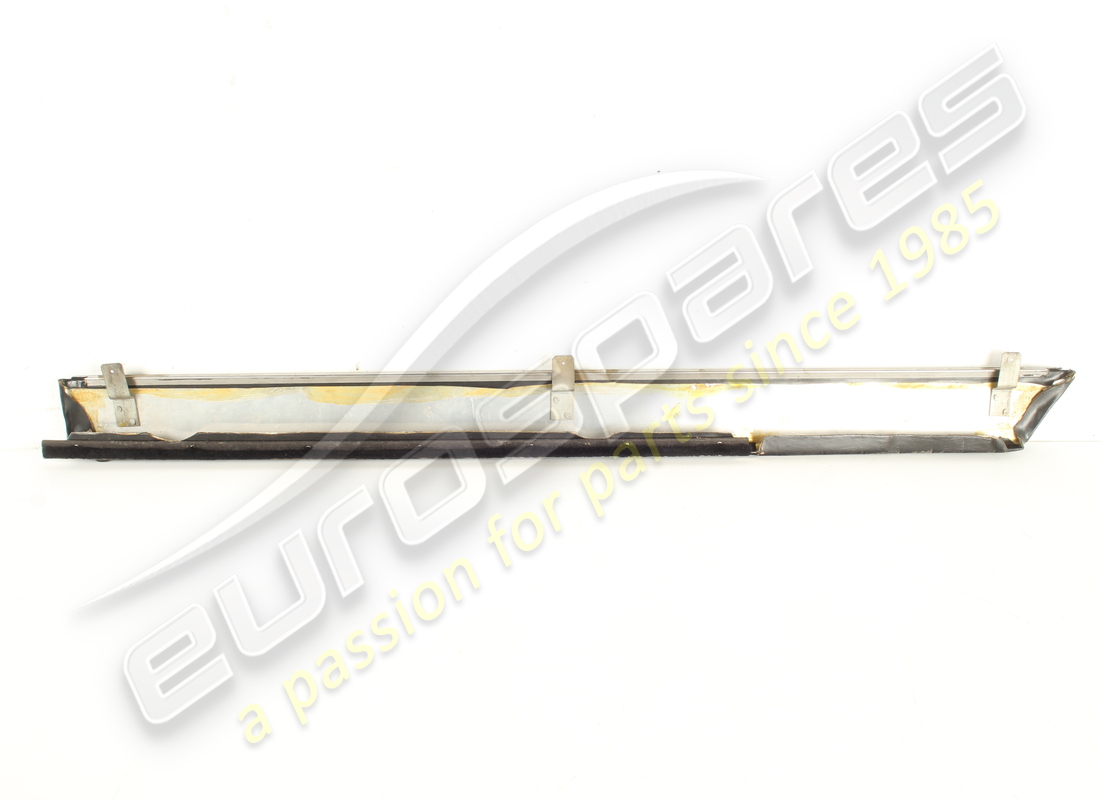

                                                                                                                                      GUERNIZ.GOMMA SU CINT.PORTA PARTE ANT.
                                                                                                                                      DVN.360
                                                                                                                                      # 081
                                                                                                                                      MPN: 251-30-924-10
                                                                                                                                      RUBBER RETAINING PLATE ON DOOR BELT
                                                                                                                                      DVN.360
                                                                                                                                      Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
