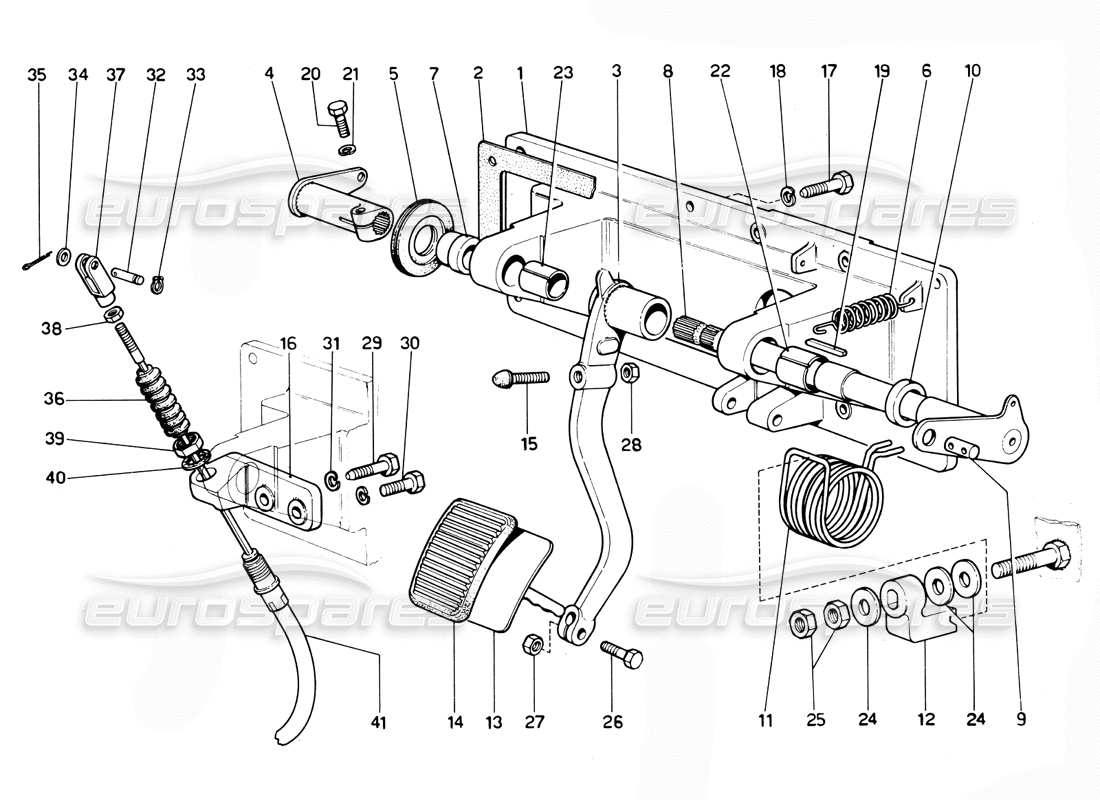

047 - Clutch pedal (RHD)

Ferrari 365 GTC4 (Mechanical) Clutch pedal (RHD) Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
        #
        Part number
        Description
        Key
        Price
        # 001
        MPN: 660906
        SUPPORT
        Valid for RH D
        SUPPORT Genuine Ferrari Part - New (to order)
        # 002
        MPN: 660912
        GASKET
        Valid for RH D
        Supersession
        Supersession
        Genuine Ferrari Part (no longer available to order)
        # 003
        MPN: 660920
        LEVER AND SLEEVE ASSEMBLY
        Valid for RH D
        Supersession
        Supersession
        Genuine Ferrari Part (no longer available to order)
        # 004
        MPN: 660985
        LEVER AND SLEEVE ASSEMBLY FOR HOSE
        Valid for RH D
        Supersession
        Supersession
        Genuine Ferrari Part (no longer available to order)
        # 005
        MPN: 660686
        GASKET
        Valid for RH D
        Supersession
        Supersession
        Genuine Ferrari Part (no longer available to order)
        # 006
        MPN: 660343
        SPRING
        Valid for RH D
        Supersession
        Supersession
        Genuine Ferrari Part (no longer available to order)
        # 007
        MPN: 660921
        SPACER
        Valid for RH D
        Supersession
        Supersession
        Genuine Ferrari Part (no longer available to order)
        # 008
        MPN: 661054
        SHAFT AND ASSIST LEVER ASSEMBLY
        Valid for RH D
        SHAFT Genuine Ferrari Part - New (to order)
        # 009
        MPN: 500648
        TASSELLO ANCORAGGIO MOLLA
        Valid for RH D
        Supersession
        Supersession
        Genuine Ferrari Part (no longer available to order)
        # 010
        MPN: 661052
        SPACER
        Valid for RH D
        Supersession
        Supersession
        Genuine Ferrari Part (no longer available to order)
        # 011
        MPN: 500653
        SPRING
        Valid for RH D
        from £65.10
        from £65.10
        SPRING Genuine Ferrari Part - New (to order)
        SPRING Genuine Ferrari Part - New (other) In stock
        O/E
        # 012
        MPN: 660926
        BRACKET / SUPPORT
        Valid for RH D
        Supersession
        Supersession
        Genuine Ferrari Part (no longer available to order)
        # 013
        MPN: 660917
        PEDAL ASSEMBLY
        Valid for RH D
        Supersession
        Supersession
        Genuine Ferrari Part (no longer available to order)
        # 014
        MPN: 102360
        PEDAL COVER
        from £55.41
        from £55.41
        This part replaces part number 660469
        PEDAL RUBBER Genuine Ferrari Part - New (to order)
        # 015
        MPN: 660344
        PEDAL ADJUSTMENT
        Valid for RH D
        Supersession
        Supersession
        Genuine Ferrari Part (no longer available to order)
        # 016
        MPN: 661020
        SUPPORT
        Valid for RH D
        SUPPORT Genuine Ferrari Part - New (to order)
        # 017
        MPN: 95563
        BOLT
        Valid for RH D
        Supersession
        Supersession
        Genuine Ferrari Part (no longer available to order)
        # 018
        MPN: REO - 8
        WASHER
        Valid for RH D
        Supersession
        Supersession
        Genuine Ferrari Part (no longer available to order)
        # 019
        MPN: 5x5x35UNIM 92
        Key
        Valid for RH D
        Key Genuine Ferrari Part - New (to order)
        # 020
        MPN: 16043821
        BOLT
        Valid for RH D
        from £0.71
        from £0.71
        Genuine Ferrari Part (no longer available to order)
        SCREW (16043821) Genuine Maserati Part - New In stock
        # 021
        MPN: 127496
        WASHER
        Valid for RH D
        from £0.54
        from £0.54
        This part replaces part number 10516671 - and 2 more. Click to view details
        WASHER Genuine Ferrari Part - New (to order)
        WASHER (127496) Genuine Maserati Part - New In stock
        # 022
        MPN: MB 2525 DU
        BUSH
        Valid for RH D
        BUSH Genuine Ferrari Part - New (to order)
        # 023
        MPN: MB2025 DU
        BUSH
        Valid for RH D
        BUSH Genuine Ferrari Part - New (to order)
        # 024
        MPN: 13550521
        WASHER
        Valid for RH D
        from £0.53
        from £0.53
        This part replaces part number 107027
        WASHER Genuine Ferrari Part - New In stock
        WASHER (13550521) Genuine Maserati Part - New (to order)
        # 025
        MPN: 12x1,75-UNI 5588
        NUT
        Valid for RH D
        NUT Genuine Ferrari Part - New (to order)
        # 026
        MPN: 95192
        BOLT
        Valid for RH D
        Supersession
        Supersession
        Genuine Ferrari Part (no longer available to order)
        # 027
        MPN: 208x 1 M
        NUT
        Valid for RH D
        NUT Genuine Ferrari Part - New (to order)
        # 028
        MPN: 8x1.25 UNI 5588
        NUT
        Valid for RH D
        NUT Genuine Ferrari Part - New (to order)
        # 029
        MPN: 95576
        BOLT
        Valid for RH D
        BOLT Genuine Ferrari Part - New (to order)
        # 030
        MPN: M8x30UNI 5737
        BOLT
        Valid for RH D
        BOLT Genuine Ferrari Part - New (to order)
        # 031
        MPN: 8R 5
        WASHER
        Valid for RH D
        Supersession
        Supersession
        Genuine Ferrari Part (no longer available to order)
        # 032
        MPN: 103218
        PIVOT
        Valid for RH D
        from £25.41
        from £25.41
        This part replaces part number 100857 - and 1 more. Click to view details
        CLEVIS PIN Genuine Ferrari Part - New (to order)
        # 033
        MPN: 984988
        SEEGER RING
        from £0.47
        from £0.47
        This part replaces part number 11065474
        SEEGER RING Genuine Ferrari Part - New (to order)
        # 034
        MPN: 103044
        WASHER
        from £5.19
        from £5.19
        WASHER Genuine Ferrari Part - New (to order)
        # 035
        MPN: C1
        SPLIT PIN
        Valid for RH D
        Supersession
        Supersession
        Genuine Ferrari Part (no longer available to order)
        # 036
        MPN: 100858
        PROTECTIVE BELLOWS
        Valid for RH D
        from £21.30
        from £21.30
        This part replaces part number 500551 - and 1 more. Click to view details
        BOOT Genuine Ferrari Part - New (to order)
        # 037
        MPN: 500600
        FORK
        Valid for RH D
        Supersession
        Supersession
        Genuine Ferrari Part (no longer available to order)
        # 038
        MPN: 7x1 - UNI 5589
        LOCKNUT
        Valid for RH D
        LOCKNUT Genuine Ferrari Part - New (to order)
        # 039
        MPN: 95426
        NUT
        Valid for RH D
        Supersession
        Supersession
        Genuine Ferrari Part (no longer available to order)
        # 040
        MPN: 12605970
        WASHER
        Valid for RH D
        from £1.10
        from £1.10
        SPRING WASHER Genuine Ferrari Part - New (to order)
        # 041
        MPN: 110020
        HOSE FOR CLUTCH CONTROL
        Valid for RH D
        from £54.97
        from £54.97
        This part replaces part number 100859 - and 1 more. Click to view details
        CLUTCH CABLE Genuine Ferrari Part - New (to order)
