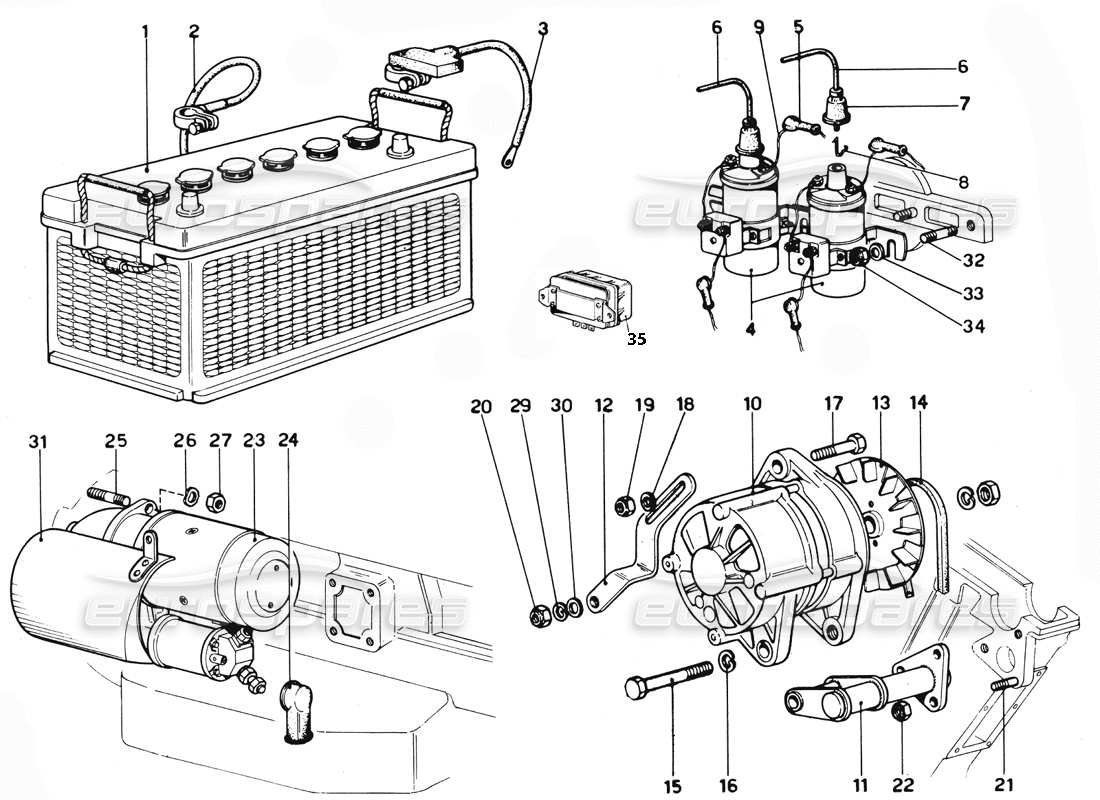

Ferrari 365 GTC4 (Mechanical) Alternator & Starter motor Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                  #
                                                                  Part number
                                                                  Description
                                                                  Price
                                                                  # 001
                                                                  MPN: 6ATP 15- 12 V
                                                                  BATTERY 74 AH
                                                                  # 002
                                                                  -
                                                                  CAVO BATTERIA-MOTORINO AWIAM.
                                                                  # 003
                                                                  -
                                                                  CAVO MASSA BATTERIA
                                                                  # 004
                                                                  MPN: 109584/C

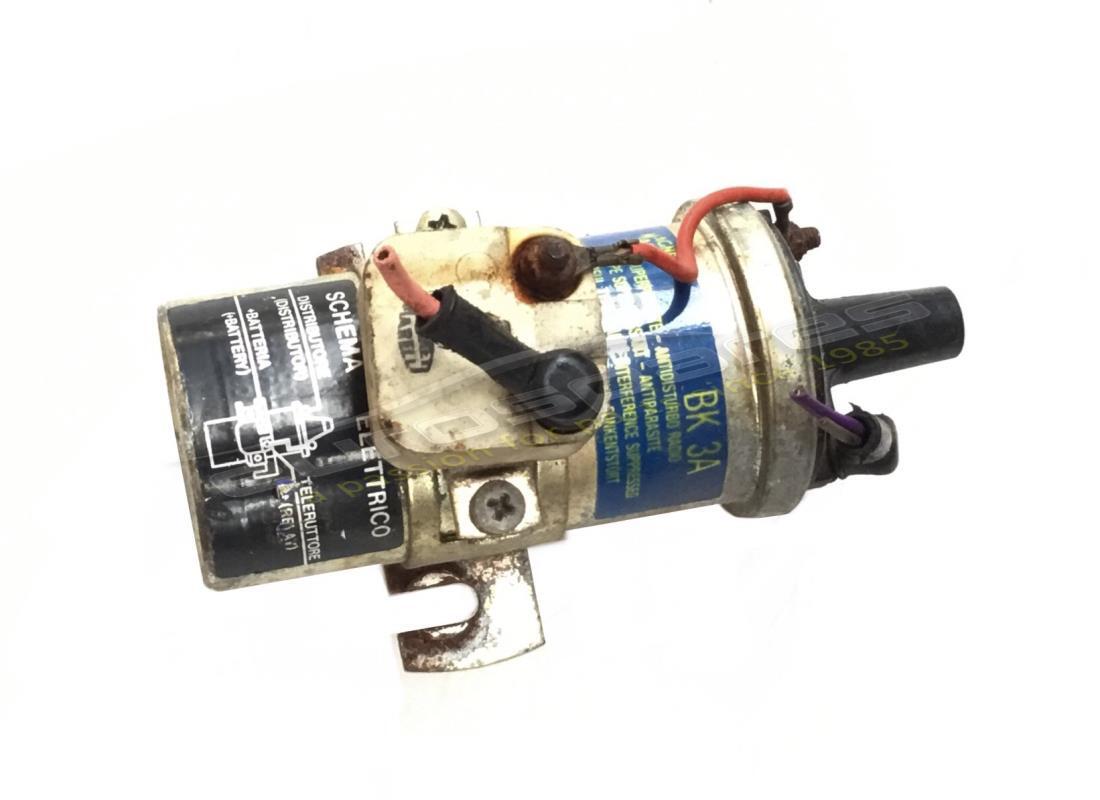

                                                                  IGNITION COIL
                                                                  from £272.28
                                                                  from £272.28
                                                                  # 005
                                                                  MPN: 10405385
                                                                  COPRIMORSETTO
                                                                  from £2.50
                                                                  from £2.50
                                                                  This part replaces part number 100285 - and 2 more. Click to view details
                                                                  # 006
                                                                  MPN: 29300
                                                                  COIL-DISPENSER CABLE
                                                                  # 007
                                                                  MPN: 28918
                                                                  CAP FOR COIL CABLE AND DISTRIBUTOR
                                                                  Supersession
                                                                  Supersession
                                                                  # 008
                                                                  MPN: 29237
                                                                  SPILLO PER TERMINALE
                                                                  from £0.99
                                                                  from £0.99
                                                                  # 009
                                                                  -
                                                                  CURRENT INPUT CABLE
                                                                  # 010
                                                                  MPN: GCA 115 A
                                                                  Generatore (6331 1501)
                                                                  from £834.75
                                                                  from £834.75
                                                                  # 011
                                                                  MPN: 100482
                                                                  GENERATOR SUPPORT ASSEMBLY
                                                                  See also 300000
                                                                  from £95.00
                                                                  from £95.00
                                                                  This part replaces part number 300000
                                                                  # 011
                                                                  MPN: 300000
                                                                  GENERATOR SUPPORT ASSEMBLY
                                                                  Supersession
                                                                  Supersession
                                                                  # 012
                                                                  MPN: 100481

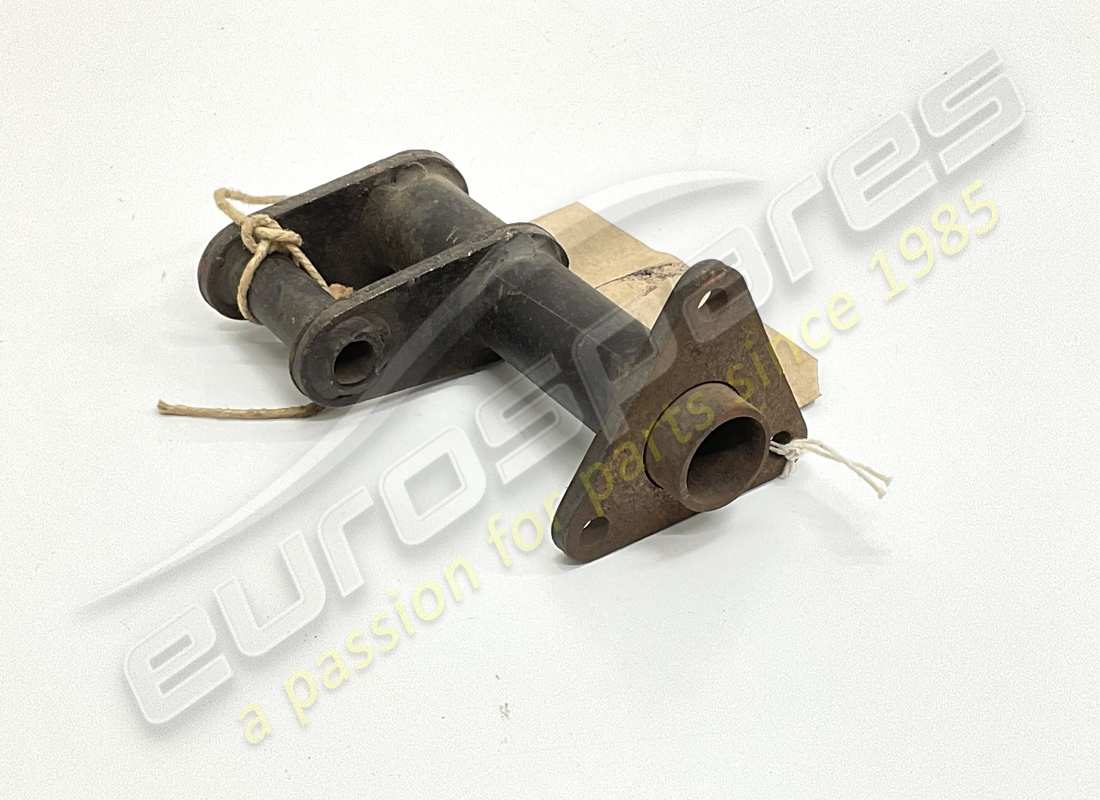

                                                                  BRACKET / SUPPORT
                                                                  from £15.00
                                                                  from £15.00
                                                                  # 013
                                                                  MPN: 300005
                                                                  ASSIEME PULEGGIA E VENTOLA
                                                                  # 014
                                                                  MPN: 7M-690
                                                                  GENERATOR CONTROL BELT
                                                                  Supersession
                                                                  Supersession
                                                                  # 015
                                                                  MPN: 15541621
                                                                  BOLT
                                                                  from £25.75
                                                                  from £25.75
                                                                  This part replaces part number 93846
                                                                  # 016
                                                                  MPN: 11198771
                                                                  WASHER
                                                                  # 018
                                                                  MPN: 12646821
                                                                  WASHER
                                                                  (minimum order quantity = 30)
                                                                  from £0.47
                                                                  from £0.47
                                                                  # 019
                                                                  MPN: 12574521
                                                                  NUT
                                                                  from £0.57
                                                                  from £0.57
                                                                  This part replaces part number 104114 which we have in stock - and 1 more. Click to view details
                                                                  # 020
                                                                  MPN: 13450120
                                                                  SELF LOCKING NUT
                                                                  Supersession
                                                                  Supersession
                                                                  # 021
                                                                  MPN: 16100814
                                                                  THREADED STUD
                                                                  from £0.71
                                                                  from £0.71
                                                                  This part replaces part number 16100811 - and 1 more. Click to view details
                                                                  # 022
                                                                  MPN: 104030
                                                                  SELF LOCKING NUT
                                                                  from £0.47
                                                                  from £0.47
                                                                  This part replaces part number 16104125
                                                                  # 023
                                                                  MPN: 100454/R
                                                                  STARTER MOTOR (MARELLI MT-21)
                                                                  from £2,670.08
                                                                  from £2,670.08
                                                                  This part replaces part number 100454
                                                                  # 023
                                                                  MPN: 100454/R
                                                                  STARTER MOTOR (MARELLI MT-21)
                                                                  from £2,670.08
                                                                  from £2,670.08
                                                                  This part replaces part number 100454
                                                                  # 023
                                                                  MPN: 100454/RC
                                                                  STARTER MOTOR THROW IN COG
                                                                  # 023
                                                                  MPN: 100454/RS
                                                                  STARTER MOTOR SOLENOID
                                                                  also use : 95130001
                                                                  from £183.75
                                                                  from £183.75
                                                                  # 024
                                                                  MPN: 111337
                                                                  COPRIMORSETTO PER MOTORINO
                                                                  from £29.05
                                                                  from £29.05
                                                                  This part replaces part number 100457
                                                                  # 025
                                                                  MPN: 103045
                                                                  THREADED STUD
                                                                  This part replaces part number 9101063
                                                                  # 026
                                                                  MPN: 11198673
                                                                  WASHER
                                                                  from £0.87
                                                                  from £0.87
                                                                  This part replaces part number 11198671
                                                                  # 027
                                                                  MPN: 95463
                                                                  NUT
                                                                  Supersession
                                                                  Supersession
                                                                  # 028
                                                                  MPN: 95204
                                                                  NUT
                                                                  Supersession
                                                                  Supersession
                                                                  # 029
                                                                  MPN: 10R1
                                                                  WASHER
                                                                  Supersession
                                                                  Supersession
                                                                  # 030
                                                                  MPN: 10413770
                                                                  WASHER
                                                                  from £0.47
                                                                  from £0.47
                                                                  # 031
                                                                  MPN: 13240
                                                                  DEFLECTOR
                                                                  Supersession
                                                                  Supersession
                                                                  # 032
                                                                  MPN: 13516524
                                                                  THREADED STUD
                                                                  from £0.71
                                                                  from £0.71
                                                                  This part replaces part number 13516521
                                                                  # 033
                                                                  -
                                                                  WASHER
                                                                  # 034
                                                                  MPN: 104030
                                                                  SELF LOCKING NUT
                                                                  from £0.47
                                                                  from £0.47
                                                                  This part replaces part number 16104125
                                                                  # 035
                                                                  MPN: 100479
                                                                  VOLTAGE REGULATOR
                                                                  from £681.36
                                                                  from £681.36
                                                                  Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
