039A - Rear suspension arms - Revision

Ferrari 365 GTC4 (Mechanical) Rear suspension arms - Revision Parts Diagram

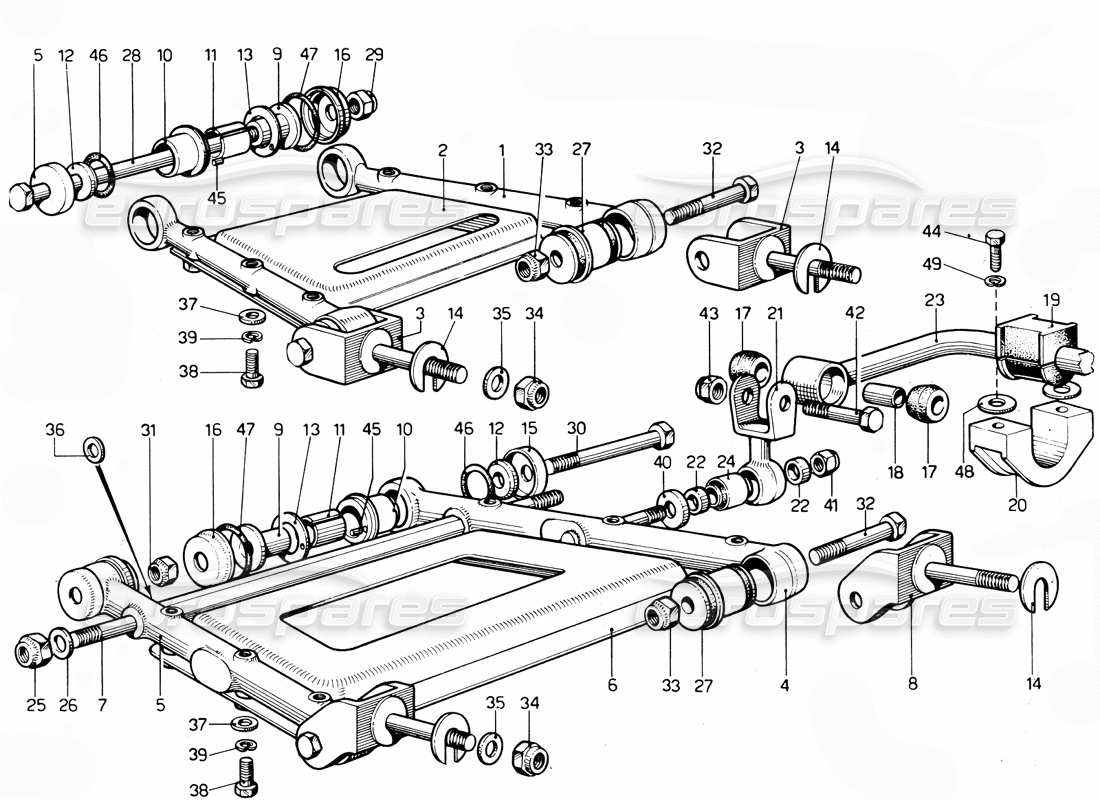

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                              #
                                                                                              Part number
                                                                                              Description
                                                                                              Price
                                                                                              # 001
                                                                                              MPN: 100778
                                                                                              TOP LEVER ASSEMBLY
                                                                                              from £110.48
                                                                                              from £110.48
                                                                                              This part replaces part number 601202 - and 1 more. Click to view details
                                                                                              # 001
                                                                                              MPN: 601202
                                                                                              UPPER LEVER ARM
                                                                                              Supersession
                                                                                              Supersession
                                                                                              # 002
                                                                                              MPN: 601637
                                                                                              PLATE FOR TOP LEVER
                                                                                              Supersession
                                                                                              Supersession
                                                                                              # 003
                                                                                              MPN: 601644
                                                                                              FORK
                                                                                              Supersession
                                                                                              Supersession
                                                                                              # 004
                                                                                              MPN: 601640
                                                                                              REAR ARM LOWER LEVER
                                                                                              Supersession
                                                                                              Supersession
                                                                                              # 005
                                                                                              MPN: 601639
                                                                                              BRACCIO ANT.LEVA INFERIORE
                                                                                              Supersession
                                                                                              Supersession
                                                                                              # 006
                                                                                              MPN: 601641
                                                                                              PLATE FOR LOWER LEVER
                                                                                              Supersession
                                                                                              Supersession
                                                                                              # 007
                                                                                              MPN: 601642
                                                                                              PIVOT
                                                                                              Supersession
                                                                                              Supersession
                                                                                              # 009
                                                                                              MPN: 100778
                                                                                              Left upper lever assembly
                                                                                              Valid for October 1972 revision - * Vetture con impianto depurazione scarichi
                                                                                              from £110.48
                                                                                              from £110.48
                                                                                              This part replaces part number 601202 - and 1 more. Click to view details
                                                                                              # 009
                                                                                              MPN: 601638 S
                                                                                              Left upper lever assembly
                                                                                              Valid for October 1972 revision - * Vetture con impianto depurazione scarichi
                                                                                              # 009
                                                                                              MPN: 602104 D
                                                                                              UPPER RIGHT LEVER ASSEMBLY
                                                                                              Valid for October 1972 revision - * Vetture con impianto depurazione scarichi
                                                                                              # 009
                                                                                              MPN: 602105 D
                                                                                              UPPER RIGHT LEVER ASSEMBLY
                                                                                              Valid for October 1972 revision - * Vetture con impianto depurazione scarichi
                                                                                              # 009
                                                                                              MPN: 602109
                                                                                              BUSHINGS FOR LEVERS
                                                                                              Valid for October 1972 revision - * Vetture con impianto depurazione scarichi
                                                                                              # 010
                                                                                              MPN: 601478
                                                                                              BUSH
                                                                                              Supersession
                                                                                              Supersession
                                                                                              # 011
                                                                                              MPN: 100787
                                                                                              BUSH
                                                                                              from £5.48
                                                                                              from £5.48
                                                                                              This part replaces part number 101315 - and 1 more. Click to view details
                                                                                              # 012
                                                                                              MPN: 100788
                                                                                              WASHER
                                                                                              from £11.61
                                                                                              from £11.61
                                                                                              This part replaces part number 601338
                                                                                              # 013
                                                                                              MPN: 101009
                                                                                              WASHER
                                                                                              from £6.74
                                                                                              from £6.74
                                                                                              This part replaces part number 600771
                                                                                              # 014
                                                                                              MPN: 600831
                                                                                              WASHER
                                                                                              Supersession
                                                                                              Supersession
                                                                                              # 015
                                                                                              MPN: 101011
                                                                                              WATER PROTECTION BUSHING PAN
                                                                                              from £8.41
                                                                                              from £8.41
                                                                                              # 016
                                                                                              MPN: 101014
                                                                                              SUSPENSION BUSH DUST COVER
                                                                                              from £5.84
                                                                                              from £5.84
                                                                                              This part replaces part number 600957
                                                                                              # 017
                                                                                              MPN: 100984
                                                                                              GOMMINO PER BISCOTTINO
                                                                                              from £6.48
                                                                                              from £6.48
                                                                                              This part replaces part number 126097 - and 1 more. Click to view details
                                                                                              # 018
                                                                                              MPN: 100985
                                                                                              SPACER FOR BISCUITS
                                                                                              from £21.06
                                                                                              from £21.06
                                                                                              This part replaces part number 64431
                                                                                              # 019
                                                                                              MPN: 108745
                                                                                              TAMPONE TENUTA BARRA
                                                                                              from £22.26
                                                                                              from £22.26
                                                                                              This part replaces part number 100802
                                                                                              # 020
                                                                                              MPN: 601743
                                                                                              CAVALLOTTO TENUTA BARRA
                                                                                              Supersession
                                                                                              Supersession
                                                                                              # 021
                                                                                              MPN: 601645
                                                                                              BISCOTTINO PER BARRA
                                                                                              Supersession
                                                                                              Supersession
                                                                                              # 022
                                                                                              MPN: 100771
                                                                                              SPACER
                                                                                              from £33.42
                                                                                              from £33.42
                                                                                              This part replaces part number 64544
                                                                                              # 023
                                                                                              MPN: 601646
                                                                                              ANTI - ROLL BAR
                                                                                              # 024
                                                                                              MPN: 100773
                                                                                              SILENTBLOC
                                                                                              from £19.62
                                                                                              from £19.62
                                                                                              This part replaces part number 60220 - and 1 more. Click to view details
                                                                                              # 025
                                                                                              MPN: 214x 1,5M
                                                                                              NUT
                                                                                              # 026
                                                                                              MPN: 14 R 2
                                                                                              WASHER
                                                                                              # 027
                                                                                              MPN: 134883
                                                                                              BUSH
                                                                                              Use part number 134883
                                                                                              from £39.95
                                                                                              from £39.95
                                                                                              This part replaces part number 101091 - and 1 more. Click to view details
                                                                                              # 028
                                                                                              MPN: 95452
                                                                                              BOLT
                                                                                              Supersession
                                                                                              Supersession
                                                                                              # 029
                                                                                              MPN: 148020
                                                                                              NUT
                                                                                              from £2.53
                                                                                              from £2.53
                                                                                              This part replaces part number 102825 - and 3 more. Click to view details
                                                                                              # 031
                                                                                              MPN: 148020
                                                                                              NUT
                                                                                              from £2.46
                                                                                              from £2.46
                                                                                              This part replaces part number 102825 - and 3 more. Click to view details
                                                                                              # 032
                                                                                              MPN: M14x90-UNI 5737
                                                                                              BOLT
                                                                                              # 034
                                                                                              MPN: 214x 1,5M
                                                                                              NUT
                                                                                              # 036
                                                                                              MPN: 95320
                                                                                              WASHER
                                                                                              Supersession
                                                                                              Supersession
                                                                                              # 038
                                                                                              MPN: M10x25-UNI 5739
                                                                                              BOLT
                                                                                              # 039
                                                                                              MPN: 10R4
                                                                                              WASHER
                                                                                              Supersession
                                                                                              Supersession
                                                                                              # 040
                                                                                              MPN: 95619
                                                                                              WASHER
                                                                                              Valid for October 1972 revision - * Vetture con impianto depurazione scarichi
                                                                                              # 041
                                                                                              MPN: 148020
                                                                                              NUT
                                                                                              from £2.53
                                                                                              from £2.53
                                                                                              This part replaces part number 102825 - and 3 more. Click to view details
                                                                                              # 042
                                                                                              MPN: 95187
                                                                                              BOLT
                                                                                              Supersession
                                                                                              Supersession
                                                                                              # 043
                                                                                              MPN: 148020
                                                                                              NUT
                                                                                              from £2.53
                                                                                              from £2.53
                                                                                              This part replaces part number 102825 - and 3 more. Click to view details
                                                                                              # 044
                                                                                              MPN: 11288021
                                                                                              BOLT
                                                                                              Supersession
                                                                                              Supersession
                                                                                              # 045
                                                                                              MPN: 100796
                                                                                              CENTERING DOWEL
                                                                                              from £2.26
                                                                                              from £2.26
                                                                                              This part replaces part number 94943
                                                                                              # 046
                                                                                              MPN: 101043
                                                                                              RING
                                                                                              from £1.04
                                                                                              from £1.04
                                                                                              This part replaces part number 4106
                                                                                              # 047
                                                                                              MPN: 101044
                                                                                              RING
                                                                                              from £0.71
                                                                                              from £0.71
                                                                                              This part replaces part number 3150
                                                                                              # 048
                                                                                              MPN: 100812
                                                                                              WASHER
                                                                                              from £1.05
                                                                                              from £1.05
                                                                                              This part replaces part number 94724
                                                                                              # 049
                                                                                              MPN: 10516870
                                                                                              WASHER
                                                                                              from £0.93
                                                                                              from £0.93
                                                                                              This part replaces part number 10R4
