032 - Hand brake

Ferrari 365 GTC4 (Mechanical) Hand Brake Parts Diagram

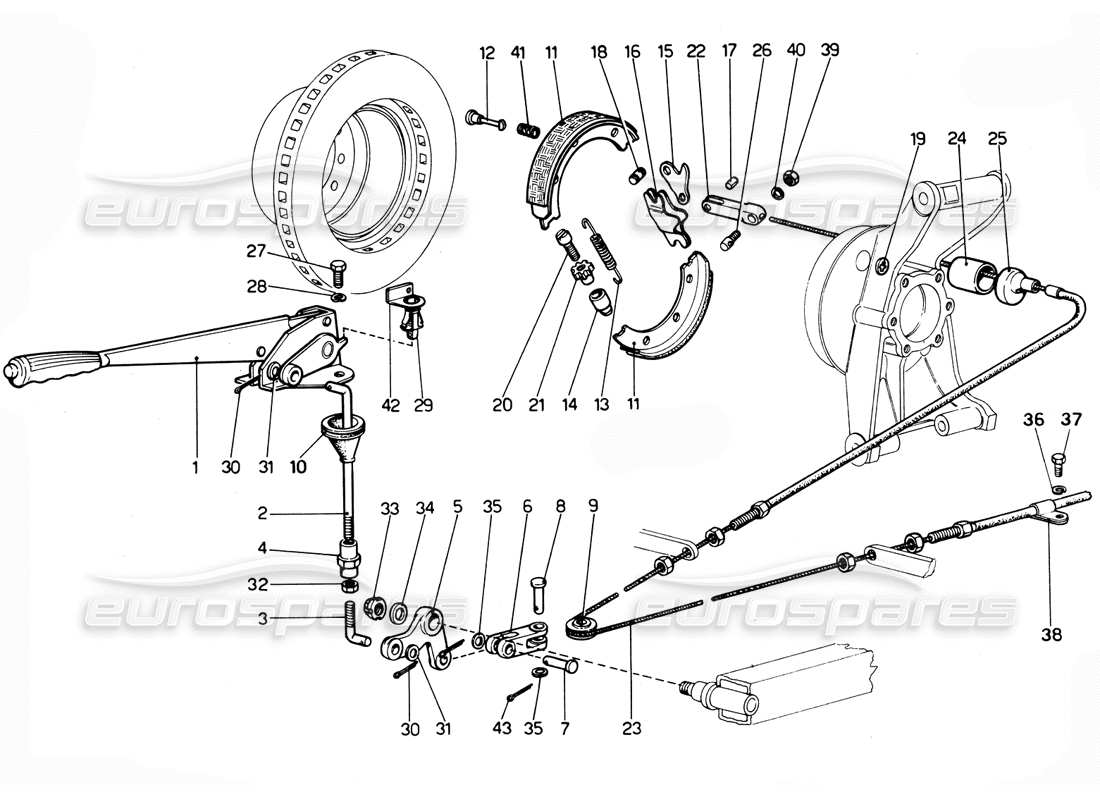

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                        #
                                                                                        Part number
                                                                                        Description
                                                                                        Price
                                                                                        # 000
                                                                                        MPN: 680514
                                                                                        ASSIEME PINZA STRINGIGANASCE
                                                                                        # 001
                                                                                        MPN: 110071
                                                                                        ASSIEME LEVA COMANDO FRENO A MANO
                                                                                        from £252.00
                                                                                        from £252.00
                                                                                        This part replaces part number 101178 - and 3 more. Click to view details
                                                                                        # 002
                                                                                        MPN: 680751
                                                                                        TIE ROD
                                                                                        Supersession
                                                                                        Supersession
                                                                                        # 003
                                                                                        MPN: 680752
                                                                                        TIE ROD
                                                                                        Supersession
                                                                                        Supersession
                                                                                        # 004
                                                                                        MPN: 680753
                                                                                        REGISTER FOR TIE RODS
                                                                                        Supersession
                                                                                        Supersession
                                                                                        # 005
                                                                                        MPN: 680754
                                                                                        LEVER
                                                                                        Supersession
                                                                                        Supersession
                                                                                        # 006
                                                                                        MPN: 680755
                                                                                        FORK
                                                                                        Supersession
                                                                                        Supersession
                                                                                        # 007
                                                                                        MPN: 680756
                                                                                        PEMO PER FORCELLINO
                                                                                        Supersession
                                                                                        Supersession
                                                                                        # 008
                                                                                        MPN: 680757
                                                                                        PIVOT
                                                                                        Supersession
                                                                                        Supersession
                                                                                        # 009
                                                                                        MPN: 69153
                                                                                        CARRUCOLA
                                                                                        Supersession
                                                                                        Supersession
                                                                                        # 010
                                                                                        MPN: 680750
                                                                                        SOFFIETTO
                                                                                        Supersession
                                                                                        Supersession
                                                                                        # 011
                                                                                        MPN: 134847
                                                                                        HAND BRAKE SHOES
                                                                                        Set of 4 (25 mm)
                                                                                        from £36.25
                                                                                        from £36.25
                                                                                        This part replaces part number 101270 - and 2 more. Click to view details
                                                                                        # 012
                                                                                        MPN: 680515
                                                                                        PIVOT
                                                                                        Supersession
                                                                                        Supersession
                                                                                        # 013
                                                                                        MPN: 101276
                                                                                        SPRING
                                                                                        from £2.28
                                                                                        from £2.28
                                                                                        This part replaces part number 680516 - and 6 more. Click to view details
                                                                                        # 014
                                                                                        MPN: 680520
                                                                                        SEAT FOR SCREW
                                                                                        # 015
                                                                                        MPN: 680538
                                                                                        LEVER
                                                                                        Supersession
                                                                                        Supersession
                                                                                        # 016
                                                                                        MPN: 680539
                                                                                        LEVER
                                                                                        Supersession
                                                                                        Supersession
                                                                                        # 017
                                                                                        MPN: 680540
                                                                                        PIVOT
                                                                                        Supersession
                                                                                        Supersession
                                                                                        # 018
                                                                                        MPN: 101283
                                                                                        PIVOT
                                                                                        from £8.70
                                                                                        from £8.70
                                                                                        This part replaces part number 680541 - and 3 more. Click to view details
                                                                                        # 019
                                                                                        MPN: 680542
                                                                                        PIATTELLO PER MOLLA
                                                                                        Supersession
                                                                                        Supersession
                                                                                        # 020
                                                                                        MPN: 680543
                                                                                        THREADED PIVOT
                                                                                        Supersession
                                                                                        Supersession
                                                                                        # 022
                                                                                        MPN: 680580
                                                                                        SELECTOR FORK
                                                                                        # 023
                                                                                        MPN: 102826
                                                                                        FUNE COMPL. PER COMANDO FRENO
                                                                                        from £359.27
                                                                                        from £359.27
                                                                                        This part replaces part number 680948
                                                                                        # 024
                                                                                        MPN: 680959
                                                                                        TUBO PROTEZIONE FORCELLINO
                                                                                        # 025
                                                                                        MPN: 680960
                                                                                        COPERCHIETTO
                                                                                        Supersession
                                                                                        Supersession
                                                                                        # 026
                                                                                        MPN: 680581
                                                                                        ROPE STOP TAMBURY
                                                                                        Supersession
                                                                                        Supersession
                                                                                        # 027
                                                                                        MPN: M8x16-UNI 5740
                                                                                        BOLT
                                                                                        # 028
                                                                                        MPN: 127496
                                                                                        WASHER
                                                                                        from £0.54
                                                                                        from £0.54
                                                                                        This part replaces part number 10516671 - and 2 more. Click to view details
                                                                                        # 029
                                                                                        -
                                                                                        INTERRUTORE PER SPIA
                                                                                        # 030
                                                                                        MPN: C1
                                                                                        SPLIT PIN
                                                                                        Supersession
                                                                                        Supersession
                                                                                        # 032
                                                                                        MPN: 16100824
                                                                                        NUT
                                                                                        from £0.53
                                                                                        from £0.53
                                                                                        This part replaces part number 16100814 - and 1 more. Click to view details
                                                                                        # 033
                                                                                        MPN: 100865
                                                                                        NUT
                                                                                        from £9.91
                                                                                        from £9.91
                                                                                        # 034
                                                                                        -
                                                                                        WASHER
                                                                                        # 035
                                                                                        MPN: 10519624
                                                                                        WASHER
                                                                                        from £0.54
                                                                                        from £0.54
                                                                                        This part replaces part number 10519601 - and 3 more. Click to view details
                                                                                        # 037
                                                                                        MPN: M6x8 - UNI 5739
                                                                                        BOLT
                                                                                        # 038
                                                                                        MPN: 680970
                                                                                        FASCETTA PER GUAINA
                                                                                        Supersession
                                                                                        Supersession
                                                                                        # 039
                                                                                        MPN: 8x1 UNI 5588
                                                                                        NUT
                                                                                        # 040
                                                                                        MPN: 127496
                                                                                        WASHER
                                                                                        from £0.54
                                                                                        from £0.54
                                                                                        This part replaces part number 10516671 - and 2 more. Click to view details
                                                                                        # 041
                                                                                        MPN: 680517
                                                                                        SPRING
                                                                                        Supersession
                                                                                        Supersession
                                                                                        # 042
                                                                                        MPN: 680746
                                                                                        SUPPORT
                                                                                        Supersession
                                                                                        Supersession
                                                                                        # 043
                                                                                        MPN: 10734201
                                                                                        SPLIT PIN
                                                                                        Supersession
                                                                                        Supersession
