028 - Brake pedal & Brake master

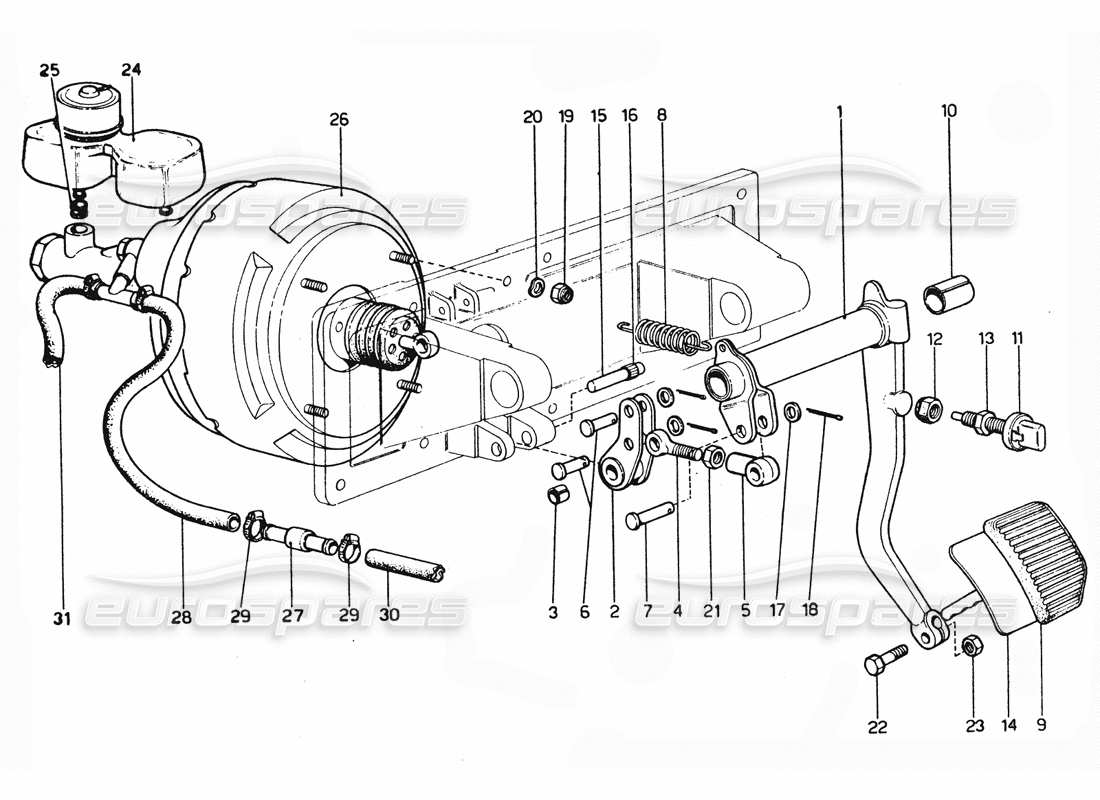

Ferrari 365 GTC4 (Mechanical) Brake pedal & Brake master Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 000
MPN: 308BMRK
BRAKE MASTER SEAL KIT
Rebuild Kit (superb quality)
# 001
MPN: 660854
LEVER
# 002
MPN: 660861
LEVER
Supersession
Supersession
# 003
MPN: 660866
BUSH
Supersession
Supersession
# 004
MPN: 660860
TIE ROD
Supersession
Supersession
# 005
MPN: 660858
ADJUSTMENT FOR BRAKE LEVER
Supersession
Supersession
# 006
MPN: 660864
PIVOT
Supersession
Supersession
# 007
MPN: 660859
PIVOT
Supersession
Supersession
# 008
MPN: 660343
SPRING
Supersession
Supersession
# 009
MPN: 660737
GOMMINO PROTEZIONE PEDALE
Supersession
Supersession
# 010
MPN: 660826
BUSH
# 011
MPN: 101663
STOP LIGHT SWITCH (2 TERMINALS)
from £23.05
from £23.05
This part replaces part number 4177124 - and 13 more. Click to view details
# 012
MPN: 660523
NUT
Supersession
Supersession
# 013
MPN: 660524
NUT
Supersession
Supersession
# 014
MPN: 660990
BRAKE PEDAL ASSEMBLY
Supersession
Supersession
# 015
MPN: 660865
PIVOT
Supersession
Supersession
# 016
MPN: 100962
RING
from £6.44
from £6.44
# 017
MPN: 100964
WASHER
from £0.71
from £0.71
# 018
MPN: 10734301
SPLIT PIN
from £0.47
from £0.47
# 019
MPN: 101240
NUT
from £1.30
from £1.30
# 020
MPN: 12601374
WASHER
from £0.47
from £0.47
This part replaces part number 10615474 - and 6 more. Click to view details
# 021
MPN: 100965
LOCKNUT
from £0.80
from £0.80
# 022
MPN: 95192
BOLT
Supersession
Supersession
# 023
MPN: 101309
NUT
from £0.93
from £0.93
# 024
MPN: 680986
VASCHETTA PER LIQUIDO FRENI
Supersession
Supersession
# 025
MPN: 680988
SEALING RING
# 026
MPN: 151471
LHD BRAKE SERVO & PUMP
from £1,200.00
from £1,200.00
This part replaces part number 133568 - and 7 more. Click to view details
# 026
MPN: 681075
BRAKE SERVO MASTER RHD
Supersession
Supersession
# 026
MPN: 681075/A
brake master cylinder
RHD Brake Master Cylinder- Only
from £411.93
from £411.93
# 027
MPN: 101538
NON-RETURN VALVE.
Supersession
Supersession
# 028
MPN: 101541
HOSE CONNECTING VALVE NOT RETURN TO BRAKE SERVO
from £15.53
from £15.53
This part replaces part number 680866
# 029
MPN: 100507
JUBILEE CLIP
Supersession
Supersession
# 030
MPN: 102591
VALVE CONNECTION PIPE DOES NOT RETURN TO THE INTAKE MANIFOLD
from £5.94
from £5.94
This part replaces part number 9162315
# 031
MPN: 220628
HOSE CONNECTING THE DEPRESSOR TO THE BRAKE SERVO
