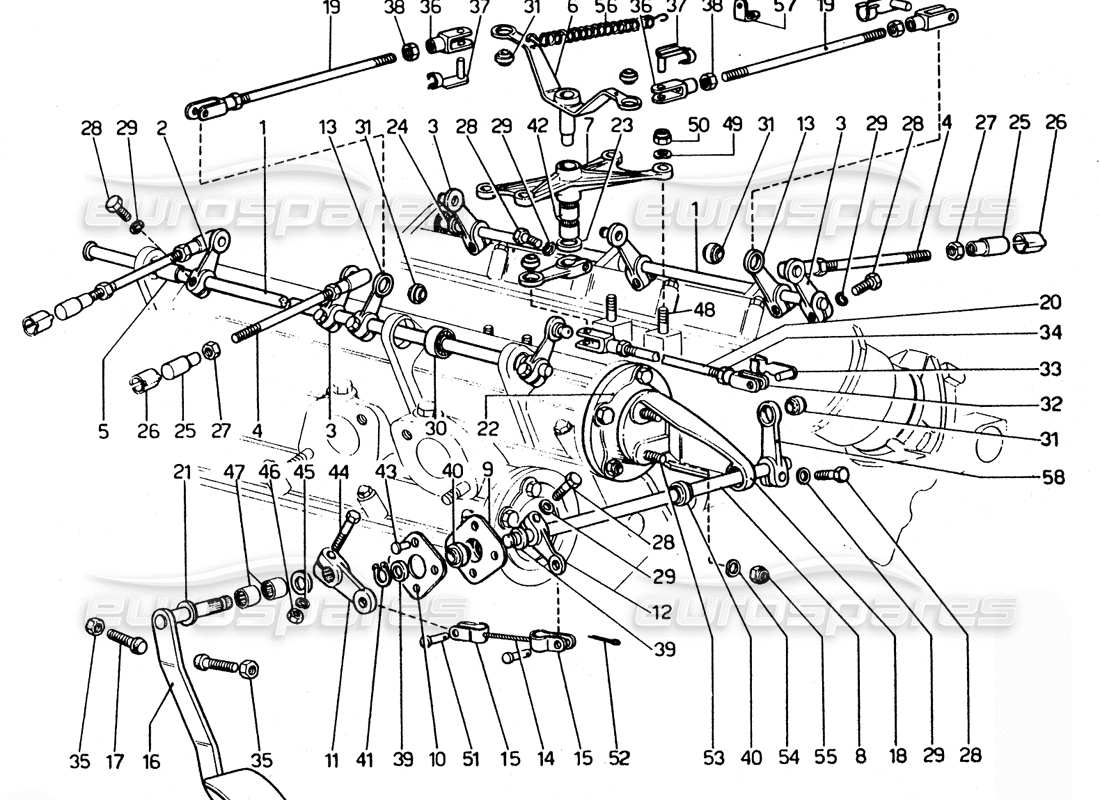

011 - THROTTLE LINKAGE

Ferrari 365 GTC4 (Mechanical) Throttle linkage Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                                    #
                                                                                                                    Part number
                                                                                                                    Description
                                                                                                                    Price
                                                                                                                    # 001
                                                                                                                    MPN: 9181220
                                                                                                                    SHAFT CONNECTING CARBURETTOR CONTROL LEVERS
                                                                                                                    # 002
                                                                                                                    MPN: 9181227
                                                                                                                    LEVER
                                                                                                                    # 003
                                                                                                                    MPN: 9181226
                                                                                                                    LEFT AND RIGHT CARBON CONTROL LEVERS
                                                                                                                    # 004
                                                                                                                    MPN: 9181243
                                                                                                                    TIE ROD
                                                                                                                    # 005
                                                                                                                    MPN: 9181217
                                                                                                                    SPACER
                                                                                                                    Supersession
                                                                                                                    Supersession
                                                                                                                    # 006
                                                                                                                    MPN: 9181235
                                                                                                                    ASSIEME LEVA RINVIO
                                                                                                                    Supersession
                                                                                                                    Supersession
                                                                                                                    # 007
                                                                                                                    MPN: 9181216
                                                                                                                    SUPPORT
                                                                                                                    Supersession
                                                                                                                    Supersession
                                                                                                                    # 008
                                                                                                                    MPN: 9181221
                                                                                                                    LEVER SUPPORT ROD
                                                                                                                    # 009
                                                                                                                    MPN: 9181231
                                                                                                                    CASE FOR ROD SUPPORT JOINT
                                                                                                                    # 010
                                                                                                                    MPN: 9181232
                                                                                                                    CONTROPIASTRA
                                                                                                                    # 011
                                                                                                                    MPN: 9181601
                                                                                                                    LEVER
                                                                                                                    Supersession
                                                                                                                    Supersession
                                                                                                                    # 012
                                                                                                                    MPN: 9181240
                                                                                                                    LEVER
                                                                                                                    Supersession
                                                                                                                    Supersession
                                                                                                                    # 013
                                                                                                                    MPN: 9181219
                                                                                                                    LEVER
                                                                                                                    # 013
                                                                                                                    MPN: 9181238
                                                                                                                    LEVER TOGETHER FOR SAID
                                                                                                                    # 014
                                                                                                                    MPN: 102093
                                                                                                                    CAVO BOWDEN
                                                                                                                    from £12.71
                                                                                                                    from £12.71
                                                                                                                    This part replaces part number 9181301
                                                                                                                    # 015
                                                                                                                    MPN: 9181593
                                                                                                                    FORK
                                                                                                                    # 016
                                                                                                                    MPN: 9181290
                                                                                                                    ASSIEME PEDALE ACCELERATORE
                                                                                                                    Supersession
                                                                                                                    Supersession
                                                                                                                    # 017
                                                                                                                    MPN: 146540

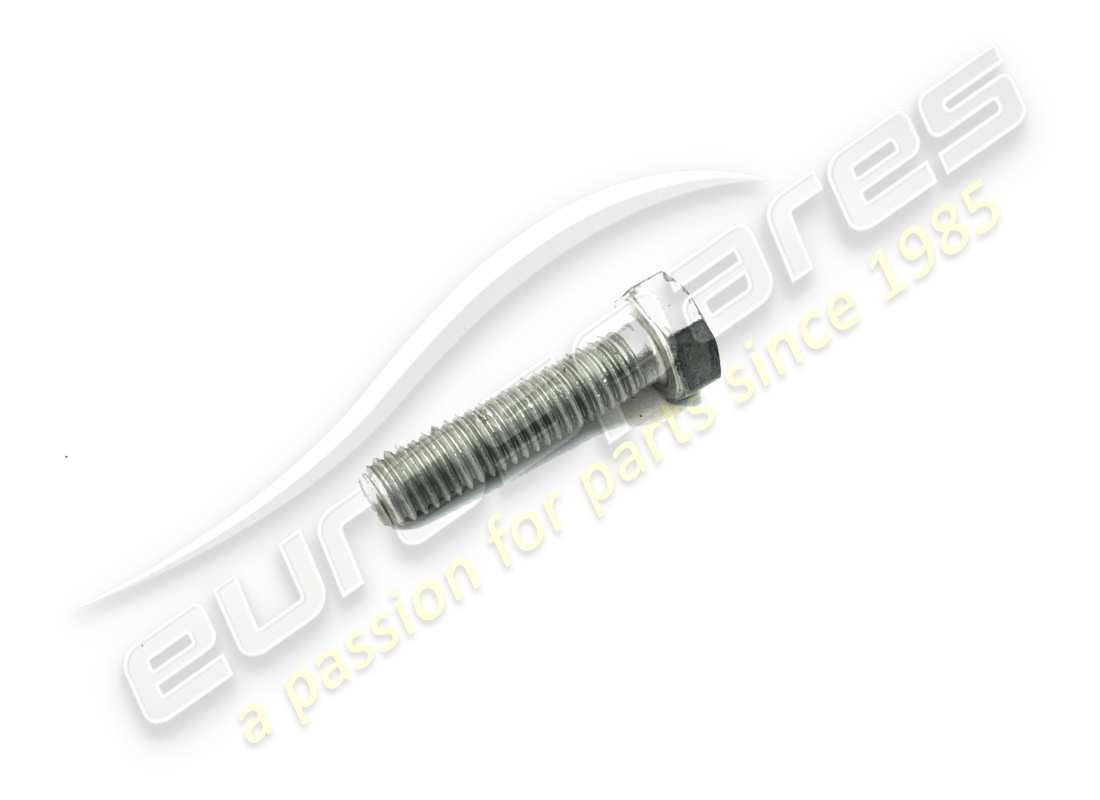

                                                                                                                    SCREW
                                                                                                                    from £9.06
                                                                                                                    from £9.06
                                                                                                                    This part replaces part number 16326431 - and 3 more. Click to view details
                                                                                                                    # 018
                                                                                                                    MPN: 100642
                                                                                                                    SHELF
                                                                                                                    See also 9181224
                                                                                                                    from £32.76
                                                                                                                    from £32.76
                                                                                                                    This part replaces part number 9181224
                                                                                                                    # 018
                                                                                                                    MPN: 9181224
                                                                                                                    SHELF
                                                                                                                    Supersession
                                                                                                                    Supersession
                                                                                                                    # 019
                                                                                                                    MPN: 9181605
                                                                                                                    TIE ROD
                                                                                                                    Supersession
                                                                                                                    Supersession
                                                                                                                    # 020
                                                                                                                    MPN: 9181241
                                                                                                                    TIE ROD
                                                                                                                    Supersession
                                                                                                                    Supersession
                                                                                                                    # 021
                                                                                                                    MPN: 9181602
                                                                                                                    WASHER
                                                                                                                    Supersession
                                                                                                                    Supersession
                                                                                                                    # 022
                                                                                                                    MPN: 9181594
                                                                                                                    COVER
                                                                                                                    from £97.00
                                                                                                                    from £97.00
                                                                                                                    # 023
                                                                                                                    MPN: 9181595
                                                                                                                    RASAMENTO INFERIORE PER BILANCIERE
                                                                                                                    Supersession
                                                                                                                    Supersession
                                                                                                                    # 024
                                                                                                                    MPN: 9181596
                                                                                                                    SPACER
                                                                                                                    Supersession
                                                                                                                    Supersession
                                                                                                                    # 025
                                                                                                                    MPN: 910124311
                                                                                                                    GIUNTO PER TIRANTE COMANDO CARB.
                                                                                                                    # 026
                                                                                                                    MPN: 10124776
                                                                                                                    SPRING
                                                                                                                    Supersession
                                                                                                                    Supersession
                                                                                                                    # 027
                                                                                                                    MPN: 15896421
                                                                                                                    NUT
                                                                                                                    from £0.47
                                                                                                                    from £0.47
                                                                                                                    # 029
                                                                                                                    MPN: 12601371
                                                                                                                    WASHER
                                                                                                                    Supersession
                                                                                                                    Supersession
                                                                                                                    # 030
                                                                                                                    MPN: 6000- 2 Z
                                                                                                                    BEARING ON THE HEAD COVERS
                                                                                                                    # 031
                                                                                                                    MPN: 100423
                                                                                                                    SNODO SFERICO
                                                                                                                    from £21.11
                                                                                                                    from £21.11

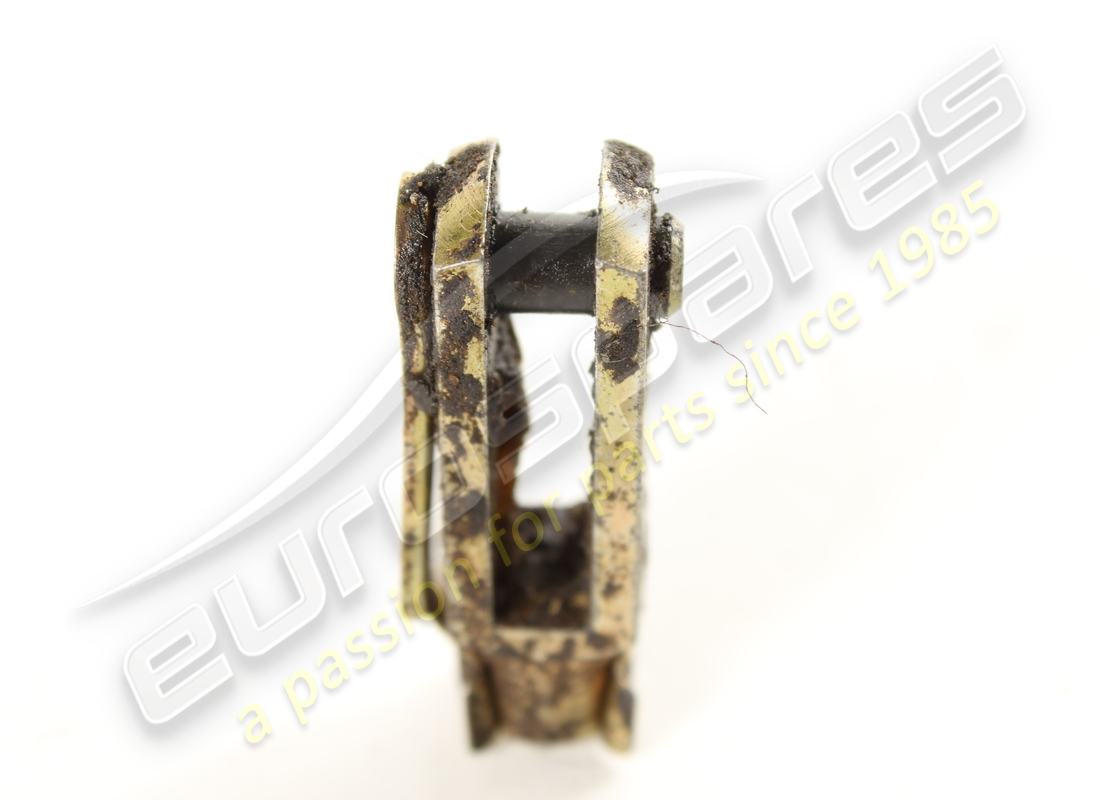

                                                                                                                    # 032
                                                                                                                    MPN: 100655
                                                                                                                    FORK
                                                                                                                    from £56.31
                                                                                                                    from £56.31
                                                                                                                    This part replaces part number 550015 - and 3 more. Click to view details

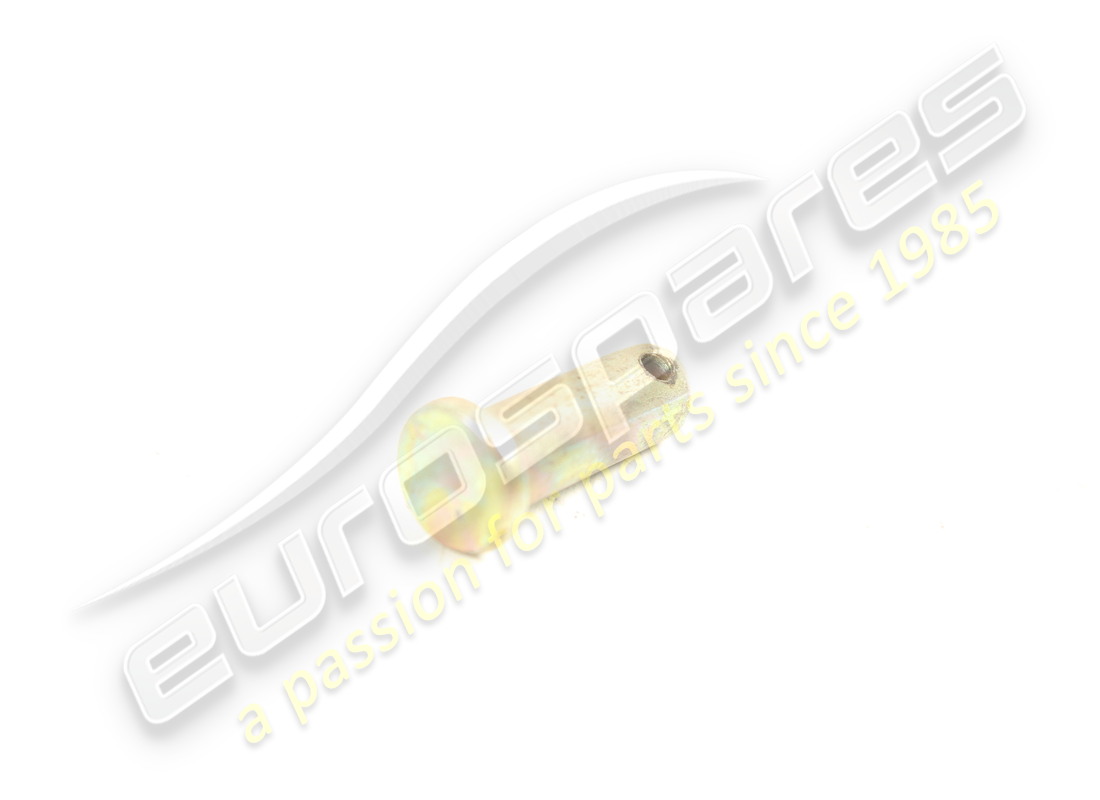

                                                                                                                    # 033
                                                                                                                    MPN: 100656
                                                                                                                    PIVOT
                                                                                                                    from £2.25
                                                                                                                    from £2.25
                                                                                                                    # 034
                                                                                                                    MPN: 134041
                                                                                                                    NUT
                                                                                                                    from £0.56
                                                                                                                    from £0.56
                                                                                                                    This part replaces part number 15896221
                                                                                                                    # 035
                                                                                                                    MPN: 16100824
                                                                                                                    NUT
                                                                                                                    from £0.53
                                                                                                                    from £0.53
                                                                                                                    This part replaces part number 16100814 - and 1 more. Click to view details
                                                                                                                    # 036
                                                                                                                    MPN: 500571
                                                                                                                    FORK
                                                                                                                    from £37.21
                                                                                                                    from £37.21
                                                                                                                    # 037
                                                                                                                    MPN: 100422
                                                                                                                    PIVOT
                                                                                                                    from £5.41
                                                                                                                    from £5.41
                                                                                                                    # 038
                                                                                                                    MPN: 134041
                                                                                                                    NUT
                                                                                                                    from £0.56
                                                                                                                    from £0.56
                                                                                                                    This part replaces part number 15896221
                                                                                                                    # 039
                                                                                                                    MPN: 95138
                                                                                                                    WASHER
                                                                                                                    Supersession
                                                                                                                    Supersession
                                                                                                                    # 040
                                                                                                                    MPN: 100424
                                                                                                                    JOINT
                                                                                                                    from £41.51
                                                                                                                    from £41.51
                                                                                                                    # 041
                                                                                                                    MPN: 104182
                                                                                                                    SEEGER RING
                                                                                                                    from £0.83
                                                                                                                    from £0.83
                                                                                                                    # 042
                                                                                                                    MPN: 101677
                                                                                                                    ROLLER CASE
                                                                                                                    from £2.04
                                                                                                                    from £2.04
                                                                                                                    # 043
                                                                                                                    MPN: 10540700
                                                                                                                    RIVET
                                                                                                                    from £0.64
                                                                                                                    from £0.64
                                                                                                                    # 044
                                                                                                                    MPN: 10902624

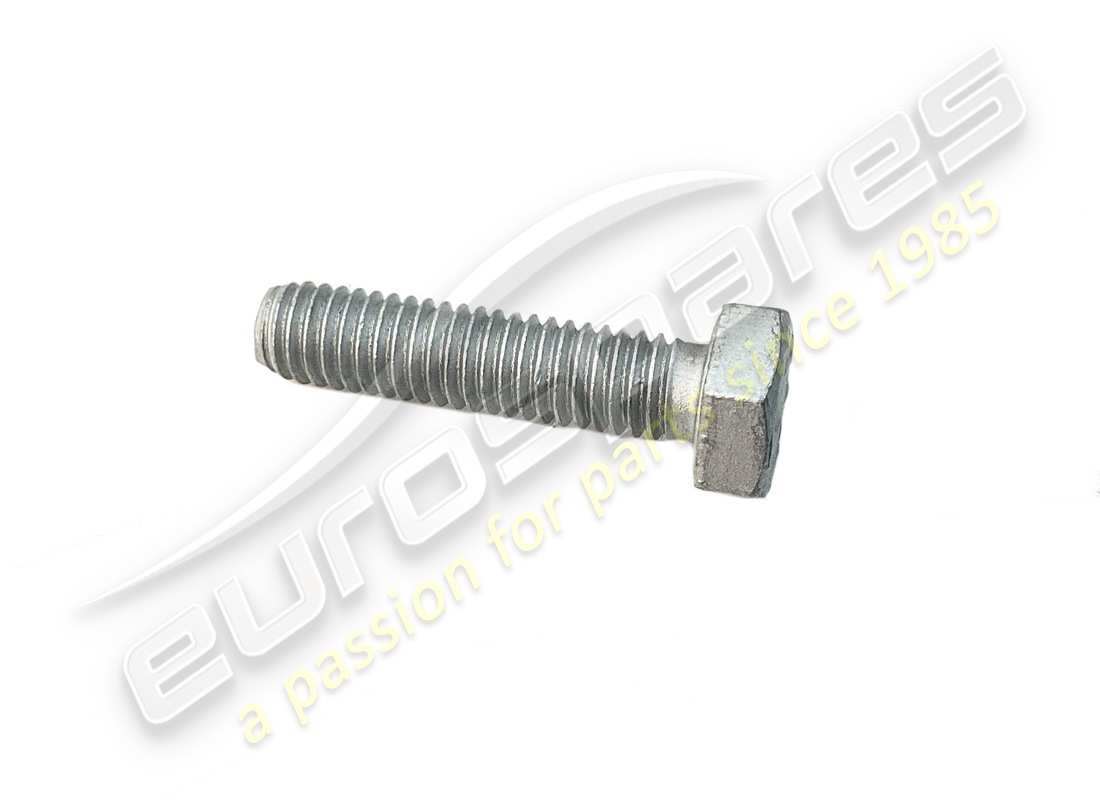

                                                                                                                    BOLT
                                                                                                                    from £0.47
                                                                                                                    from £0.47
                                                                                                                    This part replaces part number 10902621
                                                                                                                    # 045
                                                                                                                    MPN: 12601279
                                                                                                                    WASHER
                                                                                                                    from £0.47
                                                                                                                    from £0.47
                                                                                                                    This part replaces part number 12601271 - and 2 more. Click to view details
                                                                                                                    # 046
                                                                                                                    MPN: 15896221
                                                                                                                    NUT
                                                                                                                    from £0.71
                                                                                                                    from £0.71
                                                                                                                    This part replaces part number 15896225
                                                                                                                    # 047
                                                                                                                    MPN: 101677
                                                                                                                    ROLLER CASE
                                                                                                                    from £2.04
                                                                                                                    from £2.04
                                                                                                                    # 048
                                                                                                                    MPN: P1
                                                                                                                    THREADED STUD
                                                                                                                    Supersession
                                                                                                                    Supersession
                                                                                                                    # 049
                                                                                                                    MPN: 12643701
                                                                                                                    WASHER
                                                                                                                    Supersession
                                                                                                                    Supersession
                                                                                                                    This part replaces part number 12643704 - and 1 more. Click to view details
                                                                                                                    # 050
                                                                                                                    MPN: 101239
                                                                                                                    SELF LOCKING NUT
                                                                                                                    from £1.60
                                                                                                                    from £1.60
                                                                                                                    This part replaces part number 92310
                                                                                                                    # 051
                                                                                                                    MPN: 10004910
                                                                                                                    PIVOT
                                                                                                                    from £0.93
                                                                                                                    from £0.93
                                                                                                                    This part replaces part number 10004911
                                                                                                                    # 052
                                                                                                                    MPN: 10734201
                                                                                                                    SPLIT PIN
                                                                                                                    Supersession
                                                                                                                    Supersession
                                                                                                                    # 053
                                                                                                                    MPN: 11500410
                                                                                                                    THREADED STUD
                                                                                                                    # 054
                                                                                                                    MPN: 10519401
                                                                                                                    RONDE!LA
                                                                                                                    from £0.71
                                                                                                                    from £0.71
                                                                                                                    # 055
                                                                                                                    MPN: 12574211
                                                                                                                    NUT
                                                                                                                    from £0.71
                                                                                                                    from £0.71
                                                                                                                    # 056
                                                                                                                    MPN: 9180972
                                                                                                                    SPRING
                                                                                                                    Supersession
                                                                                                                    Supersession
                                                                                                                    # 057
                                                                                                                    MPN: 9181737
                                                                                                                    LEVER RETURN SPRING ATTACHMENT
                                                                                                                    Supersession
                                                                                                                    Supersession
                                                                                                                    # 058
                                                                                                                    MPN: 9181660
                                                                                                                    LEVER
                                                                                                                    Supersession
                                                                                                                    Supersession
