004A - Cylinder head RHS - Revision

Ferrari 365 GTC4 (Mechanical) Cylinder head RHS - Revision Parts Diagram

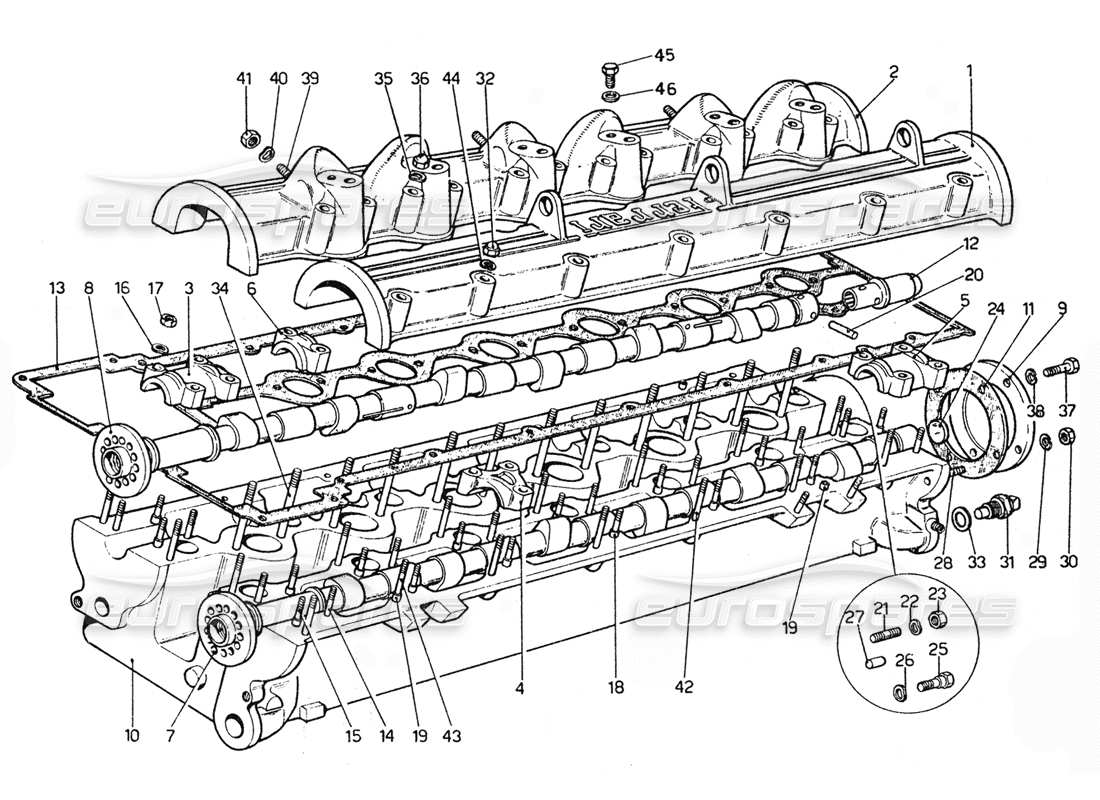

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                  #
                                                                                  Part number
                                                                                  Description
                                                                                  Price
                                                                                  # 001
                                                                                  MPN: 161970
                                                                                  COVER
                                                                                  # 002
                                                                                  MPN: 162308
                                                                                  COVER
                                                                                  Supersession
                                                                                  Supersession
                                                                                  # 003
                                                                                  MPN: 162086
                                                                                  BEARING CAP FRONT
                                                                                  # 004
                                                                                  MPN: 161304
                                                                                  BEARING CAP INTERMEDIATE
                                                                                  # 006
                                                                                  MPN: 161305
                                                                                  BEARING CAP INTERMEDIATE
                                                                                  # 007
                                                                                  MPN: 161954
                                                                                  RIGHT HEAD INTAKE TIMING SHAFT
                                                                                  from £632.57
                                                                                  from £632.57
                                                                                  # 008
                                                                                  MPN: 161956
                                                                                  RIGHT HEAD TIMING SHAFT WITH EXHAUST
                                                                                  from £325.25
                                                                                  from £325.25
                                                                                  # 009
                                                                                  MPN: 161948
                                                                                  COVER
                                                                                  from £126.23
                                                                                  from £126.23
                                                                                  # 010
                                                                                  MPN: 9162306
                                                                                  CYLINDER HEAD RH
                                                                                  # 011
                                                                                  MPN: 9161949
                                                                                  GASKET
                                                                                  Supersession
                                                                                  Supersession
                                                                                  # 012
                                                                                  MPN: 161961
                                                                                  Coupling on the distributor control distribution shaft
                                                                                  # 013
                                                                                  MPN: 161966
                                                                                  GASKET
                                                                                  # 014
                                                                                  MPN: 4146561
                                                                                  THREADED STUD
                                                                                  Supersession
                                                                                  Supersession
                                                                                  # 015
                                                                                  MPN: 104185
                                                                                  THREADED STUD
                                                                                  from £18.79
                                                                                  from £18.79
                                                                                  This part replaces part number P1
                                                                                  # 016
                                                                                  MPN: 11197773
                                                                                  WASHER
                                                                                  Supersession
                                                                                  Supersession
                                                                                  # 017
                                                                                  MPN: 15896211
                                                                                  NUT
                                                                                  Supersession
                                                                                  Supersession
                                                                                  This part replaces part number 15896210
                                                                                  # 018
                                                                                  MPN: 4146791
                                                                                  GRANO CENTRAGGIO
                                                                                  # 019
                                                                                  MPN: 4146791
                                                                                  GRANO CENTRAGGIO TESTS (VALE FINO N. 14879 - *14923)
                                                                                  Valid for October 1972 revision - * Vetture con impianto depurazione scarichi
                                                                                  # 020

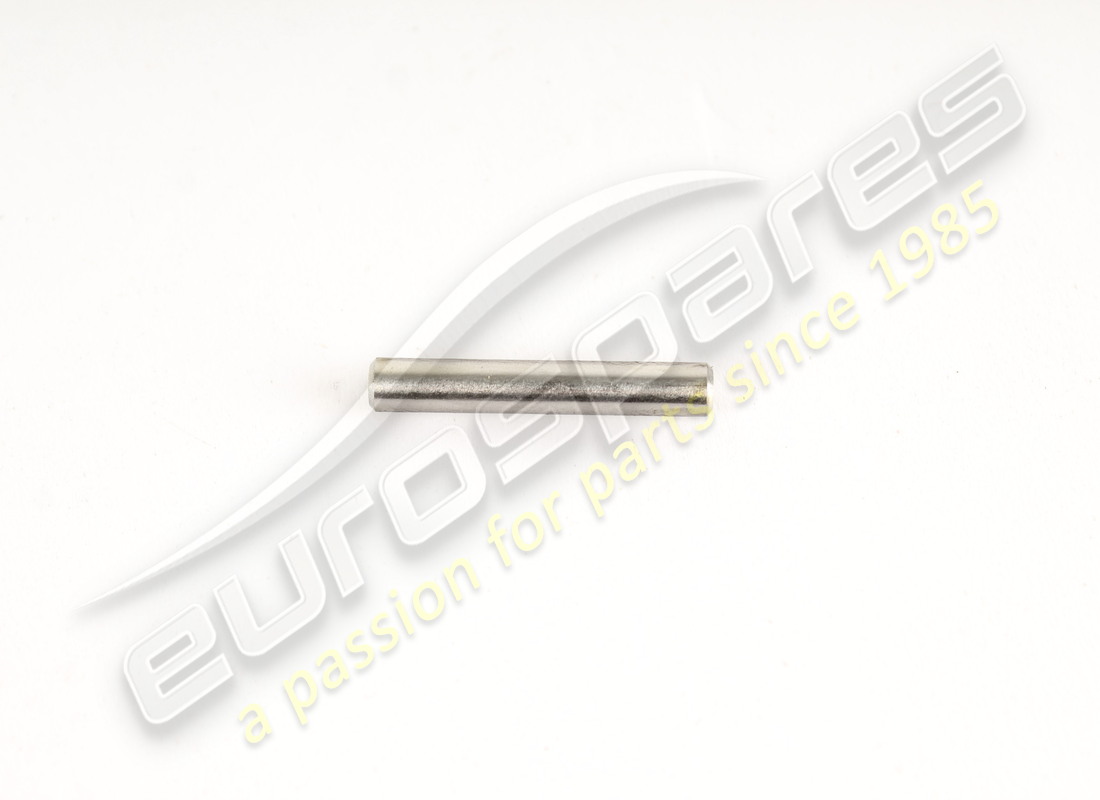

                                                                                  MPN: 100279
                                                                                  PIN
                                                                                  from £11.85
                                                                                  from £11.85
                                                                                  This part replaces part number 13904770 - and 2 more. Click to view details
                                                                                  # 021
                                                                                  MPN: 11500321
                                                                                  STUD
                                                                                  Supersession
                                                                                  Supersession
                                                                                  # 022
                                                                                  MPN: 11197773
                                                                                  WASHER
                                                                                  Supersession
                                                                                  Supersession
                                                                                  # 023
                                                                                  MPN: 94864
                                                                                  NUT
                                                                                  Supersession
                                                                                  Supersession
                                                                                  # 024
                                                                                  MPN: 10158601
                                                                                  EXPANSION PLUG
                                                                                  from £0.47
                                                                                  from £0.47
                                                                                  This part replaces part number 10158600 - and 1 more. Click to view details
                                                                                  # 025
                                                                                  MPN: 94834
                                                                                  BOLT
                                                                                  Supersession
                                                                                  Supersession
                                                                                  # 026
                                                                                  MPN: 11197773
                                                                                  WASHER
                                                                                  Supersession
                                                                                  Supersession
                                                                                  # 027
                                                                                  MPN: 100272
                                                                                  SPIN CENTERING GRAIN
                                                                                  from £2.66
                                                                                  from £2.66
                                                                                  This part replaces part number 94043
                                                                                  # 028
                                                                                  MPN: 11500321
                                                                                  STUD (VALID FROM N. À)
                                                                                  Valid for October 1972 revision - * Vetture con impianto depurazione scarichi
                                                                                  Supersession
                                                                                  Supersession
                                                                                  # 029
                                                                                  MPN: 11197773
                                                                                  WASHER
                                                                                  Supersession
                                                                                  Supersession
                                                                                  # 030
                                                                                  MPN: 206M
                                                                                  NUT
                                                                                  Valid for October 1972 revision - * Vetture con impianto depurazione scarichi
                                                                                  # 031
                                                                                  MPN: 111462 / 65.9637.990.0
                                                                                  TERMISTORE
                                                                                  Valid for October 1972 revision - * Vetture con impianto depurazione scarichi
                                                                                  # 032
                                                                                  MPN: 101239
                                                                                  SELF LOCKING NUT
                                                                                  from £1.60
                                                                                  from £1.60
                                                                                  This part replaces part number 92310
                                                                                  # 033
                                                                                  MPN: 10257060
                                                                                  GASKET
                                                                                  from £0.47
                                                                                  from £0.47
                                                                                  This part replaces part number 10253060 - and 2 more. Click to view details
                                                                                  # 034
                                                                                  MPN: 13517921
                                                                                  THREADED STUD
                                                                                  from £2.49
                                                                                  from £2.49
                                                                                  # 035
                                                                                  MPN: 11198074
                                                                                  WASHER
                                                                                  from £0.47
                                                                                  from £0.47
                                                                                  This part replaces part number 11198071 which we have in stock - and 4 more. Click to view details
                                                                                  # 037
                                                                                  MPN: 10902221
                                                                                  BOLT
                                                                                  from £0.52
                                                                                  from £0.52
                                                                                  # 038
                                                                                  MPN: 11197773
                                                                                  WASHER
                                                                                  Supersession
                                                                                  Supersession
                                                                                  # 039
                                                                                  MPN: 13517220
                                                                                  THREADED STUD
                                                                                  # 040
                                                                                  MPN: 11198074
                                                                                  WASHER
                                                                                  from £0.47
                                                                                  from £0.47
                                                                                  This part replaces part number 11198071 which we have in stock - and 4 more. Click to view details
                                                                                  # 041
                                                                                  MPN: 16100827
                                                                                  NUT
                                                                                  # 042
                                                                                  MPN: P1
                                                                                  THREADED STUD
                                                                                  Valid for October 1972 revision - * Vetture con impianto depurazione scarichi
                                                                                  Supersession
                                                                                  Supersession
                                                                                  # 043
                                                                                  MPN: 4161959
                                                                                  THREADED STUD
                                                                                  Supersession
                                                                                  Supersession
                                                                                  # 044
                                                                                  MPN: 12601278
                                                                                  WASHER
                                                                                  Valid for October 1972 revision - * Vetture con impianto depurazione scarichi
                                                                                  # 045
                                                                                  MPN: 10979421
                                                                                  SCREW
                                                                                  from £0.47
                                                                                  from £0.47
                                                                                  # 046
                                                                                  MPN: 95586
                                                                                  GASKET
                                                                                  Supersession
                                                                                  Supersession
                                                                                  Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
