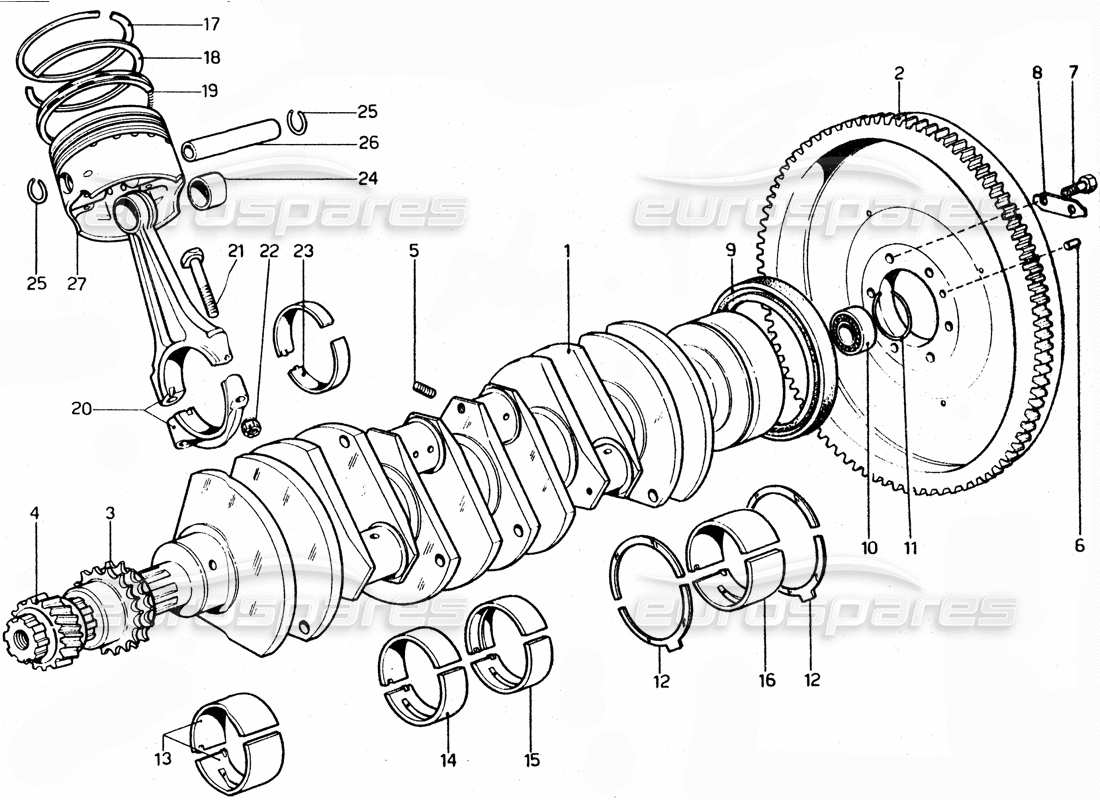

003A - Crank - Brearings & Pistons - Revision

                                            Key

                                            STPart in stock.PSAvailable in a part set.
                                            SSPart supersession in stock.PSAvailable in a part set to order (subject to availability).
                                            SOPart available to order (subject to availability).PKAvailable in a part kit.
                                            #
                                            Part number
                                            Description
                                            Price
                                            # 001
                                            PN: 12684
                                            3^ Undersize mm 0,762
                                            Supersession
                                            # 002
                                            PN: 12785
                                            Assieme volano e corona
                                            Supersession
                                            # 003
                                            PN: 12739
                                            Ingranaggio comando pompa olio e acqua
                                            Supersession
                                            # 004
                                            PN: 12691
                                            Ingranaggio comando catena distribuzione
                                            Supersession
                                            # 005
                                            PN: 14326150
                                            THREADED PLUG
                                            from £0.47
                                            TAPERED THREADED PLUG D.8X1.2 (14326150) Genuine Maserati Part - New (to order)
                                            # 006
                                            PN: 94129
                                            Centering Dowel
                                            Supersession
                                            # 007
                                            PN: 102814
                                            Bolt
                                            from £11.97
                                            # 008
                                            PN: 100187
                                            PLATE
                                            from £3.15
                                            # 010
                                            PN: ALN 15
                                            Cuscinetto supp.albero frizione
                                            Cuscinetto a sfere (ALN. 15) Genuine Ferrari Part - New (to order)
                                            Cuscinetto supp.albero frizione Genuine Ferrari Part - New (to order)
                                            # 011
                                            PN: 100606
                                            Ring
                                            # 011
                                            PN: 10345
                                            3^ maggiorazione (mm 0,203) (0,008)
                                            Supersession
                                            # 012
                                            PN: 10345
                                            2¬ maggiorazione mm 0,50
                                            Supersession
                                            # 013
                                            PN: 100035
                                            Semicuscinetto superiore
                                            Supersession
                                            # 013
                                            PN: 100602
                                            Semicuscinetto inferiore
                                            # 013
                                            PN: 106943
                                            MAIN BEARINGS SET(+10)
                                            from £917.20
                                            MAIN BEARING SET 1ST UNDERSIZE 0.254MM Genuine Ferrari Part - New (to order)
                                            # 014
                                            PN: 100126
                                            Semicuscinetto superiore
                                            from £94.96
                                            MAIN BEARING SHELL STANDARD Genuine Ferrari Part - New (to order)
                                            # 014
                                            PN: 100619
                                            Semicuscinetto inferiore
                                            # 015
                                            PN: 100618
                                            Semicuscinetto inferiore e superiore
                                            Semicuscinetto inferiore e superiore Genuine Ferrari Part - New (to order)
                                            # 016
                                            PN: 10037
                                            Semicuscinetto superiore
                                            # 016
                                            PN: 100603
                                            Semicuscinetto inferiore
                                            # 017
                                            PN: 140154 / 33.1819.00.2
                                            Seal
                                            Valid for October 1972 revision - * Vetture con impianto depurazione scarichi
                                            # 017
                                            PN: 81,15x1x3,8
                                            2^ Undersize
                                            # 017
                                            PN: 81x1,5x3,8
                                            + normale
                                            # 018
                                            PN: 140155 / 33.5408.90.2
                                            Sealing Ring
                                            Valid for October 1972 revision - * Vetture con impianto depurazione scarichi
                                            # 018
                                            PN: 81,15x1x3,8
                                            2^ Undersize
                                            # 018
                                            PN: 81x1,5x3,8
                                            + normale
                                            # 019
                                            PN: 140156 / 33.6420.00.2
                                            Ring
                                            Valid for October 1972 revision - * Vetture con impianto depurazione scarichi
                                            # 019
                                            PN: 81,15x5x3
                                            2^ Undersize
                                            # 019
                                            PN: 81x5x3
                                            + normale
                                            # 020
                                            PN: 140019
                                            Biella e cappello
                                            # 021
                                            PN: 140020
                                            Bolt
                                            Supersession
                                            # 022
                                            PN: 104011
                                            Nut
                                            from £9.59
                                            # 023
                                            PN: 100150/A
                                            Std big end bearings set
                                            Std - Bearings C/Rod Pack Of 4Prs Std / Sold per pack
                                            from £378.40
                                            CON ROD HALF BEARING STANDARD SET 4 PAIRS Genuine Ferrari Part - New (to order)
                                            # 023
                                            PN: 100151/A
                                            Con rod bearings set +10
                                            (3 packets required)
                                            from £396.75
                                            CON ROD HALF BEARING 1ST UNDERSIZE 0.254MM PACK 4 PAIRS Genuine Ferrari Part - New (to order)
                                            # 024
                                            PN: 107100
                                            Small End Bush
                                            from £17.84
                                            # 025
                                            PN: 100174
                                            Gudgeon Pin Circlip
                                            from £3.07
                                            # 026
                                            PN: 140070
                                            Spinotto per pistone
                                            Supersession
                                            # 027
                                            PN: (+ mm 0,15)
                                            1^ Undersize
                                            1' maggiorazione (+ mm. 0,15) Genuine Ferrari Part - New (to order)
                                            # 027
                                            PN: (+ mm 0,30)
                                            2^ Undersize
                                            # 027
                                            PN: 109738/U
                                            Con rod
                                            from £225.00
                                            # 027
                                            PN: 140157 / 65457.9
                                            Pistone + normale
                                            Valid for October 1972 revision - * Vetture con impianto depurazione scarichi
