Ferrari 365 GTC4 (Mechanical) Sump pan - Oil pick up - Revision Parts Diagram

002A - Sump pan - Oil pick up - Revision

Ferrari 365 GTC4 (Mechanical) Sump pan - Oil pick up - Revision Parts Diagram

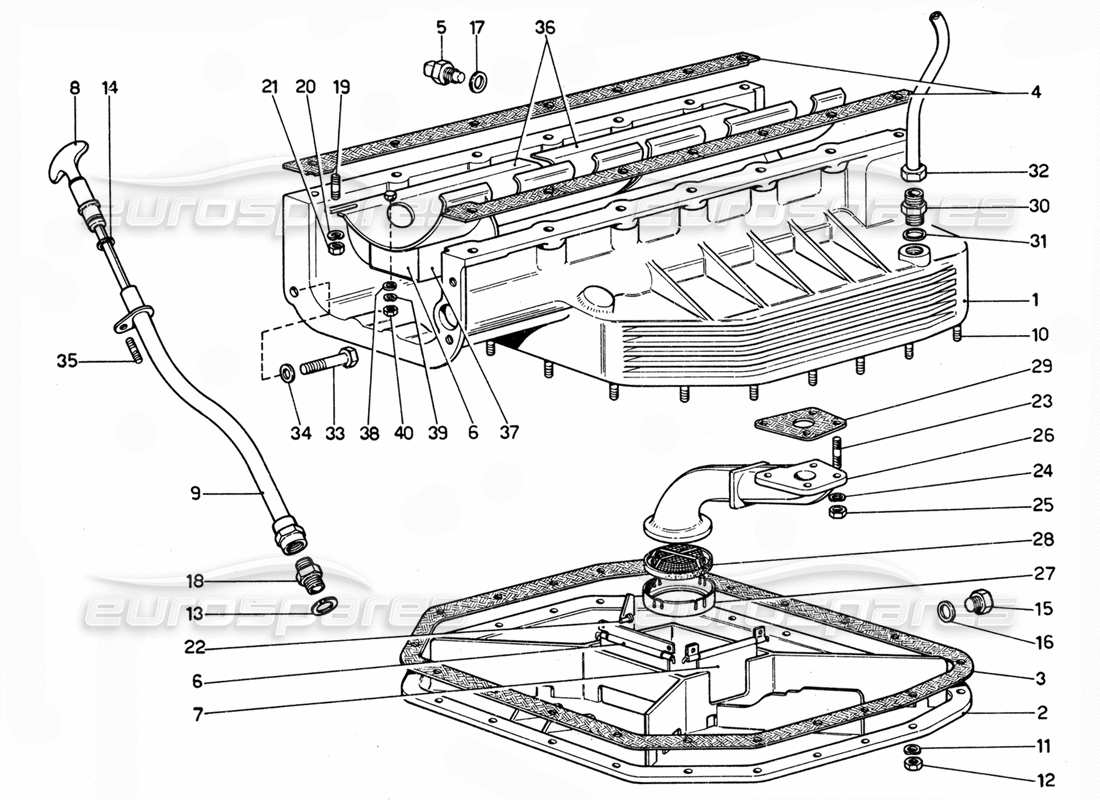

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                            #
                                                                            Part number
                                                                            Description
                                                                            Price
                                                                            # 001
                                                                            MPN: 111367
                                                                            COPPA OLIO
                                                                            # 002
                                                                            MPN: 9111368
                                                                            COVER
                                                                            Supersession
                                                                            Supersession
                                                                            # 003
                                                                            MPN: 147611
                                                                            GASKET
                                                                            from £40.56
                                                                            from £40.56
                                                                            This part replaces part number 100018 - and 1 more. Click to view details
                                                                            # 004
                                                                            MPN: 111341
                                                                            GASKET OR SEAL
                                                                            # 005
                                                                            MPN: 100453
                                                                            OIL THERMISTOR
                                                                            from £13.77
                                                                            from £13.77
                                                                            This part replaces part number 100345 - and 1 more. Click to view details
                                                                            # 006
                                                                            MPN: 111346
                                                                            VERTICAL BULKHEAD
                                                                            # 007
                                                                            MPN: 111371
                                                                            INTAKE SIDE BULKHEAD
                                                                            # 008
                                                                            MPN: 111423
                                                                            OIL LEVEL DIPSTICK.
                                                                            # 009
                                                                            MPN: 111426
                                                                            TUBO PER ASTA LIVELLO OLIO
                                                                            # 010
                                                                            MPN: 11500321
                                                                            THREADED STUD
                                                                            Supersession
                                                                            Supersession
                                                                            # 011
                                                                            MPN: 11197773
                                                                            WASHER
                                                                            Supersession
                                                                            Supersession
                                                                            # 012
                                                                            MPN: 15896211
                                                                            NUT
                                                                            Supersession
                                                                            Supersession
                                                                            This part replaces part number 15896210
                                                                            # 013
                                                                            MPN: 10259960
                                                                            GASKET
                                                                            from £0.47
                                                                            from £0.47
                                                                            This part replaces part number 95017
                                                                            # 014
                                                                            -
                                                                            GASKET
                                                                            # 015
                                                                            MPN: 103974
                                                                            OIL DRAIN PLUG.
                                                                            from £25.70
                                                                            from £25.70
                                                                            This part replaces part number 101477 - and 1 more. Click to view details
                                                                            # 016
                                                                            MPN: 10257060
                                                                            GASKET
                                                                            from £0.47
                                                                            from £0.47
                                                                            This part replaces part number 10253060 - and 2 more. Click to view details
                                                                            # 017
                                                                            MPN: 10257060
                                                                            GASKET
                                                                            from £0.47
                                                                            from £0.47
                                                                            This part replaces part number 10253060 - and 2 more. Click to view details
                                                                            # 018
                                                                            MPN: 95496
                                                                            UNION
                                                                            Supersession
                                                                            Supersession
                                                                            # 019
                                                                            MPN: 11500020
                                                                            STUD
                                                                            from £0.47
                                                                            from £0.47
                                                                            # 020
                                                                            MPN: 11197774
                                                                            WASHER
                                                                            from £0.47
                                                                            from £0.47
                                                                            This part replaces part number 11197770 - and 3 more. Click to view details
                                                                            # 021
                                                                            MPN: 15896211
                                                                            NUT
                                                                            Supersession
                                                                            Supersession
                                                                            This part replaces part number 15896210
                                                                            # 022
                                                                            MPN: tipo D-BS
                                                                            BULKHEAD FIXING RIVET
                                                                            # 023
                                                                            MPN: 11500220
                                                                            STUD
                                                                            from £1.14
                                                                            from £1.14
                                                                            # 024
                                                                            MPN: 11197773
                                                                            WASHER
                                                                            Supersession
                                                                            Supersession
                                                                            # 025
                                                                            MPN: 15896211
                                                                            NUT
                                                                            Supersession
                                                                            Supersession
                                                                            This part replaces part number 15896210
                                                                            # 026
                                                                            MPN: 240618
                                                                            DELIVERY PUMP DRAINER
                                                                            Supersession
                                                                            Supersession
                                                                            # 027
                                                                            MPN: 240619
                                                                            FISHING FILTER CONTAINER
                                                                            Supersession
                                                                            Supersession
                                                                            # 028
                                                                            MPN: 100332
                                                                            SUMP FILTER
                                                                            from £9.27
                                                                            from £9.27
                                                                            This part replaces part number 240387 - and 9 more. Click to view details
                                                                            # 029
                                                                            MPN: 240624
                                                                            GASKET
                                                                            Supersession
                                                                            Supersession
                                                                            # 030
                                                                            MPN: DN 10 Tab.DIN761
                                                                            NIPPLE ON THE CUP FOR VENT
                                                                            # 031
                                                                            MPN: 10259960
                                                                            GASKET
                                                                            from £0.47
                                                                            from £0.47
                                                                            This part replaces part number 95017
                                                                            # 032
                                                                            MPN: 210179
                                                                            TUBO DAL BUIOLO ALLA COPPA OLIO (VALE DAL N. 16029 -*15331)
                                                                            Valid for October 1972 revision - * Vetture con impianto depurazione scarichi
                                                                            Supersession
                                                                            Supersession
                                                                            # 033
                                                                            MPN: 16044121
                                                                            BOLT
                                                                            Valid for October 1972 revision - * Vetture con impianto depurazione scarichi
                                                                            from £0.49
                                                                            from £0.49
                                                                            This part replaces part number 11101220
                                                                            # 034
                                                                            MPN: 11198074
                                                                            WASHER
                                                                            from £0.47
                                                                            from £0.47
                                                                            This part replaces part number 11198071 which we have in stock - and 4 more. Click to view details
                                                                            # 035
                                                                            MPN: 4161959
                                                                            THREADED STUD
                                                                            Supersession
                                                                            Supersession
                                                                            # 036
                                                                            MPN: 111416
                                                                            OIL BULKHEAD ON THE SUMP
                                                                            # 037
                                                                            MPN: 111454
                                                                            BULKHEAD ASSEMBLY N.37 AND 6
                                                                            # 037
                                                                            MPN: 111455
                                                                            VERTICAL BULKHEAD.
                                                                            # 038
                                                                            MPN: 5 R 1
                                                                            WASHER
                                                                            Valid for October 1972 revision - * Vetture con impianto depurazione scarichi
                                                                            # 040
                                                                            MPN: 5x0,8 - UNI 5588
                                                                            NUT
