ferrari 365 gtb4 daytona (coachwork) inner door panels & outer handle parts diagram

024 - Inner Door panels & outer handle

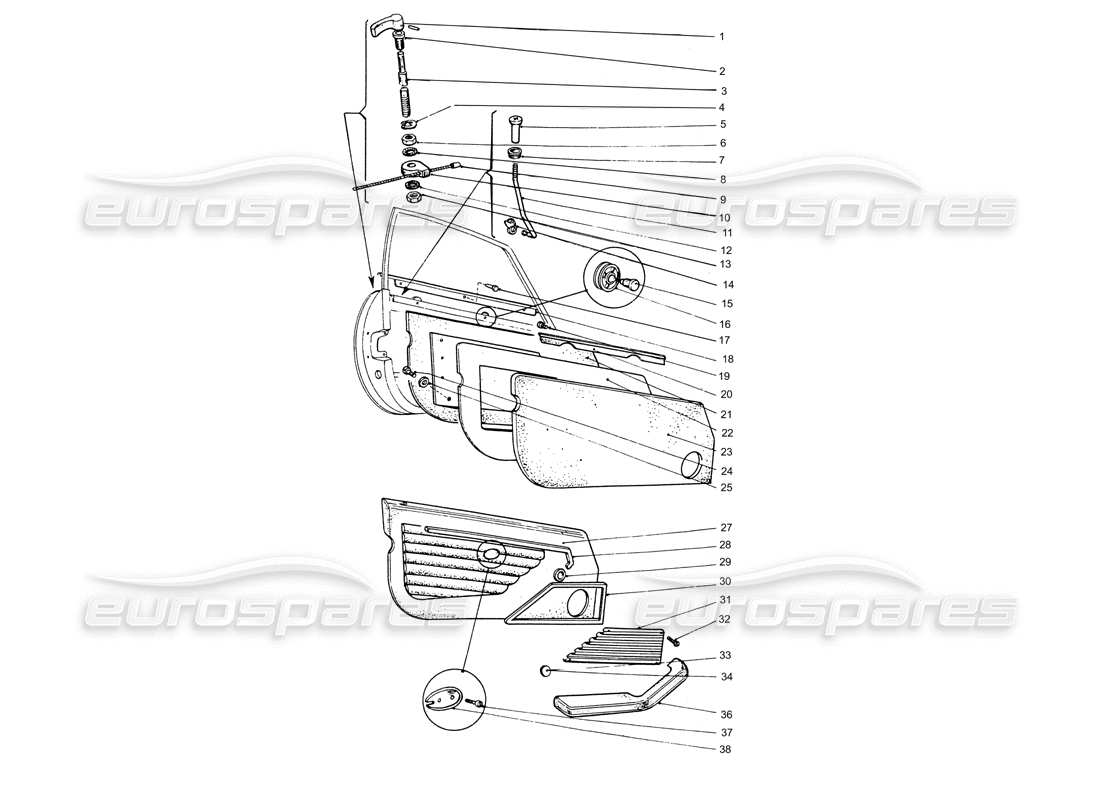

Ferrari 365 GTB4 Daytona (Coachwork) Inner Door panels & outer handle Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
          #
          Part number
          Description
          Price
          # 001
          MPN: 03001445
          MANIPLIA APRIPORTA ESTERNO
          GD 30120703 - GS 30120802 Maniplia compl. - 03001334 Porta later. compl.
          # 001
          MPN: 30120703
          RH DOOR HANDLE
          from £319.59
          from £319.59
          # 001
          MPN: 30120802
          LH DOOR HANDLE
          from £199.50
          from £199.50
          # 002
          MPN: 300152
          BUSH
          GD 30120703 - GS 30120802 Maniplia compl. - 03001334 Porta later. compl.
          # 003
          MPN: 0300577
          PIVOT
          GD 30120703 - GS 30120802 Maniplia compl. - 03001334 Porta later. compl.
          from £2,011.71
          from £2,011.71
          # 004
          MPN: 11087975
          SEEPER
          03001334 Porta later. compl.
          Supersession
          Supersession
          # 005
          MPN: 20170403
          POMMELLO
          03001334 Porta later. compl.
          from £37.03
          from £37.03
          This part replaces part number 30016000 - and 1 more. Click to view details
          # 006
          MPN: 16100824
          NUT
          from £0.53
          from £0.53
          This part replaces part number 16100814 - and 1 more. Click to view details
          # 007
          MPN: 30016208
          WASHER
          03001334 Porta later. compl.
          from £21.92
          from £21.92
          # 008
          MPN: 12605570
          WASHER
          03001334 Porta later. compl.
          # 009
          MPN: 30014708
          CAVO P. MANIPLIA APRIPORTE
          03001334 Porta later. compl.
          from £23.47
          from £23.47
          # 010
          MPN: 30014609
          CAMME P. MANIPLIA
          03001334 Porta later. compl.
          from £48.68
          from £48.68
          # 011
          MPN: 30015804
          ASTA COMANDO DI SICUREZZA GD
          03001334 Porta later. compl.
          from £3.94
          from £3.94
          # 011
          MPN: 30015903
          ASTA COMANDO DI SICUREZZA GS
          03001334 Porta later. compl.
          # 012
          MPN: 12605570
          WASHER
          03001334 Porta later. compl.
          # 013
          MPN: 16100824
          NUT
          from £0.53
          from £0.53
          This part replaces part number 16100814 - and 1 more. Click to view details
          # 014
          MPN: 30016109
          CLIP
          03001334 Porta later. compl.
          Supersession
          Supersession
          This part replaces part number 30016107
          # 015
          MPN: 20071007
          PIVOT
          03001334 Porta later. compl.
          Supersession
          Supersession
          # 016
          MPN: 190112080
          PULLEYS FOR DESCENDING GLASS
          03001334 Porta later. compl.
          # 017
          MPN: 12839430
          BLIND RIVET
          03001334 Porta later. compl.
          # 018
          MPN: 30023808
          MODANATURA IN FILO CINTURA GD
          03001334 Porta later. compl.
          from £263.09
          from £263.09
          # 018
          MPN: 30023907
          MODANATURA IN FILO CINTURA GS
          03001334 Porta later. compl.
          from £263.09
          from £263.09
          # 019
          MPN: 020032
          SCREW
          03001334 Porta later. compl.
          # 020
          MPN: 16320839
          Outer door scraper rubber
          from £135.45
          from £135.45
          # 021
          MPN: 0300178
          NYLON PIECE
          03001334 Porta later. compl.
          # 022
          MPN: 03006534
          External profile in resin
          03001334 Porta later. compl.
          # 023
          MPN: 0300177
          PIECE OF FOAM RUBBER
          03001334 Porta later. compl.
          from £69.42
          from £69.42
          # 024
          MPN: 0300628
          SCREW
          03001334 Porta later. compl.
          # 025
          MPN: 10794011
          NUT
          03001334 Porta later. compl.
          from £0.26
          from £0.26
          # 026
          MPN: 03002301
          REINFORCEMENT SHEET METAL PANEL
          03001334 Porta later. compl.
          # 027
          MPN: 30023204
          PANNELLO PORTA GD
          03001334 Porta later. compl.
          # 027
          MPN: 30023305
          PANNELLO PORTA GS
          03001334 Porta later. compl.
          # 028
          MPN: 30054605
          MODENATURA PANNELLO GD
          03001334 Porta later. compl.
          # 028
          MPN: 30054704
          MODENATURA PANNELLO GS
          03001334 Porta later. compl.
          # 029
          MPN: 30059802
          WASHER
          03001334 Porta later. compl.
          from £3.81
          from £3.81
          # 030
          MPN: 30027700
          MODENATURA ALTOPARLANTE GD
          03001334 Porta later. compl.
          from £747.42
          from £747.42
          # 030
          MPN: 30027809
          MODENATURA ALTOPARLANTE GS
          03001334 Porta later. compl.
          from £363.39
          from £363.39
          # 031
          MPN: 30054407
          LAMIERA ANODIZZATA ALTOPARLANTE GD
          03001334 Porta later. compl.
          from £967.25
          from £967.25
          # 031
          MPN: 30054506
          LAMIERA ANODIZZATA ALTOPARLANTE GS
          03001334 Porta later. compl.
          from £967.25
          from £967.25
          # 032
          MPN: 30065106
          SCREW
          03001334 Porta later. compl.
          from £1.24
          from £1.24
          # 033
          MPN: 0300629
          TAPPO P. FORO MANIPLIA ALZACRISTALLI
          30060201 Tappo compl. - 03001334 Porta later. compl.
          # 034
          MPN: 0300630
          RIVESTIMENTO TAPPO P. FORO MANIPLIA
          30060201 Tappo compl. - 03001334 Porta later. compl.
          # 035
          MPN: 0300578
          SMALL BORDERS
          03001334 Porta later. compl.
          # 036
          MPN: 30024806
          APPOGGIABRACCIA GD
          03001334 Porta later. compl.
          # 036
          MPN: 30024905
          APPOGGIABRACCIA GS
          03001334 Porta later. compl.
          # 037
          MPN: 17685011
          SCREW
          03001334 Porta later. compl.
