037 - Air Conditioning

Ferrari 365 GTB4 Daytona (1969) Air Conditioning Parts Diagram

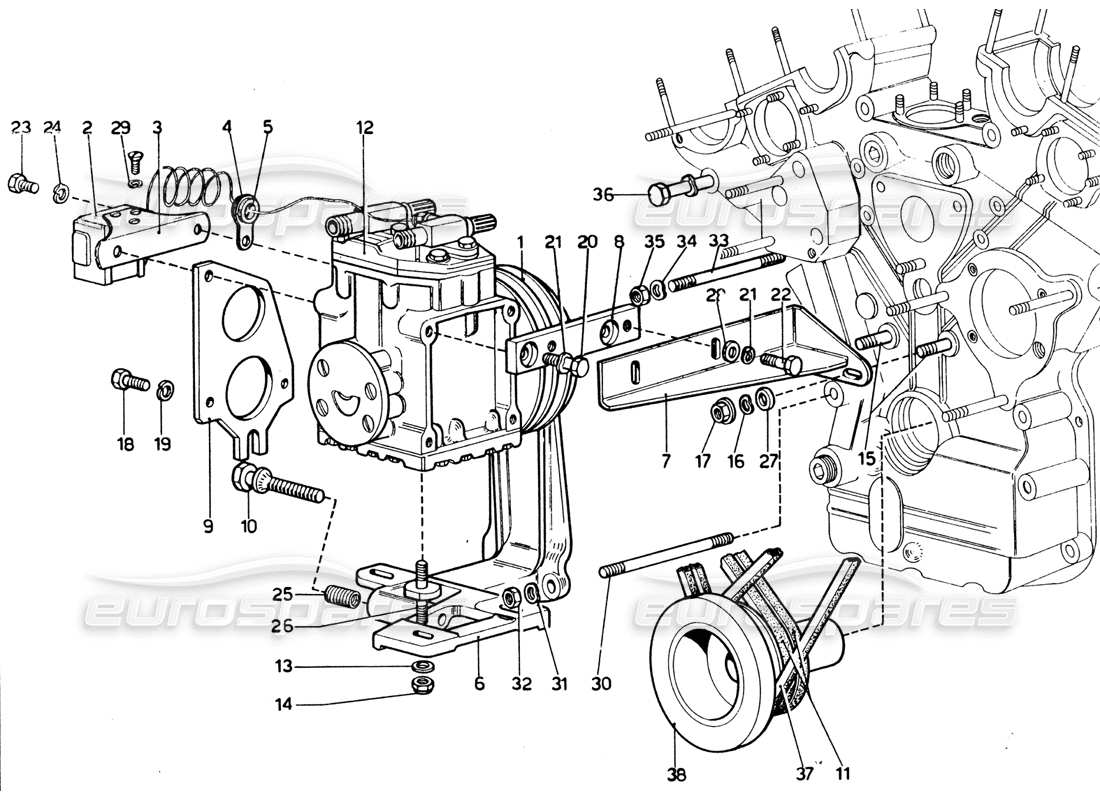

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                    #
                                                                    Part number
                                                                    Description
                                                                    Price
                                                                    # 000
                                                                    MPN: 320364
                                                                    STUD
                                                                    Valid for 1974 revision - * Vetture con impianto depurazione scarichi
                                                                    # 000
                                                                    MPN: 32309
                                                                    WASHER
                                                                    Valid for 1974 revision - * Vetture con impianto depurazione scarichi
                                                                    Supersession
                                                                    Supersession
                                                                    # 001
                                                                    MPN: 260/320368 - 6
                                                                    JOINT WITH COUNTERCLOCKWISE ROTATION
                                                                    # 002
                                                                    MPN: 80.1300.915.1
                                                                    PRESSURE SWITCH
                                                                    # 003
                                                                    MPN: 32317
                                                                    BRACKET / SUPPORT
                                                                    Supersession
                                                                    Supersession
                                                                    # 004
                                                                    MPN: 29061
                                                                    PLATE
                                                                    from £0.74
                                                                    from £0.74
                                                                    # 004
                                                                    MPN: 32347
                                                                    PLATE
                                                                    Valid for 1974 revision - * Vetture con impianto depurazione scarichi
                                                                    Supersession
                                                                    Supersession
                                                                    # 005
                                                                    MPN: 10396580
                                                                    RING
                                                                    from £1.07
                                                                    from £1.07
                                                                    This part replaces part number 100286
                                                                    # 007
                                                                    MPN: 32332
                                                                    SUPPORT
                                                                    from £95.13
                                                                    from £95.13
                                                                    # 008
                                                                    MPN: 32322
                                                                    BRACKET / SUPPORT
                                                                    Supersession
                                                                    Supersession
                                                                    # 009
                                                                    MPN: 32331
                                                                    PIN ATTACHMENT PLATE
                                                                    from £61.71
                                                                    from £61.71
                                                                    # 010
                                                                    MPN: 32330
                                                                    SCREW
                                                                    from £23.16
                                                                    from £23.16
                                                                    # 011
                                                                    MPN: 260970
                                                                    CINGHIE COMANDO COMPRESSORE (12.7 X 8 X 720)
                                                                    not as spare part - use part number: 320393
                                                                    # 011
                                                                    MPN: 320393
                                                                    COMPRESSOR CONTROL BELTS
                                                                    Valid for 1974 revision - * Vetture con impianto depurazione scarichi
                                                                    from £29.77
                                                                    from £29.77
                                                                    This part replaces part number 320393/A
                                                                    # 011
                                                                    MPN: 928.2026027
                                                                    CINGHIE COMANDO COMPRESSORE (12.7 X 8 X 720)
                                                                    not as spare part - use part number: 260970
                                                                    # 012
                                                                    MPN: 080.2112.000 / TIPO DA 209 U
                                                                    YORK COMPRESSOR
                                                                    Supersession
                                                                    Supersession
                                                                    # 013
                                                                    MPN: 10 R 2
                                                                    WASHER
                                                                    # 013
                                                                    MPN: 10730514
                                                                    WASHER
                                                                    from £0.53
                                                                    from £0.53
                                                                    This part replaces part number 10730521 which we have in stock
                                                                    # 014
                                                                    MPN: 110MB
                                                                    NUT
                                                                    Supersession
                                                                    Supersession

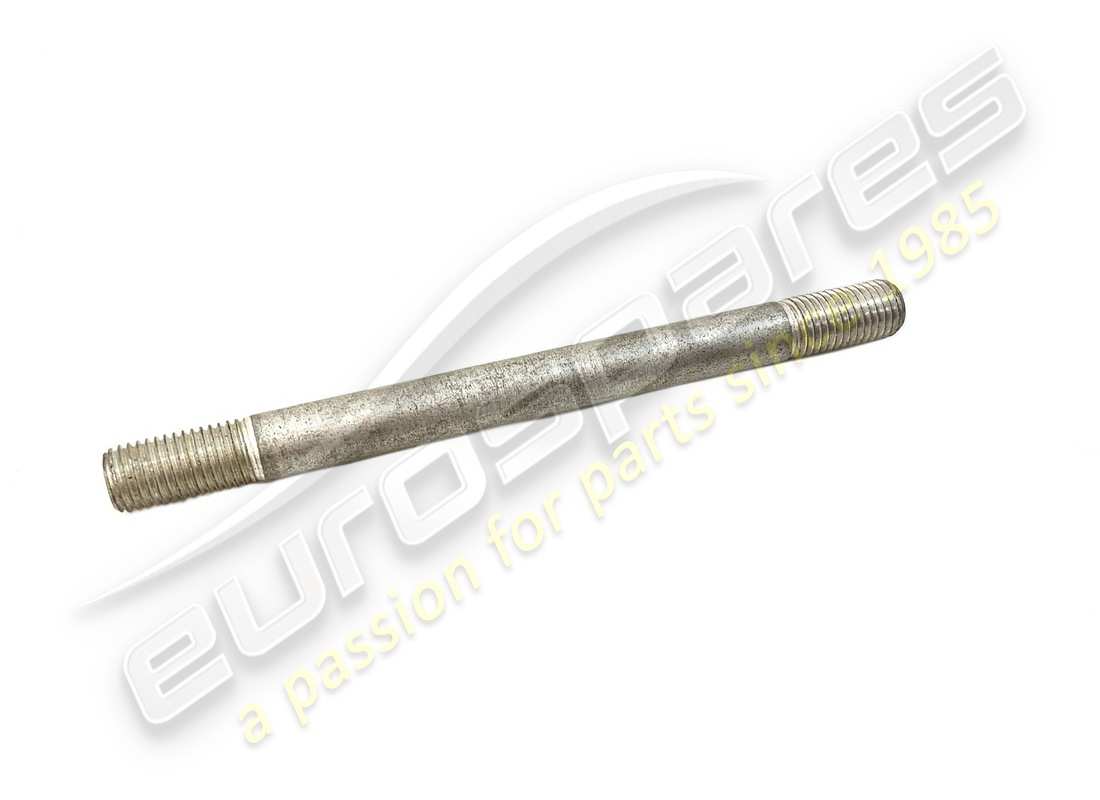

                                                                    # 015
                                                                    MPN: 94849
                                                                    THREADED STUD
                                                                    from £2.31
                                                                    from £2.31
                                                                    # 016
                                                                    MPN: REG. 10
                                                                    WASHER
                                                                    # 017
                                                                    MPN: 4146619
                                                                    NUT
                                                                    from £16.15
                                                                    from £16.15
                                                                    This part replaces part number 92399
                                                                    # 018
                                                                    MPN: 3/8 16 UNC 1
                                                                    BOLT
                                                                    Valid for 1974 revision - * Vetture con impianto depurazione scarichi
                                                                    # 018
                                                                    MPN: 3/816 UNC 3/4
                                                                    BOLT
                                                                    # 019
                                                                    MPN: 127496
                                                                    WASHER
                                                                    from £0.54
                                                                    from £0.54
                                                                    This part replaces part number 10516671 - and 2 more. Click to view details
                                                                    # 020
                                                                    MPN: 3/8-16 UNCx1
                                                                    BOLT
                                                                    # 021
                                                                    MPN: REG. 10
                                                                    WASHER
                                                                    # 022
                                                                    MPN: M10x25-UNI 5740
                                                                    BOLT
                                                                    # 023
                                                                    MPN: 95286
                                                                    BOLT
                                                                    Supersession
                                                                    Supersession
                                                                    # 024
                                                                    MPN: REG. 10
                                                                    WASHER
                                                                    # 025
                                                                    MPN: 12x1,75x38
                                                                    FILETTO RIPORTATO (VALE FINO N. 13801)
                                                                    Valid for 1974 revision - * Vetture con impianto depurazione scarichi
                                                                    # 025
                                                                    MPN: Ø 12x1,75x36
                                                                    FILETTO RIPORTATO
                                                                    # 026
                                                                    MPN: 80.1300.043.0
                                                                    STUD
                                                                    # 027
                                                                    MPN: 10R4
                                                                    WASHER
                                                                    Supersession
                                                                    Supersession
                                                                    # 028
                                                                    MPN: 10R4
                                                                    WASHER
                                                                    Supersession
                                                                    Supersession
                                                                    # 030
                                                                    MPN: 95438
                                                                    THREADED STUD
                                                                    from £2.90
                                                                    from £2.90
                                                                    # 031
                                                                    MPN: 12601474
                                                                    WASHER
                                                                    from £0.54
                                                                    from £0.54
                                                                    This part replaces part number 12601471 which we have in stock - and 2 more. Click to view details
                                                                    # 032
                                                                    MPN: 10 x 1,25 - UNI 5588
                                                                    NUT
                                                                    # 033
                                                                    MPN: P 2
                                                                    THREADED STUD
                                                                    Supersession
                                                                    Supersession
                                                                    # 034
                                                                    MPN: 12601474
                                                                    WASHER
                                                                    from £0.54
                                                                    from £0.54
                                                                    This part replaces part number 12601471 which we have in stock - and 2 more. Click to view details
                                                                    # 035
                                                                    MPN: 92401
                                                                    NUT
                                                                    Supersession
                                                                    Supersession
                                                                    # 037
                                                                    MPN: 300071
                                                                    GENERATOR BELT 12,5 X 10 X 875
                                                                    Supersession
                                                                    Supersession
                                                                    # 037
                                                                    MPN: ULTRAFLEX
                                                                    GENERATOR BELT 12,5 X 10 X 875
                                                                    not as spare part - use part number: 300071
                                                                    # 038
                                                                    MPN: 220336
                                                                    SMORZATORE TORSIONALE
                                                                    from £868.59
                                                                    from £868.59
