036 - Exhaust System

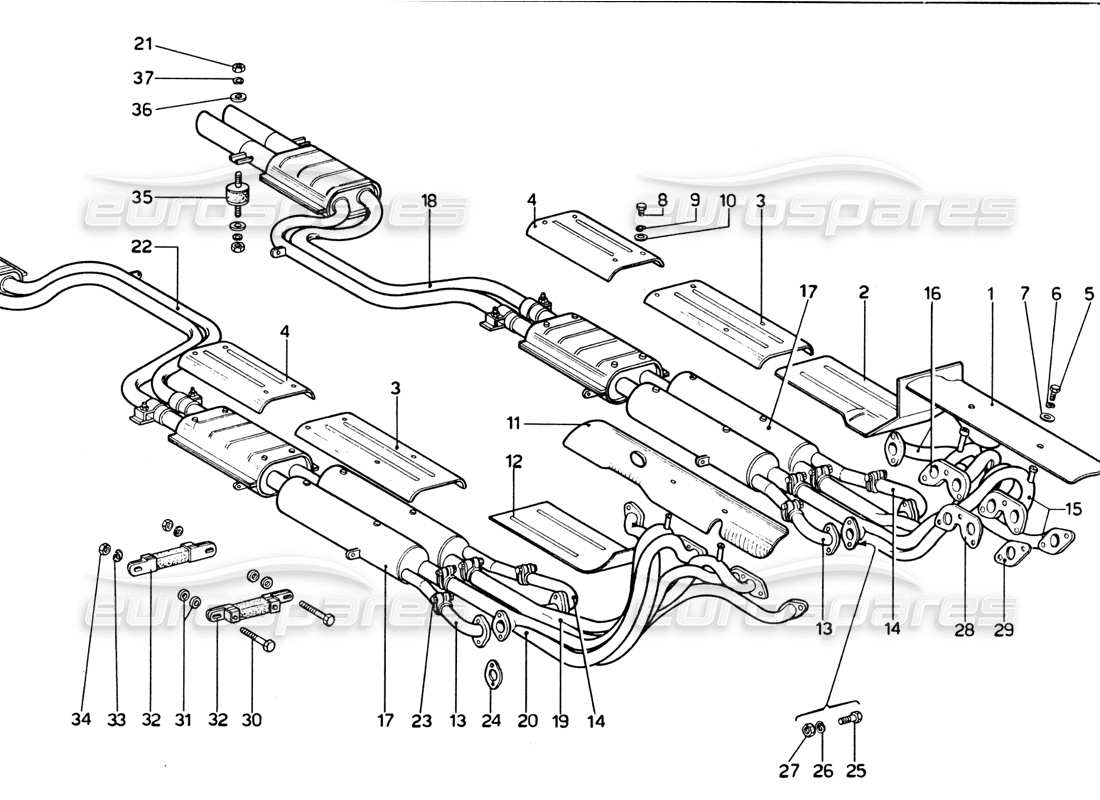

Ferrari 365 GTB4 Daytona (1969) Exhaust System Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                    #
                                                                    Part number
                                                                    Description
                                                                    Price
                                                                    # 001
                                                                    MPN: 20439
                                                                    BULKHEAD FOR LEFT MANIFOLDS
                                                                    from £72.38
                                                                    from £72.38
                                                                    # 002
                                                                    MPN: 20442
                                                                    BULKHEAD FOR Tubi LEFT EXPANSION
                                                                    from £131.61
                                                                    from £131.61
                                                                    # 003
                                                                    MPN: 20443
                                                                    BULKHEAD FOR TUBULARS
                                                                    from £147.87
                                                                    from £147.87
                                                                    # 004
                                                                    MPN: 20444
                                                                    REAR BULKHEAD FOR MUFFLER
                                                                    # 005
                                                                    MPN: M8x14-UN15739
                                                                    BOLT
                                                                    # 006
                                                                    MPN: 6 R 4
                                                                    WASHER
                                                                    Supersession
                                                                    Supersession
                                                                    # 007
                                                                    MPN: 12643701
                                                                    WASHER
                                                                    Supersession
                                                                    Supersession
                                                                    This part replaces part number 12643704 - and 1 more. Click to view details
                                                                    # 008
                                                                    MPN: M8x10-UN15739
                                                                    BOLT
                                                                    # 009
                                                                    MPN: 6 R 4
                                                                    WASHER
                                                                    Supersession
                                                                    Supersession
                                                                    # 010
                                                                    MPN: 12643701
                                                                    WASHER
                                                                    Supersession
                                                                    Supersession
                                                                    This part replaces part number 12643704 - and 1 more. Click to view details
                                                                    # 011
                                                                    MPN: 20440
                                                                    RIGHT MANIFOLD BULKHEAD
                                                                    from £72.38
                                                                    from £72.38
                                                                    # 012
                                                                    MPN: 20441
                                                                    PARATIA PER Tubi ESPANS. DESTRI
                                                                    # 013
                                                                    MPN: 20448
                                                                    Expansion chamber connection pipe D
                                                                    from £52.20
                                                                    from £52.20
                                                                    # 014
                                                                    MPN: 20447
                                                                    Expansion chamber connection pipe S
                                                                    from £52.20
                                                                    from £52.20

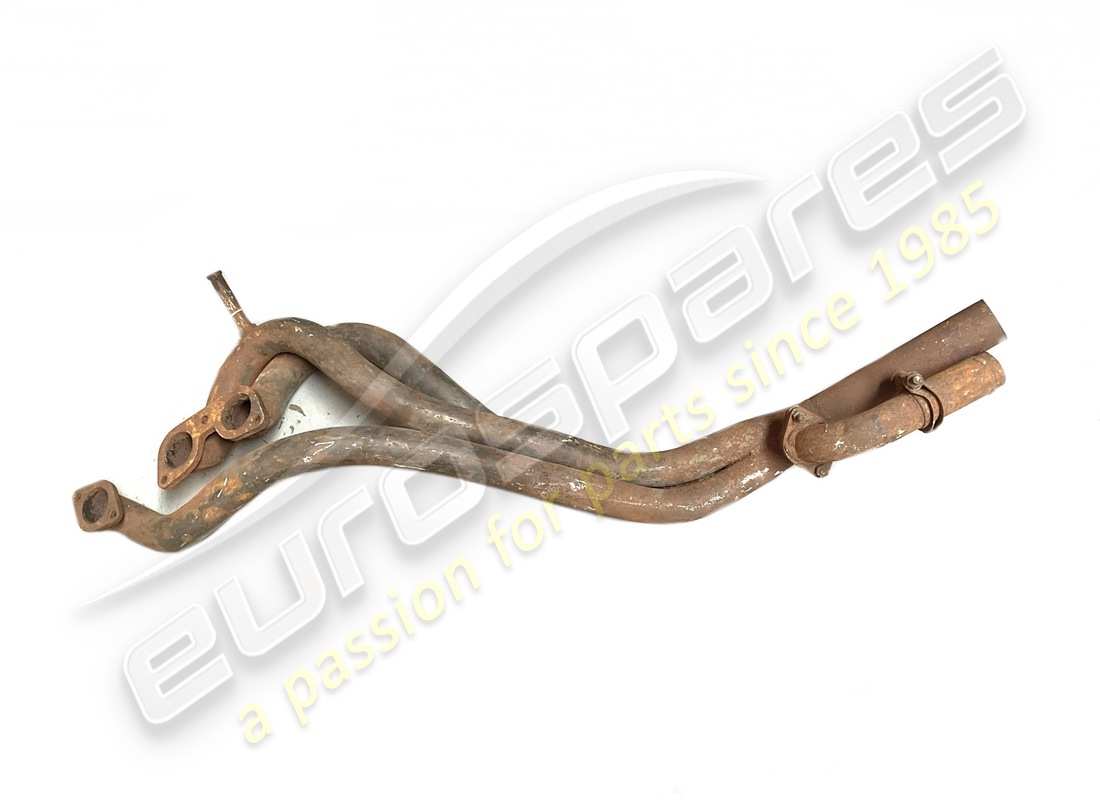

                                                                    # 015
                                                                    MPN: 20436
                                                                    GRUPPO COLLETTORE ANTER. SINISTRO
                                                                    from £2,144.45
                                                                    from £2,144.45
                                                                    # 016
                                                                    MPN: 20438
                                                                    REAR MANIFOLD ASSEMBLY LEFT
                                                                    from £2,144.45
                                                                    from £2,144.45

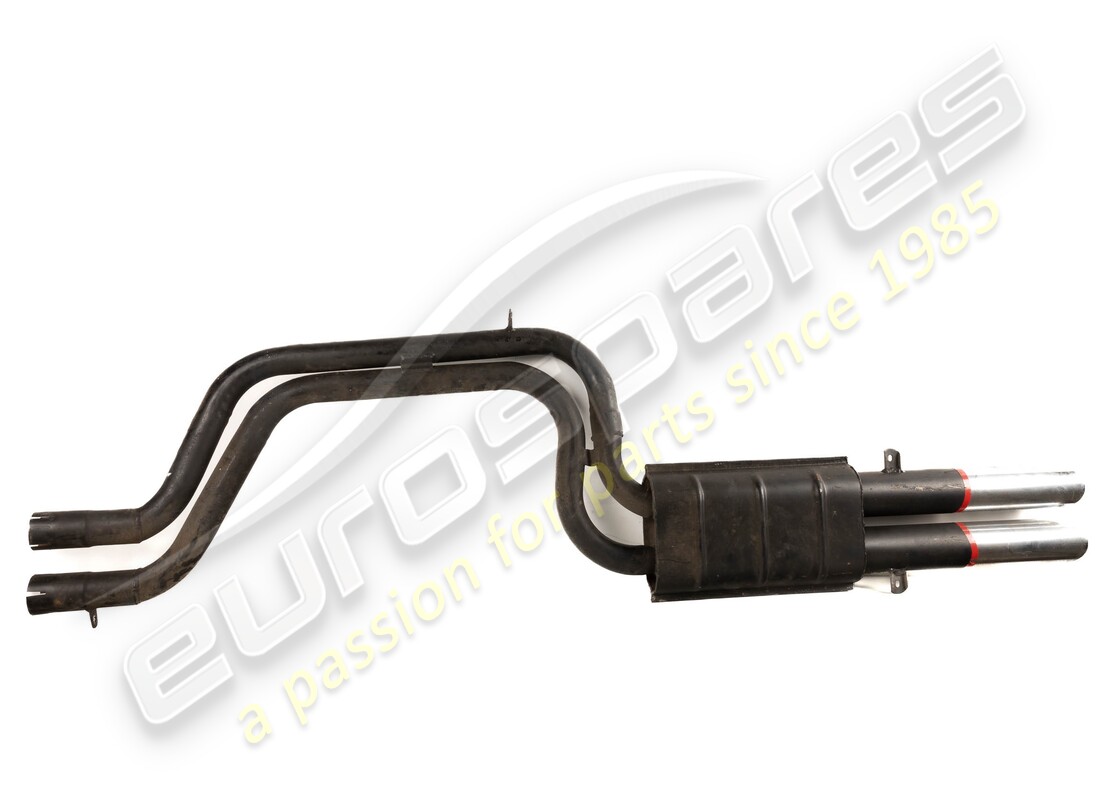

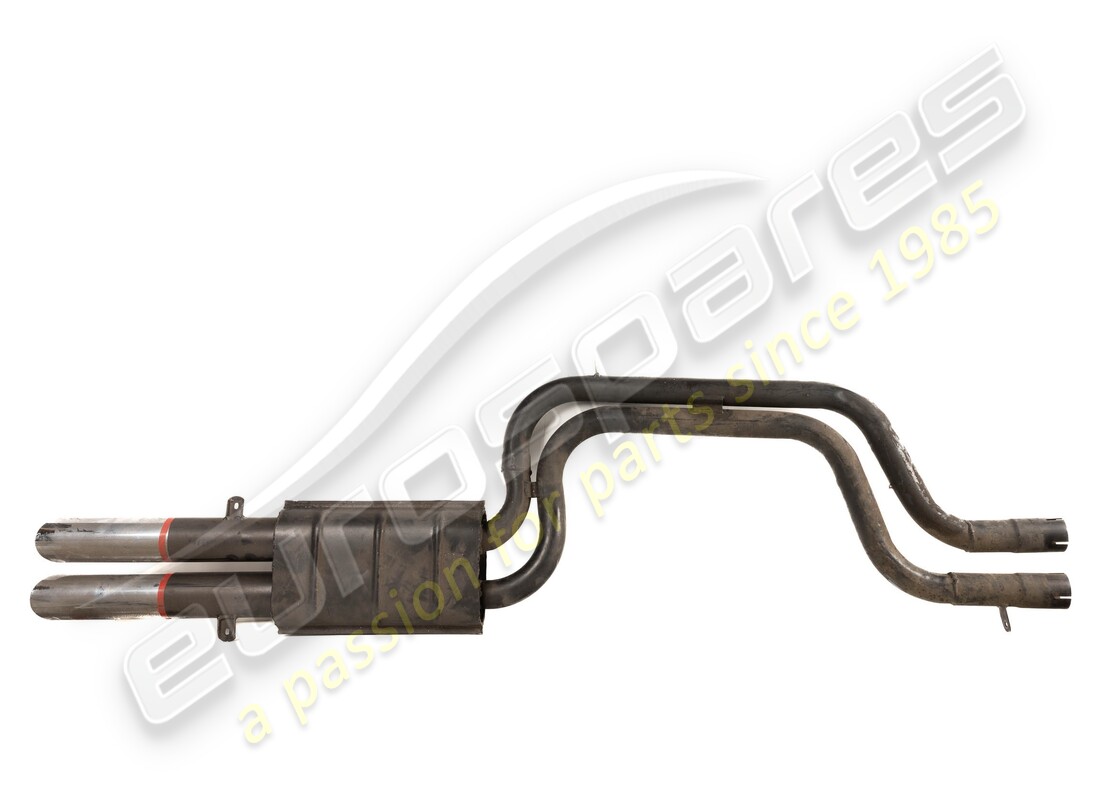

                                                                    # 017
                                                                    MPN: 20424
                                                                    R. AND L. EXHAUST GROUP
                                                                    from £1,777.78
                                                                    from £1,777.78
                                                                    # 017
                                                                    MPN: 20424/S
                                                                    STAINLESS STEEL CENTRE SECTION
                                                                    (pair)
                                                                    from £826.20
                                                                    from £826.20
                                                                    # 019
                                                                    MPN: 20435
                                                                    RIGHT FRONT COLLECTOR UNIT
                                                                    from £420.00
                                                                    from £420.00
                                                                    # 020
                                                                    MPN: 20437
                                                                    RIGHT REAR MANIFOLD UNIT
                                                                    from £2,144.45
                                                                    from £2,144.45
                                                                    # 021
                                                                    MPN: M6x1-UNI5588
                                                                    NUT
                                                                    # 023
                                                                    MPN: 20337
                                                                    JUBILEE CLIP
                                                                    from £13.85
                                                                    from £13.85
                                                                    # 024
                                                                    MPN: 147697/A
                                                                    GASKET
                                                                    (replaces: 20412)
                                                                    from £6.12
                                                                    from £6.12
                                                                    # 024
                                                                    MPN: 147697/A
                                                                    GASKET
                                                                    from £6.12
                                                                    from £6.12
                                                                    # 025
                                                                    MPN: 92885
                                                                    BOLT
                                                                    Supersession
                                                                    Supersession
                                                                    # 026
                                                                    MPN: R.Z.O 7
                                                                    WASHER
                                                                    # 027
                                                                    MPN: 92454
                                                                    NUT
                                                                    from £13.59
                                                                    from £13.59
                                                                    # 028
                                                                    MPN: 147631
                                                                    GASKET OR SEAL
                                                                    from £9.59
                                                                    from £9.59
                                                                    This part replaces part number 10-20-17
                                                                    # 029
                                                                    MPN: 147630
                                                                    GASKET OR SEAL
                                                                    (replaces: 102015)
                                                                    from £14.52
                                                                    from £14.52
                                                                    This part replaces part number 10-20-15
                                                                    # 030
                                                                    MPN: 10902821
                                                                    BOLT
                                                                    from £1.08
                                                                    from £1.08
                                                                    This part replaces part number 10902801 - and 1 more. Click to view details
                                                                    # 031
                                                                    MPN: 104339
                                                                    SPACER
                                                                    from £3.01
                                                                    from £3.01
                                                                    # 032
                                                                    MPN: 101497
                                                                    EXHAUST STRAP
                                                                    (replaces: 20240)
                                                                    from £6.61
                                                                    from £6.61
                                                                    This part replaces part number 20180 - and 1 more. Click to view details
                                                                    # 032
                                                                    MPN: 101497
                                                                    EXHAUST STRAP
                                                                    not as spare part - use part number: 101497
                                                                    from £6.61
                                                                    from £6.61
                                                                    This part replaces part number 20180 - and 1 more. Click to view details
                                                                    # 033
                                                                    MPN: 6 R 4
                                                                    WASHER
                                                                    Supersession
                                                                    Supersession
                                                                    # 035
                                                                    MPN: 20410
                                                                    SUPPORT
                                                                    Supersession
                                                                    Supersession
                                                                    # 036
                                                                    MPN: 12643701
                                                                    SPACER
                                                                    Supersession
                                                                    Supersession
                                                                    This part replaces part number 12643704 - and 1 more. Click to view details
                                                                    # 037
                                                                    MPN: 6 R 4
                                                                    WASHER
                                                                    Supersession
                                                                    Supersession
                                                                    Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
