ferrari 365 gtb4 daytona (1969) shock absorber, hub & front brake disc parts diagram

023 - Shock Absorber, Hub & Front Brake Disc

Ferrari 365 GTB4 Daytona (1969) Shock Absorber, Hub & Front Brake Disc Parts Diagram

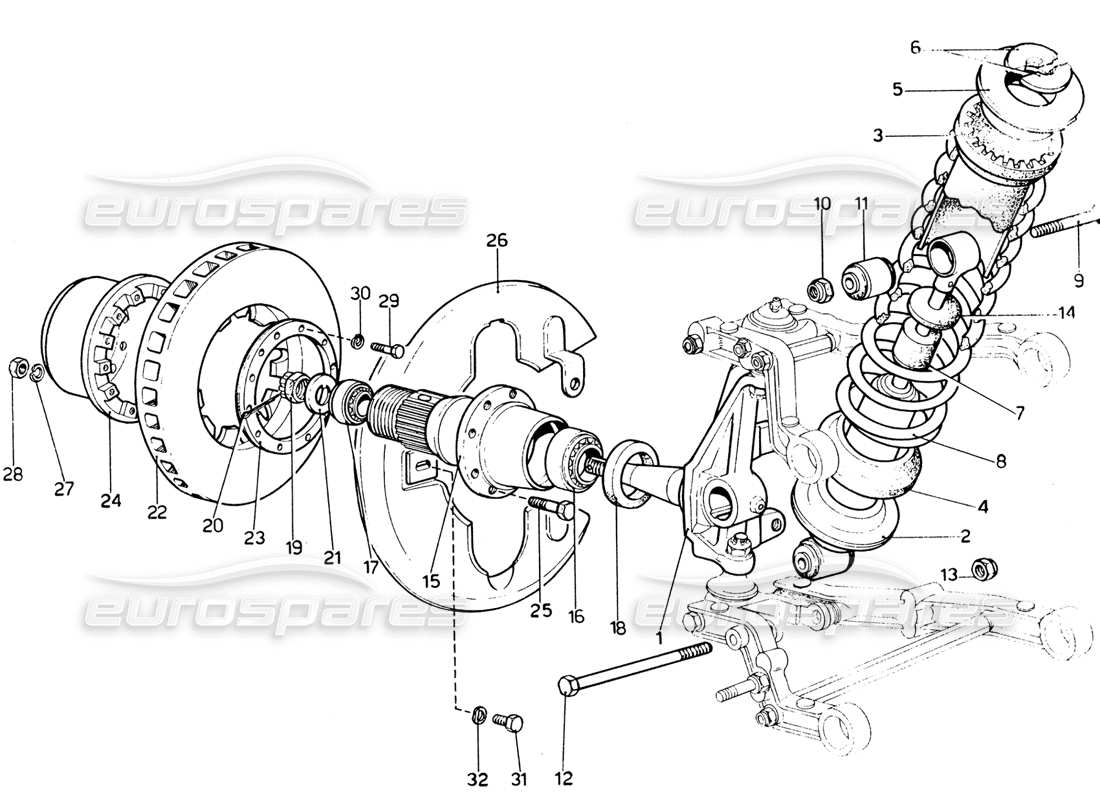

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                      #
                                                      Part number
                                                      Description
                                                      Price
                                                      # 001
                                                      MPN: 640930
                                                      RH STUB AXLE
                                                      from £1,084.63
                                                      from £1,084.63
                                                      # 001
                                                      MPN: 640931
                                                      LH STUB AXLE
                                                      from £519.75
                                                      from £519.75
                                                      # 002
                                                      MPN: 640987
                                                      FRONT SHOCK ABSORBER
                                                      Koni 1633
                                                      from £1,104.69
                                                      from £1,104.69
                                                      This part replaces part number 641143
                                                      # 002
                                                      MPN: 640987
                                                      FRONT SHOCK ABSORBER
                                                      from £1,104.69
                                                      from £1,104.69
                                                      This part replaces part number 641143
                                                      # 003
                                                      MPN: 100980
                                                      DISTANZIALE SUPERIORE
                                                      from £35.83
                                                      from £35.83
                                                      This part replaces part number 640534
                                                      # 004
                                                      MPN: 100988
                                                      PLATE
                                                      from £37.63
                                                      from £37.63
                                                      This part replaces part number 100998 - and 1 more. Click to view details
                                                      # 006
                                                      MPN: 640499
                                                      SEMIANELLI
                                                      # 007
                                                      MPN: 101049
                                                      TAMPONE
                                                      from £26.99
                                                      from £26.99
                                                      This part replaces part number 640835
                                                      # 008
                                                      MPN: 641066
                                                      SPRING
                                                      from £498.36
                                                      from £498.36
                                                      # 009
                                                      MPN: M12x70-UN15738
                                                      BOLT
                                                      # 010
                                                      MPN: 212x1,25
                                                      NUT
                                                      Supersession
                                                      Supersession
                                                      # 011
                                                      MPN: 100809
                                                      ESTENDBLOC (RIV. 89.800.985)
                                                      (replaces: 640429)
                                                      from £13.10
                                                      from £13.10
                                                      This part replaces part number 101051 - and 1 more. Click to view details
                                                      # 011
                                                      MPN: 640429
                                                      ESTENDBLOC (RIV. 89.800.985)
                                                      not as spare part - use part number: 100809
                                                      Supersession
                                                      Supersession
                                                      # 012
                                                      MPN: 95183
                                                      BOLT
                                                      Supersession
                                                      Supersession
                                                      # 013
                                                      MPN: 212x1,25
                                                      NUT
                                                      Supersession
                                                      Supersession
                                                      # 014
                                                      MPN: 601562
                                                      SPACER
                                                      from £9.23
                                                      from £9.23
                                                      # 015
                                                      MPN: 700478
                                                      MOZZO DESTRO
                                                      from £600.32
                                                      from £600.32
                                                      # 015
                                                      MPN: 700479
                                                      MOZZO SINISTRO
                                                      from £931.90
                                                      from £931.90
                                                      # 016
                                                      MPN: 101363
                                                      CUSCINETTO INTERNO
                                                      from £22.36
                                                      from £22.36
                                                      This part replaces part number 4096587
                                                      # 017
                                                      MPN: 101218
                                                      CUSCINETTO ESTERNO
                                                      from £65.18
                                                      from £65.18
                                                      # 018
                                                      MPN: 48 x 72 x 7 RP
                                                      SEALING RING
                                                      Valid for 1974 revision - * Vetture con impianto depurazione scarichi
                                                      # 018
                                                      MPN: 4872
                                                      SEALING RING
                                                      # 019
                                                      MPN: 10724621
                                                      NUT
                                                      Valid for 1974 revision - * Vetture con impianto depurazione scarichi
                                                      Supersession
                                                      Supersession
                                                      # 019
                                                      MPN: 11638021
                                                      NUT
                                                      Valid for 1974 revision - * Vetture con impianto depurazione scarichi
                                                      Supersession
                                                      Supersession
                                                      # 019
                                                      MPN: 92429
                                                      NUT
                                                      from £35.94
                                                      from £35.94
                                                      This part replaces part number 10724621
                                                      # 019
                                                      MPN: 92431
                                                      NUT
                                                      from £26.15
                                                      from £26.15
                                                      This part replaces part number 11638021
                                                      # 020
                                                      MPN: C1
                                                      SPLIT PIN
                                                      Supersession
                                                      Supersession
                                                      # 021
                                                      MPN: 52397
                                                      WASHER
                                                      Valid for 1974 revision - * Vetture con impianto depurazione scarichi
                                                      # 021
                                                      MPN: 640349
                                                      WASHER
                                                      Supersession
                                                      Supersession
                                                      # 022
                                                      MPN: 681018
                                                      DISCO FRENO
                                                      from £1,079.96
                                                      from £1,079.96
                                                      This part replaces part number 680658
                                                      # 022
                                                      MPN: 681018
                                                      BRAKE DISC FRONT WHEELS
                                                      Valid for 1972 revision
                                                      from £1,079.96
                                                      from £1,079.96
                                                      This part replaces part number 680658
                                                      # 023
                                                      MPN: 680403
                                                      FLANGIA
                                                      from £192.03
                                                      from £192.03
                                                      # 024
                                                      MPN: 680407
                                                      BELL FOR BRAKE DISCS
                                                      from £509.42
                                                      from £509.42
                                                      # 025
                                                      MPN: 680006
                                                      BOLT
                                                      from £17.65
                                                      from £17.65
                                                      # 026
                                                      MPN: 680735
                                                      BRAKE DISC PROTECTION R.
                                                      from £649.40
                                                      from £649.40
                                                      # 026
                                                      MPN: 680736
                                                      L. BRAKE DISC PROTECTION
                                                      from £75.92
                                                      from £75.92
                                                      # 027
                                                      MPN: 127496
                                                      WASHER
                                                      from £0.52
                                                      from £0.52
                                                      This part replaces part number 10516671 - and 2 more. Click to view details
                                                      # 028
                                                      MPN: 103181
                                                      NUT
                                                      from £1.94
                                                      from £1.94
                                                      This part replaces part number 95209 - and 1 more. Click to view details
                                                      # 029
                                                      MPN: M5x16-UNI 5739
                                                      BOLT
                                                      # 031
                                                      MPN: M8x1,25x12-UNI 5139
                                                      BOLT
                                                      # 032
                                                      MPN: 127496
                                                      WASHER
                                                      from £0.54
                                                      from £0.54
                                                      This part replaces part number 10516671 - and 2 more. Click to view details
