020 - Gearbox Controls & Oil Pump

Ferrari 365 GTB4 Daytona (1969) Gearbox Controls & Oil Pump Parts Diagram

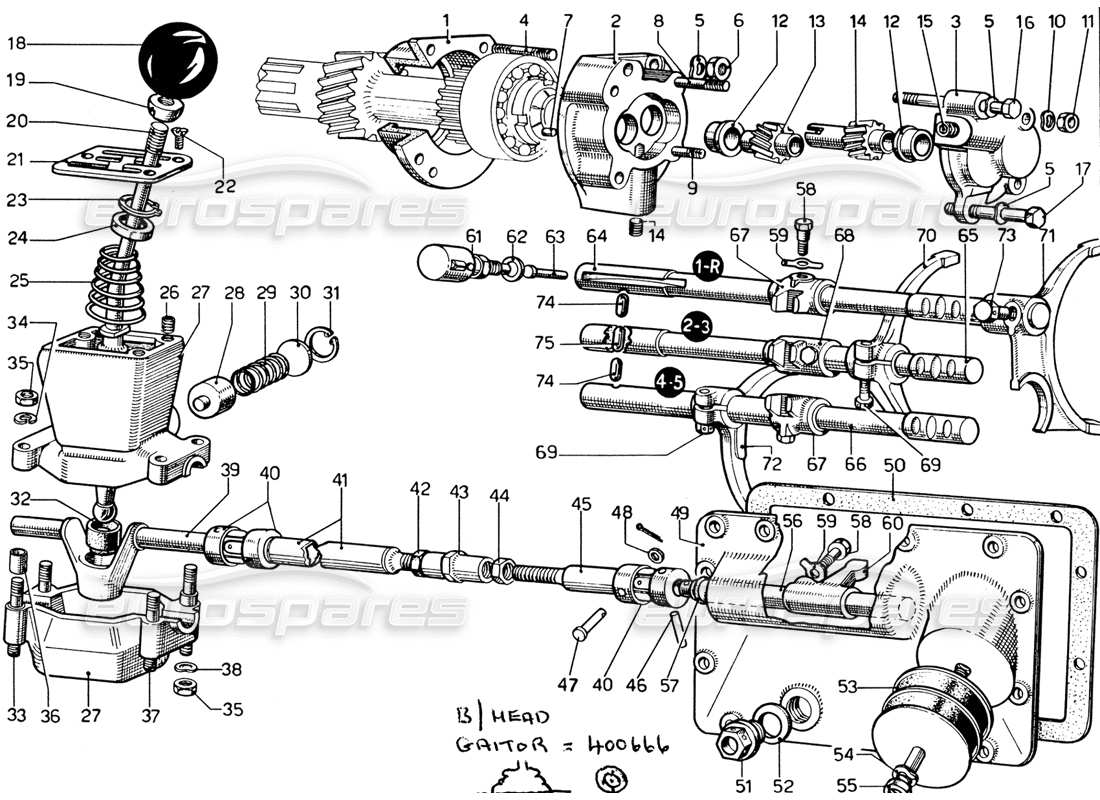

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                                                                      #
                                                                                                                                                      Part number
                                                                                                                                                      Description
                                                                                                                                                      Price
                                                                                                                                                      # 000
                                                                                                                                                      MPN: 400666
                                                                                                                                                      BULK HEAD GEAR LINKAGE BOOT
                                                                                                                                                      from £208.50
                                                                                                                                                      from £208.50
                                                                                                                                                      # 001
                                                                                                                                                      MPN: 522261
                                                                                                                                                      BEARING HOLDER ON THE PRIMARY
                                                                                                                                                      from £148.01
                                                                                                                                                      from £148.01
                                                                                                                                                      # 002
                                                                                                                                                      MPN: 522957
                                                                                                                                                      Corpo pompa olio
                                                                                                                                                      from £141.61
                                                                                                                                                      from £141.61
                                                                                                                                                      # 003
                                                                                                                                                      MPN: 520650
                                                                                                                                                      COVER
                                                                                                                                                      from £140.96
                                                                                                                                                      from £140.96
                                                                                                                                                      # 004
                                                                                                                                                      MPN: 95920409
                                                                                                                                                      THREADED STUD
                                                                                                                                                      from £2.09
                                                                                                                                                      from £2.09
                                                                                                                                                      # 006
                                                                                                                                                      MPN: 103181
                                                                                                                                                      NUT
                                                                                                                                                      from £1.94
                                                                                                                                                      from £1.94
                                                                                                                                                      This part replaces part number 95209 - and 1 more. Click to view details
                                                                                                                                                      # 007
                                                                                                                                                      MPN: 93338
                                                                                                                                                      CENTERING DOWEL
                                                                                                                                                      from £13.72
                                                                                                                                                      from £13.72
                                                                                                                                                      # 008
                                                                                                                                                      MPN: 104185
                                                                                                                                                      THREADED STUD
                                                                                                                                                      from £18.79
                                                                                                                                                      from £18.79
                                                                                                                                                      This part replaces part number P1
                                                                                                                                                      # 009
                                                                                                                                                      MPN: 104185
                                                                                                                                                      THREADED STUD
                                                                                                                                                      from £18.79
                                                                                                                                                      from £18.79
                                                                                                                                                      This part replaces part number P1
                                                                                                                                                      # 010
                                                                                                                                                      MPN: REO6
                                                                                                                                                      STUD
                                                                                                                                                      Supersession
                                                                                                                                                      Supersession
                                                                                                                                                      # 011
                                                                                                                                                      MPN: 103181
                                                                                                                                                      NUT
                                                                                                                                                      from £1.94
                                                                                                                                                      from £1.94
                                                                                                                                                      This part replaces part number 95209 - and 1 more. Click to view details
                                                                                                                                                      # 012
                                                                                                                                                      MPN: 520675
                                                                                                                                                      BUSH
                                                                                                                                                      from £54.66
                                                                                                                                                      from £54.66
                                                                                                                                                      # 013
                                                                                                                                                      MPN: 520674
                                                                                                                                                      DRIVEN GEAR
                                                                                                                                                      # 014
                                                                                                                                                      MPN: 522956
                                                                                                                                                      DRIVING GEAR
                                                                                                                                                      from £480.92
                                                                                                                                                      from £480.92
                                                                                                                                                      # 015
                                                                                                                                                      MPN: A10x8A-12K
                                                                                                                                                      PLUG
                                                                                                                                                      # 016
                                                                                                                                                      MPN: M 8x80-UNI 5737
                                                                                                                                                      BOLT
                                                                                                                                                      # 017
                                                                                                                                                      MPN: M 8x65-UNI 5737
                                                                                                                                                      BOLT
                                                                                                                                                      # 018
                                                                                                                                                      MPN: 103301
                                                                                                                                                      GEAR KNOB
                                                                                                                                                      from £40.00
                                                                                                                                                      from £40.00
                                                                                                                                                      This part replaces part number 523148
                                                                                                                                                      # 019
                                                                                                                                                      MPN: 523214
                                                                                                                                                      LOCKNUT
                                                                                                                                                      Supersession
                                                                                                                                                      Supersession
                                                                                                                                                      # 020
                                                                                                                                                      MPN: 523143
                                                                                                                                                      LEVER
                                                                                                                                                      from £205.41
                                                                                                                                                      from £205.41
                                                                                                                                                      # 021
                                                                                                                                                      MPN: 520548
                                                                                                                                                      SELETTORE MARCE
                                                                                                                                                      from £179.30
                                                                                                                                                      from £179.30
                                                                                                                                                      # 022
                                                                                                                                                      MPN: 2VR-5x12
                                                                                                                                                      SCREW
                                                                                                                                                      # 023
                                                                                                                                                      MPN: AA 15e
                                                                                                                                                      SEEGER RING
                                                                                                                                                      Supersession
                                                                                                                                                      Supersession
                                                                                                                                                      # 024
                                                                                                                                                      MPN: 520566
                                                                                                                                                      SCODELLINO
                                                                                                                                                      from £2.10
                                                                                                                                                      from £2.10
                                                                                                                                                      # 025
                                                                                                                                                      MPN: 520568
                                                                                                                                                      SPRING
                                                                                                                                                      Supersession
                                                                                                                                                      Supersession
                                                                                                                                                      # 026
                                                                                                                                                      MPN: 5 X 0,8 x 7,5
                                                                                                                                                      BUSSOLA FILETTATA
                                                                                                                                                      # 027
                                                                                                                                                      MPN: 520542 - 520543
                                                                                                                                                      COMMAND TOWER
                                                                                                                                                      # 028
                                                                                                                                                      MPN: 520565
                                                                                                                                                      PUNTALINO
                                                                                                                                                      from £10.05
                                                                                                                                                      from £10.05
                                                                                                                                                      # 029
                                                                                                                                                      MPN: 520567
                                                                                                                                                      SPRING
                                                                                                                                                      from £3.47
                                                                                                                                                      from £3.47
                                                                                                                                                      # 030
                                                                                                                                                      MPN: 520569
                                                                                                                                                      FONDELLO
                                                                                                                                                      # 031
                                                                                                                                                      MPN: AA 201
                                                                                                                                                      SEEGER RING
                                                                                                                                                      # 032
                                                                                                                                                      MPN: 104316
                                                                                                                                                      SEDE SFERICA
                                                                                                                                                      Supersession
                                                                                                                                                      Supersession
                                                                                                                                                      This part replaces part number 521754 - and 1 more. Click to view details
                                                                                                                                                      # 033
                                                                                                                                                      MPN: 520700
                                                                                                                                                      THREADED STUD
                                                                                                                                                      # 034
                                                                                                                                                      MPN: 127496
                                                                                                                                                      WASHER
                                                                                                                                                      from £0.53
                                                                                                                                                      from £0.53
                                                                                                                                                      This part replaces part number 10516671 - and 2 more. Click to view details
                                                                                                                                                      # 035
                                                                                                                                                      MPN: 103181
                                                                                                                                                      NUT
                                                                                                                                                      from £1.94
                                                                                                                                                      from £1.94
                                                                                                                                                      This part replaces part number 95209 - and 1 more. Click to view details
                                                                                                                                                      # 036
                                                                                                                                                      MPN: 100041
                                                                                                                                                      CENTERING DOWEL
                                                                                                                                                      from £3.82
                                                                                                                                                      from £3.82
                                                                                                                                                      # 037
                                                                                                                                                      MPN: 520701
                                                                                                                                                      THREADED STUD
                                                                                                                                                      from £4.46
                                                                                                                                                      from £4.46
                                                                                                                                                      # 038
                                                                                                                                                      MPN: REO - 8
                                                                                                                                                      WASHER
                                                                                                                                                      Supersession
                                                                                                                                                      Supersession
                                                                                                                                                      # 039
                                                                                                                                                      MPN: 520544
                                                                                                                                                      PIVOT JOINT
                                                                                                                                                      # 040
                                                                                                                                                      MPN: 103189
                                                                                                                                                      JOINT FOR BAR
                                                                                                                                                      from £91.02
                                                                                                                                                      from £91.02
                                                                                                                                                      This part replaces part number 524508 - and 1 more. Click to view details
                                                                                                                                                      # 041
                                                                                                                                                      MPN: 522850
                                                                                                                                                      COMMAND BAR
                                                                                                                                                      from £91.55
                                                                                                                                                      from £91.55
                                                                                                                                                      # 043
                                                                                                                                                      MPN: 521362
                                                                                                                                                      TIE ROD
                                                                                                                                                      Supersession
                                                                                                                                                      Supersession
                                                                                                                                                      # 045
                                                                                                                                                      MPN: 521843
                                                                                                                                                      PIVOT
                                                                                                                                                      from £83.53
                                                                                                                                                      from £83.53
                                                                                                                                                      # 047
                                                                                                                                                      MPN: 523712
                                                                                                                                                      PIVOT
                                                                                                                                                      Supersession
                                                                                                                                                      Supersession
                                                                                                                                                      # 049
                                                                                                                                                      MPN: 521212

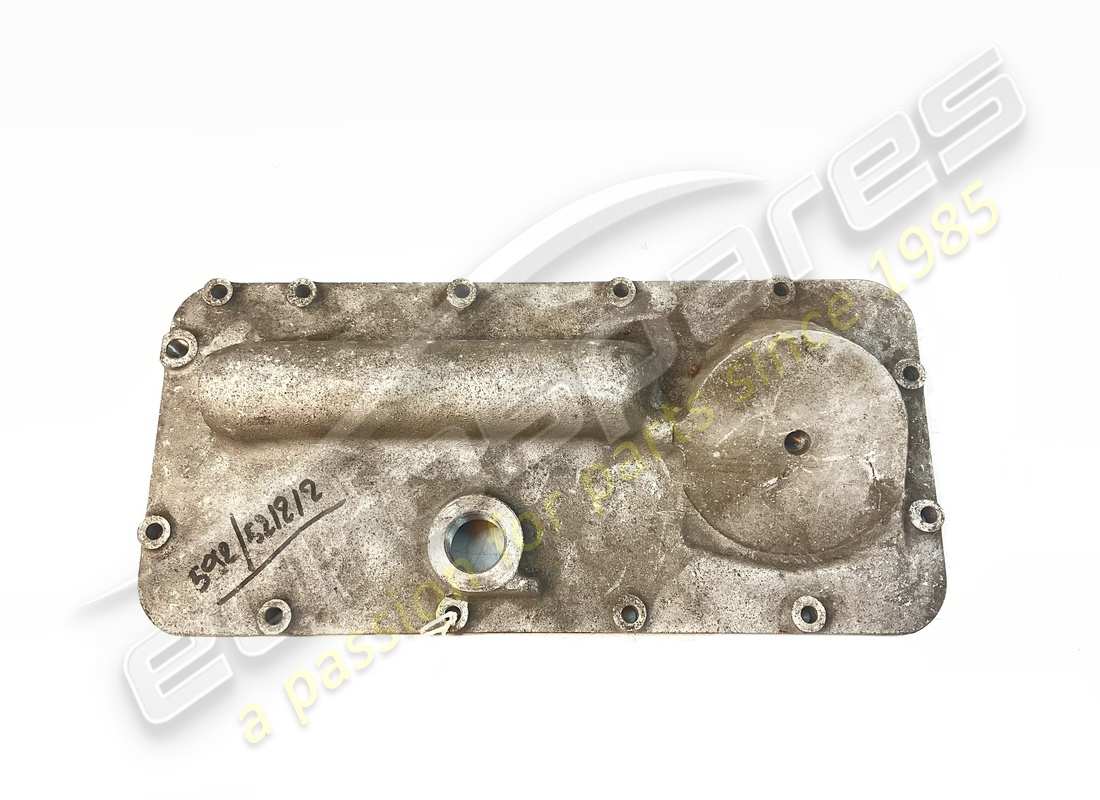

                                                                                                                                                      COVER
                                                                                                                                                      from £905.23
                                                                                                                                                      from £905.23
                                                                                                                                                      # 050
                                                                                                                                                      MPN: 520651
                                                                                                                                                      GASKET
                                                                                                                                                      from £27.44
                                                                                                                                                      from £27.44
                                                                                                                                                      # 051
                                                                                                                                                      MPN: 104282
                                                                                                                                                      OIL CAP
                                                                                                                                                      from £48.88
                                                                                                                                                      from £48.88
                                                                                                                                                      This part replaces part number 520162 - and 1 more. Click to view details
                                                                                                                                                      # 052
                                                                                                                                                      MPN: 520161
                                                                                                                                                      GASKET
                                                                                                                                                      Supersession
                                                                                                                                                      Supersession
                                                                                                                                                      # 053
                                                                                                                                                      MPN: 100825
                                                                                                                                                      SUPPORT MOUNT
                                                                                                                                                      (86 mm outer diameter)
                                                                                                                                                      from £79.67
                                                                                                                                                      from £79.67
                                                                                                                                                      # 053
                                                                                                                                                      MPN: 131251
                                                                                                                                                      SUPPORT MOUNT
                                                                                                                                                      (90 mm diameter)
                                                                                                                                                      from £116.03
                                                                                                                                                      from £116.03
                                                                                                                                                      This part replaces part number 100825 - and 1 more. Click to view details
                                                                                                                                                      # 054
                                                                                                                                                      MPN: 10R4
                                                                                                                                                      WASHER
                                                                                                                                                      Supersession
                                                                                                                                                      Supersession
                                                                                                                                                      # 055
                                                                                                                                                      MPN: 10 x 1,25 - UNI 5588
                                                                                                                                                      NUT
                                                                                                                                                      # 056
                                                                                                                                                      MPN: 520183
                                                                                                                                                      ALBERO PER LEVA
                                                                                                                                                      from £113.85
                                                                                                                                                      from £113.85
                                                                                                                                                      # 057
                                                                                                                                                      MPN: 101032

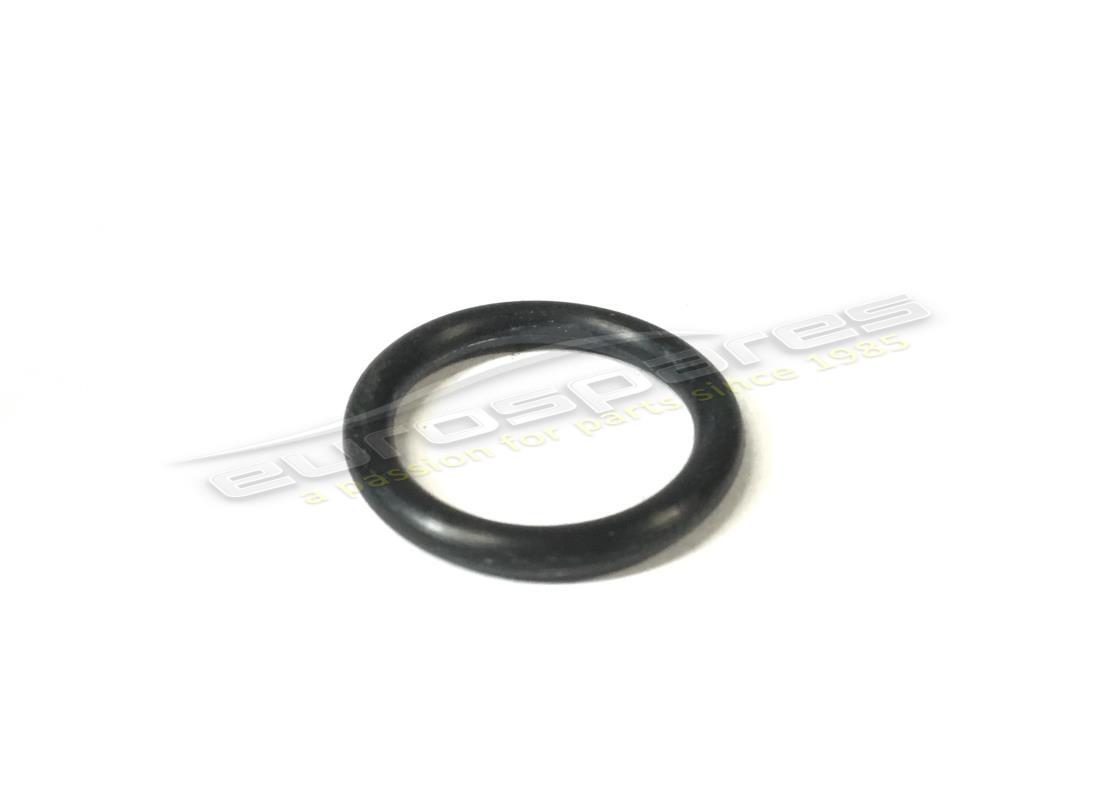

                                                                                                                                                      SEALING RING
                                                                                                                                                      from £0.93
                                                                                                                                                      from £0.93
                                                                                                                                                      # 057
                                                                                                                                                      MPN: OR 121
                                                                                                                                                      SEALING RING
                                                                                                                                                      not as spare part - use part number: MC2061/51
                                                                                                                                                      # 058
                                                                                                                                                      MPN: 95176
                                                                                                                                                      BOLT
                                                                                                                                                      Supersession
                                                                                                                                                      Supersession
                                                                                                                                                      # 059
                                                                                                                                                      MPN: 103587

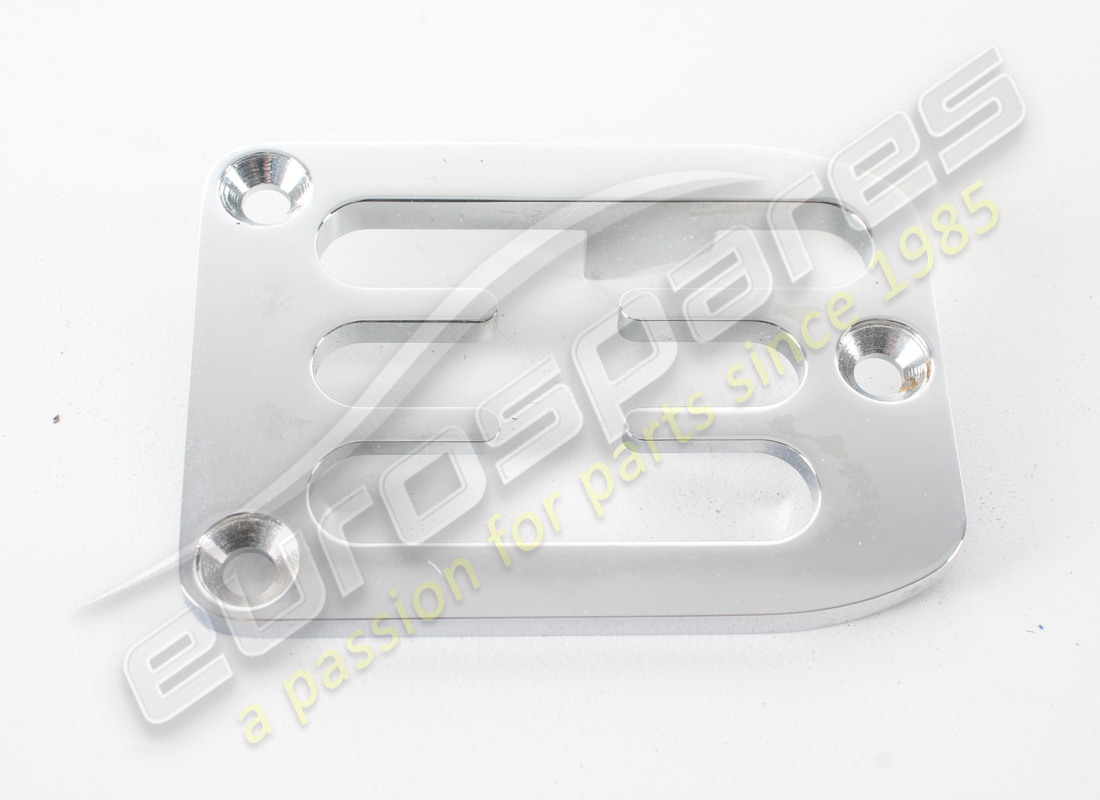

                                                                                                                                                      PLATE
                                                                                                                                                      from £5.85
                                                                                                                                                      from £5.85
                                                                                                                                                      This part replaces part number 92692 - and 1 more. Click to view details
                                                                                                                                                      # 060
                                                                                                                                                      MPN: 520166
                                                                                                                                                      LEVER
                                                                                                                                                      from £104.40
                                                                                                                                                      from £104.40
                                                                                                                                                      # 061
                                                                                                                                                      MPN: 95403254

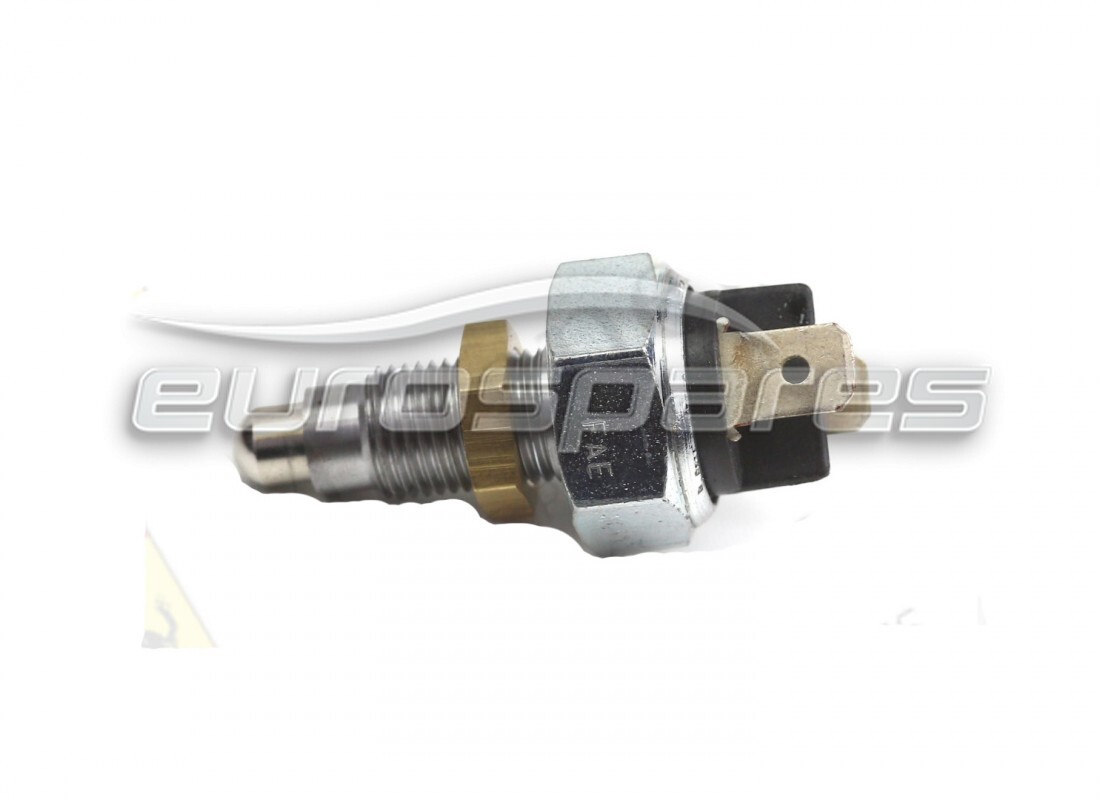

                                                                                                                                                      RM LIGHT SWITCH
                                                                                                                                                      from £135.23
                                                                                                                                                      from £135.23
                                                                                                                                                      This part replaces part number 103324
                                                                                                                                                      # 061
                                                                                                                                                      MPN: 95403254
                                                                                                                                                      RM LIGHT SWITCH
                                                                                                                                                      from £135.23
                                                                                                                                                      from £135.23
                                                                                                                                                      This part replaces part number 103324
                                                                                                                                                      # 063
                                                                                                                                                      MPN: 55670
                                                                                                                                                      PIVOT
                                                                                                                                                      from £55.02
                                                                                                                                                      from £55.02
                                                                                                                                                      # 064
                                                                                                                                                      MPN: 522671
                                                                                                                                                      ASTA COMANDO 1ª E R.M.
                                                                                                                                                      Supersession
                                                                                                                                                      Supersession
                                                                                                                                                      # 065
                                                                                                                                                      MPN: 522672
                                                                                                                                                      ASTA COMANDO 2ª E 3ª VEL.
                                                                                                                                                      Supersession
                                                                                                                                                      Supersession
                                                                                                                                                      # 066
                                                                                                                                                      MPN: 522673
                                                                                                                                                      ASTA COMANDO 4ª E 5ª VEL.
                                                                                                                                                      Supersession
                                                                                                                                                      Supersession
                                                                                                                                                      # 067
                                                                                                                                                      MPN: 520149
                                                                                                                                                      SELECTOR FORK 1ª REVERSE. 4ª AND 5ª SPEED
                                                                                                                                                      from £318.87
                                                                                                                                                      from £318.87
                                                                                                                                                      # 068
                                                                                                                                                      MPN: 520150
                                                                                                                                                      SELECTOR FORK 2ª AND 3ª VEL.
                                                                                                                                                      from £318.87
                                                                                                                                                      from £318.87
                                                                                                                                                      # 069
                                                                                                                                                      MPN: 95180
                                                                                                                                                      BOLT
                                                                                                                                                      from £4.94
                                                                                                                                                      from £4.94
                                                                                                                                                      # 070
                                                                                                                                                      MPN: 523194

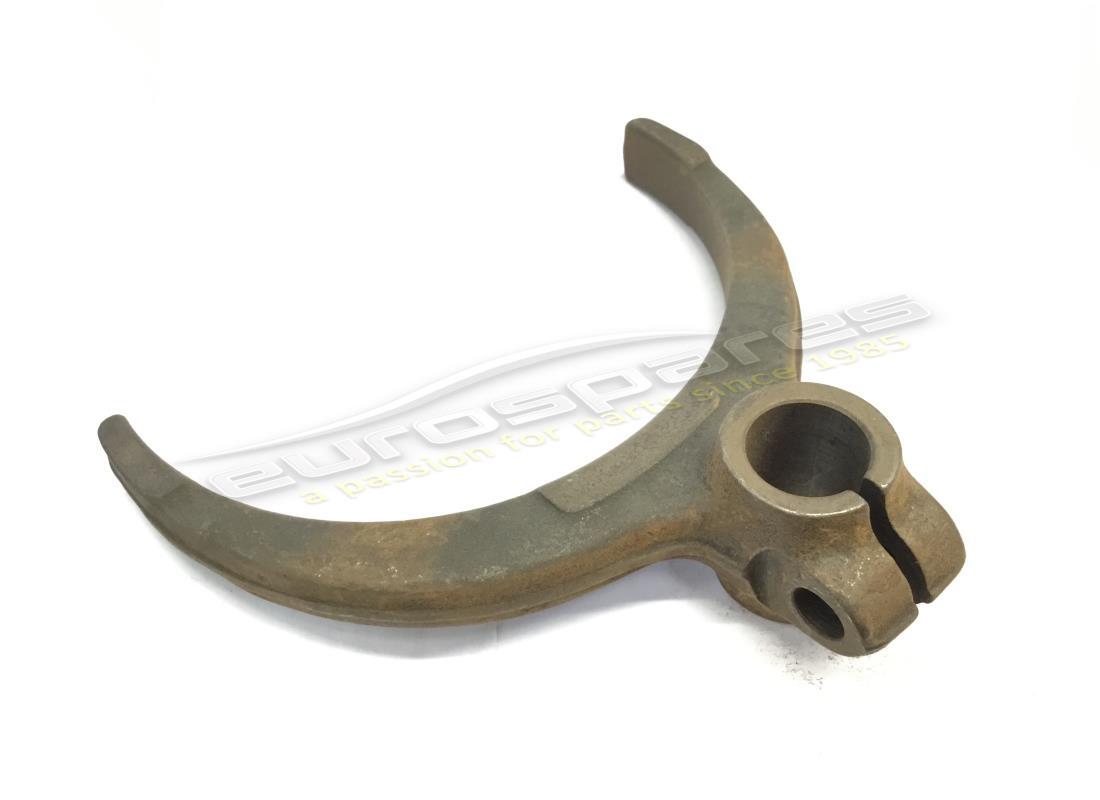

                                                                                                                                                      FORK 2ª AND 3ª SPEED
                                                                                                                                                      from £374.80
                                                                                                                                                      from £374.80
                                                                                                                                                      # 071
                                                                                                                                                      MPN: 522736
                                                                                                                                                      FORK 1ª AND REVERSE.
                                                                                                                                                      from £1,174.70
                                                                                                                                                      from £1,174.70
                                                                                                                                                      # 072
                                                                                                                                                      MPN: 523195
                                                                                                                                                      FORK 4ª AND 5ª SPEED
                                                                                                                                                      from £773.41
                                                                                                                                                      from £773.41
                                                                                                                                                      # 073
                                                                                                                                                      MPN: 95176
                                                                                                                                                      BOLT
                                                                                                                                                      Supersession
                                                                                                                                                      Supersession
                                                                                                                                                      # 074
                                                                                                                                                      MPN: 520146
                                                                                                                                                      RULLINO ASTE 1ª R.M. - 4ª E 5ª VEL.
                                                                                                                                                      Supersession
                                                                                                                                                      Supersession
                                                                                                                                                      # 075
                                                                                                                                                      MPN: 100748
                                                                                                                                                      RULLINO ASTA 2ª E 3ª VEL.
                                                                                                                                                      from £22.36
                                                                                                                                                      from £22.36
                                                                                                                                                      This part replaces part number 53126
                                                                                                                                                      Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
