ferrari 365 gt4 berlinetta boxer carpeting parts diagram

113 - Carpeting

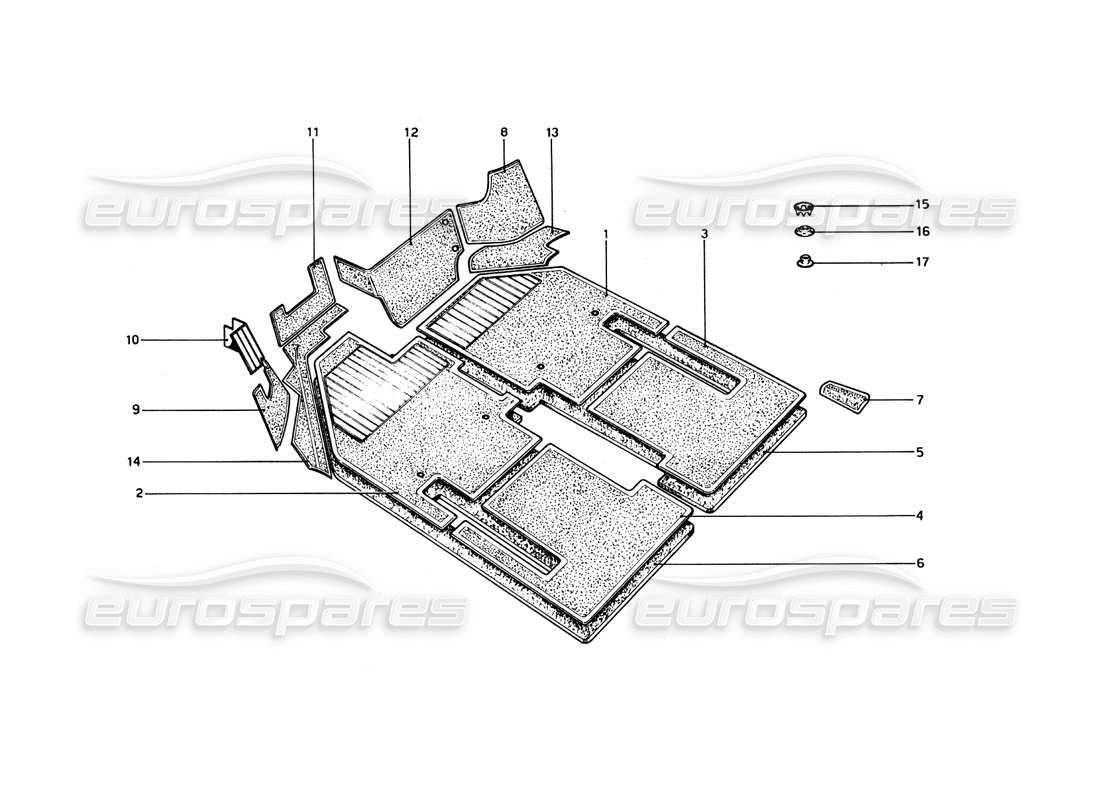

Ferrari 365 GT4 Berlinetta Boxer Carpeting Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
            #
            Part number
            Description
            Price
            # 001
            MPN: 500643
            RIGHT FRONT CARPET
            Non vale per GD
            # 001
            MPN: 501754
            RIGHT FRONT CARPET
            Vale per GD
            # 001
            MPN: 502139
            SERIE TAPPETI ABITACOLO
            Vale fino alla vett.247non - Non vale per GD
            # 001
            MPN: 502140
            SERIE TAPPETI ABITACOLO
            Vale dalla vett. 248 - Non vale per GD
            # 001
            MPN: 502141
            SERIE TAPPETI ABITACOLO
            Vale per GD fino aI N. 247
            # 001
            MPN: 602147
            SERIE TAPPETI ABITACOLO
            Vale per GD dal N.248
            # 002
            MPN: 500644
            TAPPETO ANTERIORE SX
            Non vale per GD
            from £28.90
            from £28.90
            # 002
            MPN: 501755
            TAPPETO ANTERIORE SX
            Vale per GD
            # 003
            MPN: 500044
            RIGHT REAR CARPET
            Vale dall N. 248
            # 003
            MPN: 500647
            RIGHT REAR CARPET
            Valid up to N. 247

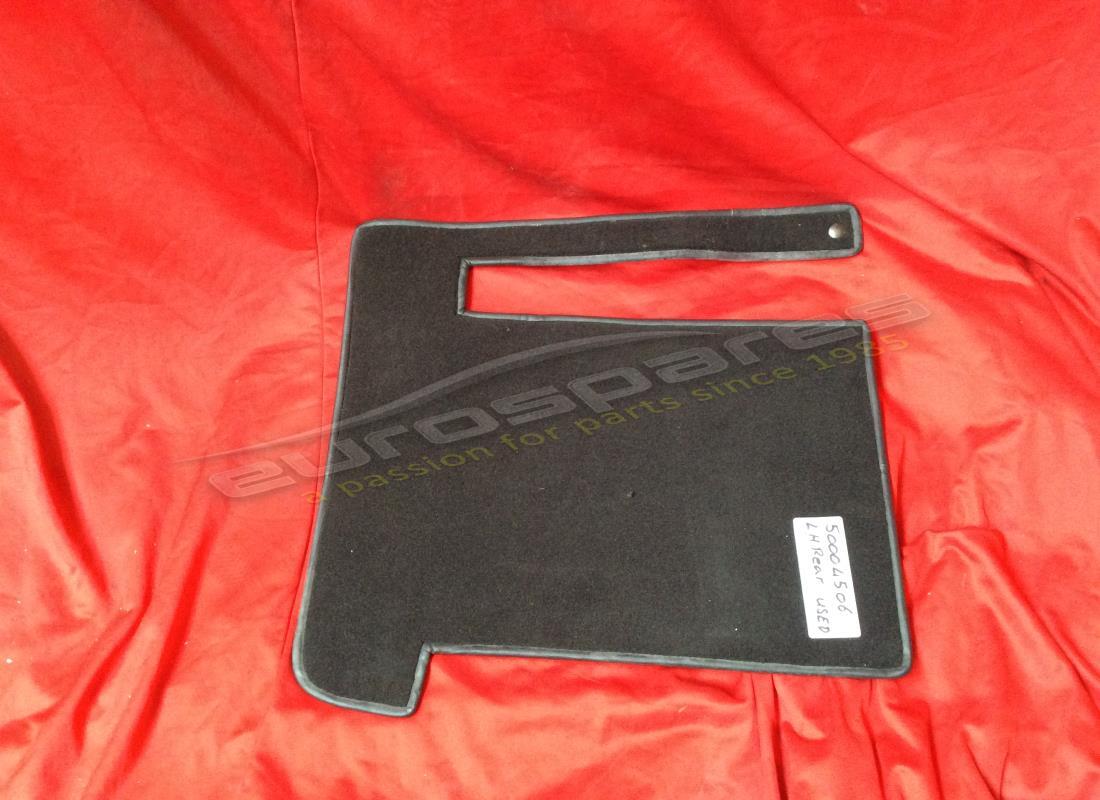

            # 004
            MPN: 50004506
            TAPPETO POSTERIORE SX
            from £157.50
            from £157.50
            # 004
            MPN: 500648
            TAPPETO POSTERIORE SX
            Vale f ino alla N. 247
            Supersession
            Supersession
            # 007
            MPN: 501181
            TAPPETO PER ANGOLO SOTTOSCHIENALE
            Valid up to N.247
            # 008
            MPN: 500638
            Tappeto sul passaruota Dx
            Non vale per GD
            # 008
            MPN: 501723
            Tappeto sul passaruota Dx
            Vale per GD
            # 009
            MPN: 500639
            TAPPETO SU! PASSARUOTA SX
            Non vale per GD
            # 009
            MPN: 501724
            TAPPETO SUL PASSARUOTA SX
            Vale per GD
            # 010
            MPN: 500405
            PARAGRAPH FOR FOOT REST
            Non vale per GD
            # 011
            MPN: 500630
            TAPPETO SOTTOPEDALIERA
            Non vale per GD
            Supersession
            Supersession
            # 011
            MPN: 501721
            TAPPETO SOTTOPEDALIERA
            Vale per GD
            # 012
            MPN: 500634
            TAPPETO COPRICENTRALINA
            Non vale per GD
            # 012
            MPN: 501722
            TAPPETO COPRICENTRALINA
            Vale per GD
            # 013
            MPN: 501115
            RIGHT SIDE CARPET
            Non vale per GD
            # 013
            MPN: 501737
            RIGHT SIDE CARPET
            Vale per GD
            # 014
            MPN: 501116
            TAPPETO LATERALE SX
            Non vale per GD
            # 014
            MPN: 501738
            TAPPETO LATERALE SX
            Vale per GD
            # 015
            MPN: 50111400
            CLIP
            from £0.84
            from £0.84
            # 016
            MPN: 20073508
            SPRING
            from £2.16
            from £2.16
            # 017
            MPN: 50111301
            SPRING BUTTON
            from £2.31
            from £2.31
            This part replaces part number 50103605
