108 - Doors

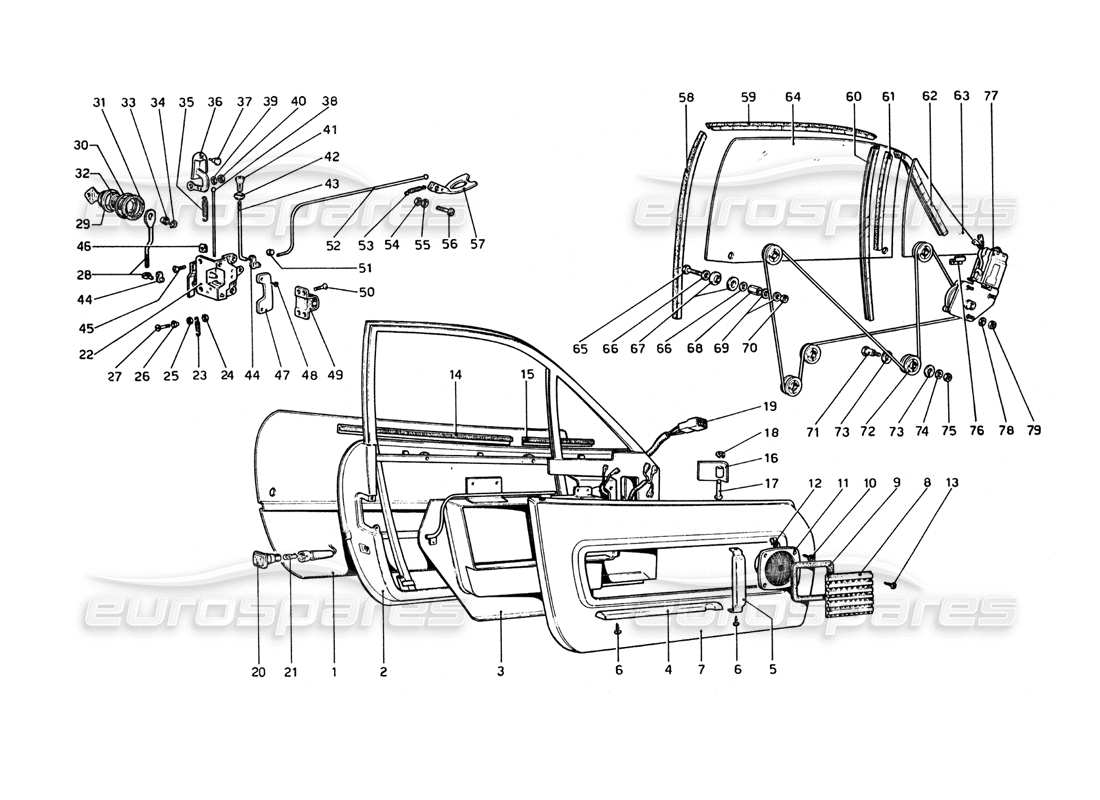

Ferrari 365 GT4 Berlinetta Boxer Doors Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 500303
EXTERNAL COVERING OF RIGHT DOOR
# 001
MPN: 500304
RIVESTIMENTO ESTERNO PORTA SX

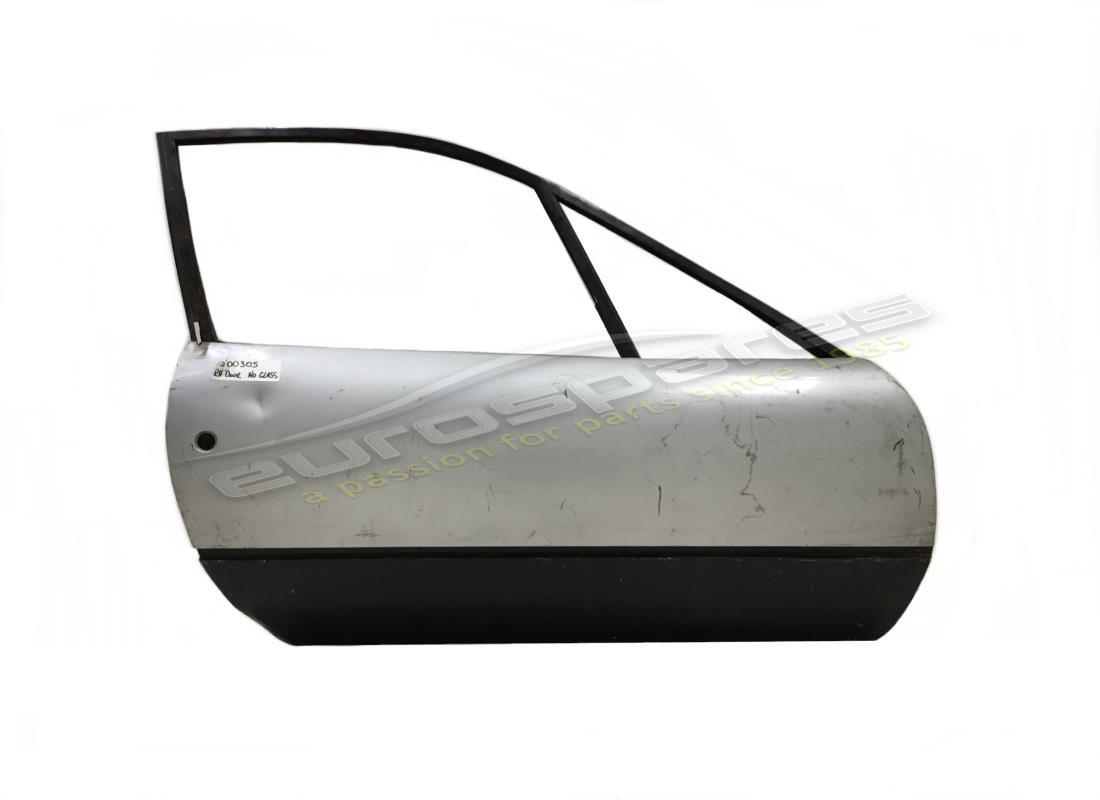

# 001
MPN: 500305
PORTA DX COMPLETA
from £2,829.75
from £2,829.75

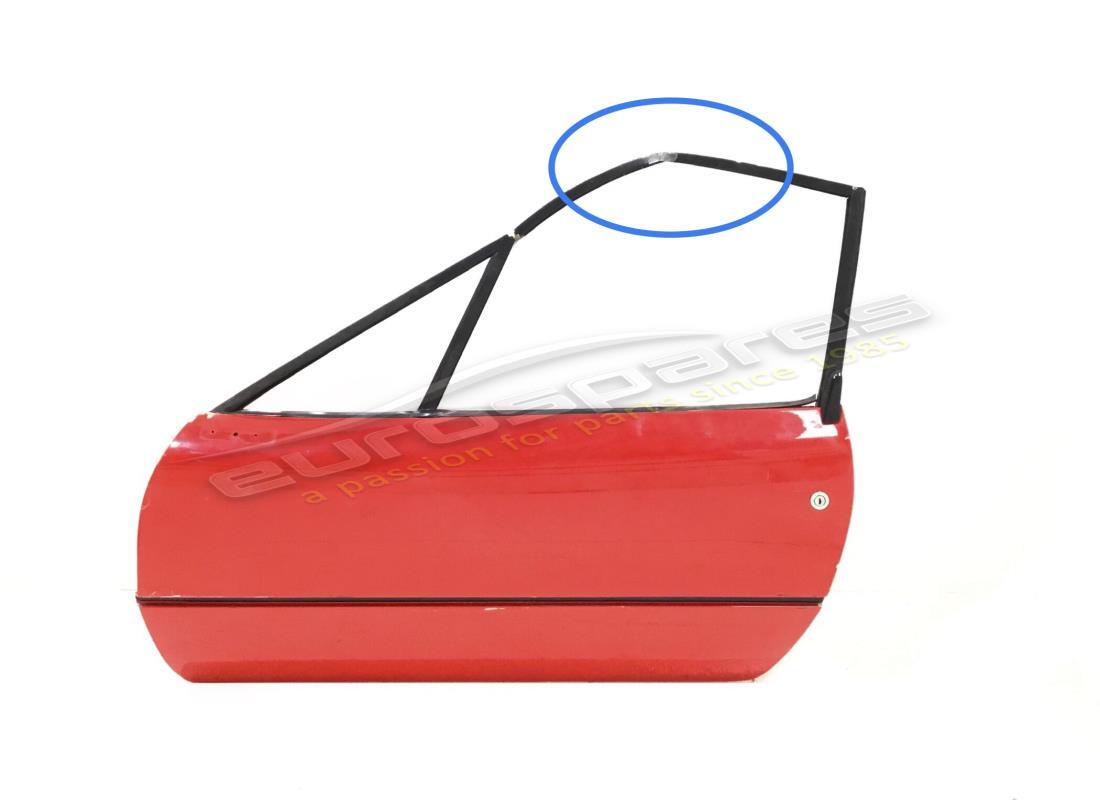

# 001
MPN: 500306
Porta Sx completa
# 002
MPN: 50082809
RIGHT DOOR FRAME
Supersession
Supersession
# 002
MPN: 50313600
TELAIO PORTA SX
from £2,467.50
from £2,467.50
This part replaces part number 50082908 - and 1 more. Click to view details
# 003
MPN: 501416
INTERNAL BULKHEAD RIGHT
from £420.00
from £420.00
# 003
MPN: 501417
PARATIA INTERNA SX
# 003
MPN: 502150
RIGHT BULKHEAD COVERING
# 003
MPN: 502151
RIVESTIMENTO PARATIA SX
# 004
MPN: 501418
APPOGGIABRACCIA DX
# 004
MPN: 501419
APPOGGIABRACCIA SX
# 004
MPN: 501424
RIVESTIMENTO APPOGGIABRACCIA
# 005
MPN: 501420
MANIQLIA
# 005
MPN: 501425
HANDLE COVERING
from £47.25
from £47.25
# 006
MPN: 17606705
SCREW
# 007
MPN: 501435
INTERNAL PANEL RIGHT DOOR
# 007
MPN: 501436
PANNELLO INTERNO PORTA SX
# 007
MPN: 501439
RIGHT PANEL COVERING
# 007
MPN: 501440
RIVESTIMENTO PANNELLO SX
# 008
MPN: 50074103
MOLDING FOR SPEAKER
from £560.48
from £560.48
# 009
MPN: 501429
GASKET OR SEAL
# 010
MPN: 1502063
SCREW
# 011
MPN: 501368
ALTOPARLANTE
# 012
MPN: 501369
CLIP
# 013
MPN: 1300651
SCREW
# 014
MPN: 16323310
Outer door scraper rubber
(50016708) - Price per meter
from £52.45
from £52.45
# 015
MPN: 501385
GASKET
# 016
MPN: 500316
CERNIERA
# 017
MPN: 40120404
PIVOT
from £14.87
from £14.87
This part replaces part number 20074100 - and 1 more. Click to view details
# 018
MPN: 11065774
SEEGER RING
from £1.76
from £1.76
This part replaces part number 11065775
# 019
MPN: 501371
RIGHT CABLES
# 019
MPN: 501372
CAVI SX

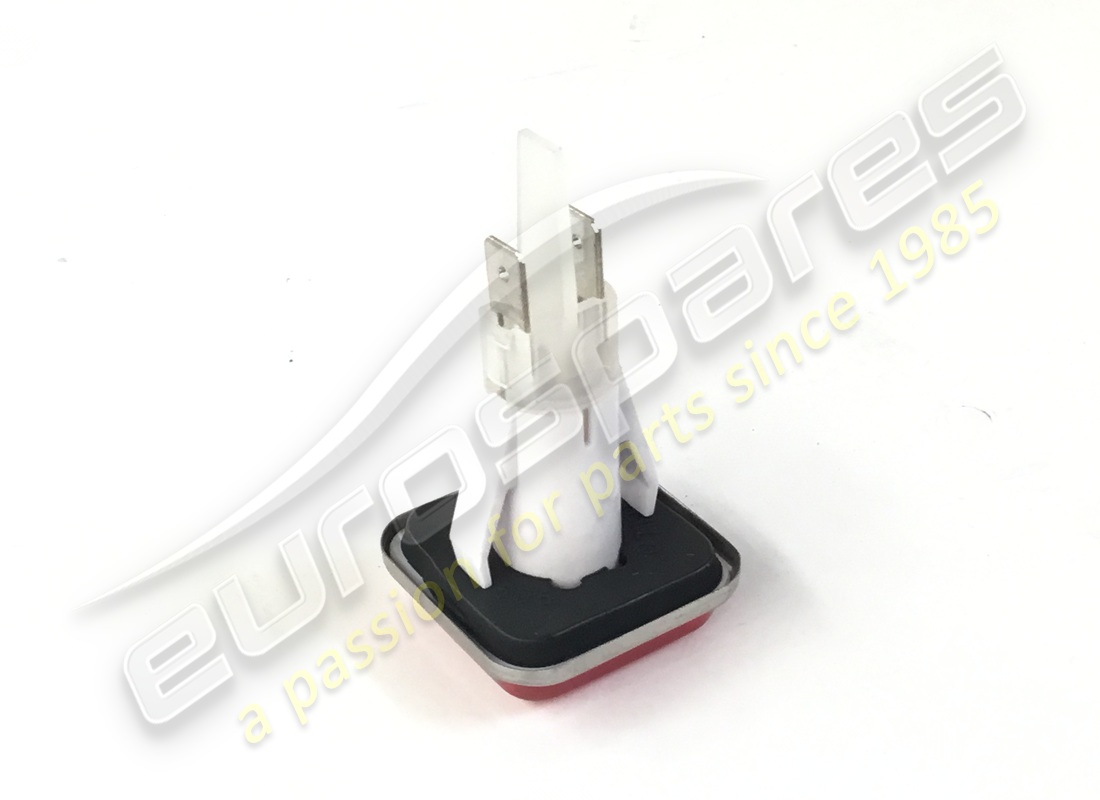

# 020
MPN: 50137009
DOOR OPEN INDICATOR
from £36.94
from £36.94
This part replaces part number 106380
# 021
MPN: 101525
BULB
from £2.12
from £2.12
This part replaces part number 101528

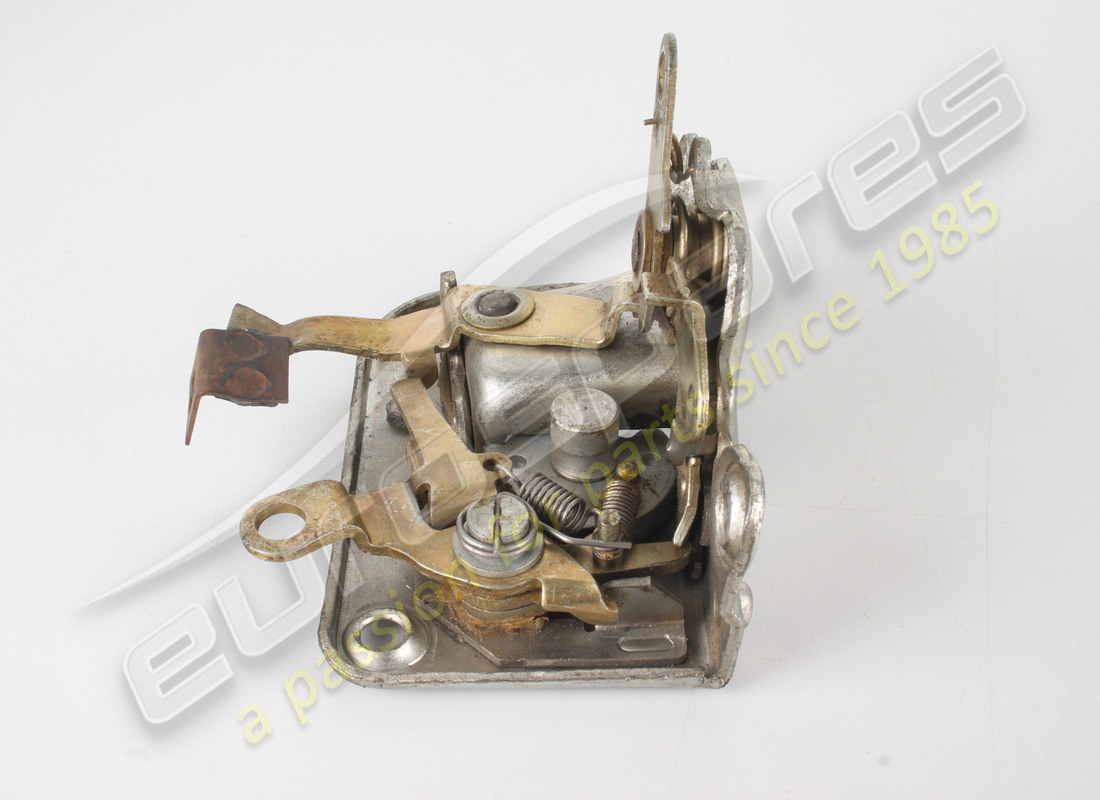

# 022
MPN: 50137801
SERRATURA DX
from £143.56
from £143.56
# 022
MPN: 50137900
SERRATURA SX
from £261.01
from £261.01
# 023
MPN: 200360
SPRING
# 024
MPN: 12574211
NUT
from £0.71
from £0.71
# 025
MPN: 15896211
NUT
Supersession
Supersession
This part replaces part number 15896210 which we have in stock
# 026
MPN: 200895
BUSH
from £12.60
from £12.60
# 027
MPN: 501377
SCREW
# 028
MPN: 501376
TITANTE
# 029
MPN: 200356
RIGHT LOCK BLOCK
Supersession
Supersession
# 029
MPN: 200357
BLOCCHETTO SERRATURA SX
Supersession
Supersession
# 030
MPN: 201811
GASKET
# 031
MPN: 200358
SPACER
# 032
MPN: 200632
RING NUT
# 033
MPN: 20037305
BUSH
from £25.04
from £25.04
# 034
MPN: 200359
SEEGER RING
# 035
MPN: 200360
SPRING
# 036
MPN: 500322
RIGHT HANDLE
from £6.40
from £6.40
# 036
MPN: 500323
MANIGLIA SX
# 037
MPN: 200438
RUBBER GROMMET
# 038
MPN: 201065
CAVO
# 039
MPN: 12601270
RONDETLA
Supersession
Supersession
# 040
MPN: 169180
NUT
from £0.53
from £0.53
This part replaces part number 12574121
# 041
MPN: 20170403
POMMELLO
Supersession
Supersession
This part replaces part number 30016000 - and 1 more. Click to view details
# 042
MPN: 300162
CABLE GROMMET
from £6.85
from £6.85
# 043
MPN: 50061803
LOCK ROD
from £11.38
from £11.38
# 044
MPN: 30016109
CLIP
Supersession
Supersession
This part replaces part number 30016107
# 045
MPN: 1302140
SCREW
# 046
MPN: 200370
CLIP
# 047
MPN: 501430
RIGHT MOLDING
# 047
MPN: 501431
MODANATURA SX
# 048
MPN: 17677905
SCREW
# 049
MPN: 20019105
RIGHT RECEIPT
Supersession
Supersession
# 049
MPN: 200192
SCONTRINO SX
# 050
MPN: 1302140
SCREW
# 051
MPN: 200437
BUSH
from £451.09
from £451.09
# 052
MPN: 20157202
CAVO
from £41.67
from £41.67
# 053
MPN: 301652
SPRING
# 054
MPN: 10794011
NUT
from £0.26
from £0.26
# 055
MPN: 10615270
WASHER
Supersession
Supersession
# 056
MPN: 10375001
SCREW
# 057
MPN: 20-26-14
MANIQLIA
# 058
MPN: 500165
CANAFINO POSTERIORE
# 059
MPN: 500166
CANALINO SUPERIORE
# 060
MPN: 501383
CANALINO ANTERIORE
# 061
MPN: 50017003
CANALINO POST.CRISTALLO F ISSO
Supersession
Supersession
# 062
MPN: 501384
CANALINO ANT.CRISTALLO FISSO
# 063
MPN: 50016807
RH FRONT QTR GLASS
from £142.74
from £142.74

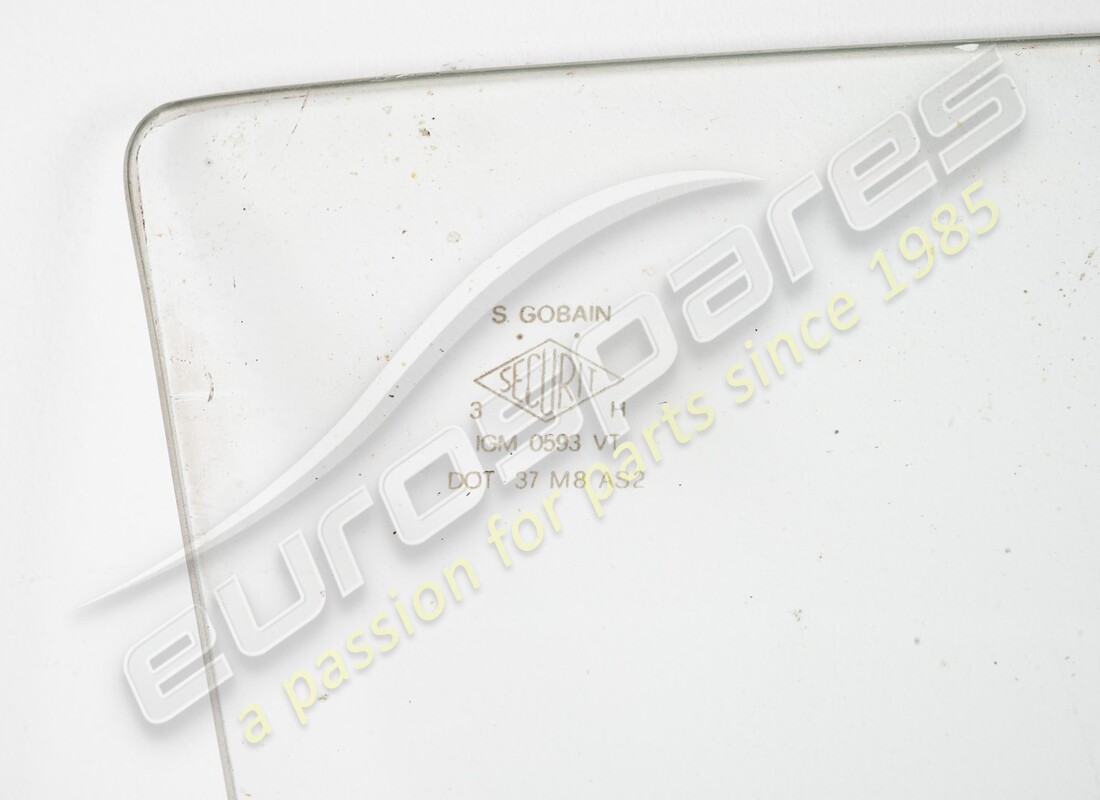

# 063
MPN: 50016906
LH FRONT QTR GLASS
from £640.44
from £640.44

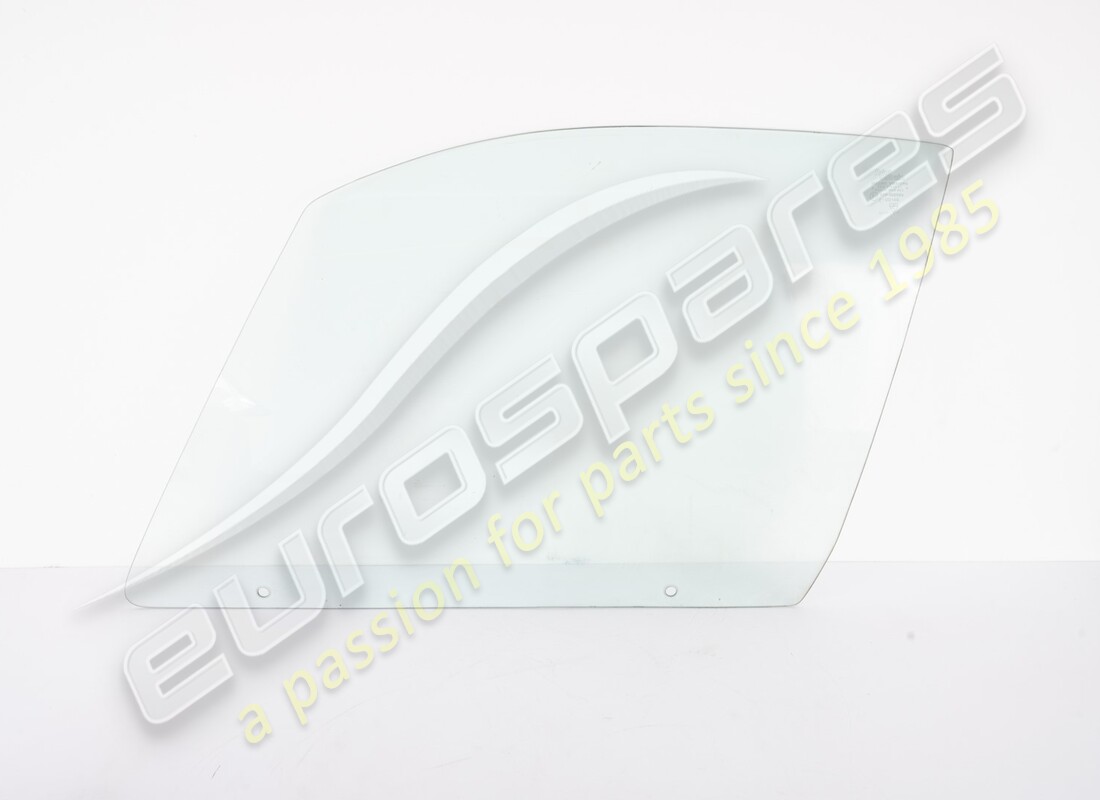

# 064
MPN: 50016302
RH DOOR GLASS
from £525.00
from £525.00
# 064
MPN: 50016401
LH DOOR GLASS
from £1,391.03
from £1,391.03
# 065
MPN: 10902811
SCREW
from £0.99
from £0.99
# 066
MPN: 12640624
WASHER
from £0.47
from £0.47
This part replaces part number 12640601 - and 1 more. Click to view details
# 067
MPN: 50086909
BUSH
from £7.65
from £7.65
# 068
MPN: 501382
DISTANZIATE
# 069
MPN: 12643724
WASHER
from £0.47
from £0.47
This part replaces part number 109684 - and 4 more. Click to view details
# 070
MPN: 15896211
NUT
Supersession
Supersession
This part replaces part number 15896210 which we have in stock
# 071
MPN: 20154605
SCREW
from £2.49
from £2.49
This part replaces part number 20042008
# 072
MPN: 20170007
CARRUCOLA
from £72.00
from £72.00
# 073
MPN: 12643724
WASHER
from £0.47
from £0.47
This part replaces part number 109684 - and 4 more. Click to view details
# 074
MPN: 12605370
WASHER
Supersession
Supersession
# 075
MPN: 15896211
NUT
Supersession
Supersession
This part replaces part number 15896210 which we have in stock
# 076
MPN: 501386
BRACKET / SUPPORT
# 077
MPN: 500309
Motorino alzacristallb Dx
# 077
MPN: 500310
MOTORINO ALZACRISTALLO SX
# 078
MPN: 10615370
WASHER
Supersession
Supersession
# 079
MPN: 15896411
NUT
Supersession
Supersession
This part replaces part number 15896401
